Description
Description

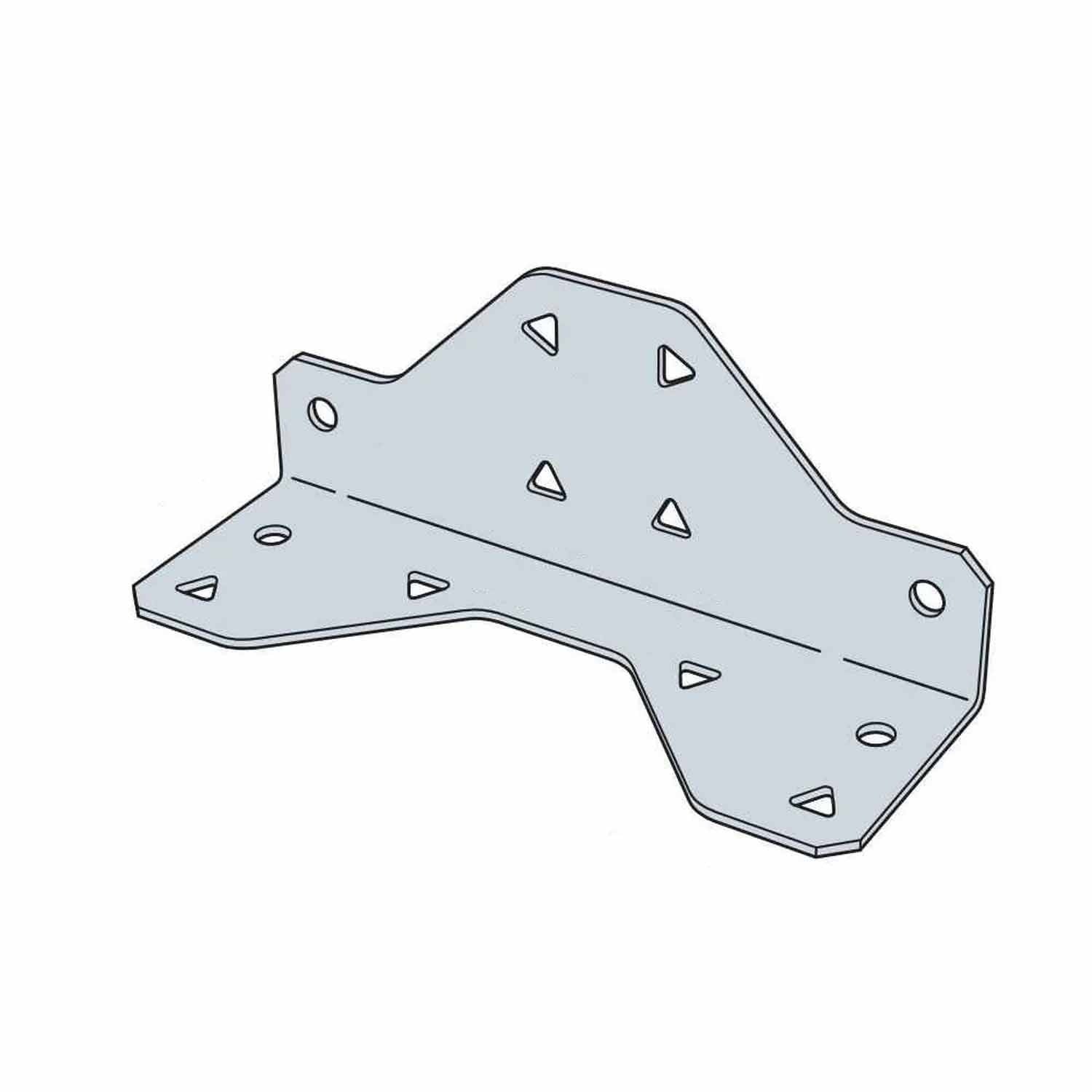

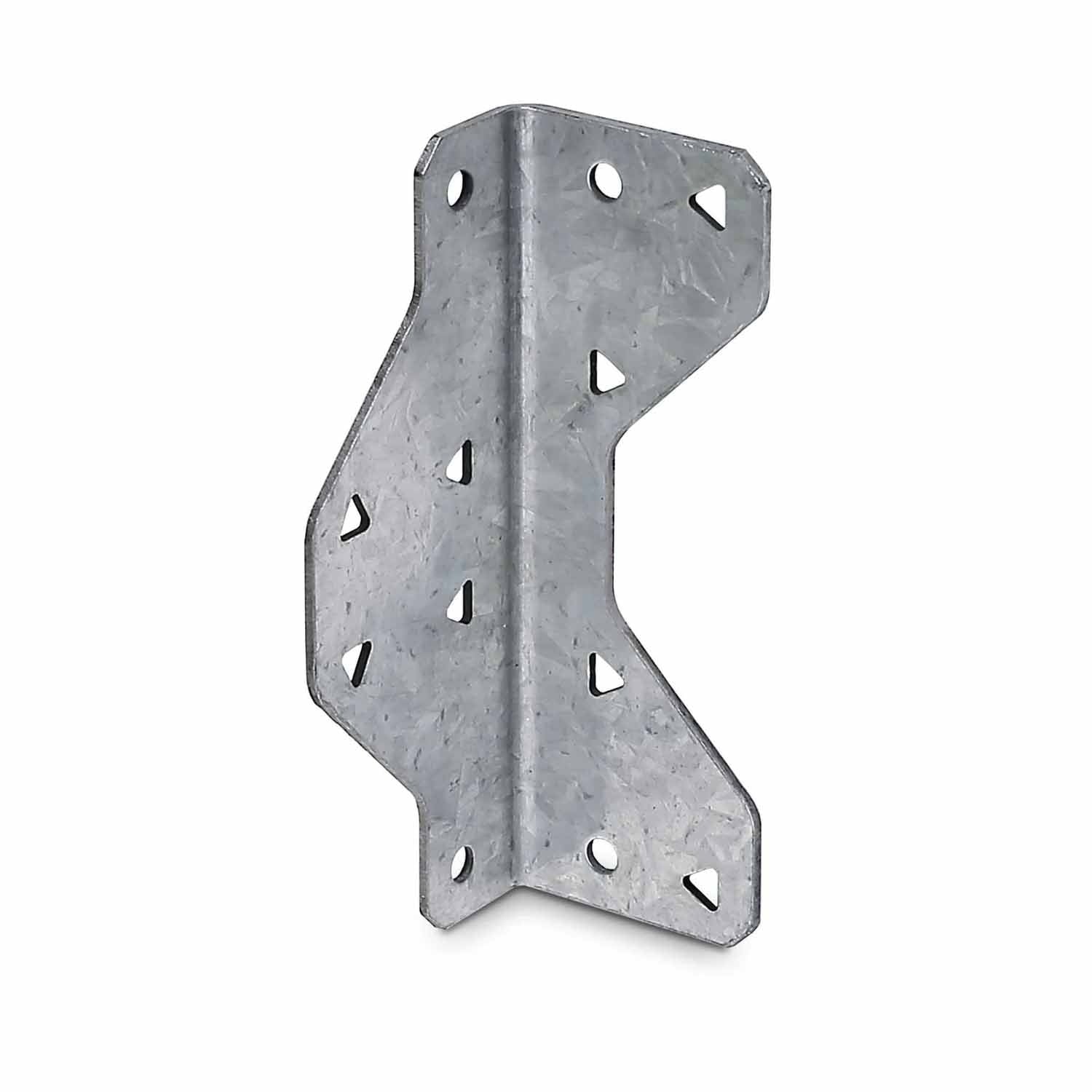

Simpson Strong-Tie SFC4.25-R175 Description
The SFC4.25-R175 Steel Framing Connector is a versatile utility clip designed for light to moderate loading conditions in cold-formed steel applications. It features a G90 galvanized finish for corrosion resistance and pre-punched holes for easy installation.
Simpson Strong-Tie SFC4.25-R175 Includes
- (175) Steel Framing Connector
Simpson Strong-Tie SFC4.25-R175 Features
- Reduced number of screws reduces installation cost
- Prepunched holes reduce installation cost by eliminating predrilling
- Intuitive fastener hole positions ensure accurate clip installation
- Suitable for u-channel bridging
- G90 galvanized finish for corrosion resistance
Simpson Strong-Tie SFC4.25-R175 Applications
- Curtain-wall construction

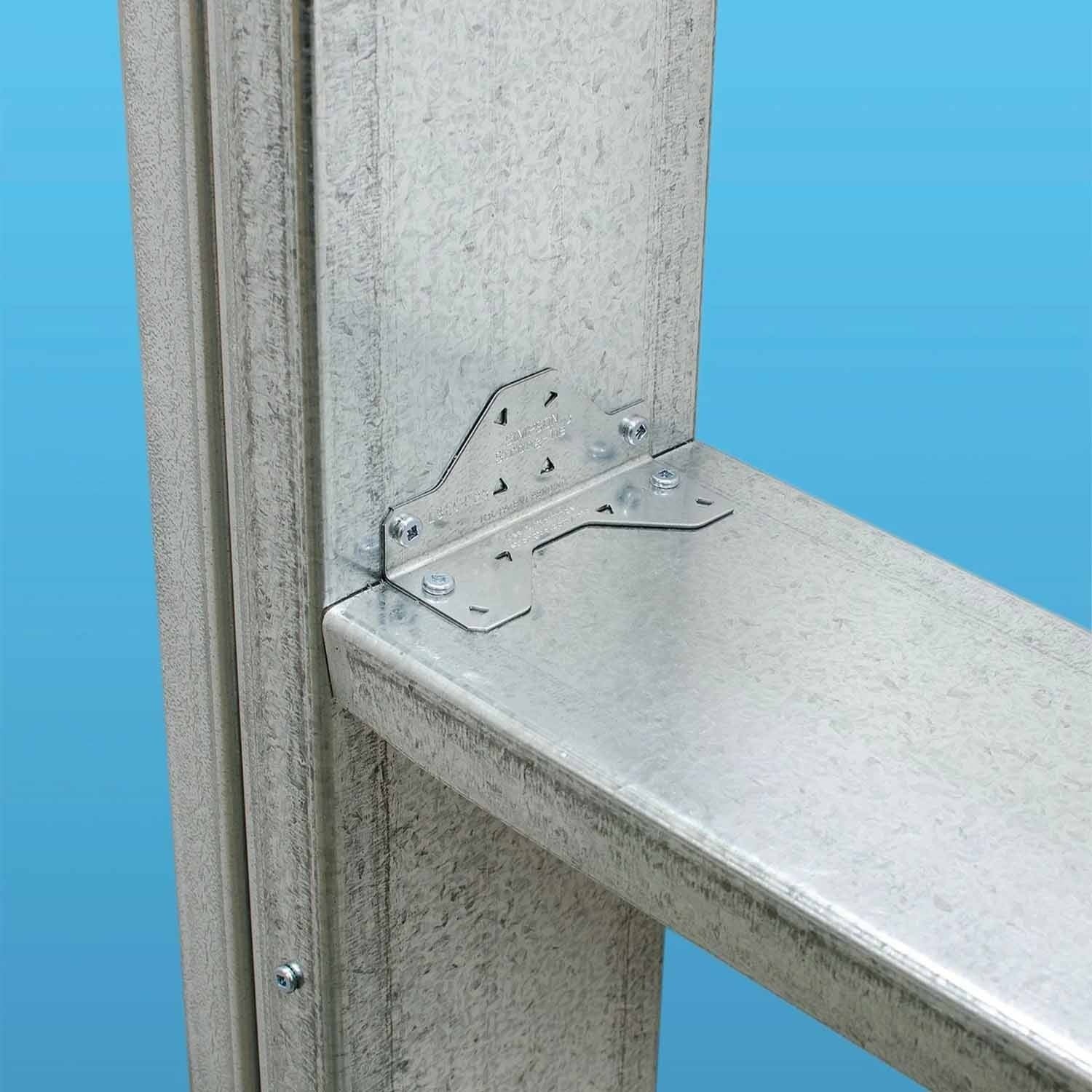

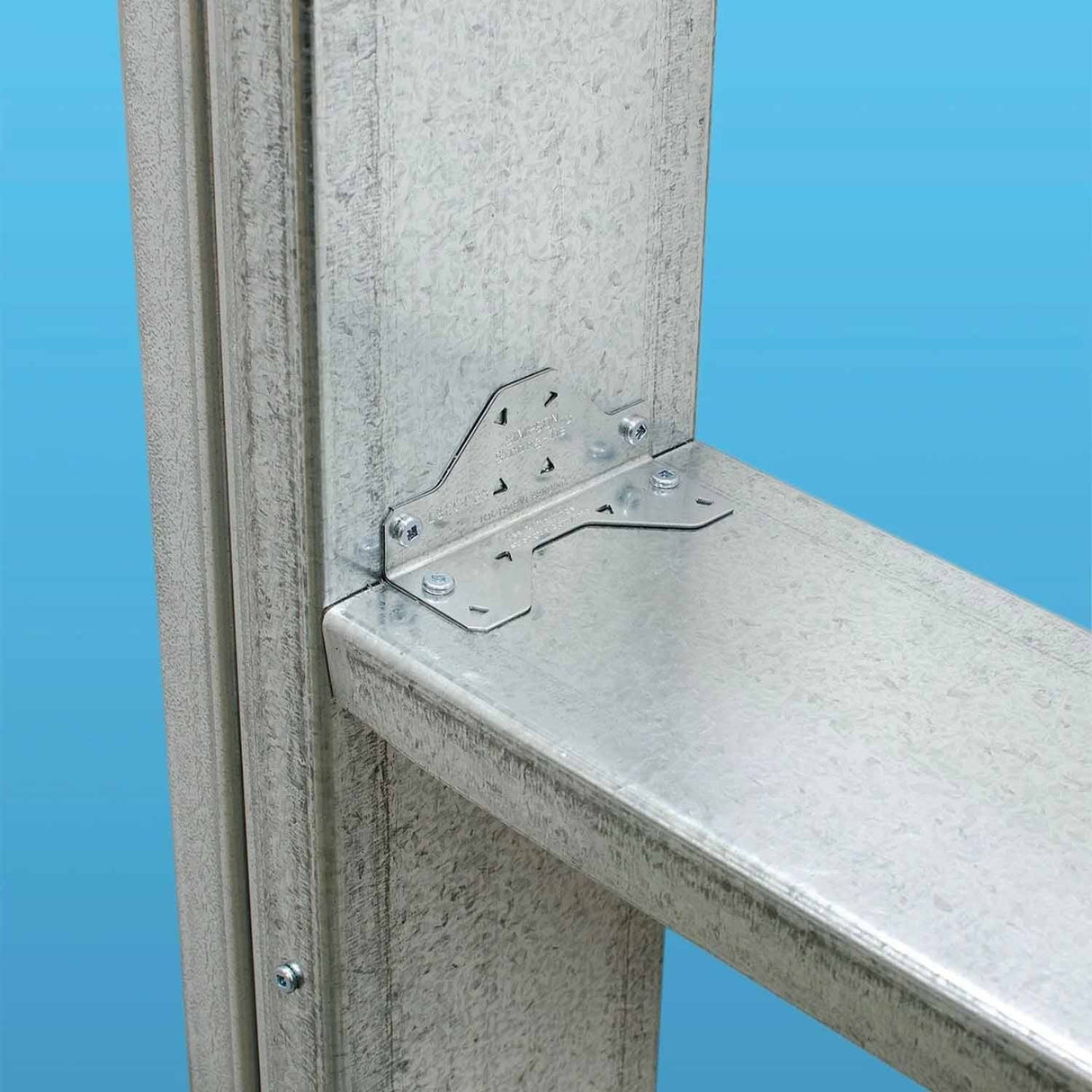

- Cold-formed steel stud-to-stud and stud-to-structure connections
Simpson Strong-Tie SFC4.25-R175 Installation Overview
- Use all specified fasteners/anchors
Simpson Strong-Tie SFC4.25-R175 Specifications
| Material | 54 mil (50 ksi) |
| Finish | Galvanized (G90) |
| Gauge | 16 |
| Dimensions | 1 1/2 x 1 3/4 in. |
| Length | 4 1/4 in. |
| Packaging Quantity | 175 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
Toolup Part # :
821636
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
