Simpson Anchors | SKU:
STB2-37214S6F50
Simpson Strong-Tie STB2-37214S6F50 (3/8" x 2-1/4") Strong-Bolt 2 Wedge Anchor Type 316 Stainless-Steel (50 Pack)
$152.34
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-37214S6F50 Description
The Simpson Strong-Tie Fully Assembled Strong-Bolt 2 Wedge Anchors are engineered for maximum performance in corrosive environments, ideal for heavy-duty fastening into cracked or uncracked concrete.
Simpson Strong-Tie STB2-37214S6F50 Includes
- (50) 3/8 in. x 2-1/4 in. Type 316 Stainless-Steel Wedge Anchor
Simpson Strong-Tie STB2-37214S6F50 Features
- 316 Stainless Steel Construction for exceptional corrosion resistance
- Fully assembled with nut and washer for ease of installation
- ICC-ES ESR-3037 code listed for cracked and uncracked concrete applications
- Suitable for anchoring structural supports, machinery, railing systems, and more
- Available in multiple diameter and length options
Simpson Strong-Tie STB2-37214S6F50 Applications
- Marine environments: Anchoring structural supports in coastal areas
- Wastewater facilities: Securing machinery and equipment
- Chemical exposure areas: Reliable fastening in industrial settings
- Residential garages: Anchoring handrails and other fixtures
- Commercial builds: Reinforcing structural connections

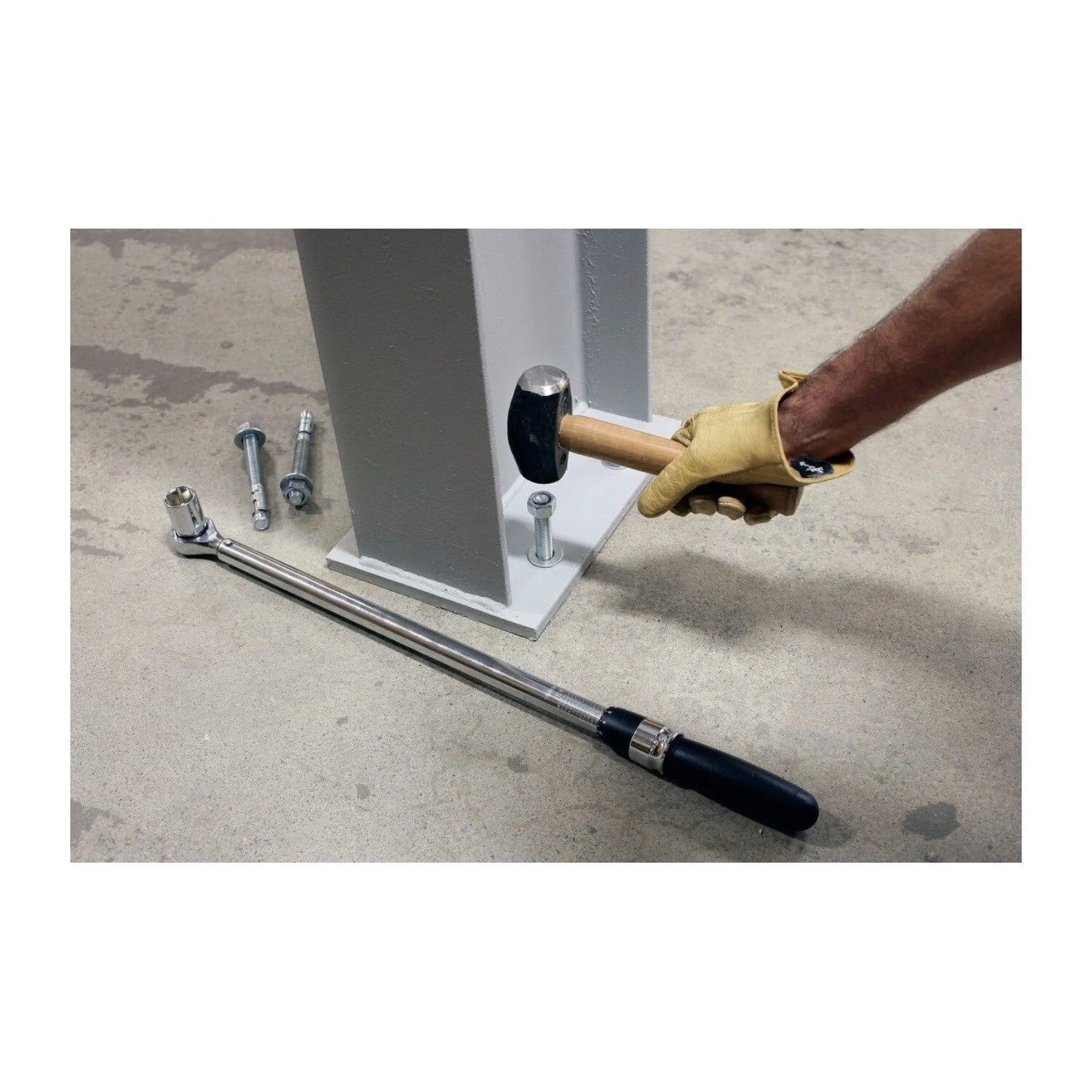

Simpson Strong-Tie STB2-37214S6F50 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Blow the hole clean using compressed air or ensure it is deep enough to accommodate embedment depth.
- Assemble the anchor with nut and washer, ensuring the nut is flush with the top of the anchor.
- Place the anchor in the fixture and drive it into the hole until the washer and nut are tight against the fixture.
- Tighten to the required installation torque.
Simpson Strong-Tie STB2-37214S6F50 Specifications
| Diameter | 3/8 in. |
| Length | 2-1/4 in. |
| Material | 316 Stainless Steel |
| Drill bit size | 3/8 in. |
| Fixture hole size | 7/16 in. |
| Installation torque | 20 ft. lbf. |
| Thread length | 1 in. |
| Wrench size | 9/16 in. |
NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values.
