Simpson Anchors | SKU:
STB2-373124SS

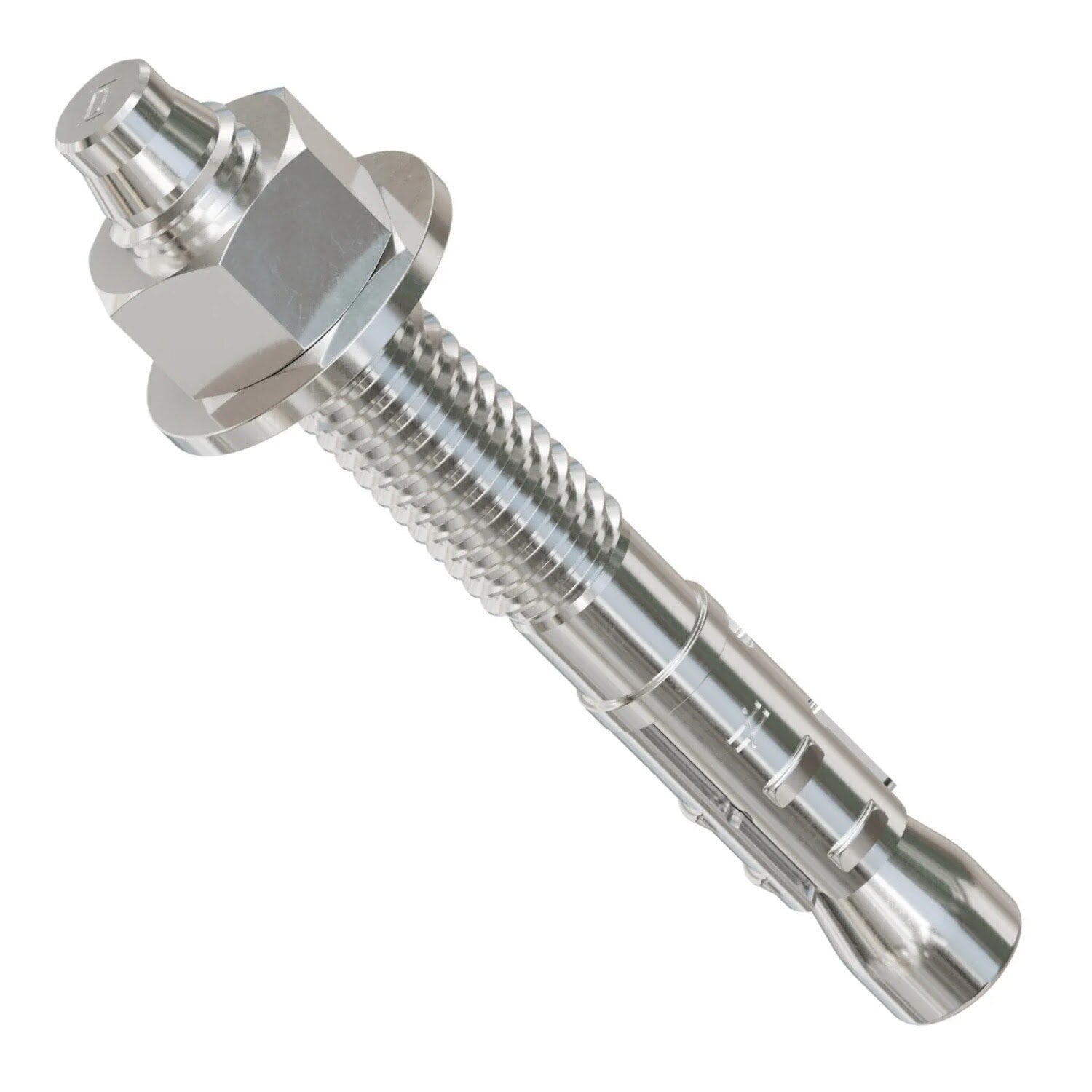

Simpson Strong-Tie STB2-373124SS Strong Bolt (3/8" x 3-1/2") Stainless Steel 2 Wedge Anchor - Uassembled (50 Pack)
$114.87
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-373124SS Description

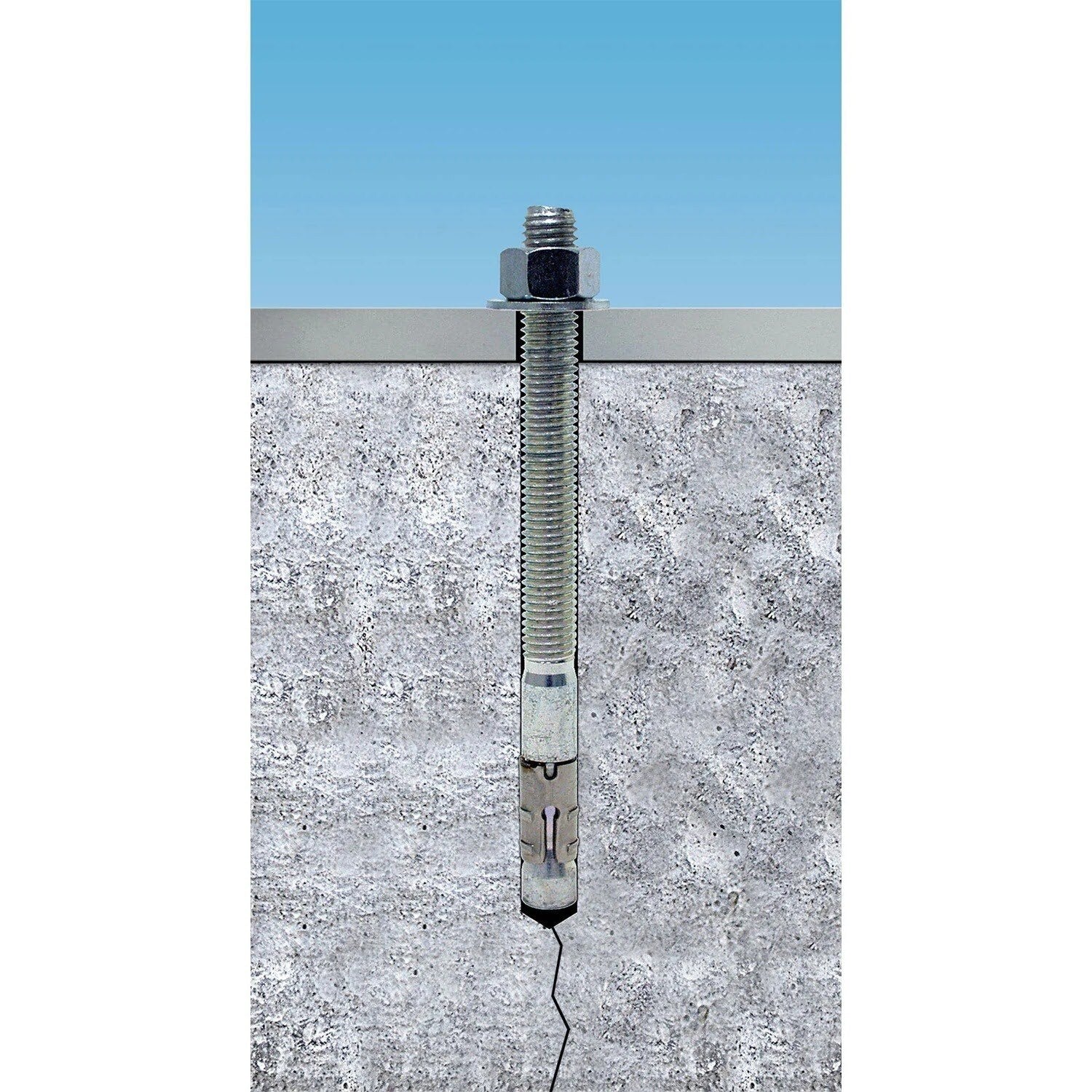

Simpson Strong-Bolt 2 anchors are non-bottom-bearing, ICC-ES code compliant anchors made to be installed in cracked or uncracked concrete. They are qualified for both static and seismic loading and suitable for horizontal, vertical, and overhead applications.
Simpson Strong-Tie STB2-373124SS Includes
- (50) 3/8" x 3-1/2" Strong-Bolt 2 Wedge Anchor
Simpson Strong-Tie STB2-373124SS Features
- Non-bottom-bearing design for versatile installation
- ICC-ES code compliant for cracked and uncracked concrete
- Qualified for static and seismic loading
- Suitable for horizontal, vertical, and overhead applications
- Made from durable 304 stainless steel
Simpson Strong-Tie STB2-373124SS Applications

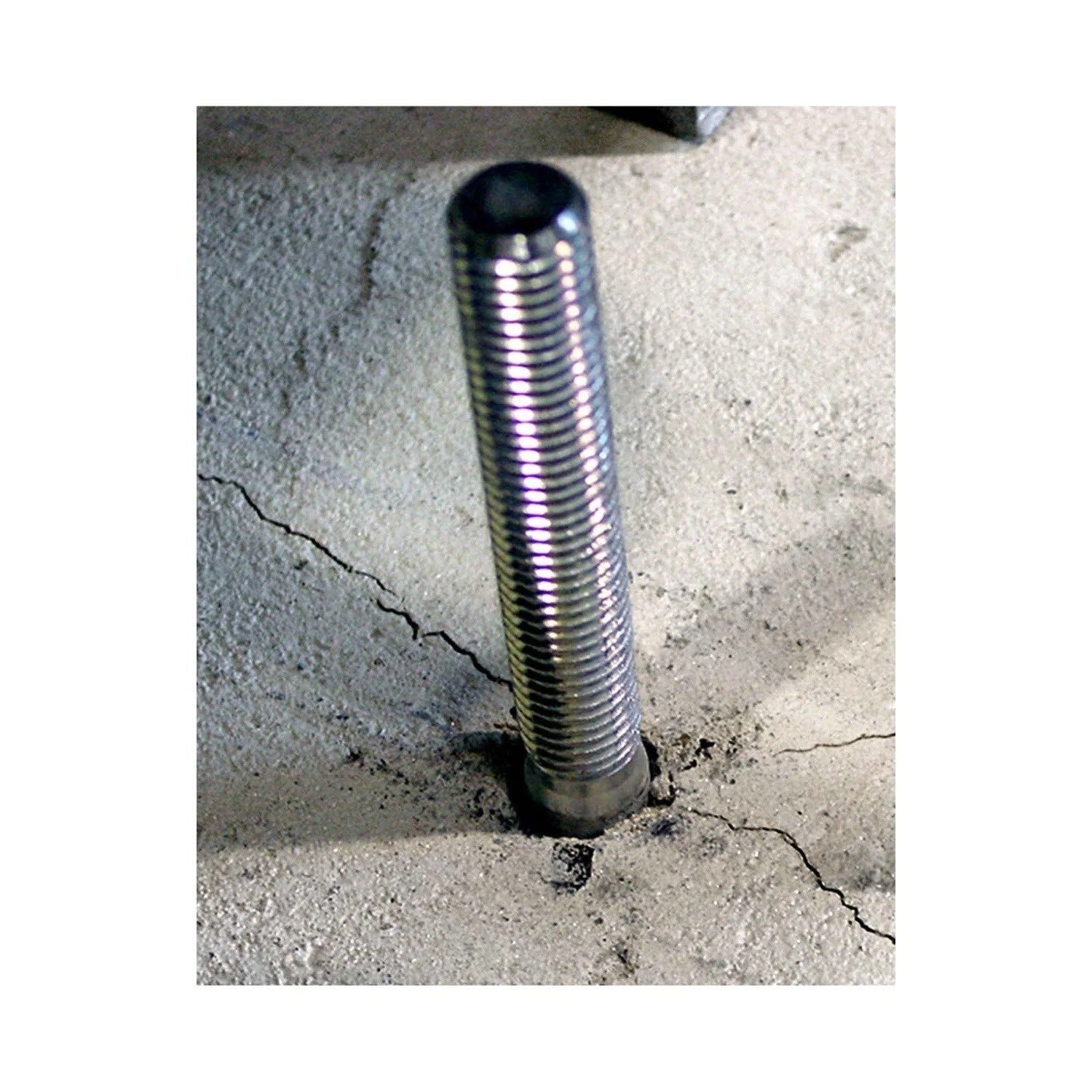

- Cracked and uncracked concrete installations
- Seismic and static load applications

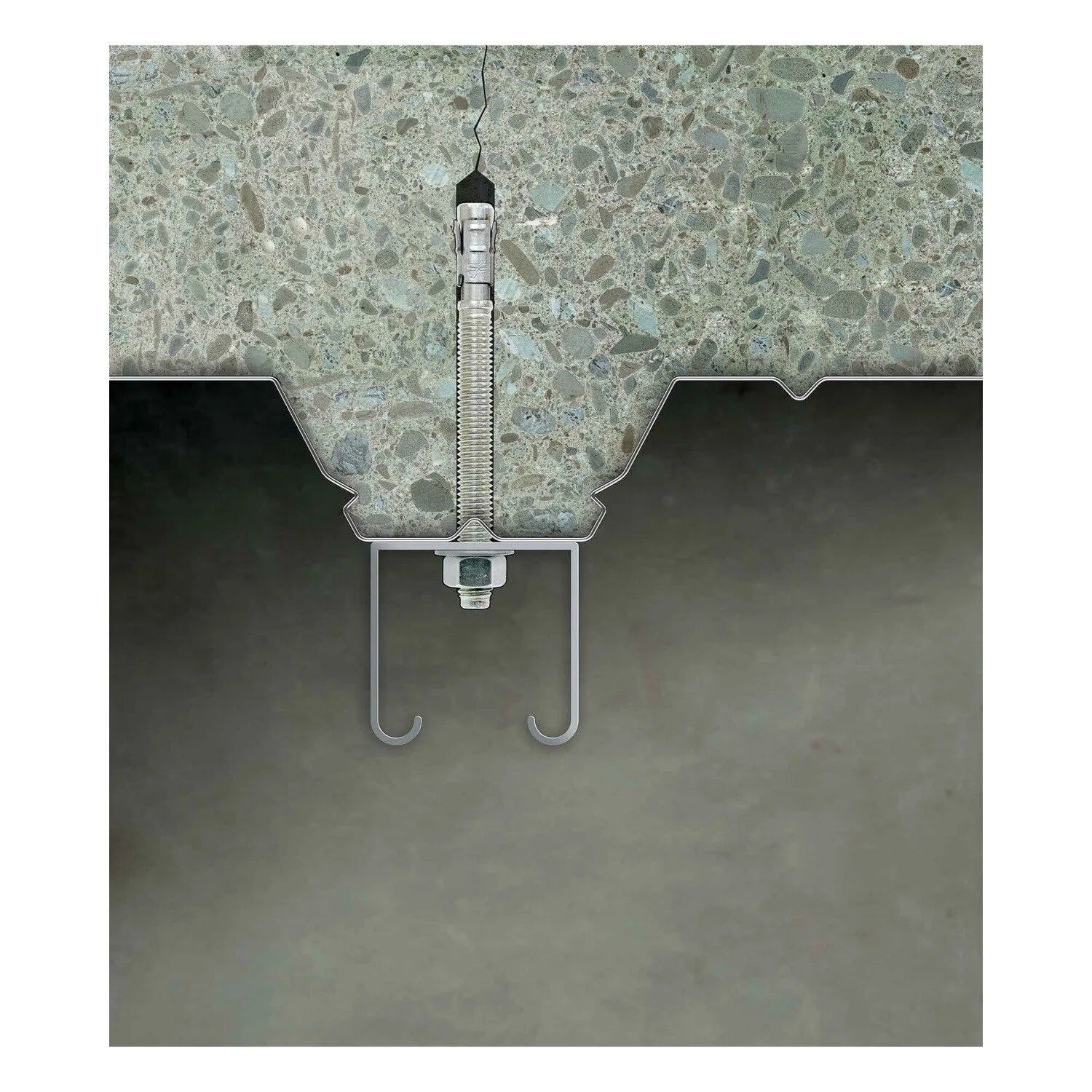

- Horizontal, vertical, and overhead anchoring
Simpson Strong-Tie STB2-373124SS Installation Overview
- Drill a 3/8" hole into the base material to the specified depth.
- Clean the hole of debris and dust.

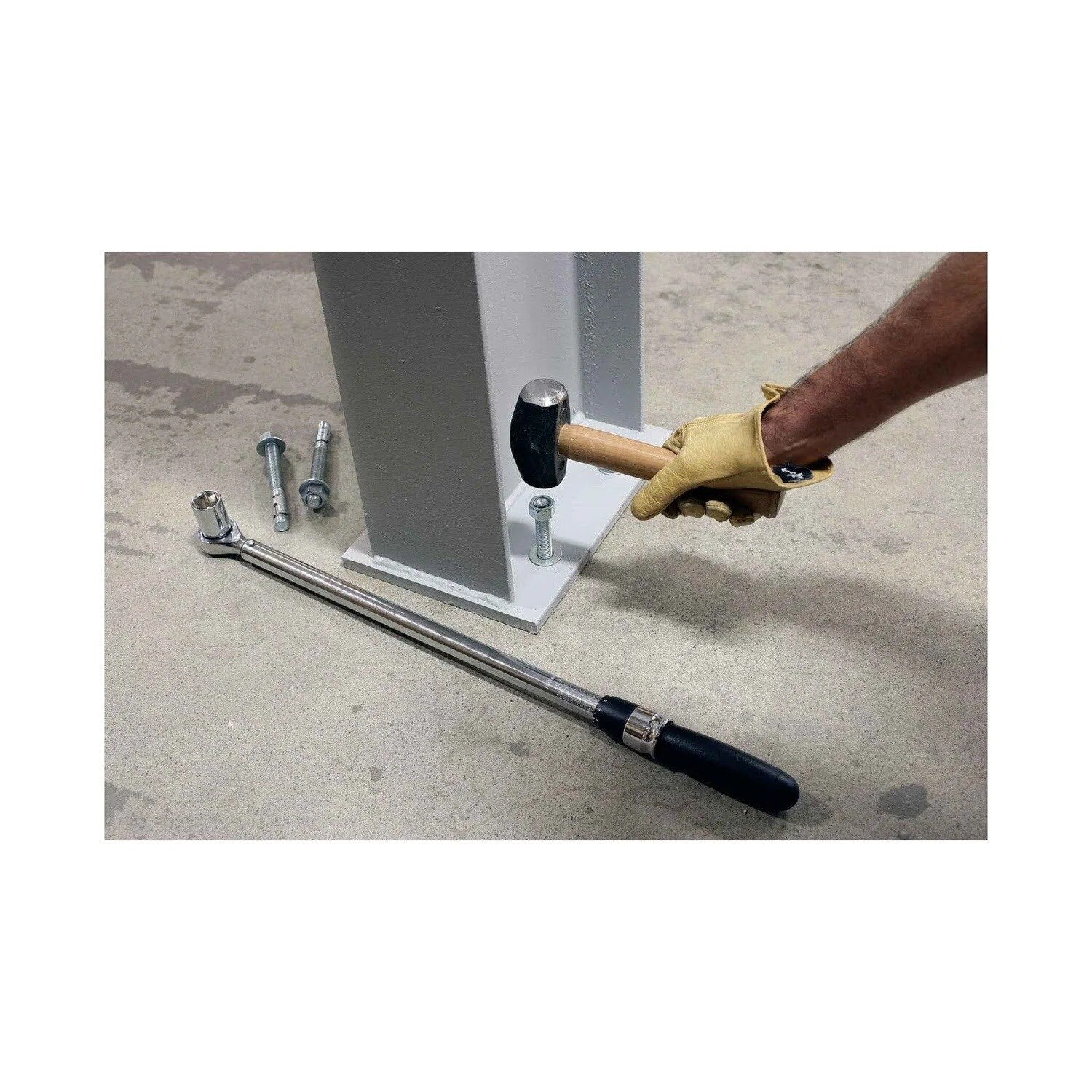

- Insert the anchor into the hole and tap it until flush with the surface.

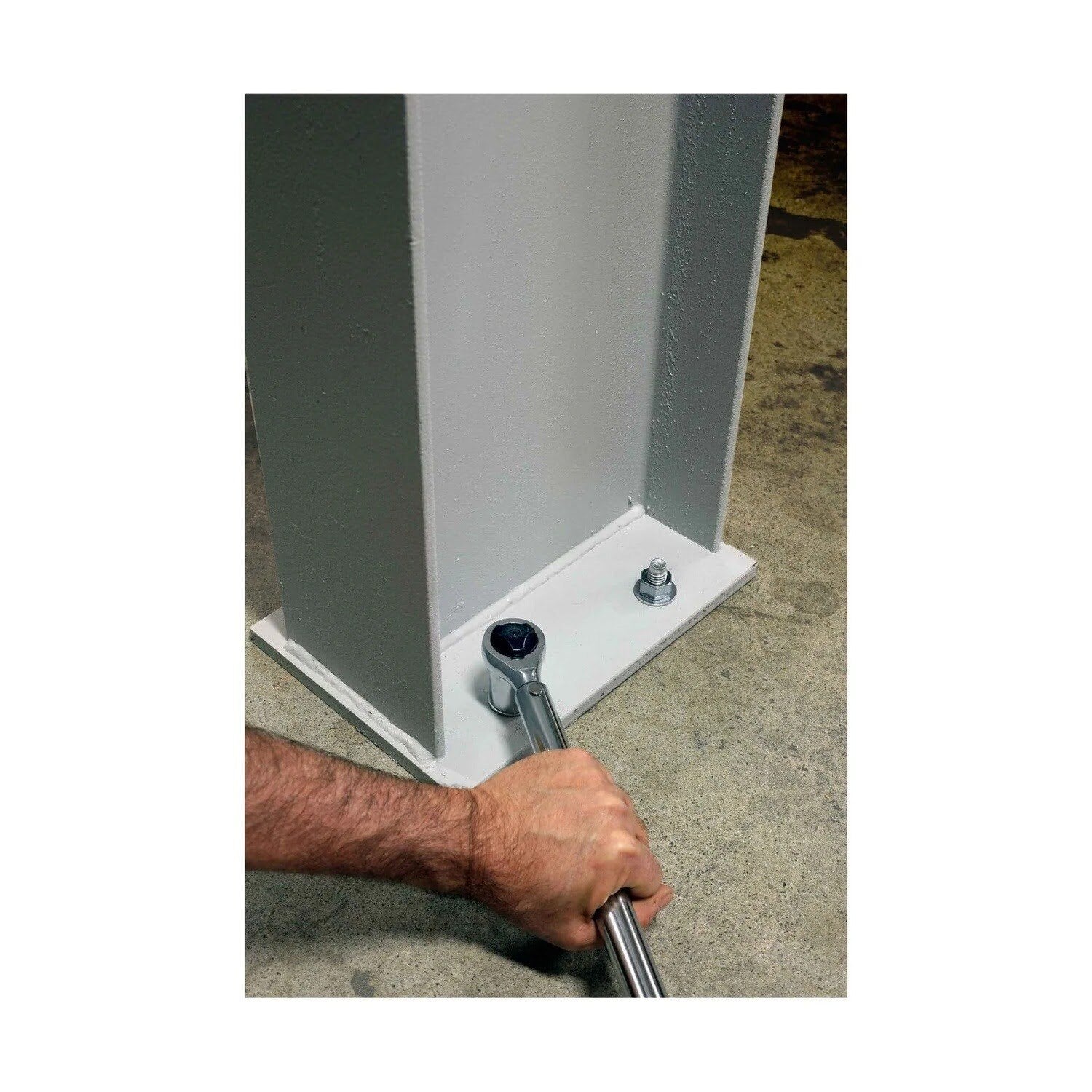

- Tighten the anchor using a wrench to the specified torque of 30 ft. lbs.
Simpson Strong-Tie STB2-373124SS Specifications
| Diameter | 3/8" |
| Length | 3-1/2" |
| Material | 304 Stainless Steel |
| Drill bit size | 3/8" |
| Installation torque | 30 ft. lbs |
| Thread length | 2-1/16" |
NOTE: Do not use an impact wrench to set or tighten anchors. Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor’s load capacity.
