Simpson Strong-Tie STB2-502346SSR25 (1/2" x 2-3/4") Strong-Bolt 2 Wedge Anchor Type 316 Stainless Steel (25 Pack)

$187.98

Description

Simpson Strong-Tie STB2-502346SSR25 Description

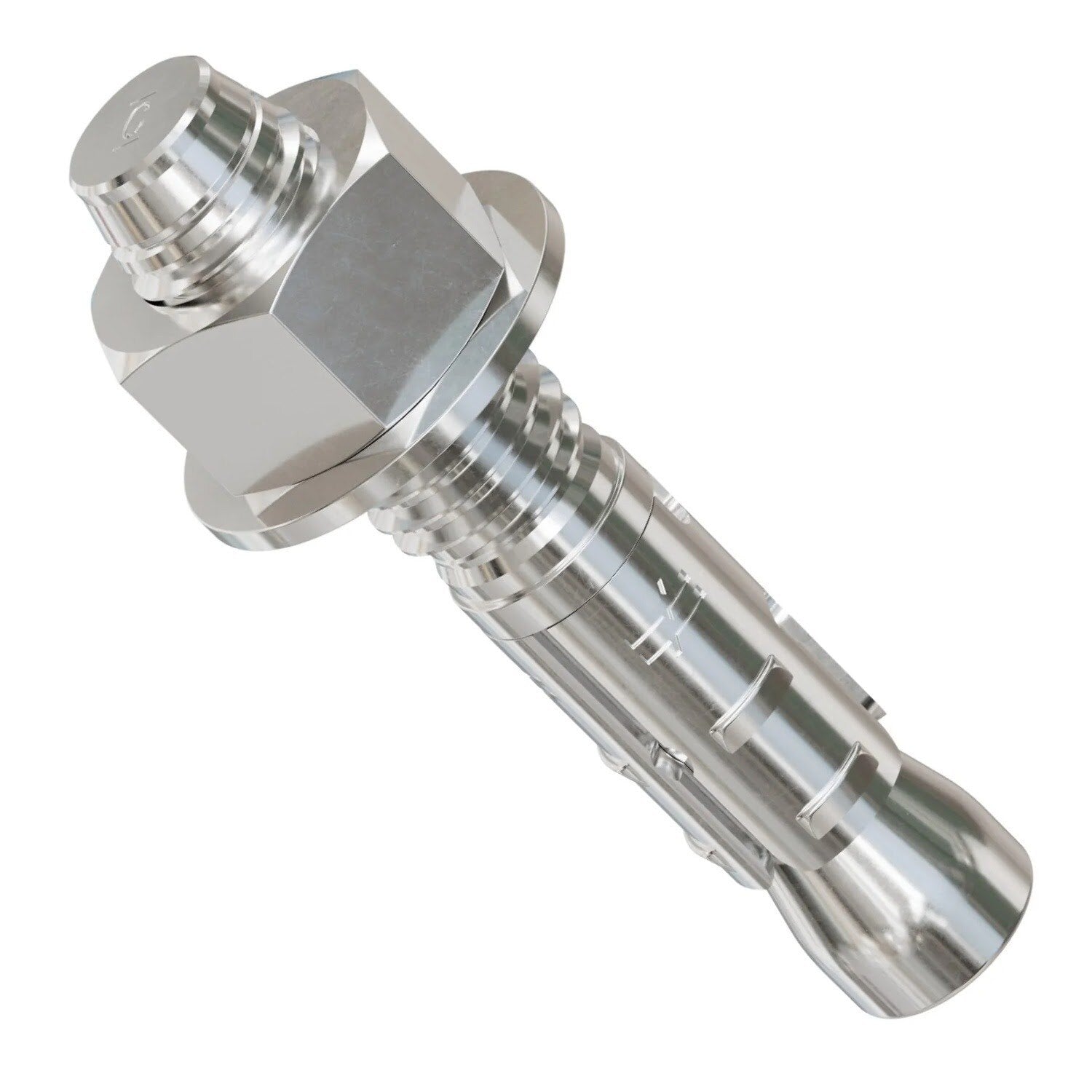

The Strong-Bolt 2 Wedge Anchor is a Type 316 stainless steel anchor designed for cracked and uncracked concrete, suitable for static and seismic loading conditions.

Simpson Strong-Tie STB2-502346SSR25 Includes

  • (25) Strong-Bolt 2 Wedge Anchor

Simpson Strong-Tie STB2-502346SSR25 Features

  • Chamfered top designed to prevent mushrooming during installation
  • Qualified for static and seismic loading conditions (seismic design categories A through F)
  • Suitable for horizontal, vertical and overhead applications
  • Qualified for minimum concrete thickness of 3 1/4", and lightweight concrete-over-steel deck
  • Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
  • Tested per ACI355.2 and AC193

Simpson Strong-Tie STB2-502346SSR25 Applications

  • Concrete anchoring in cracked and uncracked concrete
  • Seismic and static load applications
  • Horizontal, vertical, and overhead installations

Simpson Strong-Tie STB2-502346SSR25 Installation Overview

  1. Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
  2. Blow the hole clean using compressed air or ensure it is deep enough to accommodate dust.
  3. Assemble the anchor with nut and washer, place it in the fixture, and drive it into the hole.
  4. Tighten the anchor to the required installation torque.

Simpson Strong-Tie STB2-502346SSR25 Specifications

Material Type 316 Stainless Steel
Length 2-3/4"
Drill Bit Size 1/2"
Fixture Hole Size 9/16"
Installation Torque 65 ft. lbf.
Thread Length 1-1/4"

NOTE: Do not use an impact wrench to set or tighten the Strong-Bolt 2 anchor. Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor's load capacity.
