Simpson Anchors | SKU:
STB2-50512S4F25

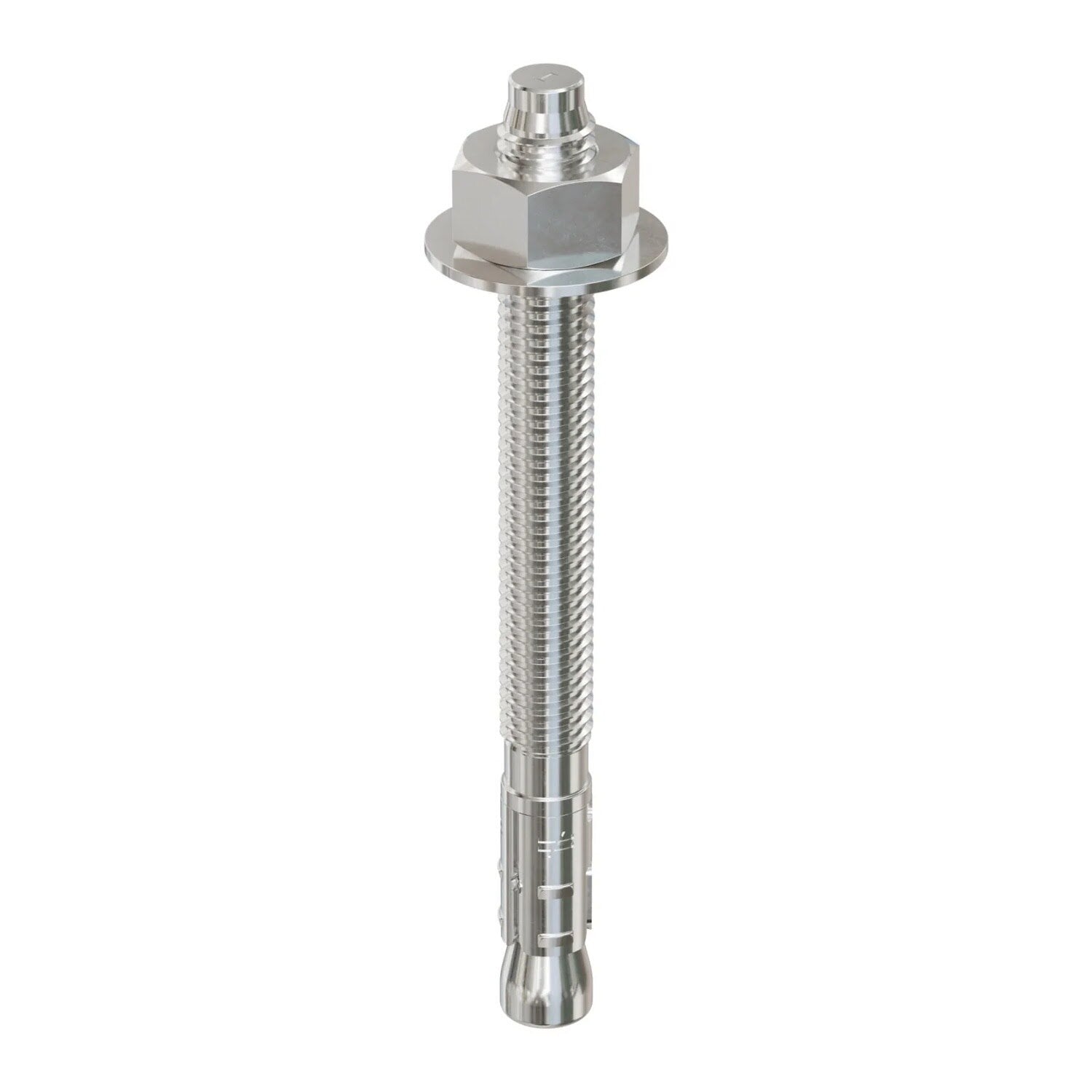

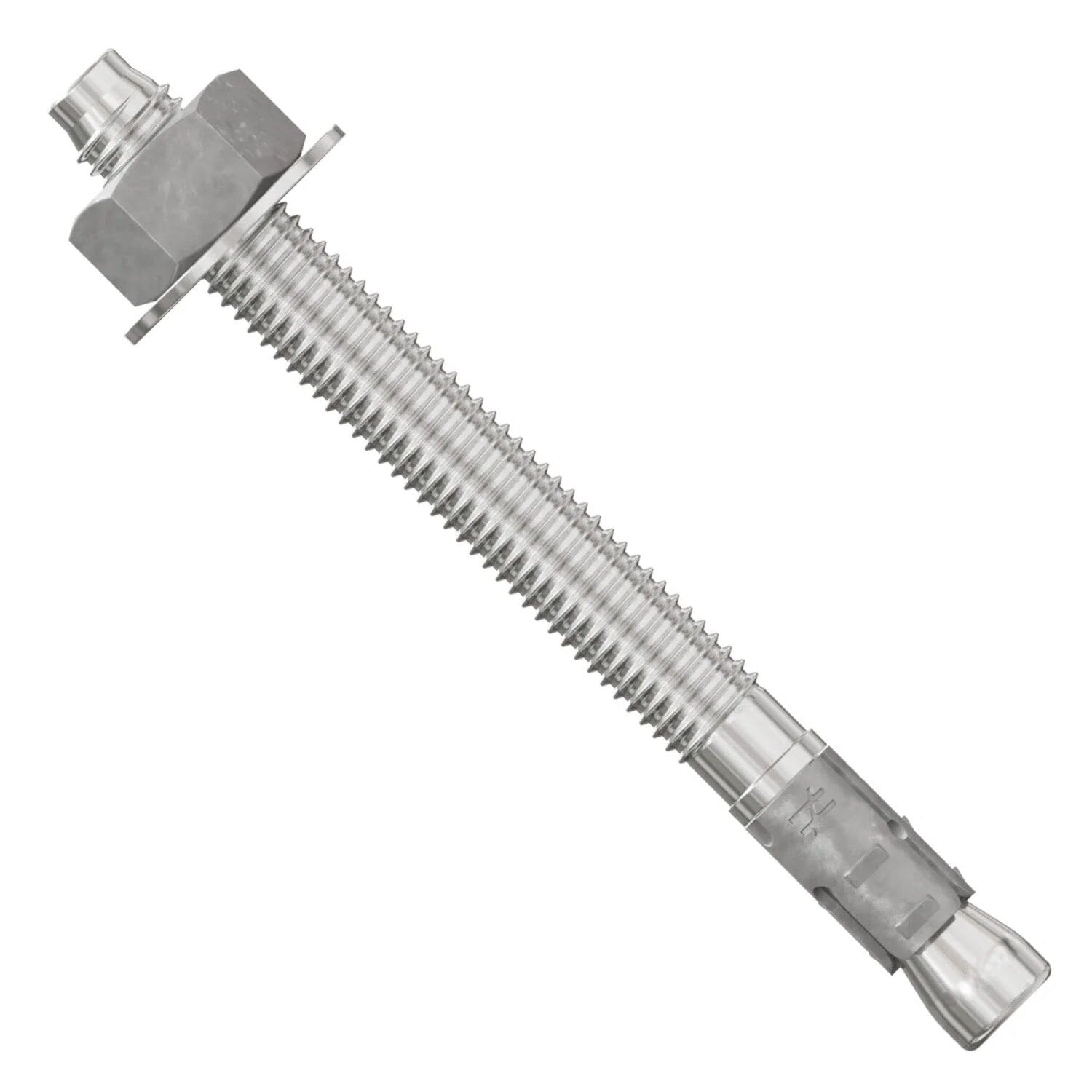

Simpson Strong-Tie STB2-50512S4F25 (1/2" x 5-1/2") Strong-Bolt 2 Wedge Anchor Type 304 Stainless-Steel for Concrete Applications (25 Pack)
$128.45
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-50512S4F25 Description
The Simpson Strong-Tie Strong-Bolt 2 Wedge Anchors in 304 stainless steel deliver powerful performance and dependable holding strength for concrete anchoring projects.
Simpson Strong-Tie STB2-50512S4F25 Includes
- (25) 1/2" x 5-1/2" Type 304 Stainless-Steel Wedge Anchor
Simpson Strong-Tie STB2-50512S4F25 Features
- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions
- Suitable for horizontal, vertical and overhead applications
- Standard fractional sizes for easy installation
- Tested per ACI355.2 and AC193
Simpson Strong-Tie STB2-50512S4F25 Applications
- Concrete anchoring for structural steel
- Securing machinery and racking systems
- Ledger attachments and post bases
Simpson Strong-Tie STB2-50512S4F25 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Blow the hole clean using compressed air.
- Assemble the anchor with nut and washer, ensuring the nut is flush with the top of the anchor.
- Place the anchor in the fixture and drive it into the hole.
- Tighten to the required installation torque.
Simpson Strong-Tie STB2-50512S4F25 Specifications
| Diameter | 1/2" |
| Length | 5-1/2" |
| Material | 304 Stainless Steel |
| Drill bit size | 1/2" |
| Fixture hole size | 9/16" |
| Installation torque | 45 ft. lbf. |
| Thread length | 3-13/16" |
| Wrench size | 3/4" |
NOTE: Ensure the anchor is installed with the correct torque to achieve optimal performance.
