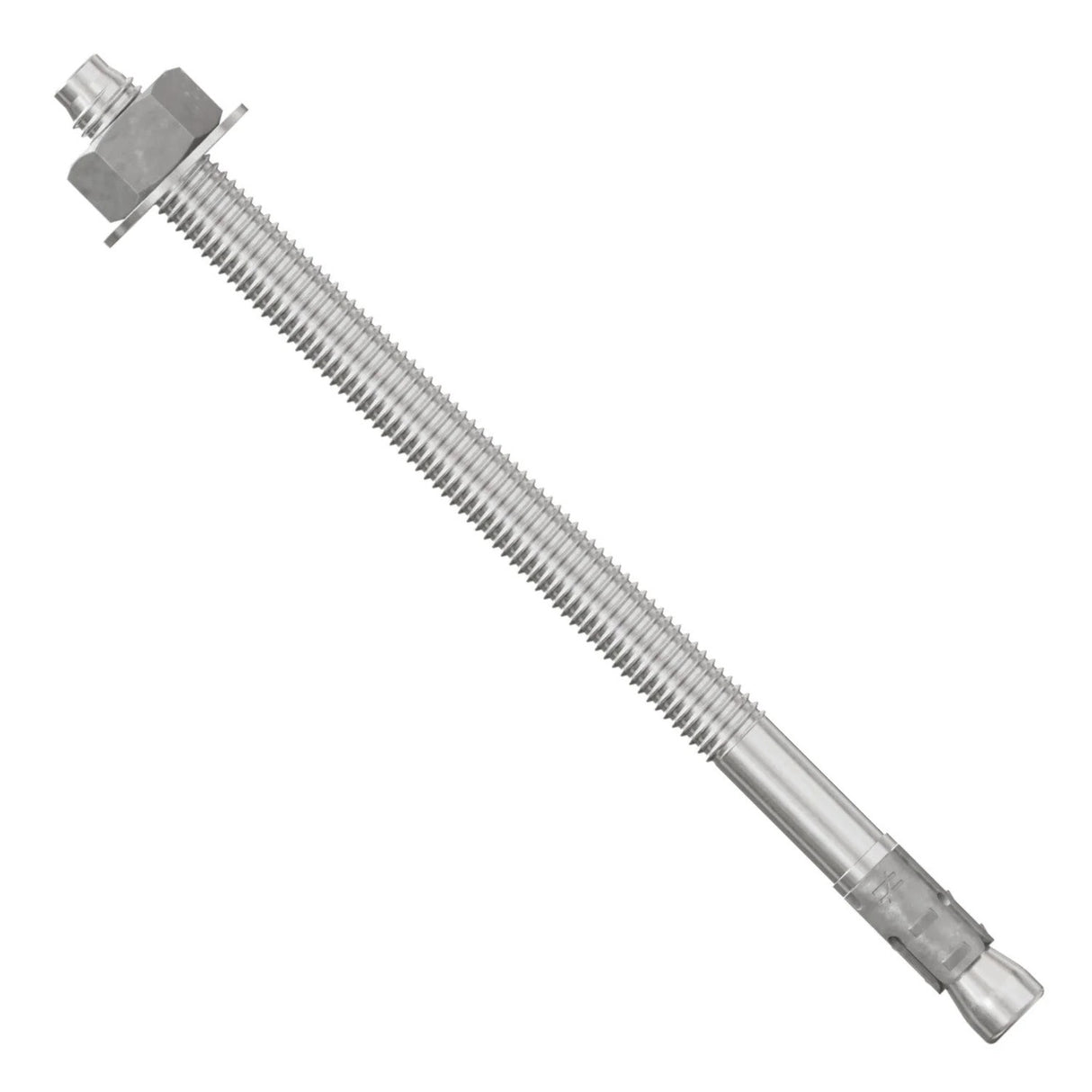

Simpson Strong-Tie STB2-50812S6F20 (1/2" x 8-1/2") Strong-Bolt 2 Type 316 Stainless-Steel Wedge Anchor, Fully Assembled (20 Pack)

Simpson Strong-Tie STB2-50812S6F20 Features

• 316 Stainless Steel Construction: Exceptional corrosion resistance for long-lasting durability in harsh environments.
• Fully Assembled: Includes nut and washer for faster, easier installation out of the box.
• Code-Compliant Performance: ICC-ES ESR-3037 code listed for cracked and uncracked concrete applications.
• Versatile Use: Suitable for anchoring structural supports, machinery, railing systems, and more.
• Variety of Sizes Available: Multiple diameter and length options help you get the right fit for any job.

Simpson Strong-Tie STB2-50812S6F20 Applications

• Reinforcing structural connections in coastal commercial builds.
• Anchoring handrails in residential garages.
• Marine, wastewater, and chemical exposure environments.

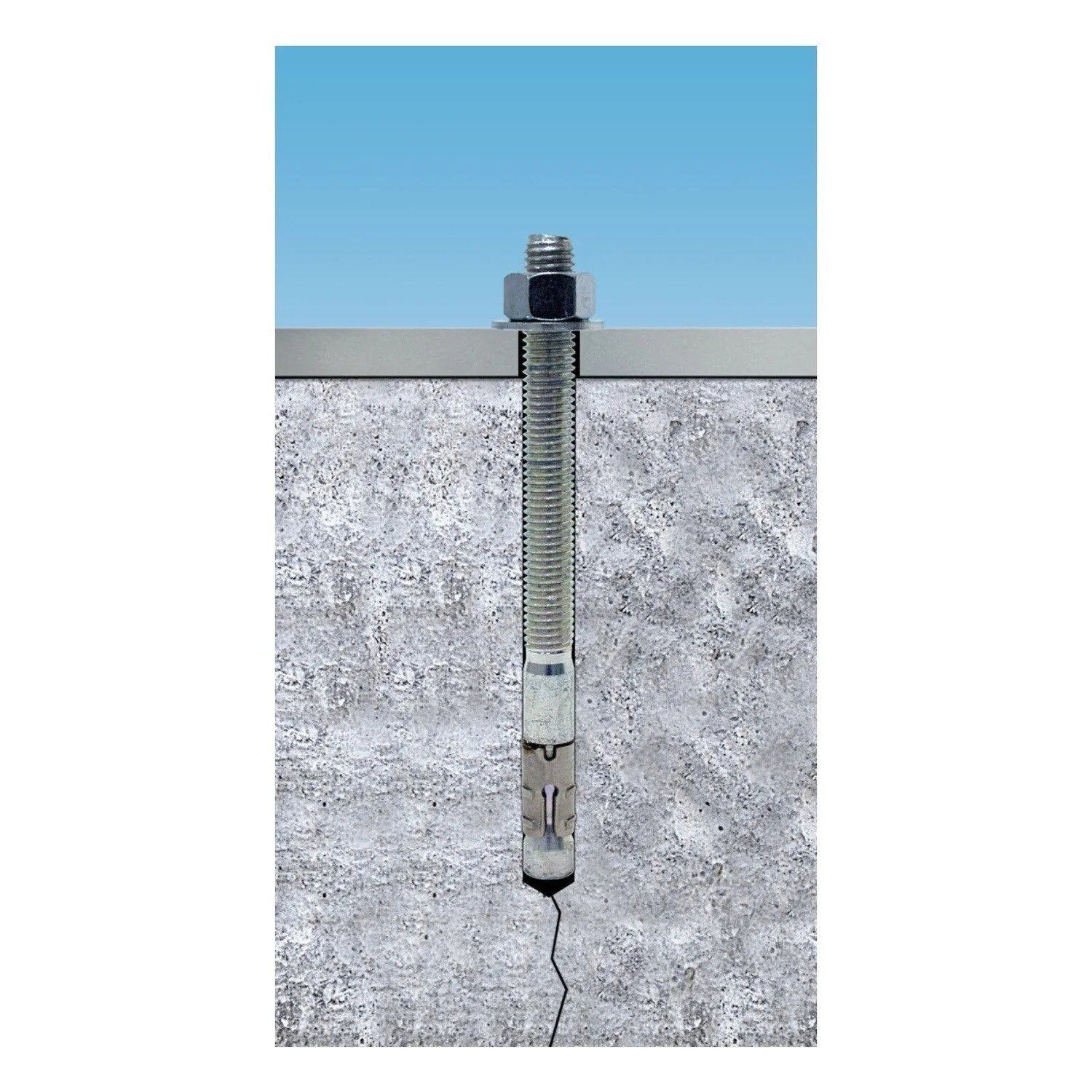

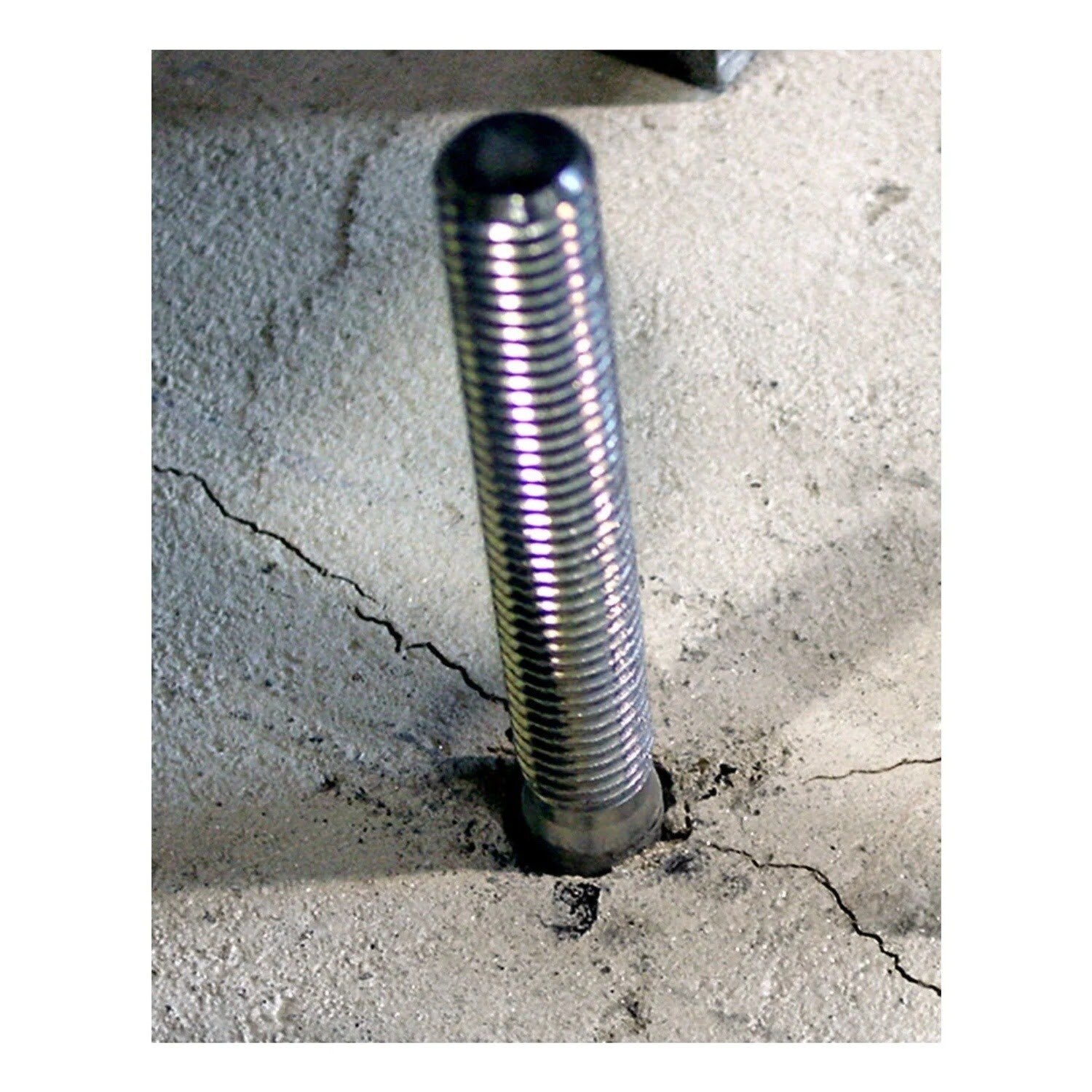

• Heavy-duty fastening into cracked or uncracked concrete.

Simpson Strong-Tie STB2-50812S6F20 Installation Overview

1. Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed.
2. Assemble the anchor with nut and washer so the top of the nut is flush with the top of the anchor.

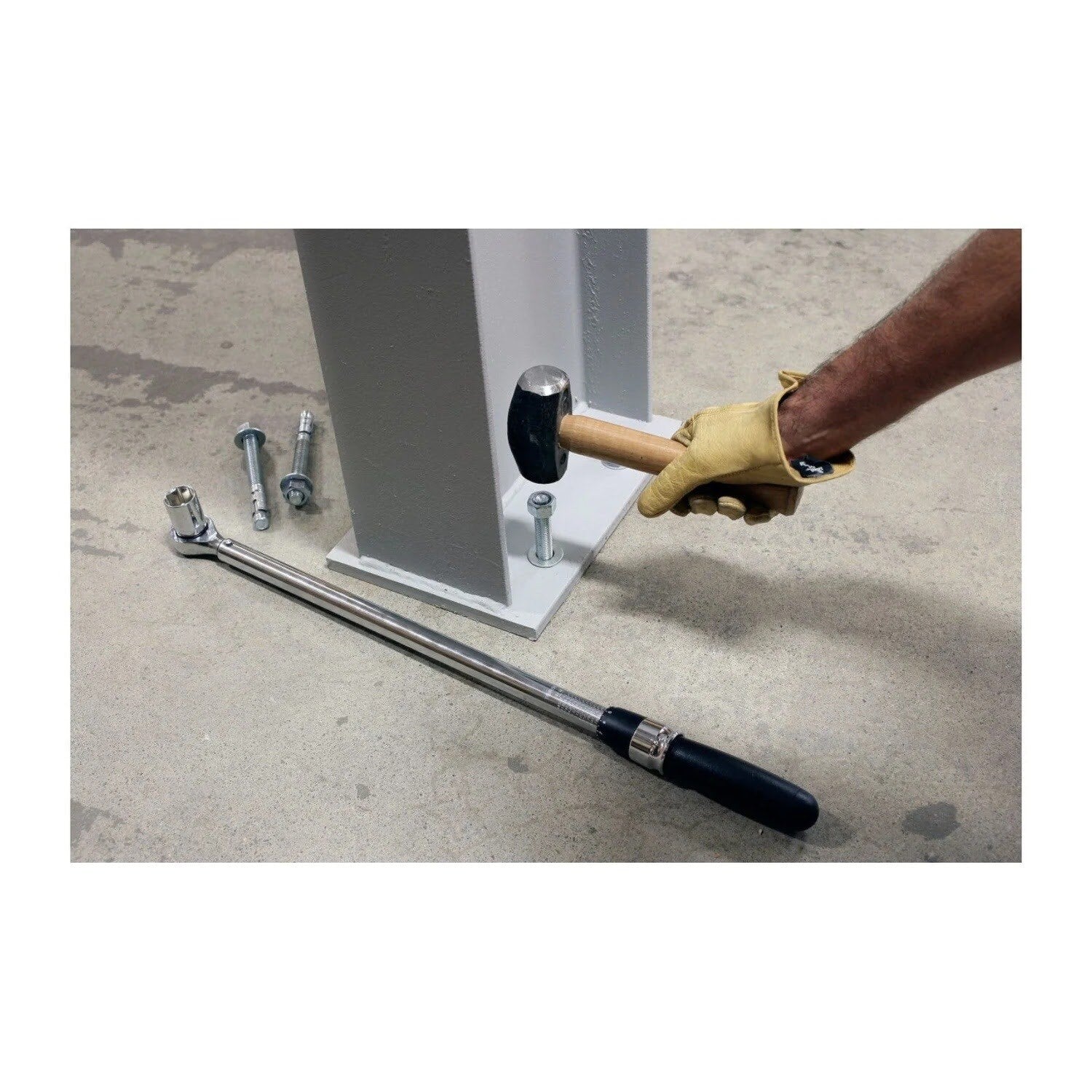

3. Place the anchor in the fixture, and drive it into the hole until the washer and nut are tight against the fixture.

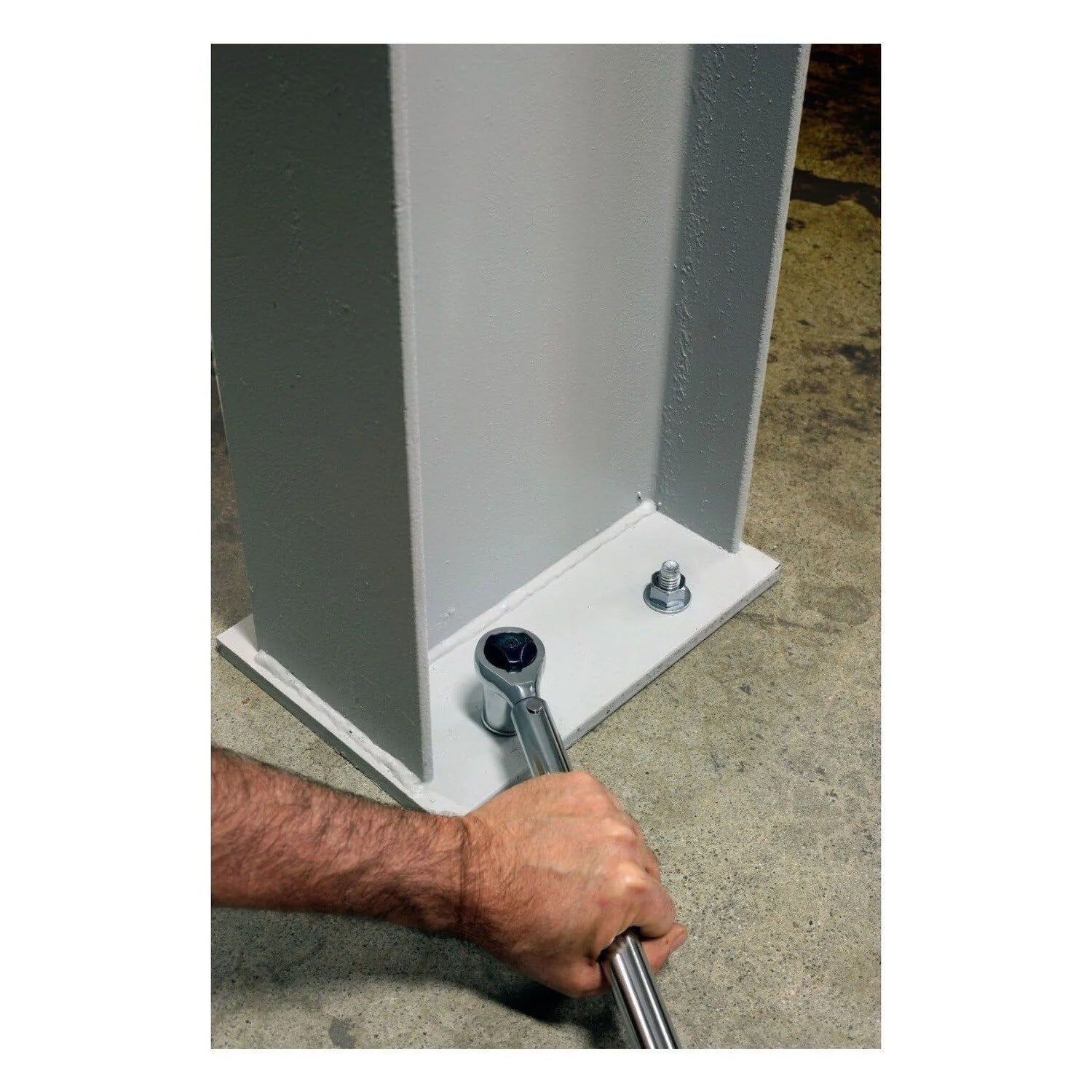

4. Tighten to the required installation torque.
