Simpson Anchors | SKU:
STB2-62812

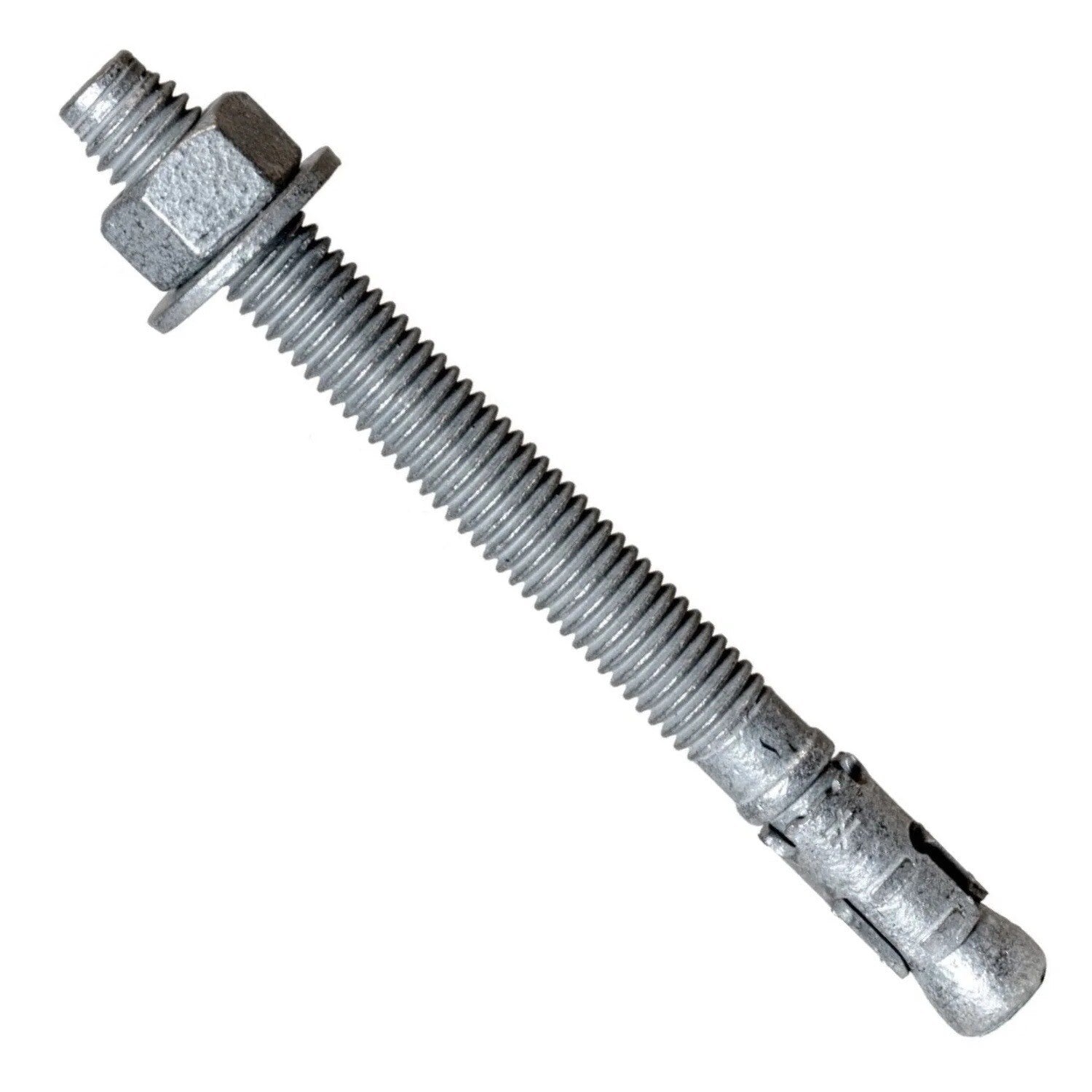

Simpson STB2-62812 Strong-Bolt 2 Wedge Anchor - High Performance Concrete Anchoring (20 Pack)
$58.39
$58.81
Unit price
/
Unavailable
Description
Description
Simpson STB2-62812 Description
The Strong-Bolt 2 Wedge Anchor is designed for reliable performance in cracked or uncracked concrete, suitable for static and seismic loading.
Simpson STB2-62812 Includes
- (20) Strong-Bolt 2 Wedge Anchor
Simpson STB2-62812 Features
- Chamfered top prevents mushrooming during installation
- Qualified for static and seismic loading conditions
- Suitable for horizontal, vertical, and overhead applications
- Fits standard fixtures and installs with common drill bit sizes
- Tested per ACI355.2 and AC193
Simpson STB2-62812 Applications
- Concrete anchoring in cracked or uncracked surfaces
- Seismic and static load applications
- Horizontal, vertical, and overhead installations
Simpson STB2-62812 Installation Overview
- Drill a hole using a carbide drill bit matching the anchor diameter
- Clean the hole using compressed air
- Assemble the anchor with nut and washer
- Insert the anchor into the hole and tighten to specified torque
Simpson STB2-62812 Specifications
| Material | Stainless Steel (Type 304; Type 316) |
| Diameter | 5/8" |
| Length | 8-1/2" |
| Drill Bit Size | 5/8" |
| Fixture Hole Size | 11/16" |
| Installation Torque | 60 ft. lbf. |
| Thread Length | 4-15/16" |
NOTE: Ensure proper installation torque and avoid oversized holes to maintain load capacity
