Simpson Anchors | SKU:
STB2-62812S6F20

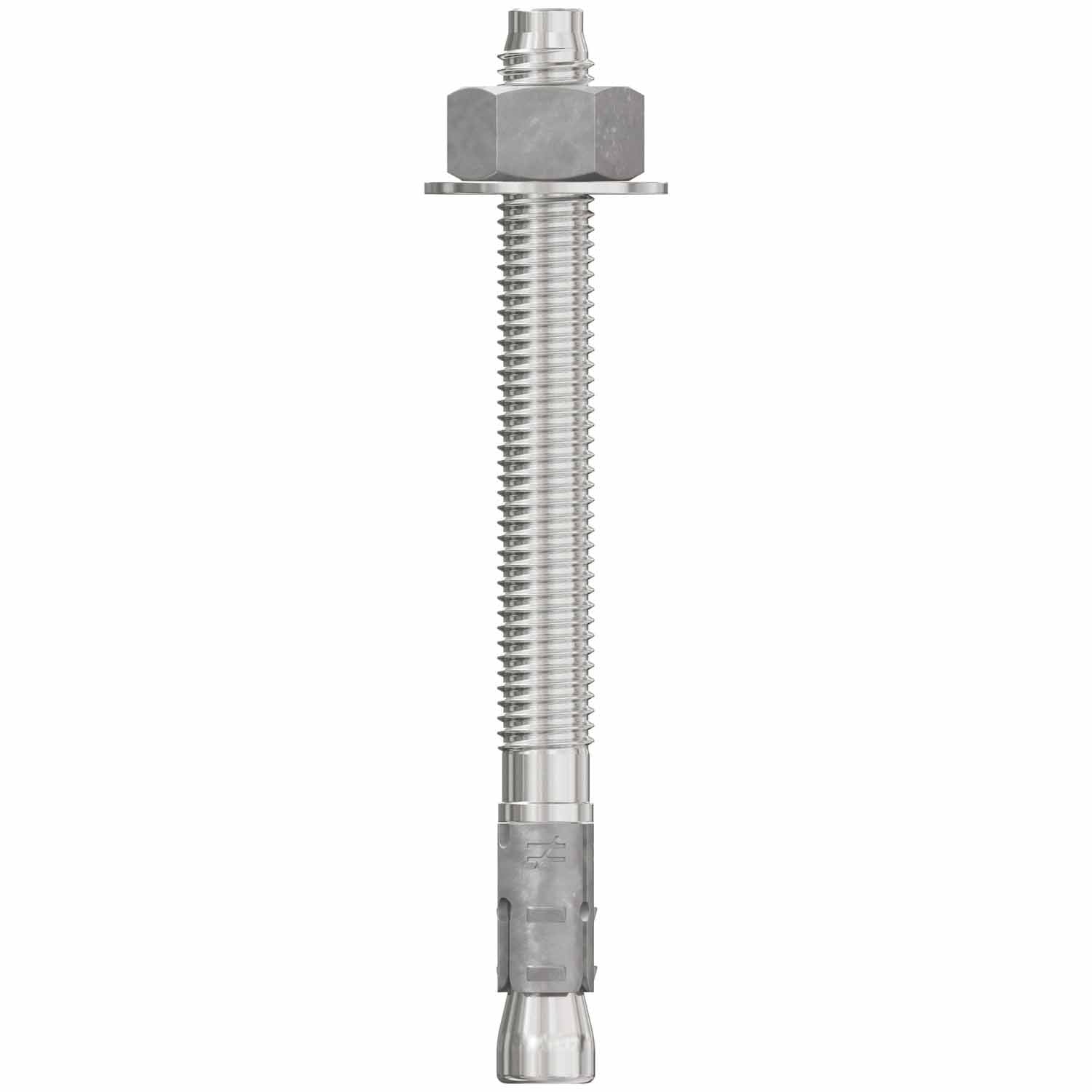

Simpson Strong-Tie STB2-62812S6F20 (5/8" x 8-1/2") Strong-Bolt 2 Wedge Anchor Type 316 Stainless-Steel Fully Assembled (20 Pack)
Free Shipping
$348.68
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-62812S6F20 Description
The Simpson Strong-Tie Fully Assembled Strong-Bolt 2 Wedge Anchors are engineered for maximum performance in corrosive environments, ideal for heavy-duty fastening into cracked or uncracked concrete.
Simpson Strong-Tie STB2-62812S6F20 Includes
- (20) 5/8 in. x 8-1/2 in. Type 316 Stainless-Steel Wedge Anchor
Simpson Strong-Tie STB2-62812S6F20 Features
- 316 Stainless Steel Construction for exceptional corrosion resistance
- Fully Assembled with nut and washer for faster installation
- ICC-ES ESR-3037 code listed for cracked and uncracked concrete applications
- Suitable for anchoring structural supports, machinery, railing systems, and more
- Variety of sizes available for different applications
Simpson Strong-Tie STB2-62812S6F20 Applications
- Marine environments requiring corrosion-resistant anchoring
- Wastewater facilities needing durable fastening solutions
- Chemical exposure areas requiring reliable structural connections
- Residential and commercial builds for structural reinforcement
- Anchoring handrails, machinery, and railing systems
Simpson Strong-Tie STB2-62812S6F20 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Blow the hole clean using compressed air or ensure it accommodates embedment depth and dust.
- Assemble the anchor with nut and washer, place it in the fixture, and drive it into the hole.
- Tighten the anchor to the required installation torque.
Simpson Strong-Tie STB2-62812S6F20 Specifications
| Diameter | 5/8" |
| Length | 8-1/2" |
| Material | 316 Stainless Steel |
| Drill bit size | 5/8" |
| Fixture hole size | 11/16" |
| Installation torque | 60 ft. lbf. |
| Thread length | 6" |
| Wrench size | 15/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
