Simpson Anchors | SKU:
STB2-75512S4F10

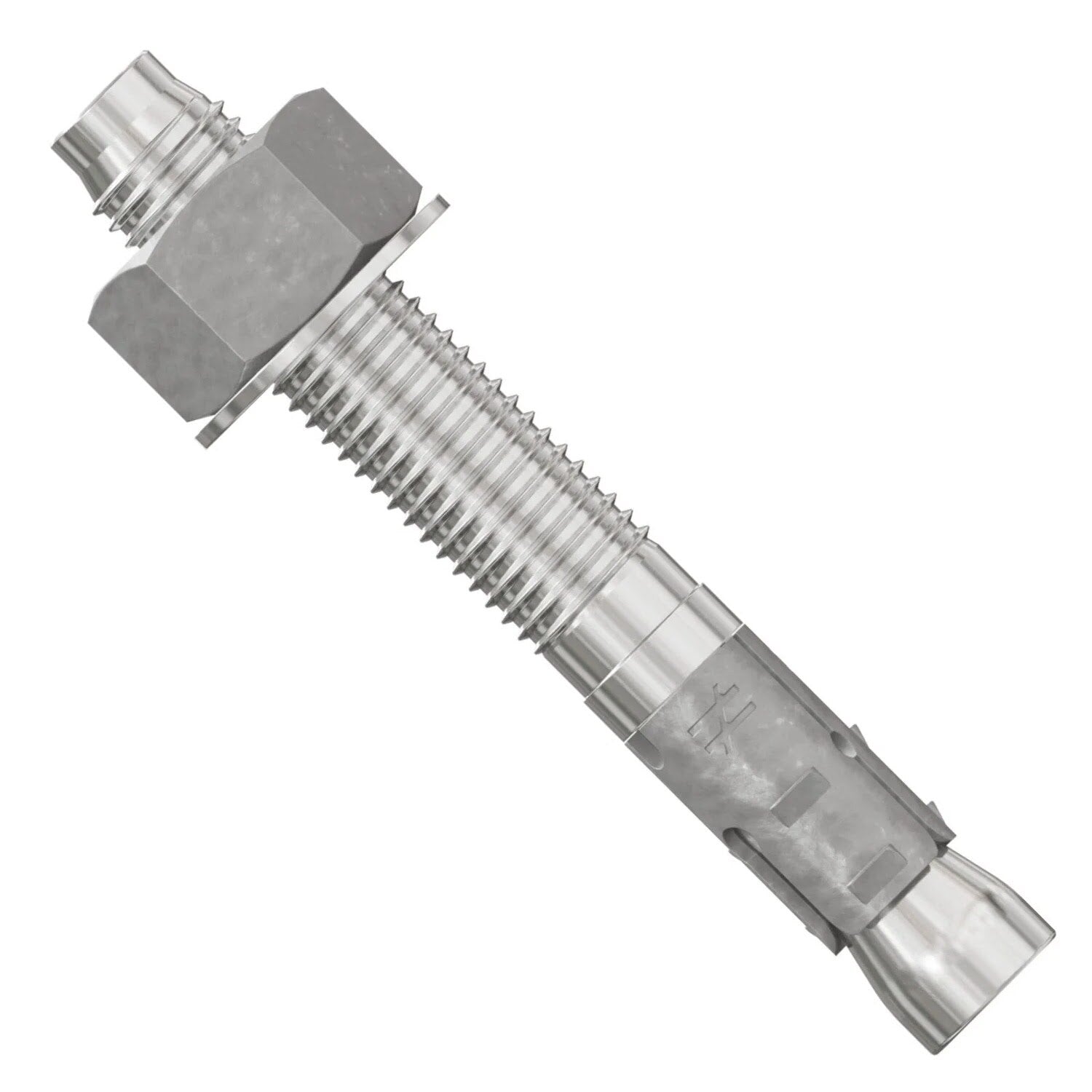

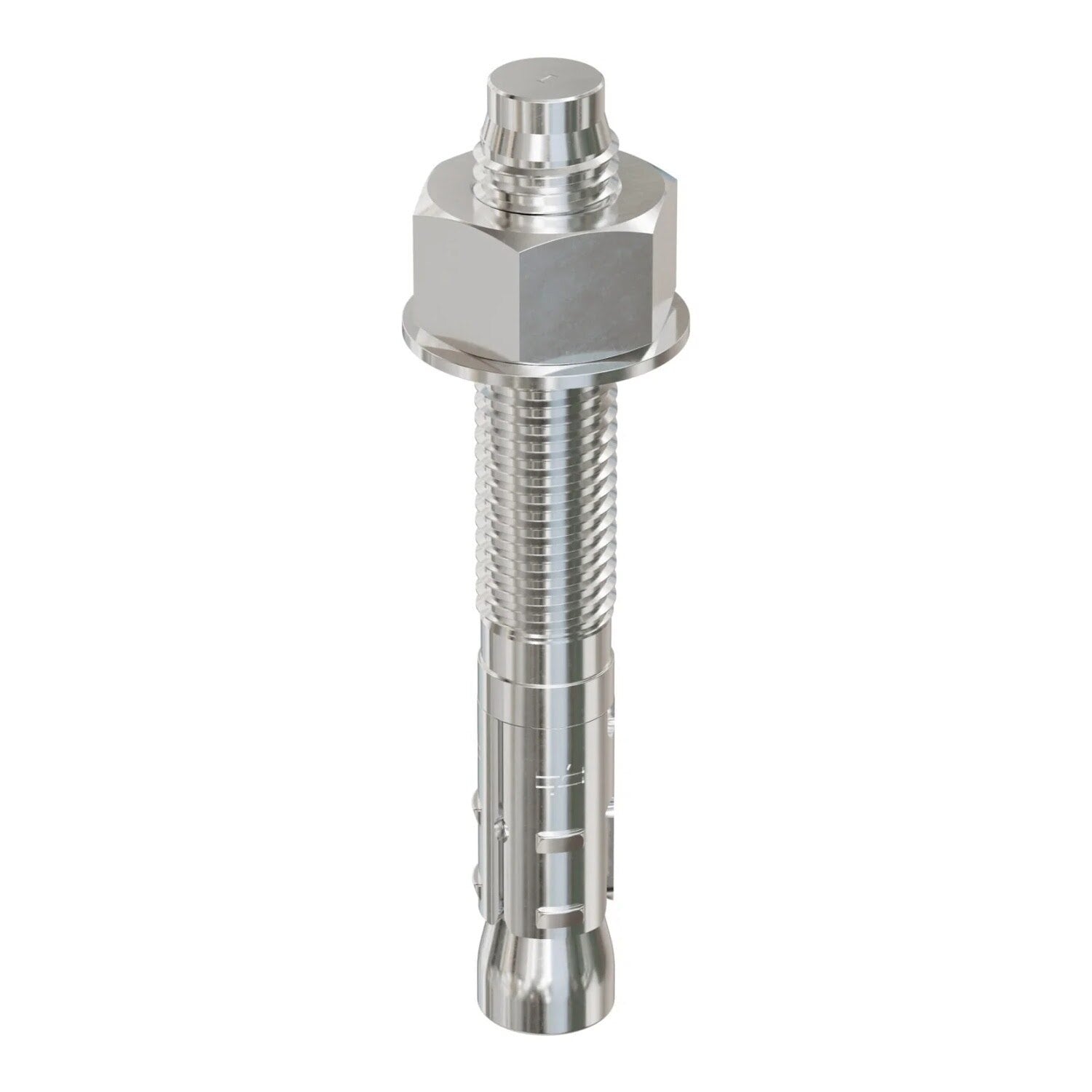

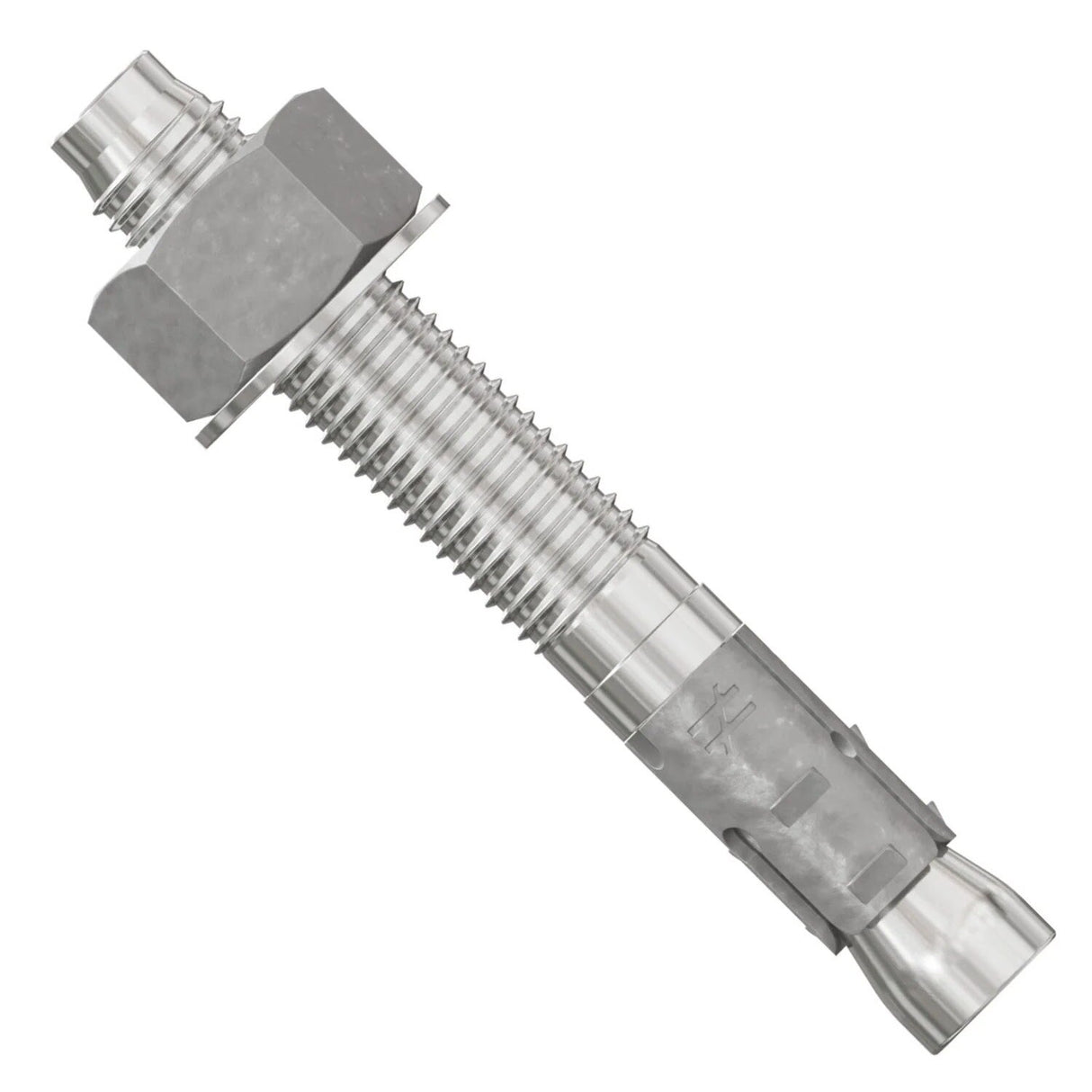

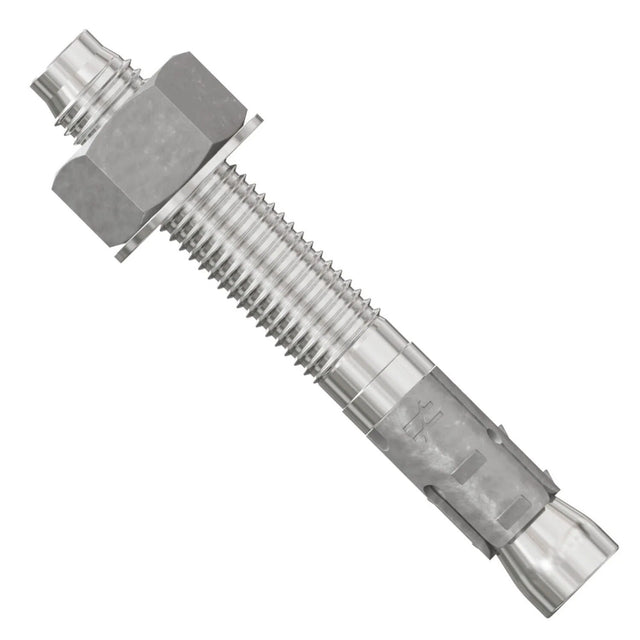

Simpson Strong-Tie STB2-75512S4F10 (3/4" x 5-1/2") Strong-Bolt 2 Type 304 Stainless-Steel Wedge Anchor, Fully Assembled (10 Pack)
$107.41
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-75512S4F10 Description
The Simpson Strong-Tie Strong-Bolt 2 Wedge Anchors in 304 stainless steel deliver powerful performance and dependable holding strength for concrete anchoring projects.
Simpson Strong-Tie STB2-75512S4F10 Includes
- (10) 3/4" x 5-1/2" Type 304 Stainless-Steel Wedge Anchor
Simpson Strong-Tie STB2-75512S4F10 Features
- Pre-Assembled Convenience: Fully assembled for faster, easier installation—no extra prep required.
- 304 Stainless Steel: Offers strong corrosion resistance for both indoor and outdoor use.
- Code-Compliant Performance: ICC-ES ESR-3037 listed for cracked and uncracked concrete, including seismic and wind conditions.
- Versatile Options: Available in a range of diameters and lengths to suit diverse concrete anchoring needs.
- Smooth Driving: Chamfered tips aid in easy installation and secure expansion.
Simpson Strong-Tie STB2-75512S4F10 Applications
- Structural steel anchoring in construction projects.
- Securing machinery and racking systems.
- Post bases and ledger attachments.
- General concrete anchoring in residential and industrial settings.

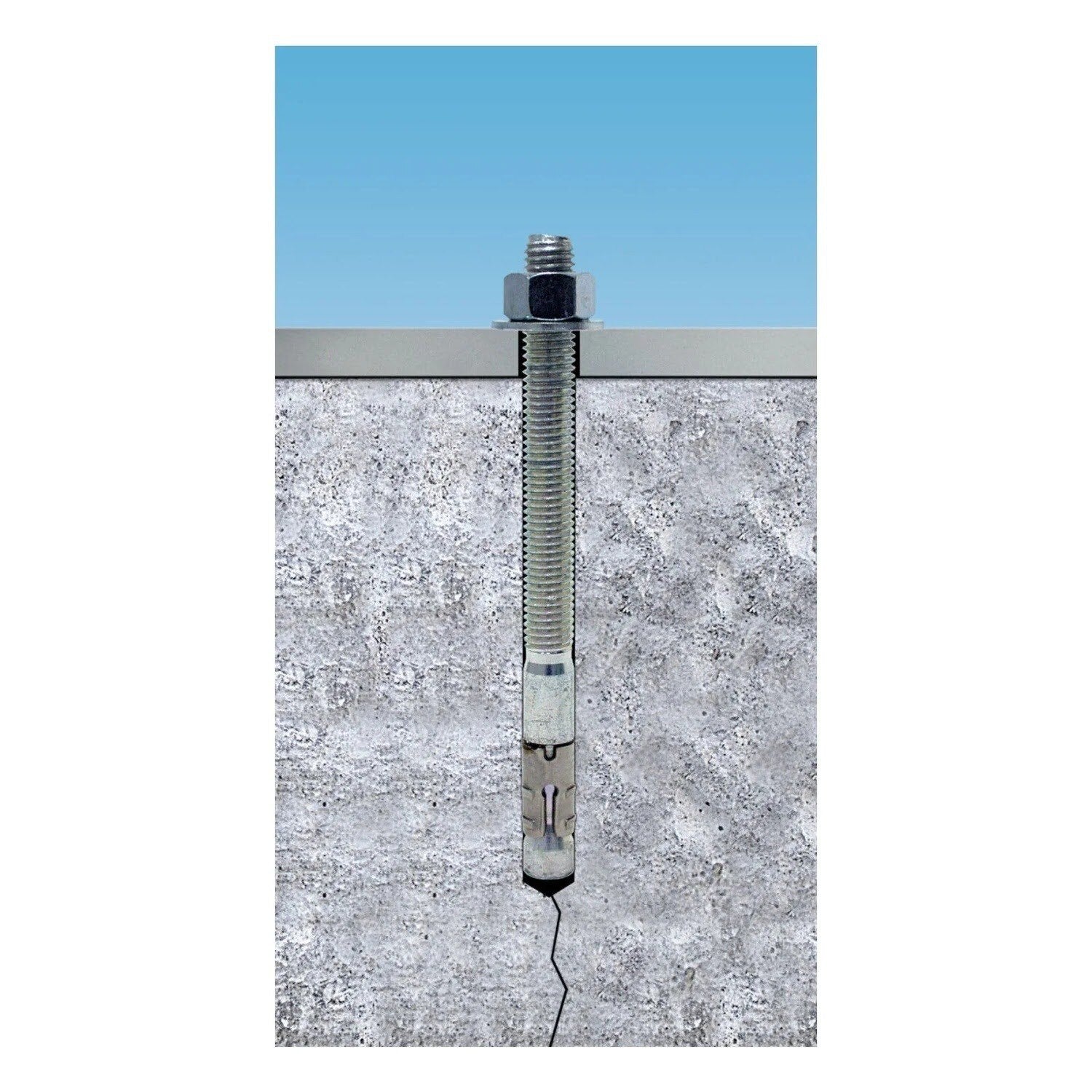

Simpson Strong-Tie STB2-75512S4F10 Installation Overview
- Drill a hole in the concrete using a carbide drill bit matching the anchor diameter.
- Clean the hole using compressed air or a vacuum.
- Insert the anchor into the hole and tighten the nut to the specified torque.
- Ensure the fixture is securely fastened against the concrete surface.
Simpson Strong-Tie STB2-75512S4F10 Specifications
| Diameter | 3/4" |
| Length | 5-1/2" |
| Material | 304 Stainless Steel |
| Drill bit size | 3/4" |
| Fixture hole size | 7/8" |
| Installation torque | 90 ft. lbf. |
| Thread length | 3-3/16" |
| Wrench size | 1-1/8" |
NOTE: Ensure the anchor is installed with the correct torque and in properly sized holes to achieve optimal performance.
