Simpson Anchors | SKU:
STB2-756144SS

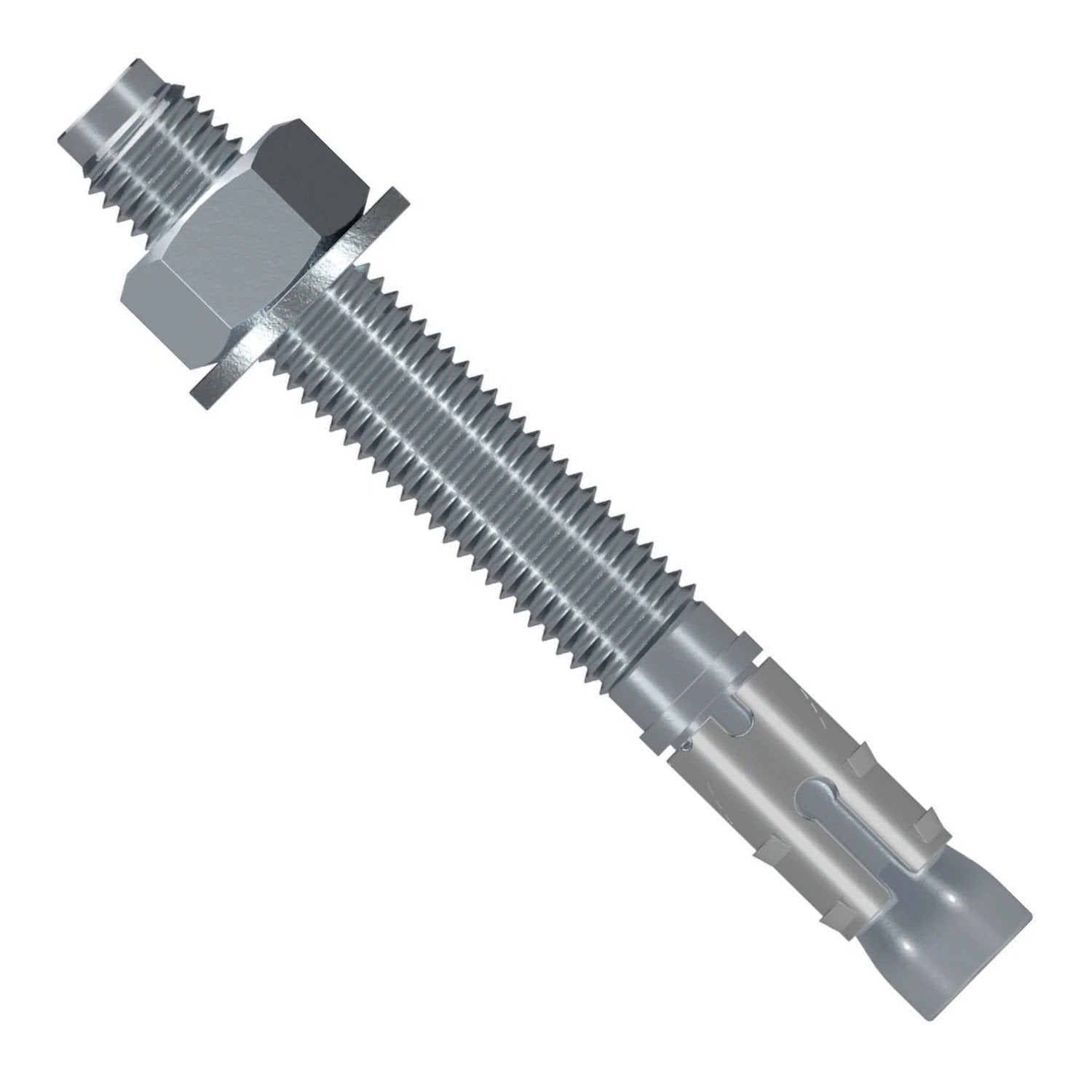

Simpson Strong-Tie STB2-756144SS (3/4" x 6-1/4") Strong-Bolt 2 Type 304 Stainless-Steel Wedge Anchor (10 Pack)
$104.35
Unit price
/
Unavailable
Description
Description
Simpson STB2-756144SS Description
The Strong-Bolt 2 Wedge Anchor is a high-performance anchor designed for use in cracked and uncracked concrete. Made from 304 stainless steel, it is suitable for static and seismic loading conditions.
Simpson STB2-756144SS Includes
- (10) Strong-Bolt 2 Wedge Anchor 304 Stainless Steel 3/4" x 6-1/4"
Simpson STB2-756144SS Features
- Chamfered top prevents mushrooming during installation
- Qualified for static and seismic loading conditions
- Suitable for horizontal, vertical, and overhead applications
- Standard fractional sizes for compatibility with common tools
- Tested per ACI355.2 and AC193 standards
Simpson STB2-756144SS Applications
- Concrete anchoring in cracked and uncracked surfaces
- Seismic applications requiring reliable anchoring
- Horizontal, vertical, and overhead installations
Simpson STB2-756144SS Installation Overview
- Drill a hole using a carbide drill bit matching the anchor diameter
- Clean the hole using compressed air
- Assemble the anchor with nut and washer
- Insert the anchor into the hole and tighten to specified torque
Simpson STB2-756144SS Specifications
| Diameter | 3/4" |
| Length | 6-1/4" |
| Material | 304 Stainless Steel |
| Drill Bit Size | 3/4" |
| Installation Torque | 150 ft. lbs |
| Thread Length | 3-15/16" |
NOTE: Ensure proper installation torque is applied to achieve optimal performance.
