Simpson Anchors | SKU:
STB2-75812MGF8

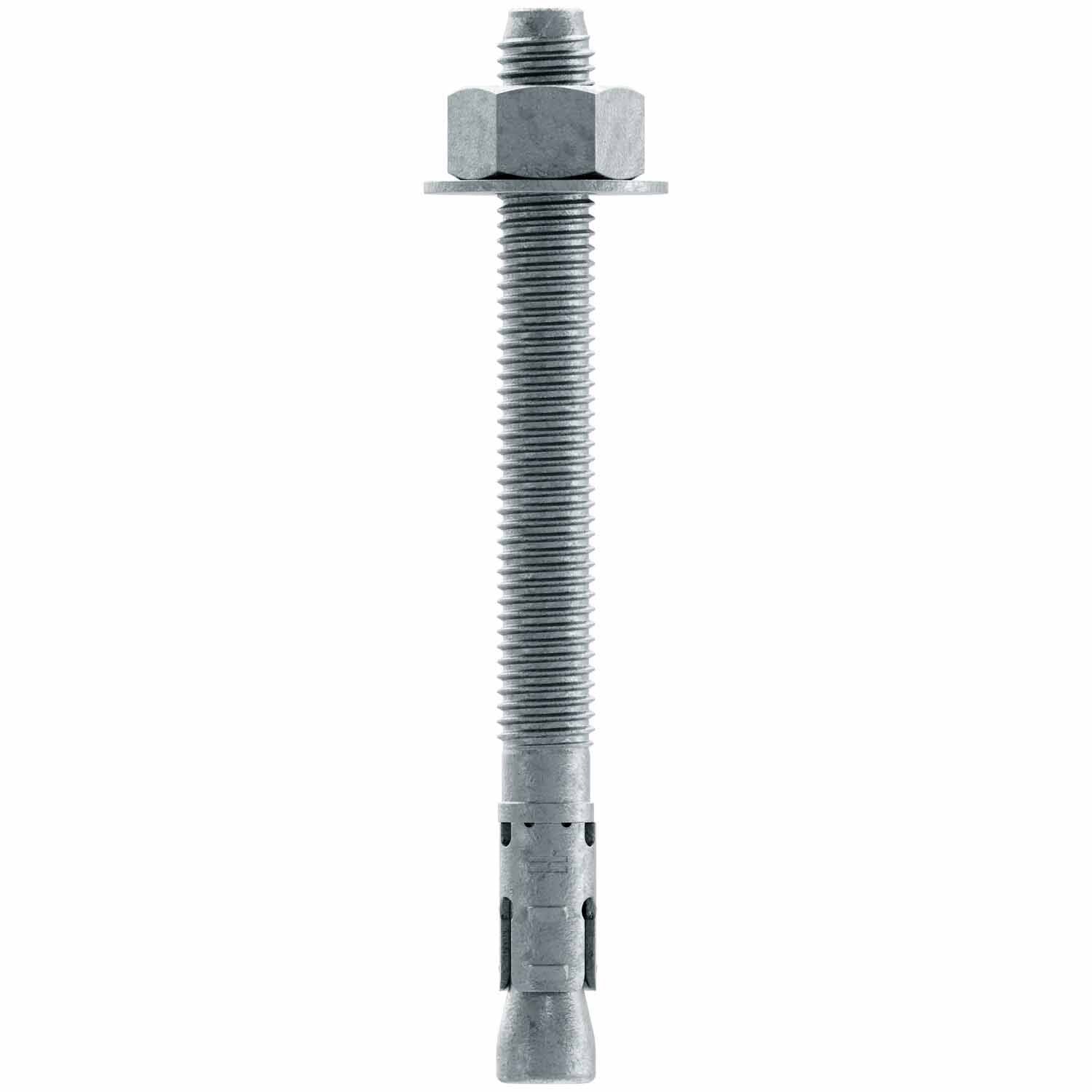

Simpson Strong-Tie STB2-75812MGF8 (3/4" x 8-1/2") Strong-Bolt 2 Mechanically Galvanized Wedge Anchor (8 Pack)
$68.81
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-75812MGF8 Description
The Simpson Strong-Tie Fully Assembled Strong-Bolt 2 Wedge Anchors are engineered for reliable tension and shear loads in cracked and uncracked concrete.
Simpson Strong-Tie STB2-75812MGF8 Includes
- (8) 3/4 in. x 8-1/2 in. Mechanically Galvanized Wedge Anchor
Simpson Strong-Tie STB2-75812MGF8 Features
- Chamfered top designed to prevent mushrooming during installation
- Suitable for horizontal, vertical and overhead applications
- Tested for minimum concrete thickness of 3 1/4"
- Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
- Tested in uncracked concrete per ACI355.2 and AC193
Simpson Strong-Tie STB2-75812MGF8 Applications
- Anchoring structural columns
- Securing racking systems
- Installing machinery
- Fastening heavy-duty fixtures
Simpson Strong-Tie STB2-75812MGF8 Installation Overview
- Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed.
- Assemble the anchor with nut and washer so the top of the nut is flush with the top of the anchor.
- Place the anchor in the fixture, and drive it into the hole until the washer and nut are tight against the fixture.
- Tighten to the required installation torque.
Simpson Strong-Tie STB2-75812MGF8 Specifications
| Material | Carbon Steel |
| Finish | Mechanically Galvanized |
| Diameter | 3/4 in. |
| Length | 8-1/2 in. |
| Drill Bit Size | 3/4 in. |
| Fixture Hole Size | 7/8 in. |
| Installation Torque | 90 ft. lbf. |
| Thread Length | 6 in. |
| Wrench Size | 1-1/8 in. |
NOTE: Do not use an impact wrench to set or tighten the Strong-Bolt 2 anchor. Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor's load capacity.
