Simpson Hangers | SKU:
CS18

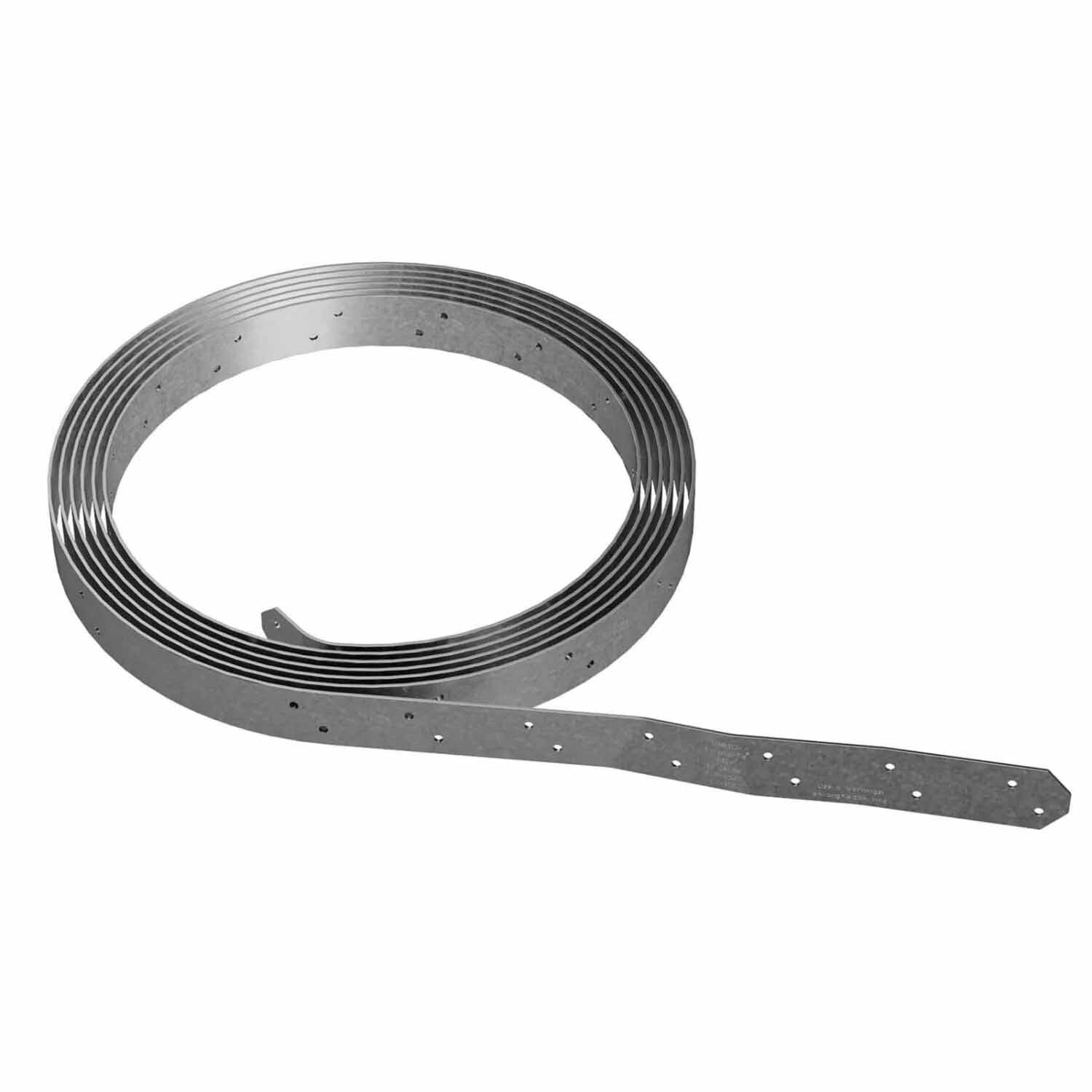

Simpson Strong-Tie CS18 (200') 18-Gauge Galvanized Coiled Strap for Wood Construction (1 Piece)
$206.00
$268.99
Unit price
/
Unavailable
Description
Description
Simpson CS18 Description
The Simpson CS18 Coiled Strap is a versatile and cost-effective solution for wood-to-wood fastening, offering high strength and adaptability for various construction applications.
Simpson CS18 Includes

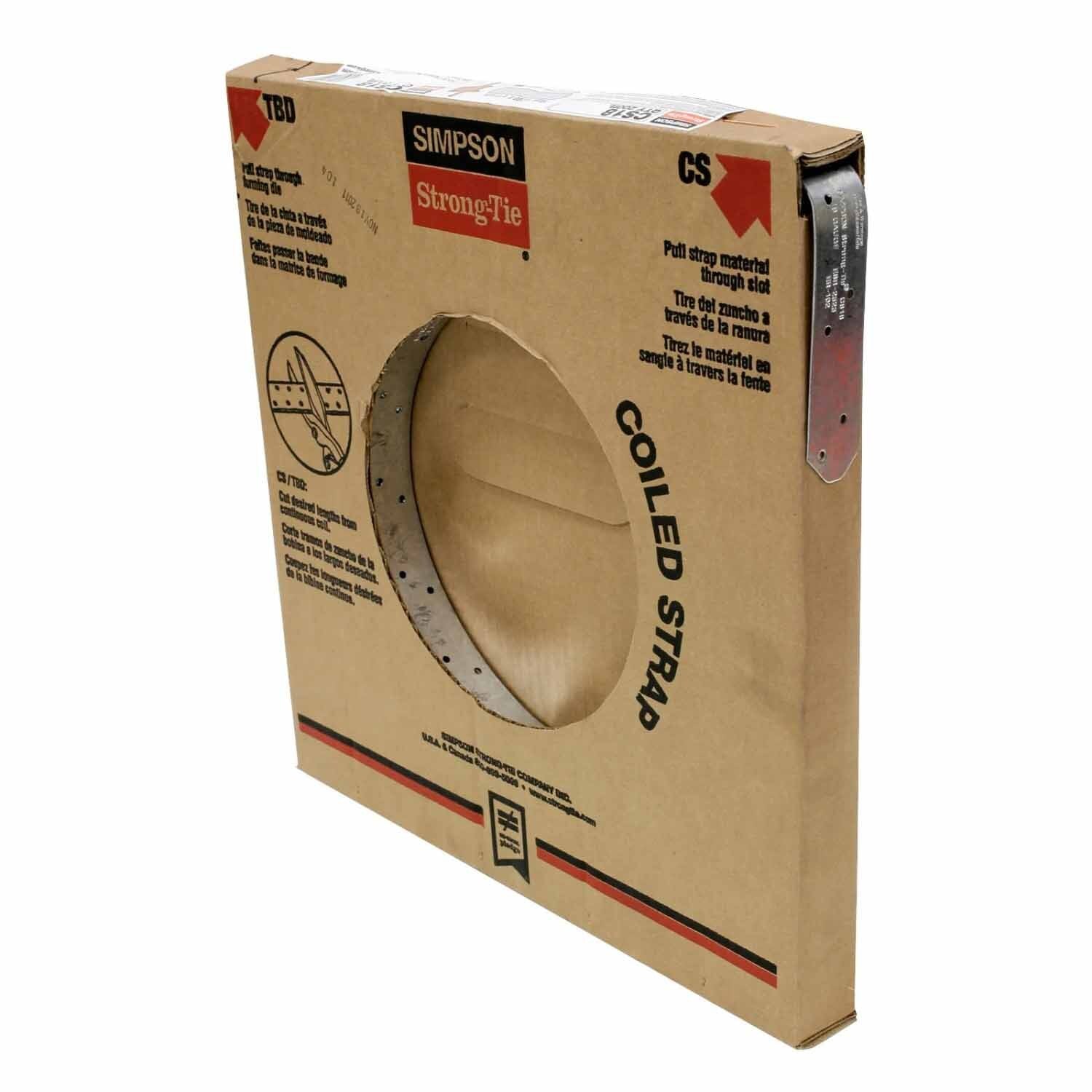

- (1) 200 ft. Coiled Strap
Simpson CS18 Features
- Available in shorter rolls for smaller projects

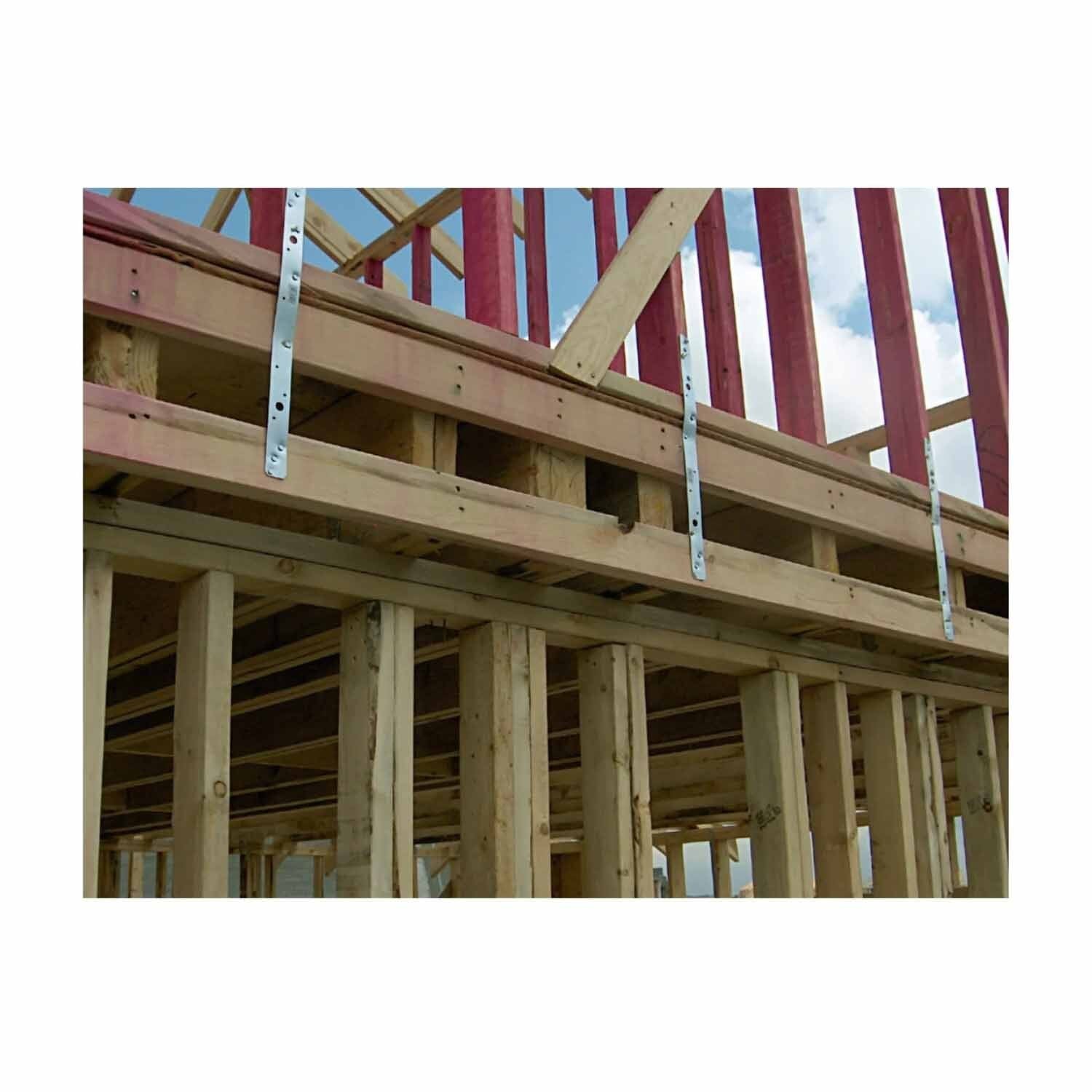

- Used for roof uplift and shear wall overturning resistance
- A cost-effective alternative to pre-cut straps
Simpson CS18 Applications
- Roof uplift resistance
- Shear wall overturning resistance
- General wood-to-wood fastening
Simpson CS18 Installation Overview
- Use all specified fasteners as per guidelines.
- Ensure proper alignment and positioning of the strap.
- Refer to applicable codes for nail penetration and wood edge distances.
- Cut strap length to required dimensions.
- Follow lap splice and alternative nailing instructions for extended applications.
Simpson CS18 Specifications
| Finish | G90 Galvanized |
| Length | 200 ft. |
| Thickness | 18 Gauge |
| Width | 1-1/4" |
| Fasteners required | Install with 8d or 10d common nails |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
