Simpson Anchors | SKU: THD37500H6SS | Barcode: 707392255741

Simpson Strong-Tie THD37500H6SS Titen HD (3/8" x 5") Heavy Duty SS Screw Anchor - Type 316 (50 Pack)

Free Shipping

$348.81

Ships today when you order in the next 13 hours 38 minutes.

Description

Simpson THD37500H6SS Description

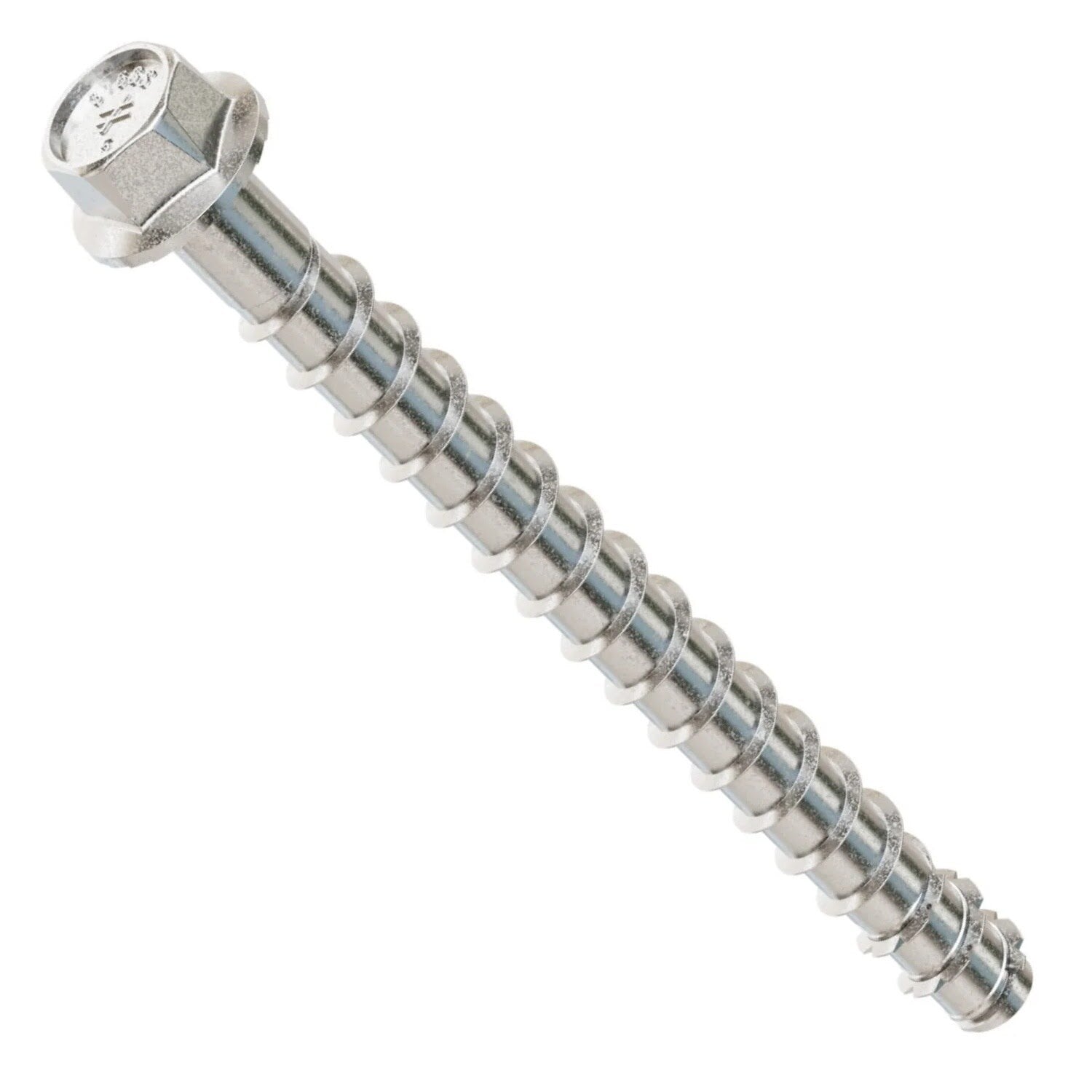

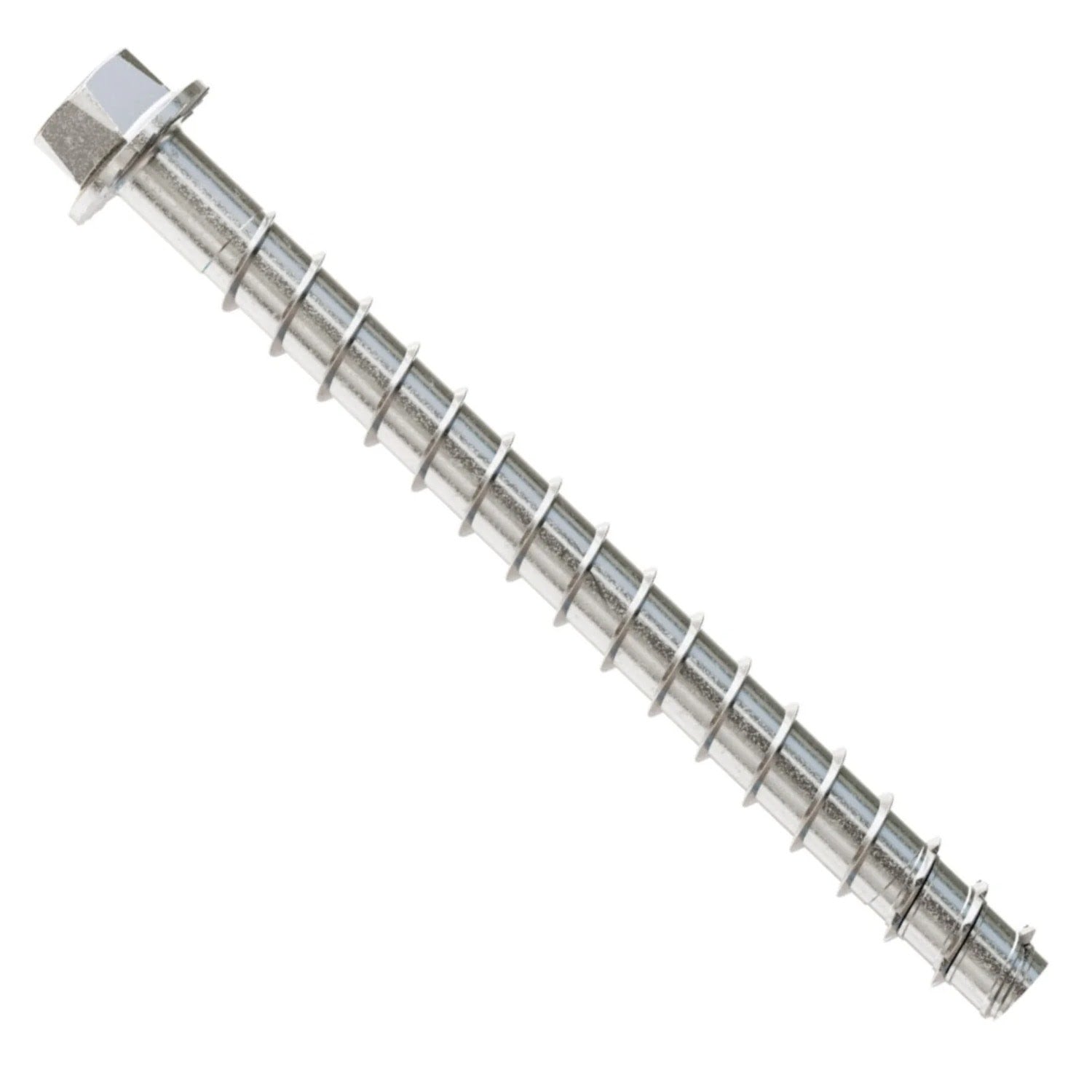

The Titen HD Screw Anchor is a high-performance, corrosion-resistant anchor made from 316 stainless steel, ideal for exterior or corrosive environments.

Simpson THD37500H6SS Includes

(50) 3/8" x 5" Titen HD Screw Anchor

Simpson THD37500H6SS Features

Corrosion-resistant 316 stainless steel construction
Patented thread design with serrated cutting teeth for easy installation
Tested in accordance with ACI355.2, AC193, and AC106
Suitable for exterior or corrosive environments
Installs with an impact wrench or hand tool

Simpson THD37500H6SS Applications

Exterior construction requiring corrosion-resistant anchoring
Mechanical, electrical, and plumbing installations
Securing fixtures in concrete and masonry

Simpson THD37500H6SS Installation Overview

Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
Insert the anchor through the fixture and into the hole.
Tighten the anchor into the base material until the hex-washer head contacts the fixture.

Simpson THD37500H6SS Specifications

Diameter	3/8"
Length	5"
Drill Bit Size	3/8"
Drive Type	9/16" Hex
Fixture Hole Size	1/2"-9/16"

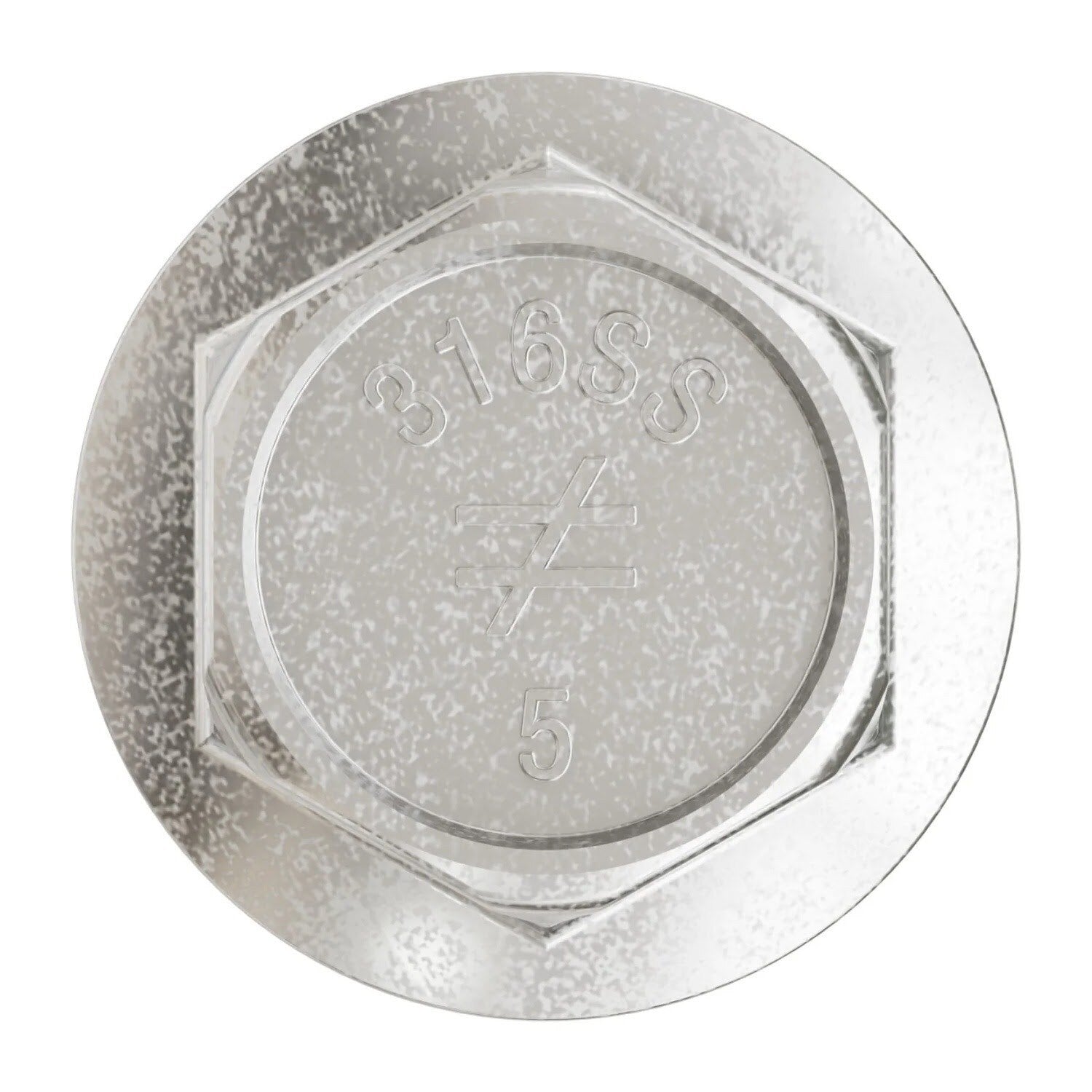

Head Type	Hex Head
Material	316 Stainless Steel
Quantity	50

NOTE: Use the correct fasteners installed in the correct position to achieve published load values
