Simpson Strong-Tie WSWH-RTPF24 Strong-Wall (24-in.) Panel-Form Anchor Bolt Template for High-Strength Wood Shearwall

$55.12

Description

Simpson Strong-Tie WSWH-RTPF24 Description

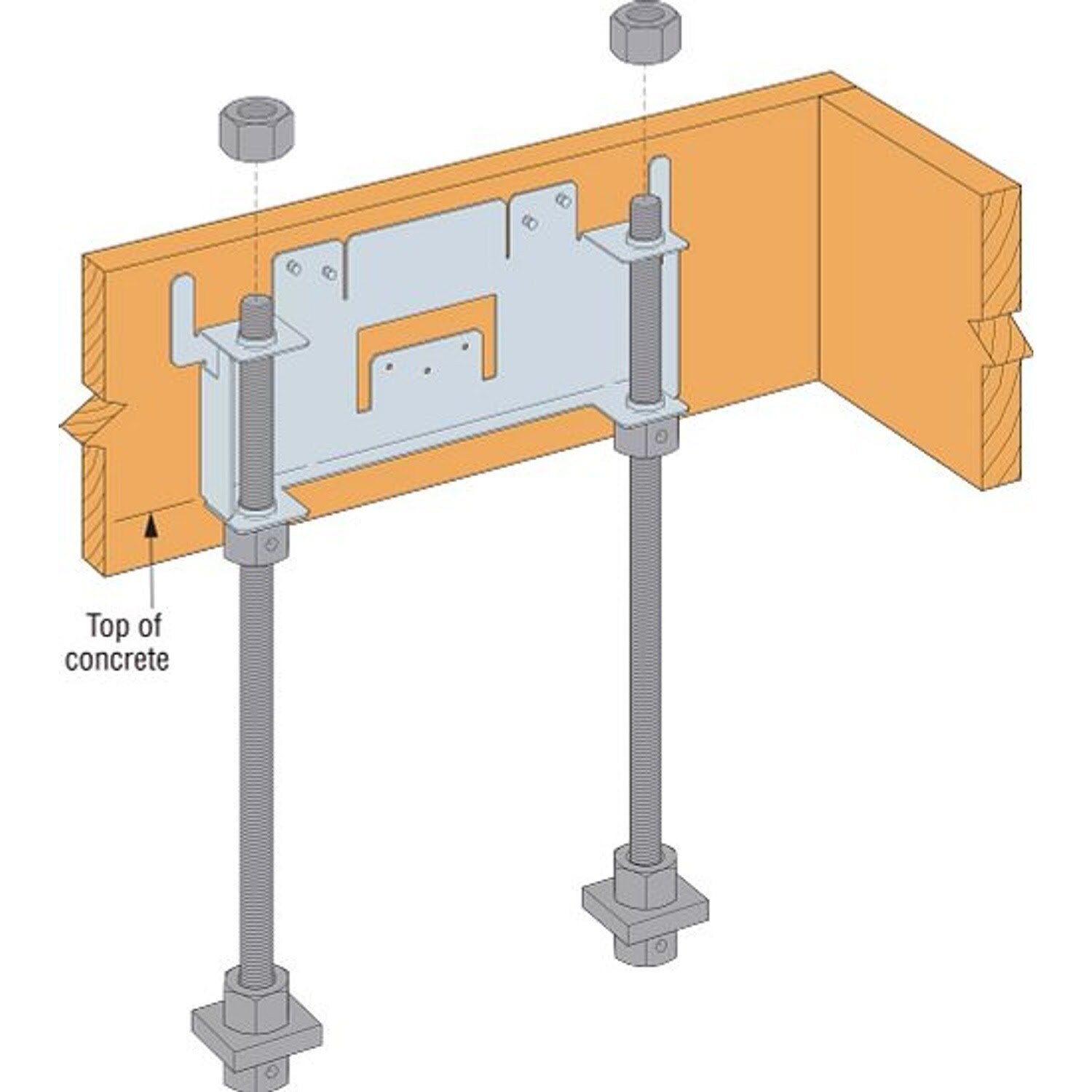

The WSWH-RTPF24 is a panel-form anchor bolt template designed for 24-inch Strong-Wall high-strength wood shearwalls, ensuring precise anchor bolt placement.

Simpson Strong-Tie WSWH-RTPF24 Includes

  • (1) WSWH-RTPF24 Panel-Form Anchor Bolt Template

Simpson Strong-Tie WSWH-RTPF24 Features

  • Accurately locates anchor bolts for Strong-Wall high-strength wood shearwalls
  • Standard templates are reversible and can be used for interior or exterior applications
  • Variety of configuration options to accommodate common concrete foundation types

Simpson Strong-Tie WSWH-RTPF24 Applications

  • RT — standard model used for exterior and interior (reversed) installations at the top of the form
  • RTPF — panel form model used for installations in panel forms, typically below the top of the form
  • RTBL — brick ledge model used for brick ledge foundations
  • RTEL — extended leg model used for installations where WSWH is flush with the inside face of a 2x6 sill plate
  • RTELPF — extended leg model used for panel form installations where WSWH is flush with the inside face of a 2x6 sill plate when concrete is not poured to the top of the form; typically to set anchors into a stemwall or extend down to the footing

Simpson Strong-Tie WSWH-RTPF24 Installation Overview

  1. Installation of Strong-Wall high-strength wood shearwall anchor bolt templates varies by application

Simpson Strong-Tie WSWH-RTPF24 Specifications

Material 14 gauge
Finish G90 galvanized
Special Order FALSE
Application Anchorage Solutions
API Approval Approved - Full

NOTE: Templates are recommended and are required in some jurisdictions. Foundation design by the designer.
