Greenlee 855GX IntelliBender: Auto-Sensing, Self-Correcting

On a large commercial or industrial electrical job, the conduit-bending station can be either a bottleneck or a production engine. When you're running hundreds of bends across multiple sizes and conduit types, the difference between a programmable bender and a standard electric bender shows up in rework, scrap, and the time it takes to get a new hand up to production speed.

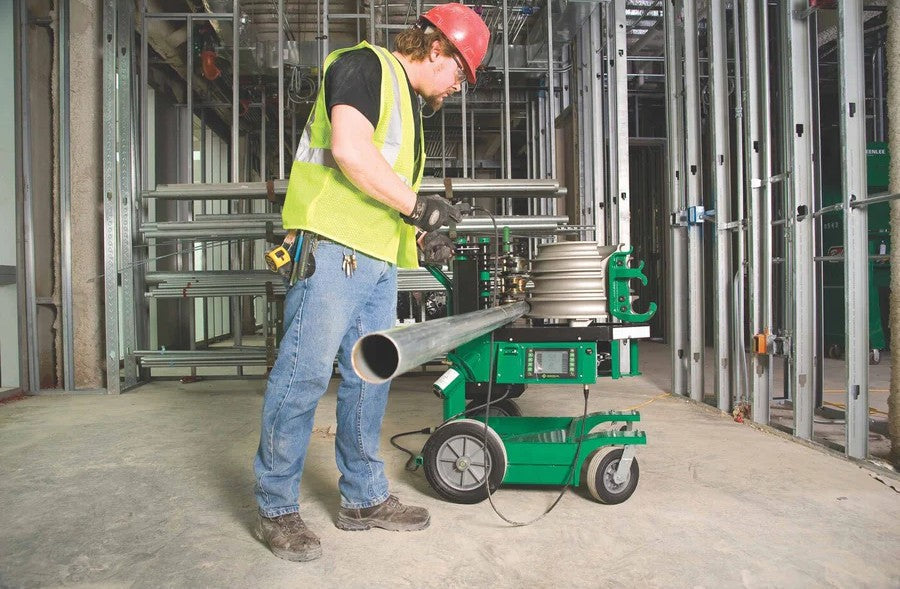

The Greenlee 855GX IntelliBender is Greenlee's most advanced programmable electric conduit bender. It handles 3/4-inch through 2-inch rigid, 1-inch through 2-inch EMT, and 1-inch through 2-inch IMC conduit from a single shoe, with no loose parts.

An absolute encoder-based system reads the shoe position in real time, automatically accounts for springback at every bend, and communicates bend-marking dimensions to the operator. The LCD interface lets a foreman program up to seven different bends, save three locally on the machine, and store an unlimited number to a USB drive for use across multiple benders on the same job.

Here is a full breakdown of what the 855GX includes, how it works, and what kind of operation it is built for.

• (1) 855GX IntelliBender Electric Conduit Bender, 120 VAC / 20A
• (1) Single shoe (bends 3/4" to 2" Rigid and 1" to 2" EMT/IMC, no loose parts)
• (1) Pendant controller with tactile feedback buttons and rare-earth magnet mount
• On-board storage box and tray
• Fork lift tubes, hoist bar, large wheels, and wheel brake bar built into the unit base

The 855GX is part of Greenlee's IntelliBender line, which applies programmable electronics and sensing technology to a production electric conduit bender. The machine pivots between horizontal and vertical bending positions in seconds using a unique pivoting cylinder, which is the foundation of its two-step setup: orient the shoe, select the angle, and bend. There is no manual leveling, homing routine, or lengthy configuration between orientation changes.

The single shoe on the 855GX handles 3/4 inch Rigid conduit in either the 1 inch Rigid or 1 inch EMT shoe grooves, and 1 inch through 2 inch Rigid, EMT, and IMC conduit without any shoe change between sizes. Patent-pending smart sensors on the shoe detect the conduit size and type automatically before each bend, eliminating the manual input step that causes programming errors on other programmable benders.

The absolute encoder system tracks the exact position of the bending shoe throughout each bend cycle and cross-references built-in bending tables to calculate and apply the correct springback compensation for the conduit size, type, and angle being bent. The result is accurate, consistent bends from the first stick to the last without manual springback adjustments between sticks or sizes.

The 855GX's LCD interface allows the operator to program seven different bend types, save three locally on the machine, and transfer an unlimited number of bend programs to and from other 855GX units via a USB drive. On a job site running multiple 855GX benders simultaneously, one foreperson can program the full bend sequence on one machine and push it to every other bender on the job via USB, keeping all bending stations consistent without reprogramming each unit individually.

The 855GX's LCD interface is where the programmable side of the IntelliBender becomes a production tool. The operator can program up to seven different bend types on the machine. Three of those programs can be saved locally on the unit itself, which means a frequently used bend sequence is available without any setup time at the start of a shift. All seven programs can be saved to a standard USB drive and transferred to other 855GX units on the same job site.

On a large project where multiple 855GX benders are running simultaneously on different floors or in different areas of a building, the USB transfer capability means the foreperson programs the job's bend sequence once on one machine and pushes it to every other bender. Every bending station on the job runs the same program. Bends match from one unit to the next without each operator manually dialing in settings. That level of consistency across a multi-bender operation is not possible on a standard dial-type electric bender.

The interface manages the most complex bends on the machine including 3D bends that require sequential bend programming. For contractors who run complex conduit routes through tight spaces, overhead, and around multiple obstructions, the ability to program a full 3D bend sequence and execute it repeatably across every stick in the run is a significant time and material saver compared to hand-laying each stick.

Springback is what happens after a conduit bend is completed and the shoe releases. The conduit wants to return slightly toward its original shape. On a hand bender or a standard electric bender, the operator accounts for springback by overbending slightly to hit the target angle after the material relaxes. The exact amount varies by conduit type, conduit size, and the degree of the bend. Getting it right manually takes experience, and getting it wrong means a stick that either has to be corrected or scrapped.

The 855GX eliminates that manual calculation. The patent-pending smart sensors on the shoe automatically detect what size and type of conduit is loaded before each bend. That information is fed to the absolute encoder system, which knows the real-time position of the bending shoe and cross-references it against the machine's built-in bending tables. The machine calculates the required springback compensation for that specific conduit size, type, and target angle, applies the overbend automatically during the cycle, and releases to the correct finished angle. The operator does not need to know the springback value. The machine handles it.

The absolute encoder tracks shoe position continuously rather than counting steps or using limit switches, which means the machine always knows exactly where the shoe is in the bend cycle. Even if the machine is powered down mid-bend and restarted, the encoder re-establishes position without a homing sequence. The 855GX also uses the encoder and bending tables to communicate bend marking dimensions to the operator through the LCD, which reduces the manual layout work required before loading each stick. Less layout time per stick adds up significantly on a full production conduit run.

The 855GX uses a solid-state electrical system with no mechanical relays. Relay-based systems in electric benders are a common point of failure. Every time the machine cycles, the relays open and close, and the arcing at the relay contacts over time causes pitting, degradation, and eventual failure. A solid-state system does not have relay contacts to pit or degrade. It switches electronically, eliminating the arcing failure mode entirely.

Greenlee rates the solid-state system as extending the life of the electronics while also allowing the 855GX to handle a wider range of jobsite power source variations without the voltage sensitivity that relay-based systems can exhibit.

The redesigned pendant controller on the 855GX uses tactile-feedback membrane buttons instead of standard soft-touch buttons. Tactile feedback means the operator feels a physical confirmation when a button registers, which reduces the chance of missed or double inputs when working with gloves on. The pendant attaches to the bender via rare-earth magnets, which provide strong holding power through normal handling while still releasing cleanly when the operator picks it up to work the conduit. The hook attachment on the pendant allows it to be hung on the bender while the operator uses both hands to position and guide the stick through the shoe.

The 20-amp GFCI-protected receptacle is the machine's power connection point. The GFCI protection is built into the machine's power system rather than relying on an external GFCI circuit at the outlet, which matters on job sites where GFCI protection at the outlet may not always be confirmed. The machine is designed to draw the right amount of power for each bend cycle rather than pulling peak current on every operation, which protects the motor and electronics over the long-term life of the unit.

A production conduit bender that is difficult to stage, move, or secure on a job site costs time every time it needs to be repositioned. The 855GX is built with a suite of mobility and storage features that address the logistics of running a heavy production bender on an active commercial or industrial job site.

The 855GX base includes fork lift tubes for staging and positioning the unit by forklift without additional rigging or pallets. The hoist bar provides a secure lifting point for crane or hoist operations on multi-story jobs where the machine needs to move between floors. Both features are integrated into the unit rather than being field-fabricated rigging solutions, which makes relocating the 855GX on an active job site a standard material handling operation.

Large wheels allow the 855GX to be rolled across a slab or staging area for short repositions without requiring a forklift every time. The wheel brake bar locks the unit in position during bending so the machine does not shift under the load of the bend cycle. The brake engages and releases quickly, so repositioning between bending areas does not require any tools or extended downtime at the machine.

The 855GX includes a built-in storage box and tray for keeping the USB drive, reference materials, and accessory items at the machine. On a production bending station where the operator is running bends continuously, having everything organized and within reach at the machine without a separate tool cart is a practical workflow detail that keeps the station moving efficiently throughout the shift.

The 855GX is a top-tier programmable production conduit bender. It is built for electrical contractors and conduit fabricators who bend high volumes of conduit at a commercial or industrial scale and need programmable precision across multiple benders on the same job. Here is where it fits and where it does not.

• Electrical contractors running large commercial, industrial, or institutional conduit jobs where production bending volume and consistent bend angles across multiple stations are both priorities
• Operations running multiple electric benders on the same job, where USB program transfer allows all benders to run the same programmed bend sequence without individual reprogramming
• Foremen and crew leaders who want to program a job's bends once and distribute them to the full bending crew, reducing setup time and angle inconsistencies across the job
• Jobs where complex 3D bends are required and manual springback compensation is a source of scrap and rework on standard benders
• Contractors who want to put less-experienced hands on production bending without sacrificing bend accuracy, using the smart sensor and auto-springback system to compensate for the experience gap

The Greenlee 855GX IntelliBender is not a machine for the occasional bending job. It is a programmable production tool built for electrical contractors who are running high volumes of conduit on commercial or industrial jobs and need every bending station producing consistent, accurate bends from the first stick to the last. The combination of the absolute encoder system, patent-pending smart sensors, automatic springback compensation, and USB bend program transfer puts capabilities on the bending floor that are not available on standard electric conduit benders.

The solid state electrical system addresses the most common long-term failure mode on relay-based benders. The redesigned pendant with tactile feedback and rare-earth magnet mount addresses the practical reality of using a pendant controller while managing conduit. The fork tubes, hoist bar, large wheels, and wheel brake bar address the logistics of running a production bender on an active multi-story or multi-area job site.

For operations where conduit bending is a significant daily production task and bend quality, repeatability, and training time are real costs, the 855GX delivers a measurable advantage over a standard electric bender. It is worth a close look for any electrical contractor who is currently absorbing the cost of springback corrections, inconsistent bend angles across multiple benders, or extended setup time when rotating new crew onto the bending station.
