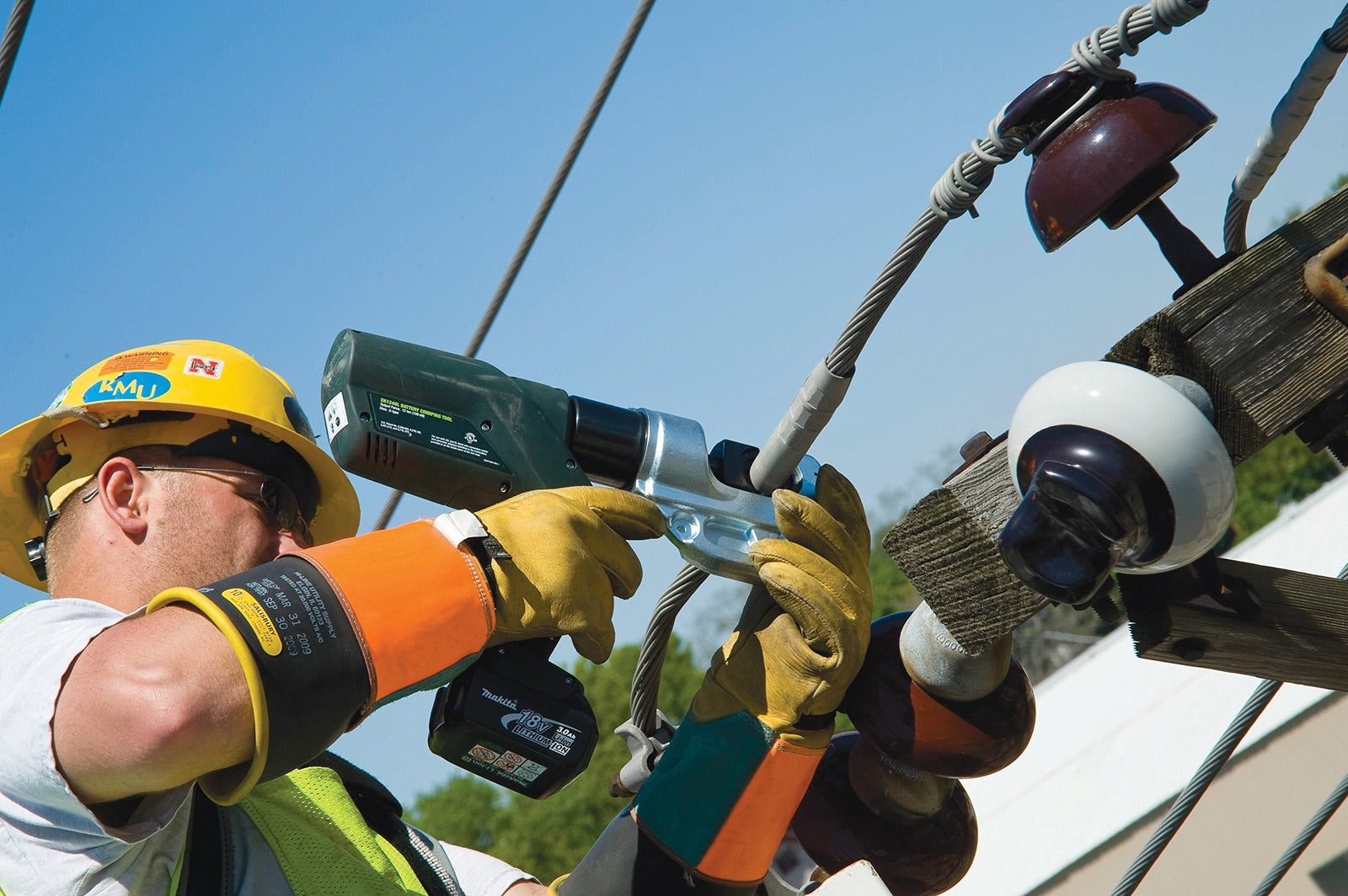

Greenlee EK1240LX11 12-Ton Gator Crimper: ICS Technology, Bluetooth, and 750 Kcmil Capacity in a Battery Tool

Terminating large copper and aluminum conductors, like the kind of work electricians and linemen do on service entrance equipment, switchgear, and heavy feeder runs, used to mean that a manual hydraulic crimp tool was needed, while also having no way to verify whether you actually hit the right crimping pressure on every lug.

The Greenlee EK1240LX11 changes that. It's a battery-powered, 12-ton hydraulic crimper with an 18V Li-Ion platform, a pistol-grip handle, and Greenlee's Intelligent Crimping System (ICS) technology, which monitors the force of every crimp and alerts you if anything falls short of spec.

It handles 8 AWG through 750 Kcmil copper and aluminum conductors, and connects to a smartphone via Bluetooth using the Greenlee Gator Eye app. Here's a complete breakdown of what this tool does and how it works.

Greenlee's Gator battery tool line covers cutting, crimping, and punching applications for electricians and utility workers. The EK series are the crimpers in that lineup, running on the same 18V Li-Ion platform as Greenlee's cutters and other Gator tools. The idea behind the Gator platform was to replace the traditional hand hydraulic crimp tool - a tool that works but requires significant hand strength, takes time, and gives you no feedback on whether the crimp was properly made - with a battery-powered unit that does the work faster and adds data to the process.

The EK1240LX11 is the 12-ton standard die model with a 120V AC charger. The '12' refers to the 12-ton (24,000 lb) crimping force. The 'L' indicates lithium-ion, 'X' refers to the Gator generation, and '11' means the kit includes a 120V charger. It covers the full range of large cable termination work: copper and aluminum conductors from 8 AWG up to 750 Kcmil. That's everything from branch circuit conductors up through the largest service entrance and feeder cables used in residential and commercial electrical work.

The standard die configuration means the EK1240LX11 uses interchangeable compression dies. The dies are color-coded to match the lugs and splices they're designed for, which speeds up selection on the job and reduces the chance of grabbing the wrong die. Dies for this tool are sold separately and cover a wide range of connector types and manufacturers.

All specifications below are sourced from Greenlee product documentation and verified against distributor listings. Always confirm current specs with your distributor before purchasing.

ICS is the standout feature of the EK1240LX11 and what separates it from a standard battery crimper. Every time you make a crimp, the tool's built-in pressure sensor monitors the actual crimping force applied. If the force drops below the minimum required specification for a proper crimp, the tool gives you both a visual alert on the LED display and an audible alert so you know immediately that the crimp didn't meet spec.

This matters more than it might seem at first. In high-voltage electrical work and large conductor terminations, an improperly crimped lug is a safety and reliability issue. A crimp that looks correct on the outside might not have achieved the internal cold-weld that makes a proper compression connection. Before tools like this existed, there was no way to verify crimp quality in the field without specialized pull-out testing equipment. ICS builds that verification into every single crimp, automatically.

For electricians working on inspected work, ICS also creates a documentation trail through the Gator Eye app. If every crimp registers as within spec, you've got data to back that up. If something falls short, you know to redo it before the wall closes up or the panel gets energized.

The EK1240LX11 connects via Bluetooth to Greenlee's Gator Eye app, available for iOS and Android smartphones. Through the app, you can view real-time tool diagnostics - battery level, crimp count, tool health status, and ICS crimp data. The app can also display and log crimp records, which is useful for inspection documentation and quality control on larger projects.

The LED display screen on the tool itself shows pressure levels, battery status, and ICS alerts without needing the app, so you're not dependent on having your phone out for basic operation. The app is the extended layer as it gives you more data, logging, and tool management features when you want them.

After each crimp cycle, the EK1240LX11's Automatic Retraction Stop pulls the ram back just far enough to release the connector without fully cycling the ram to its resting position. That might sound like a small detail, but on production work where you're terminating large numbers of lugs - think a switchgear installation, a large panel, or a service entrance with multiple large conductors - it adds up.

You're not waiting through a full ram retraction between every crimp. ARS speeds up the work cycle and conserves battery energy at the same time, which is why Greenlee says it delivers up to 70% more cycles per charge compared to earlier generations.

The EK1240LX11 uses a two-stage hydraulic system. The first stage is fast advance - the ram moves quickly toward the connector when the trigger is pulled. Once the ram makes contact and resistance is felt, it switches automatically to the power stage, which applies the full 12 tons of crimping force. This approach is faster than a single-stage system because you're not waiting for the full hydraulic pressure to build through the entire ram travel distance. You get a quick advance to contact and then full power right when it's needed.

The EK1240LX11 runs on Greenlee's 18V Li-Ion battery system and comes as a kit with two 4.0 Ah batteries and a 120V AC charger. The 18V platform is shared across Greenlee's Gator cordless tool lineup, so if you're already running Gator cutters or other Gator tools, the batteries are interchangeable.

The 18V Li-Ion chemistry gives the tool a strong power-to-weight ratio for the amount of force it delivers. At 15 lbs for the tool body, it's not a lightweight - you're moving 12 tons of hydraulic force, and the hardware to do that has weight - but it's significantly lighter and faster than a hand pump hydraulic unit and doesn't require a power unit or hose.

The EK1240LX11 uses a pistol-style grip handle with an over-molded rubber coating. The pistol grip is the right ergonomic choice for crimping work because it lets you operate the trigger with your dominant hand while controlling the tool and the cable with your other hand. You're not fighting the tool's weight or trying to manage a trigger positioned awkwardly relative to the work.

The rubber over-mold on the handle adds grip in wet or dirty conditions, which is the kind of environment you're working in when you're doing service entrance work, working in a damp panel room, or pulling cable on construction sites. It also absorbs some of the vibration from the hydraulic cycle.

Greenlee makes several versions of the 12-ton Gator crimper, and the differences matter for choosing the right tool. The three most common configurations are the EK1240LX11 (standard die, 120V charger), the EK12IDLX11 (indent die, 120V charger), and the EK1240LX12 (standard die, 12V charger).

Here's how they stack up:

The choice between the standard (EK1240LX11) and indent (EK12IDLX11) versions comes down to the crimp style required by the connectors and specifications on your job. Standard compression dies create a full-wrap hex or oval crimp profile. Indent dies make an indented crimp where a point or points are pressed into the connector rather than full-wrap compression. Certain connector manufacturers and utility specs call specifically for one style or the other. If your work is primarily commercial and residential electrical with standard compression lugs, the EK1240LX11 is the right choice.

The EK1240LX11 is a kit that includes the tool body, two 18V 4.0 Ah Li-Ion batteries, and a 120V AC charger. Dies are sold separately. Greenlee's die system for the EK1240LX11 covers a wide range of connector types, wire sizes, and manufacturers. When ordering dies, match the die set to the lug or splice manufacturer and wire size you'll be terminating. Greenlee color-codes the dies to match the connector color coding, which simplifies selection in the field.

The Greenlee EK1240LX11 is built for electricians, electrical contractors, and linemen who regularly terminate large copper and aluminum conductors. It's the right tool for service entrance work, switchgear and panelboard connections, large feeder runs, and commercial electrical installations where you're working with conductors from 8 AWG through 750 Kcmil.

If you're doing high-volume termination work on commercial projects - a large panel installation, a service upgrade with multiple large conductors, or switchgear connections - the combination of the ARS cycle speed, ICS verification, and cordless freedom makes a real difference in time and confidence compared to a manual hand pump unit. You're not fighting a hand pump through repeated crimps, and you know every crimp hit the right pressure.

It's also the right choice for electricians who need to document crimp quality for inspections or quality control. The Gator Eye app's logging capability gives you a record of every crimp made with the tool. That's a level of documentation that wasn't available in the hand-tool era and can be genuinely useful on inspected work or work subject to warranty claims.

If you only occasionally make large cable terminations and your work rarely goes above 2/0 or 4/0 AWG, Greenlee's 6-ton Gator models cover that range at a lower tool weight and cost. The 12-ton EK1240LX11 is sized for the full range of large conductor work through 750 Kcmil and the electricians and linemen who do that work regularly.

The Greenlee EK1240LX11 12-ton Gator battery crimper brings three things to large cable termination work that manual hydraulic tools can't: speed through the ARS cycle and two-stage hydraulics, cordless freedom without a pump or hose, and real-time crimp verification through ICS pressure monitoring. It covers 8 AWG through 750 Kcmil copper and aluminum - the full range of large conductor work in residential, commercial, and light industrial electrical installations. If you're terminating heavy conductors regularly and you want a tool that works faster and tells you every crimp hit the right pressure, the EK1240LX11 is built for that work.
