Greenlee | SKU:
EK1240LX11

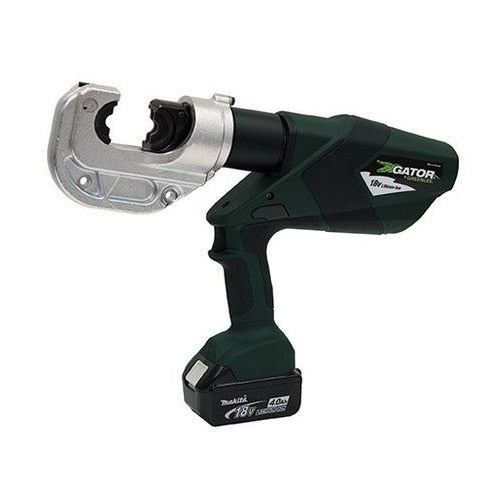

Greenlee EK1240LX11 12 Ton Pistol Grip Crimper, Li-Ion, 120V
Free Shipping
$4,774.04
$5,822.00
Unit price
/
Unavailable
Description
Description
Greenlee EK1240LX11 Includes
- (1) Crimper
- (2) 4.0 Ah Batteries
- (1) Charger
- (1) Case
Greenlee EK1240LX11 Features
- Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.
- Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is belows specifications
- State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times
- Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy
- LED light provides the operator with the battery charge and tool maintenance status
- Two-stage hydraulic system provides fast advance and power speeds, saving time
- Forward handle position improves tool balance
- One trigger controls all tool functions
- Crimping head rotates 350°
- Tools automatically retract when the crimping cycle is complete
- Overmolded tacky grip areas make gripping the tool easier and more comfortable
- LED work light illuminates dark work areas
- Greenlee battery-powered crimping tools now use bio-degradable oil
- Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life
Greenlee EK1240LX11 Specifications
Type: | Die style crimper |
Application: | 12 Ton Crimping |
Standard: | C/US UL Listed |
Wire Size: | 8 AWG - 750 Kcmil Cu & Al |
Opening Size: | 1.65 IN (42 mm) |
Overall Length: | 16.25 IN (413 mm) |
Crimping Force: | 24,000 lbs. (106 kN) |
Crimping Capacity: | 750 Kcmil (MCM) Cu & Al |
Connector Type: | Color-coded lugs and splices |
Handle Type: | Pistol Style with over molded rubber grip |
