Hydraulic Jacks and Jack Stands: Ton Ratings, Types, and More

Working under a vehicle is something mechanics do every day. It's also one of the most dangerous jobs in the shop if proper lifting and support procedures aren't followed. Every year, people are injured or killed when a vehicle slips off a jack or isn't properly supported. In fact, according to NHTSA data, an estimated 4,822 people are sent to emergency rooms annually in the U.S. for jack failure injuries alone — and that number doesn't even account for fatalities. The unfortunate reality is that most of these accidents could have been avoided with the right equipment and a few basic safety precautions.

Whether you're changing oil, replacing brakes, or tackling a major repair, it's important to understand how to safely lift and support a vehicle. In this guide, we'll cover the differences between floor jacks, bottle jacks, and jack stands, explain weight ratings, and show you where and how to position your equipment correctly. A few extra minutes spent doing it right can make all the difference.

When most mechanics say "jack," they usually mean one of two things: a floor jack or a bottle jack. Both tools do the same basic job, but they're built differently and are better suited for different situations. Knowing which one to reach for before you get under something can save you a lot of headaches.

A floor jack is the long, low-profile tool you see rolling around on most shop floors. It uses a long handle and a wide rolling frame to slide under a vehicle's chassis with ease. The lifting pad travels in an arc as it rises, which is important to keep in mind when placing it under a specific lift point.

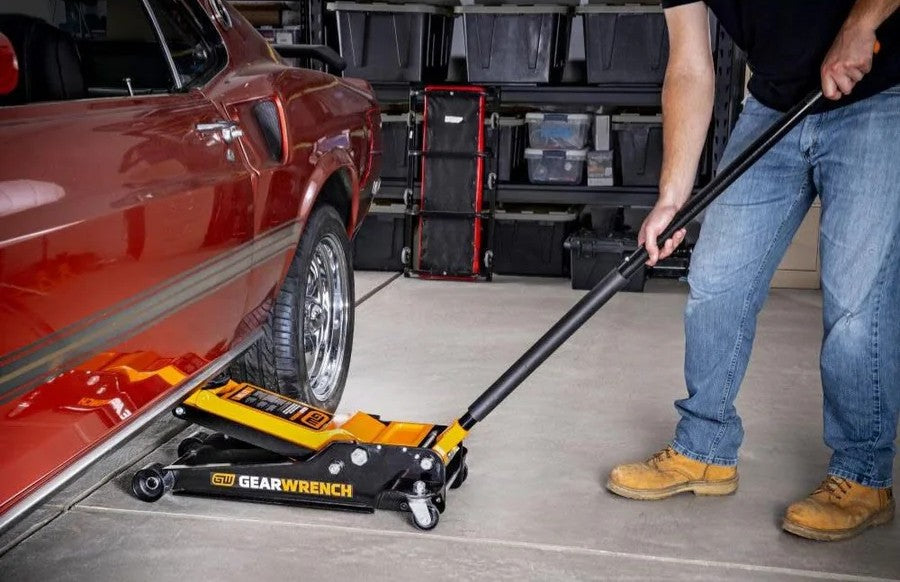

Floor jacks are fast, stable, and easy to position under passenger cars and light trucks. Most floor jacks for cars and trucks are rated from 2 tons to 3.5 tons. A low profile floor jack is designed specifically for sports cars, lowered trucks, or anything sitting close to the ground where a standard jack won't fit.

A bottle jack is taller and more compact than a floor jack. It works by using a hydraulic cylinder to lift straight up. Because of that compact design, bottle jacks can pack a lot of lifting capacity into a small body. You can find bottle jacks rated anywhere from 2 tons to 100 tons or more.

They're a favorite for lifted trucks, RVs, heavy equipment, trailers, and fleet work where you need serious lifting capacity and a floor jack just can't fit. The main trade-off is that they don't roll easily and require more setup time than a floor jack.

Ton ratings are probably the most misunderstood part of buying a jack or a set of jack stands. A jack rated at 3 tons can lift 6,000 pounds. That sounds like plenty for most vehicles, and for the majority of passenger cars and light trucks, it is. But here's what trips a lot of guys up: the ton rating is the total lifting capacity, not the safe working load per use. When you're lifting one end of a vehicle, you're typically putting 40 to 60 percent of the total vehicle weight on that jack.

Here's a simple example. A full-size pickup truck might weigh 6,500 pounds. The front end, depending on the engine and cab style, could be carrying around 3,500 pounds or more. A 3-ton floor jack can handle that safely. But if you're working on a heavy-duty diesel, a dually, a loaded van, or any commercial vehicle, you might be pushing toward the limit of a standard 3-ton rating. That's where heavy duty jack stands and higher-capacity bottle jacks earn their keep.

The rule of thumb most experienced mechanics follow: buy a jack and jack stands rated for at least 25 to 50 percent more than what you think you'll actually need. Running a jack at its maximum rated capacity every time adds wear to the seals and stresses the hydraulic system. Working at 70 to 80 percent of rated capacity is the smarter long-term play. For most car guys and mechanics doing everyday work on passenger cars and light trucks, a 3-ton floor jack paired with 3-ton jack stands covers the job. For fleet work, heavy SUVs, and pickup trucks, step up to 6-ton stands.

This is where a lot of DIYers and even some experienced techs make costly mistakes. You can't just stick a jack under any part of the frame and start pumping. Incorrect placement can bend or crack vehicle components, and more importantly, it can cause the vehicle to shift, slide, or fall off the jack. A vehicle that falls off an improperly placed jack doesn't just damage the car. It can kill the person underneath it.

Every vehicle has designated jack points. These are reinforced areas engineered specifically to support the full weight of the vehicle during lifting. Your owner's manual has a diagram showing exactly where they are on your specific vehicle. Most modern unibody cars and crossovers have reinforced pinch welds along the rocker panels. Older body-on-frame trucks and full-frame SUVs typically have solid frame rails that can be used from underneath. Independent rear suspension vehicles often have specific crossmember locations.

Always check the manual for the specific vehicle you're working on. Don't assume that what works on your personal truck works on the fleet van you're servicing. Vehicle designs vary a lot, and the wrong placement point can send a vehicle off a jack in seconds.

• Place the jack saddle squarely and centered on the lift point before pumping. Never lift with the saddle at an angle.
• On pinch welds, use a rubber pinch weld adapter to protect the seam from being crushed under load.
• Never jack on dirt, grass, gravel, or uneven pavement. Always use a flat, level, hard surface.
• Set the parking brake and chock the wheels on the opposite end of the vehicle before you lift.
• Don't lift the vehicle any higher than you need to for the job. Every extra inch of height increases the risk.
• If you're not sure where the jack points are, stop and check the manual. Guessing is how vehicles end up on the floor.

Here's the most important thing in this entire guide: a hydraulic jack is a lifting tool, not a support tool. Jacks can leak down slowly under a sustained load. Seals wear out. Release valves can creep under pressure. You should never get under a vehicle that's only being held up by a hydraulic jack. Not to take a quick look. Not for a minute. Not ever. People die doing exactly that.

Jack stands are the support system that keeps the vehicle safely in the air while you work. Once you've lifted the vehicle with a floor jack or bottle jack, you set the jack stands and lower the vehicle down onto them. The jack can stay in place as a secondary safety measure, but it's the stands that are doing the actual supporting.

Placement rules for jack stands are the same as for the jack itself. Set them on solid, reinforced structural points. Use stands rated at or above the weight they're being asked to support. Make sure all stands are set to the same height and that the vehicle sits level across all contact points. Before you slide under the vehicle, give it a firm push by hand to test stability. If it rocks or shifts, reset the stands before getting under it.

When you're ready to lower the vehicle back down, raise it slightly with the jack first, then pull the stands clear of the vehicle, then lower it gently to the ground. Don't try to pull stands while the vehicle is resting full weight on them.

Not all floor jacks are the same, and buying the wrong one for the work you're doing can be frustrating at best and dangerous at worst. Here are the things that matter most when you're choosing a floor jack.

• Capacity: Buy rated capacity that exceeds the heaviest vehicle you plan to lift. For most light trucks and SUVs, 3 tons is the starting point.
• Saddle height: A low profile floor jack with a lower minimum saddle height is essential for vehicles with minimal ground clearance.
• Lift range: Make sure the jack can lift the vehicle high enough to actually get under it and work.
• Wheels and mobility: Look for jacks with large, durable wheels that roll easily on shop floors.
• Build quality: Check that the frame, saddle, and handle pivot points are solid. Cheap jacks have cheap welds.
• ASME certification: A jack that meets ASME PASE safety standards has been tested to a higher standard.

There are several floor jack options to choose from. The GearWrench GWHDFJ3T uses a dual piston fast lift design to get vehicles up quickly. The Steelman Pro JS647530 adds a patented safety bypass system that protects the hydraulic unit from ram over-travel damage, plus a wide 4-5/16" saddle and extra-wide wheels for a stable footprint under load.

GearWrench makes a full range of ratcheting jack stands sold two per pack. All three models use a double lock pin design for an extra layer of protection and ductile iron ratcheting bars for smooth, secure height adjustment.

The 2-ton stands cover most passenger cars. The 3-ton stands handle the majority of light trucks and SUVs. The 6-ton stands are the call for heavy-duty pickups, large SUVs, and commercial vehicles where you need a real safety margin.

Jet's bottle jack lineup at Toolup.com runs from a 2-ton unit for light work up to a 60-ton jack for heavy equipment and fleet use. The JHJ Series are straight hydraulic. The AHJ Series are air/hydraulic and can be cycled with shop air for faster lifting on high-volume jobs.

All Jet bottle jacks meet ANSI/ASME B30.1 and PALD-1 standards, and chrome-plated pump pistons and rams add corrosion resistance and long-term durability.

A jack that hasn't been maintained is a jack that can fail. Most shop jacks get used hard and then get shoved into a corner. A few basic maintenance steps can keep them working safely for years.

• Check the hydraulic fluid level regularly. Low fluid causes the jack to not lift fully or to slowly sink under load.
• Bleed the jack if it feels spongy, slow, or doesn't lift smoothly. Air in the hydraulic system causes inconsistent lifting.
• Inspect the saddle, pivot points, and wheels for wear before each use. Cracks in the frame or welds mean replace, not repair.
• Store jacks and jack stands in a dry area. Rust and corrosion are the biggest enemies of a jack's long-term reliability.
• Never repair a jack with a failed hydraulic cylinder, cracked frame, or bent saddle arm. Replace it.



Run through these steps every single time before you slide under any vehicle.

• Vehicle is on a flat, level, hard surface.
• Parking brake is set and wheels are chocked on the opposite axle.
• You've confirmed the correct jack placement points from the owner's manual.
• Jack is rated for the vehicle weight you're lifting.
• Jack stands are rated for the vehicle weight and set at the correct, reinforced lift points.
• Vehicle has been lowered onto the jack stands, not left sitting on the jack alone.
• You've done a push test and the vehicle is stable on the stands before going under it.
