Metalworking Power Tools Guide: Grinders, Sanders, and Cut-Off Tools for the Shop

13 — min read

Most metal shops and jobsites have more than one grinder sitting on the bench, and for good reason. Depending on the work, you might be cutting plate, cleaning up welds, drilling structural steel, trimming sheet metal, or polishing stainless. Each job calls for a different tool.

This article takes a closer look at the core metalworking power tools used every day, including angle grinders, die grinders, cut-off tools, shears, nibblers, magnetic drills, and polishers. You'll find a breakdown of where each tool fits, the specs that matter, and product tables to compare the models available for when you want to upgrade your toolbox.

Angle Grinder Guide: The Most Versatile Metalworking Tool in the Shop

Angle grinders are the workhorse of metalworking. You'll find them on welding carts, in fab shops, on job sites, and in mechanic bays. A single angle grinder, swapped between discs, can cut, grind, clean welds, strip rust, and polish metal. If you only own one metalworking power tool, this is it.

The disc size determines what the tool can handle. A 4-1/2" or 5" grinder is the most common size in the trades. It handles cutting discs, grinding wheels, flap discs, wire cups, stripping discs, and sanding pads. These run at high RPM (typically 10,000 to 12,000 no-load) and remove material fast.

A 7" or 9" grinder is built for heavier stock. You'll see these in structural steel work, weld prep on thick plate, and aggressive material removal. They spin slower (around 6,000 to 8,500 RPM) but carry significantly more inertia and can accept larger, more aggressive abrasives.

Switch Type: Paddle vs. Trigger vs. Lock-On

This is one of the most important decisions when buying an angle grinder. Safety codes and company policies in many industries require paddle or trigger switches with no lock-on feature. The idea is simple: if you drop the tool or lose control, the switch releases and the grinder stops.

Lock-on switches are convenient for extended use but carry more risk in certain applications. If your workplace or trade organization has a no-lock-on requirement, that filters your options considerably. Both Milwaukee and DeWalt offer the same core models in both configurations, so you can match the spec to your site requirement.

Corded vs. Cordless Angle Grinders

Corded grinders give you consistent power without worrying about battery state. A corded 11-amp 4-1/2" grinder delivers reliable torque for extended use. Cordless options on platforms like Milwaukee M18 FUEL and DeWalt 20V MAX have closed the gap significantly, especially with brushless motors that maintain power under load. For most job site and shop use, a cordless FUEL or Brushless grinder handles the same workload as a corded model. The advantage is mobility, especially working on a vehicle, in a tight bay, or away from outlets.

Variable Speed Angle Grinders

Most angle grinders run at a fixed max speed. Variable speed models, like the Makita 9564CV and 9565CV, let you dial the RPM down for thinner material, finishing work, or when running sanding pads where lower speed improves results. Variable speed also helps when working with different disc types that have different ideal operating speeds.

Small Angle Grinders (4-1/2" – 5")

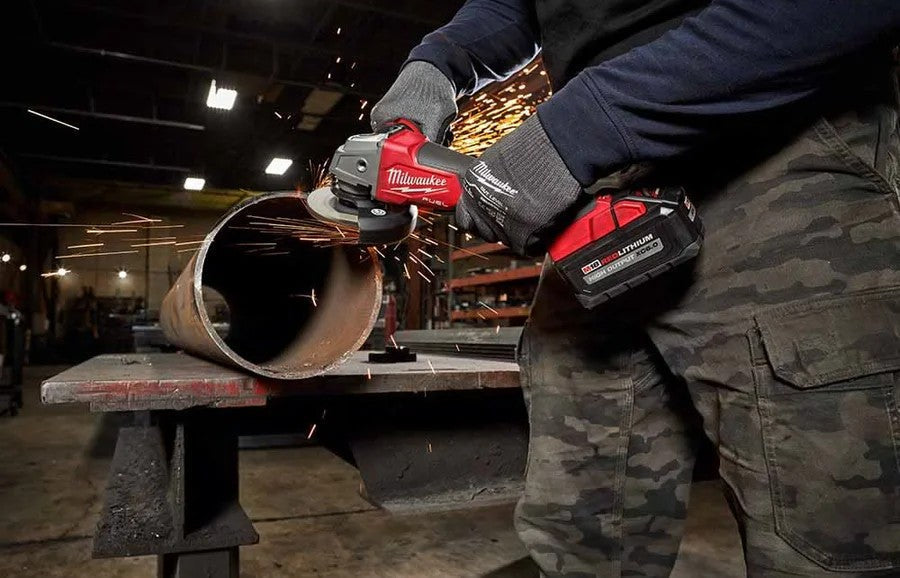

Milwaukee 2880-20 M18 FUEL 4-1/2"/5" Grinder

$330.00$229.00

See Product

DeWalt DWE402N 4-1/2" No Lock-On Grinder

$183.94$97.19

See Product

Makita 9564CV 4-1/2" Variable Speed Grinder

$340.00$229.00

See Product

Large Angle Grinders (7" – 9")

Milwaukee 2785-20 M18 FUEL 7"/9" Large Angle Grinder

$496.00$293.64

The cordless solution for heavy plate and structural steel — 8,500 RPM on M18 power with no cord to manage.

See Product

Die Grinder Uses: Precision Grinding, Porting, and Tight-Space Work

Die grinders run smaller burrs, mounted points, and abrasive bits at very high speeds, typically between 20,000 and 25,000 RPM. They're the tool you reach for when you need to clean up a weld bead in a corner, port a head, remove a gasket surface, deburr a cut edge, or grind in a spot where an angle grinder physically won't fit.

The two most common collet sizes are 1/4" and 1/8". Most shop-grade die grinders use a 1/4" collet, which covers the widest range of carbide burrs, mounted stones, and small sanding drums. Some industrial tools offer 1/2" collets for larger bits, but that's specialized.

Straight vs. Right Angle Die Grinders

Straight die grinders look like a thick marker or pen. The bit extends straight out from the front of the tool. These are the most common style and work well for most porting, deburring, and surface grinding tasks.

Right angle die grinders have the bit oriented 90 degrees to the body of the tool. They're built for confined areas where you can't get a straight tool in at the right angle. A right angle die grinder in a tight exhaust manifold port or wheel well is a lot easier to control than fighting a straight grinder in an awkward position.

Cordless Die Grinders

Cordless die grinders on the Milwaukee M12 platform have become popular in automotive and industrial settings because they eliminate the air compressor. M12 FUEL die grinders run quieter than pneumatic tools, maintain consistent speed under load, and work in any environment without needing a hose nearby. If you're already on M12 batteries, the straight and right angle die grinders are worth adding to the kit.

Milwaukee 2486-20 M12 FUEL Straight Die Grinder

$314.00$229.00

See Product

Milwaukee 5196 Heavy Duty 11 Amp Die Grinder

$534.00$299.00

See Product

Makita GD0601 1/4" Die Grinder

$240.00$169.00

See Product

Cut-Off Tool: Fast, Controlled Cuts in Pipe, Rebar, and Rod

A cut-off tool is a specialized grinder designed around thin cutting wheels, usually 3" in diameter. The compact size and small wheel give you better visibility and control compared to an angle grinder with a 4-1/2" cutting disc. Cut-off tools are especially useful for cutting pipe, rebar, conduit, bolts, and small stock in tight spaces.

The Milwaukee M12 FUEL 3" Compact Cut Off Tool is a strong example of where cordless cut-off tools have landed. Running on M12 batteries, it's compact enough to get into spots that would be awkward with a full-size angle grinder. You get the maneuverability of a smaller wheel with battery-powered freedom of movement.

That said, for heavy-duty cutting on thick stock or extended production cutting, a 4-1/2" angle grinder with a cutting disc is usually the better call. Cut-off tools shine in precision and accessibility, not bulk material removal.

Milwaukee 2522-20 M12 FUEL 3" Compact Cut Off Tool

$231.00$149.00

The compact cordless cut-off tool that gets into tight spots a standard angle grinder can't reach.

See Product

Metal Shears and Nibblers: Cutting Sheet Metal Without Distortion

If you're working with sheet metal, roofing panels, HVAC duct, or metal cladding, angle grinders and cut-off wheels aren't the right tools. They heat the material, throw sparks, create a rough edge, and can distort thin sheet. Metal shears and nibblers cut sheet metal cleanly, without heat or significant deformation.

Metal Shears: How They Work

Shears use a blade-on-blade action to slice through sheet metal, similar to scissors but with a powered reciprocating mechanism. Double-cut shears have two cutting blades that remove a narrow strip of material as they cut, giving you a clean path with minimal distortion. Single-cut shears work more like snips, cutting along a single line.

Gauge capacity matters. A 14-gauge shear cuts heavier steel than an 18-gauge shear. Check the tool's rated gauge for mild steel. If you're cutting stainless or aluminum, the capacity typically drops compared to mild steel.

Swivel-head shears, like the DeWalt DCS494B, let you rotate the cutting head to follow curves and angles without repositioning your body. This is a real advantage on longer cuts or curved profiles.

Nibblers: The Right Tool for Curves and Patterns

Nibblers punch small crescent-shaped pieces out of the sheet metal as they advance. Because they remove a small kerf of material, nibblers can follow tight curves that shears can't manage. If you're cutting holes in panels, following a curved template, or doing custom bodywork, a nibbler is more precise than a shear.

The Milwaukee M12 FUEL 16 Gauge Nibbler is a solid cordless option for bodywork and HVAC. At 16 gauge capacity, it covers most sheet metal applications on mild steel.

Corded Shears for Production Work

The Kett KD440 is a corded pistol-grip shear with variable speed. It's built for production use on a workbench or on larger panels where you need consistent power over extended cuts. Corded shears are common in HVAC shops and metal building panel work where you're running long cuts all day.

Milwaukee 2636-20 M18 14 Gauge Double Cut Shear

$508.00$349.00

See Product

DeWalt DCS494B 20V 14 Gauge Swivel Shears

$279.00

See Product

Milwaukee 2476-20 M12 FUEL 16 Gauge Nibbler

$366.40$279.00

See Product

Specialty Metalworking Power Tools: Magnetic Drills and Polishers

Beyond the grinders and shears, two other metalworking power tools come up regularly in trade shops: magnetic drills and variable speed polishers.

Magnetic Drill: Drilling Structural Steel On-Site

A magnetic drill uses an electromagnetic base to clamp directly to steel. Once energized, the magnet holds the tool in position on the workpiece, letting you drill precisely without a drill press or fixtures. These are standard equipment for ironworkers, structural steel fabricators, and anyone drilling annular cutter holes in I-beams, plate, or channel.

The Milwaukee 4272-21 handles 1-5/8" annular cutters and runs on 120V corded power. The electromagnetic base engages with a switch, giving you a solid, vibration-resistant hold on the workpiece. This is the kind of tool that makes jobs possible that would otherwise require hauling material to a shop drill press.

Milwaukee 4272-21 1-5/8" Electromagnetic Drill Kit

$1758.00$1299.00

Clamps directly to structural steel and drills annular cutter holes without a press — standard equipment for ironworkers.

See Product

Variable Speed Polisher: Metal Finishing and Automotive Work

A variable speed polisher is used for buffing, compounding, and finishing both metal and painted surfaces. In a metal fabrication context, they're used for final finishing on stainless, aluminum, and polished steel. In automotive shops, they're used for paint correction and restoration.

The Milwaukee M18 FUEL 7" Variable Speed Polisher runs on M18 batteries and is built for professional finishing work. Variable speed is essential here: compounding requires different speeds than light polishing or wax application.

Milwaukee 2738-20 M18 FUEL 7" Variable Speed Polisher

$464.00$329.00

Cordless variable speed polisher for metal finishing, paint correction, and buffing on M18 batteries.

See Product

Choosing the Right Metalworking Power Tool for the Job

Here's a plain breakdown of what to run for common metalworking tasks:

• Cutting thick stock (plate, pipe, rod): Use an angle grinder with a cutting disc or a cut-off tool for tight spaces.
• Grinding welds, removing material: Angle grinder with a grinding wheel or flap disc.
• Cleaning rust, stripping paint: Angle grinder with a wire cup or stripping disc.
• Porting, deburring, tight-corner grinding: Die grinder with the appropriate burr or mounted point.
• Cutting sheet metal clean: Shear (straight cuts or gentle curves) or nibbler (tight curves and holes).
• Drilling holes in structural steel: Magnetic drill with an annular cutter.
• Final finish on metal or paint: Variable speed polisher.

If you're outfitting a fab shop or trade truck, start with a quality 4-1/2" angle grinder (corded for production, cordless for mobility), a die grinder, and a shear or nibbler if you deal with sheet metal. The rest of the lineup fills in as your work demands it.

Platform Considerations: Building Out a Battery System

If you're investing in cordless metalworking tools, battery platform matters. Milwaukee's M12 and M18 systems cover most of the tools in this guide. M12 handles die grinders, nibblers, and compact cut-off tools where a smaller, lighter platform makes sense. M18 covers the grinders, shears, and polisher where you need more power and runtime.

DeWalt's 20V MAX platform covers their angle grinders, die grinder, and shears. If you're already running 20V MAX tools on site, adding the cordless metalworking lineup makes sense for compatibility.

Makita's corded angle grinders, particularly the variable speed 9564CV and 9565CV, are worth considering if you want consistent corded power with speed control. Their die grinder (GD0601) is a compact corded option that's been a longtime staple in automotive shops.

You don't have to pick one brand for everything. It's common for shops to run Milwaukee cordless grinders alongside corded options from DeWalt or Makita for bench work. Pick based on what platform you're already committed to, then fill in where another brand offers something your current lineup doesn't.

Safety Notes for Metalworking Power Tools

Metalworking power tools move fast and hit hard. A few things worth keeping in mind:

• Always check the disc or wheel's max RPM rating against the tool's no-load speed. Running a disc beyond its rated speed can cause it to shatter.
• Use the correct disc type for the task. Cutting discs aren't designed to grind; grinding wheels aren't designed to cut side-load. Misusing disc types is a common cause of breakage.
• Keep the guard on and properly positioned. Guards are there for a reason and OSHA regulations require them in most applications.
• Wear eye protection with side shields. Angle grinders throw debris at high velocity in multiple directions.
• Check the shear or nibbler's rated capacity before cutting. Forcing material beyond the tool's gauge rating bends blades and damages the tool.
• Use the no-lock-on switch or paddle switch if your workplace or industry requires it. Don't bypass safety features.
