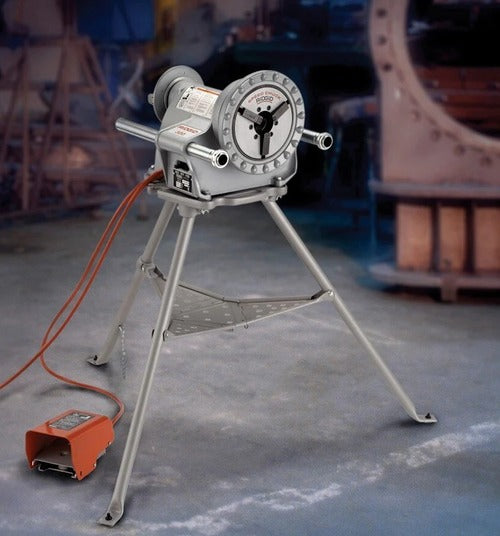

RIDGID 15682 300 Complete Pipe Threading Machine: A Nearly 60-Year Proven Platform Built for the Field

If you work in plumbing, pipefitting, mechanical, or HVAC, cutting and threading pipe in the field or in the shop is a daily reality. Manual threading gets slow fast on any real job. You need a machine that sets up quickly, handles the full range of pipe sizes you actually work with, and can move from one job to the next without turning into a logistics problem.

If you work in plumbing, pipefitting, mechanical, or HVAC, cutting

The RIDGID 15682 300 Complete Pipe Threading Machine has been answering that need for close to 65 years. The 300 Power Drive platform is one of the most recognized pipe threading machines in the trade, and the 15682 packages it as a complete system with the stand, carriage, reamer, cutter, die head, dies, transporter, oiler, and cutting oil all included. You pull it out of the crate and you are ready to thread.

Here is a full breakdown of what the 15682 includes, how the machine is built, and what jobs it is the right fit for.

• (1) 300 Power Drive with foot switch
• (1) 1206 Stand
• (1) 311 Carriage with lever
• (1) 341 Reamer
• (1) 360 Cutter
• (1) 811A Universal Die Head
• (1) Set 1/2" to 3/4" Universal alloy dies
• (1) Set 1" to 2" Universal alloy dies
• (1) 32 Transporter
• (1) 418 Oiler
• (1) Gallon Nu-Clear thread cutting oil

The RIDGID 300 Power Drive is the engine behind the 15682. It runs a 1/2 HP universal reversible single-phase motor at 38 RPM with a heavy-duty FOR/OFF/REV switch and an integral foot switch for hands-free speed control during threading. The RIDGID speed chuck with replaceable rocker-action jaws grips the pipe securely, and a cam-action rear centering device turns with the chuck to keep pipe aligned through the full thread cut.

The 300 Complete designation means this is a ready-to-work system. The machine arrives with the 1206 stand with clip-on tool tray, the 311 carriage that rides on two heavy-duty support bars, and both die sets for 1/2 inch through 3/4 inch and 1 inch through 2 inch pipe.

It also features an 811A Universal Die Head that accepts quick-open die changes, so you are not manually backing out each die at the end of a cut. Thread one size, open the head, advance to the next joint, and repeat.

This 300 platform's longevity in the trade is no coincidence. It threads pipe from 1/8 inch through 2 inch, covers NPT threading and roll grooving applications with the right accessories, runs quietly compared to older threading machines, and breaks down for transport without a full tool inventory of specialized hardware.

This Power Drive includes 32 Transporter wheels, making it fast for one person to move the complete setup from a work truck to the job.

RIDGID backs the 300 Power Drive with its standard tool warranty. For contractors who already own a RIDGID 300 Power Drive, the stand, carriage, and accessories from the 15682 kit can be purchased separately to build the same complete system without buying a second power drive.

The 300 Power Drive runs a 1/2 HP universal reversible motor at 38 RPM through a heavy-duty FOR/OFF/REV switch with a recessed on/off/reverse control and an integral foot switch. The foot switch keeps your hands free to guide pipe and manage the die head through the cut without reaching back to a panel switch. For most threading operations, the foot switch is how the machine gets used day to day.

The RIDGID speed chuck uses rocker-action jaws that are replaceable when worn. The cam-action rear centering device turns with the chuck, which keeps the pipe centered through the thread cut and reduces the chance of a tapered or off-center thread caused by pipe movement. On longer pipe sections where pipe deflection under its own weight can affect thread quality, the rear centering device is doing real work keeping the cut accurate.

The reversible motor is more than just a feature for backing the die off after the cut. It allows the machine to be used for threading in either direction, which matters for nipple threading and certain specialty applications. The 38 RPM spindle speed of the 15682 is the controlled, deliberate speed that experienced pipefitters know produces consistent threads on standard steel pipe. A 57 RPM version is available as the RIDGID 15722 for higher production pace requirements.

Thread cutting oil is not optional on a threading machine. Without proper lubrication, the dies cut rough, wear faster, and produce threads that do not seat cleanly. The 15682 includes the 418 Oiler with a self-contained oil system and adjustable flow control, plus one gallon of RIDGID Nu-Clear thread cutting oil to get started.

The adjustable flow control lets the operator dial in oil delivery to match the pipe size and material being threaded. Larger pipe sizes and harder materials need more oil to keep the dies cutting cleanly and running cool. The self-contained system means oil delivery is part of the machine's operation rather than a separate manual step, which matters on a production threading job where speed and consistency are the priorities.

Nu-Clear thread cutting oil is a clear-formula oil that does not stain pipe or fittings, which is relevant on jobs where aesthetics matter or where pipe will be visible after installation. It is compatible with steel, stainless, aluminum, and plastic pipe, which covers the full range of materials the 300 Complete is capable of threading.

A pipe threading machine that takes 45 minutes to set up and break down adds real time to every job it moves to. The 300 Complete is designed around fast field deployment. The 1206 stand features folding legs and an integral locking tool tray, and the 32 Transporter wheels included in the kit mount to the stand for rolling the complete setup from the work truck to the work area and back without disassembly.

The stand's clip-on tool tray keeps the reamer, cutter, die head, and dies organized and within reach at the machine rather than spread across the job site or left in a toolbox. On a job where you are threading multiple sizes and alternating between cutting, reaming, and threading operations, having everything at hand at the machine cuts the time between operations.

The folding leg design allows the stand to go flat for loading in a van, pickup bed, or job trailer without removing the machine from the stand. Set up is the reverse process: unfold the legs, lock them, position the machine, connect to power, and you are threading. For plumbers and pipefitters moving the machine between floors, buildings, or job sites throughout the week, that speed of setup and teardown adds up across a job.

The 300 Complete is built first for NPT pipe threading, but the 300 Power Drive platform supports additional applications through accessories that are sold separately.

The 811A Universal Die Head included with the 15682 cuts right-hand NPT threads on pipe from 1/8 inch through 2 inch. The quick-open design releases the dies at the end of the cut so you can back the carriage off without having to reverse thread the die head off the pipe. Both die sets for 1/2 through 3/4 and 1 through 2 inch pipe come in the kit, so you are covering the full size range of standard plumbing and mechanical pipe work from day one.

The 300 Power Drive is compatible with RIDGID roll groover attachments for grooving pipe for Victaulic-style mechanical couplings, which are widely used in fire suppression systems, HVAC piping, and industrial mechanical systems. Roll grooving capability on the same power drive as your threading machine means you are not hauling a second machine to jobs that require both threaded and grooved connections.

Roll groover attachments for the 300 are sold separately and are sized for specific pipe diameters. If grooving is part of your regular work, verify the compatible roll groover model for your pipe sizes with RIDGID or a RIDGID distributor before ordering.

• Commercial and residential plumbing pipe threading
• Fire suppression system installation and fabrication
• Mechanical and HVAC piping systems
• Industrial pipe fabrication in the shop or field
• Maintenance and repair work where threaded connections need to be fabricated on site

The RIDGID 15682 is a commercial-grade pipe threading system built for plumbers, pipefitters, and mechanical contractors who thread pipe regularly in the field or in the shop. Here is where it fits and where it does not.

• Plumbers and pipefitters running commercial, industrial, or mechanical jobs where NPT pipe threading is a daily operation
• Contractors who need a complete ready-to-work system without sourcing stand, carriage, dies, oiler, and cutting oil separately
• Jobs where both threading and roll grooving are required on the same project, using the 300 Power Drive as the common platform for both operations
• Shops and contractors who need a machine that moves between job sites regularly and sets up fast without a full crew
• Operations where threading 1/8 inch through 2 inch pipe covers the full scope of work, and the 38 RPM speed is appropriate for the materials being threaded

The RIDGID 300 Power Drive's track record in the trade speaks for itself. Close to 50 years of consistent use on plumbing, mechanical, and industrial pipe jobs is not an accident. The 15682 packages that proven platform as a complete, ready-to-work threading system with the stand, carriage, reamer, cutter, die head, both die sets, transporter, oiler, and cutting oil all in one kit.

For plumbers and pipefitters who thread pipe regularly and want a machine they can deploy fast, rely on throughout the job, and move to the next site without complications, the 300 Complete delivers on all of those fronts.

This machine also has a self-contained oil system, a quick-open die head, a cam-action centering device, and a foldable stand with transport wheels, all of which are practical features that make the machine faster and easier to use on actual job sites rather than just in a shop environment.

If you already own a RIDGID 300 Power Drive, the accessories that make up the 300 Complete system are available separately. If you are setting up from scratch, the 15682 is the straightforward way to get a complete, production-capable pipe-threading system in a single order.
