RIDGID 26092 Model 1224: Production Pipe Threading from 1/4" to 4"

If you've spent time threading pipe, you already know how quickly friction can be caused by having different materials. One run can call for black iron, the next might need something like galvanized, and you can even have stainless or IMC somewhere in the mix.

Every time that you have to change the pipe on a threader costs time on the jobsite, and when you're also fighting a generator under load or a long temporary power run that's pulling your voltage down, a threading machine that can't hold torque through the cut is going to slow your whole operation down.

The RIDGID 26092 Model 1224 Pipe Threading Machine was built to handle that type of environment and project. It threads black iron, galvanized, plastic-coated pipe, stainless steel, IMC, heavy-wall conduit, and rod up to 30 Rockwell C from 1/4" through 4", using a capacitor-start/capacitor-run induction motor designed to maintain threading performance even when the incoming voltage is struggling.

For plumbers, pipefitters, and mechanical contractors running production threading on commercial and industrial projects, this threading machine is worth getting.

• (1) Threading Machine
• 26132 - 711 SO Universal Right Hand Dies
• 26152 - 714 SO Receding Right Hand Dies
• 26192 - Dies, 1224 2-1/2" to 4" NPT HS
• 47745 - 1/2"-3/4" Universal Alloy Die Set
• 47750 - 1"-2" Universal Alloy Die Set
• 26212 - 1/4"-4" Wheel-Type Cutter
• 26217 - 1/4"-4" Blade-Type Reamer
• 33125 - Wheel, Cutter F229 3 & 4 HD
• 46030 - 3/16" Hex Key
• 46040 - Hex Key, 7/32"
• 46190 - Hex Key, 1/4"
• 70835 - Nu-Clear Thread Cutting Oil
• 83975 - 3/4" Combination Wrench
• 53693 - Tool Box

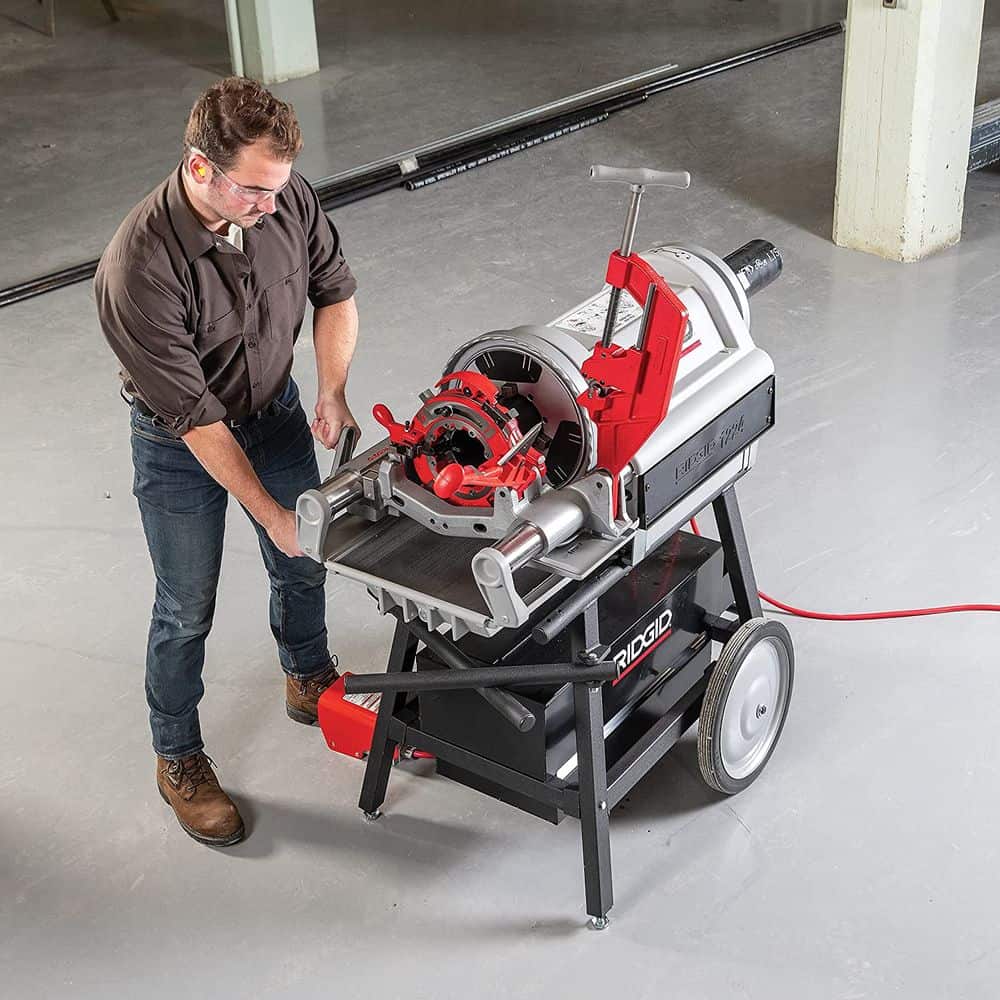

The Model 1224 is a floor-standing production pipe threading machine designed for commercial and industrial pipe fabrication. It covers pipe from 1/4" to 4" in standard configuration, threads bolt stock from 1/4" to 2", and with the optional 161 Geared Threader, capacity extends to 6". The 1-1/2 HP induction motor runs on single-phase, 60 Hz power and includes heavy-duty rotary-type motor control with an integral foot switch.

The machine has been a production threading standard in the plumbing and pipefitting trades for decades. The RIDGID 26092 kit packages the 1224 with a full complement of dies, cutters, reamers, oil, and accessories, ready to thread from day one. That means:

• No separate die set sourcing before the machine is useful on the job
• Full 1/4"-4" pipe capacity covered across both die head configurations out of the box
• Die sets, cutter, reamer, cutting oil, wrenches, and toolbox all included

RIDGID describes the defining characteristics of the 1224 in straightforward terms: Material Versatility, Thread Type Flexibility, and Motor Performance Under Voltage Drop. Those aren't just spec sheet claims. They reflect specific engineering decisions that separate the 1224 from lower-cost threading alternatives

On a commercial mechanical job, you're rarely threading just one pipe type from start to finish. A single project might call for:

• Black iron on the gas distribution lines
• Galvanized on exposed exterior runs
• Stainless steel in food service, pharmaceutical, or corrosion-sensitive areas
• IMC or heavy-wall conduit where electrical and mechanical work share a path

Without a machine that handles the full range, you're working around material limitations all day. The RIDGID 1224 threads all of the above without needing to switch machines or make major setup changes between materials.

The hardness rating matters here. The 1224 is rated to thread rod and pipe up to 30 Rockwell C (HRC). Most commercial grades of stainless steel fall in the 20-25 HRC range depending on grade and temper. The 1224 handles that range without issue, which is not something every threading machine in this class can say.

The chuck is a hammer-type design with replaceable rocker-action jaw inserts. That system grips firmly across a wide range of pipe diameters without requiring a chuck swap between sizes, and the replaceable inserts keep maintenance costs manageable over the long run.

The rear centering device uses cam action to align and support the workpiece as it feeds through the machine. Proper rear support is critical for thread quality, especially on longer pipe sections where unsupported weight can cause the pipe to deflect mid-cut and affect thread straightness.

This is where the 26092 kit delivers range that goes beyond basic domestic pipe threading. The machine includes two distinct die head configurations, each covering a different portion of the capacity range.

The 1/4"-2" Universal Die Head handles the smaller half of the range. Universal die heads are designed to cut both tapered and straight threads without reconfiguring the head between cuts. Supported thread forms include NPT (National Pipe Thread Taper), NPSM (National Pipe Straight Mechanical), BSPT (British Standard Pipe Taper), and BSPP (British Standard Pipe Parallel).

The 2-1/2"-4" Receding Die Head handles the large-diameter end. Receding die heads automatically open after the thread is complete, allowing the pipe to back out without manually retracting the dies. On large-diameter pipe, that automatic retraction is a meaningful production time saver. This head supports the same four thread forms as the universal head.

In practical terms, this matters on process piping and industrial projects where international equipment and fittings may be spec'd to BSPT or BSPP rather than NPT. The 1224 cuts the thread the fitting requires, regardless of which standard it came from.

The included die sets cover the full range:

• 47745: 1/2"-3/4" Universal Alloy Die Set
• 47750: 1"-2" Universal Alloy Die Set
• 26132: 711 SO Universal Right Hand Dies
• 26152: 714 SO Receding Right Hand Dies
• 26192: 2-1/2"-4" NPT HS Dies

Alloy die sets hold a cutting edge longer than standard high-speed steel, particularly on abrasive materials like stainless. Having alloy sets included in the kit is a practical day-one advantage rather than a separate upgrade purchase.

A capacitor-start/capacitor-run motor uses capacitors in both the start winding and run winding circuits to shift the electrical phase and maintain torque across a wider voltage range. In practical terms:

• The machine develops adequate torque and completes the thread even when incoming voltage is below spec
• Stalls mid-cut on hard materials like stainless are significantly reduced compared to a standard induction motor
• Field power situations, including generators, long temporary runs, and loaded circuits, don't take the machine out of production

For a permanent shop installation with clean, dedicated power, this may seem like an edge case. For field threading off a generator or a long temporary power circuit on an active job site, it's the difference between a machine that finishes the cut and one that stalls.

The Reverse/Off/Forward rotary motor control handles direction switching for backing the pipe out after the thread is cut. The integral foot switch keeps the operator's hands on the pipe throughout the threading cycle, producing better results on longer pipe sections that need support and control through the full thread length

This is where the 1224 separates itself from machines that look comparable on a spec sheet but perform differently in real field conditions.

The motor is a 1-1/2 HP single-phase induction type. Induction motors run quieter than universal motors, which matters when you're threading pipe in enclosed mechanical rooms or occupied buildings where noise is a concern.

More important than the noise characteristic is how the motor handles low-voltage conditions. The 1224 uses a capacitor-start/capacitor-run motor design. Here is what that means in the field:

A standard induction motor relies on full line voltage to develop starting torque. When voltage drops from a long extension cord, a generator under variable load, or a circuit already carrying other equipment, starting torque drops with it. The motor may stall mid-cut or fail to start under load.

The 1224 uses through-head oiling, which means the cutting oil flows through the die head itself and reaches the dies and workpiece directly at the point of the cut throughout the entire threading cycle. The system is tied to the machine's pump, a self-priming, gerotor-type, automatic-reversing, constant-flow design.

A few additional reliability details worth noting:

• The pump is automatic-reversing, requiring no manual re-priming or reset when the machine changes direction
• The included Nu-Clear thread cutting oil is a clear-formula oil, making it easier to visually inspect the thread profile during and after the cut without oil color obscuring the thread form
• The Model 764 full-floating, self-centering cutter accommodates pipe that is slightly out of round without manual adjustment, producing a consistent square cut before the thread is started
• The Model 744 blade-type reamer cleans the inside burr left by the cut, which matters for flow capacity on pressurized systems and for proper fitting seating on threaded connections

A production threading machine is a capital investment, and thread quality across a long production run depends heavily on consistent lubrication. If cutting oil delivery drops off during the threading cycle, the dies run hot, thread form degrades, and die life shortens fast.

Traditional approaches to threading lubrication have real limitations:

• Manually applied oil between cuts doesn't maintain consistent flow at the cutting edge
• Intermittent oiling allows die temperature to spike mid-thread on harder materials
• Hot dies wear faster and produce progressively worse thread quality across a run
• Premature die wear is a real recurring cost on a production threading operation

The Model 1224 supports two spindle speeds through its two-speed gearbox, giving the operator direct control over cut speed based on material and diameter.

High Speed (36 RPM): The standard production speed for smaller-diameter pipe and softer materials. At 36 RPM, the machine moves efficiently through black iron and galvanized on standard commercial pipe sizes without sacrificing thread quality.

Low Speed (12 RPM): The right choice for larger-diameter pipe and harder materials, including stainless, heavy-wall conduit, and rod at the upper end of the hardness rating. A slower cut on hard materials produces better thread form and protects die life. Running hard materials at high spindle speed is a reliable way to wear dies early and produce out-of-spec threads.

Speed selection, combined with the foot switch and Reverse/Off/Forward motor control, gives the operator full command of the threading cycle without leaving the workpiece

For jobs requiring threads on 4" to 6" pipe (100mm to 150mm), the 161 Geared Threader extends the Model 1224's capacity beyond its standard 4" ceiling. Large-diameter pipe threading comes up on:

• Municipal water and sewer systems
• Fire suppression main headers
• Industrial process piping and large chemical distribution systems
• Commercial HVAC hydronic systems with larger main headers

If your work regularly includes 4"-6" pipe fabrication, the 161 Geared Threader is the direct path to extended capacity on the same machine without investing in a separate threading setup.

The Model 1224 is a production floor and commercial job site machine. It is not a residential service tool, and it is not sized for occasional threading work.

• Plumbing and pipefitting contractors on commercial, industrial, and institutional projects where pipe threading volume is high
• Mechanical contractors working in facilities that specify multiple pipe materials throughout the same build, and need one machine to handle all of them
• Jobs where BSPT or BSPP thread forms may be required alongside standard NPT, such as process piping or projects with international equipment specifications
• Fabrication shops threading pipe assemblies off-site for field installation, where production speed and thread-to-thread consistency both matter
• Field threading operations running off generators or long temporary power circuits, where the capacitor-start/run motor handles voltage drop without stalling mid-cut

• Service plumbers who thread pipe occasionally and don't need a dedicated production machine
• Residential contractors where a smaller, lighter-duty threader covers the typical range of work
• Operations where the machine's size, weight, and power requirements aren't practical for the setup

The 1224 performs best when it's running consistently. It is a capital investment built for contractors who thread pipe as a regular part of their production workflow.

The RIDGID 26092 earns its place on a commercial mechanical job through three practical advantages:

• The material range to thread black, galvanized, plastic-coated, stainless, IMC, heavy-wall conduit, and rod up to 30 HRC from a single machine
• The capacitor-start/capacitor-run motor that maintains threading performance through the voltage drop conditions common in field power setups
• Through-head oiling that keeps lubrication consistent at the cutting edge across a full production run, protecting die life and thread quality from the first piece to the last

For plumbing and pipefitting contractors threading high volumes of varied pipe on commercial and industrial projects, the 1224 delivers the material versatility, thread form range, and motor reliability that production threading actually requires.

Add the 161 Geared Threader and the capacity increases to 6" without changing machines. It is a purpose-built production tool, and it delivers exactly what it is designed to do.
