RIDGID 63658 SeeSnake rM200A: Portable Inspection Powered by TruSense Technology

When running a camera down a drain or sewer line, you're most often not just looking for a blockage but also trying to determine the pipe's condition, where exactly the blockage is, what's causing it, and whether the line is draining at the right grade. In order to have all the information professionals need, clear footage, accurate camera positioning, and enough reach to get to the problem, and some extra.

Most inspection jobs don't fail because of the operator. They fail because the camera system doesn't provide enough information to make a confident call for both the customer and the professional. Footage that's blown out in the lighter sections, too dark in the lower areas, or constantly spinning so you can't tell orientation from one frame to the next, forces you to make educated guesses when you really need to make an accurate diagnosis.

The RIDGID 63658 SeeSnake rM200A directly addresses those gaps compared to its competitors. The included D2A drum carries 200 feet of 0.3" push cable and a 1" self-leveling camera powered with TruSense technology, which combines a High Dynamic Range (HDR) image sensor for improved in-pipe visibility with a TiltSense inclinometer that displays the camera's tilt angle on a compatible SeeSnake monitor.

For lines from 1-1/2" to 4" in standard configuration, extending to 1-1/2" to 8" with a 5" pipe guide, this reel covers the pipe inspection range that professional plumbers and drain cleaning contractors work in every day.

• Camera Reel
• D2A Drum (200' / 61m of 0.3" diameter push cable with 1" self-leveling camera)
• Storage Case
• CS6x Versa Hanger (monitor docking and transport)
• 5 Pipe Guides
• USB with HQ Software

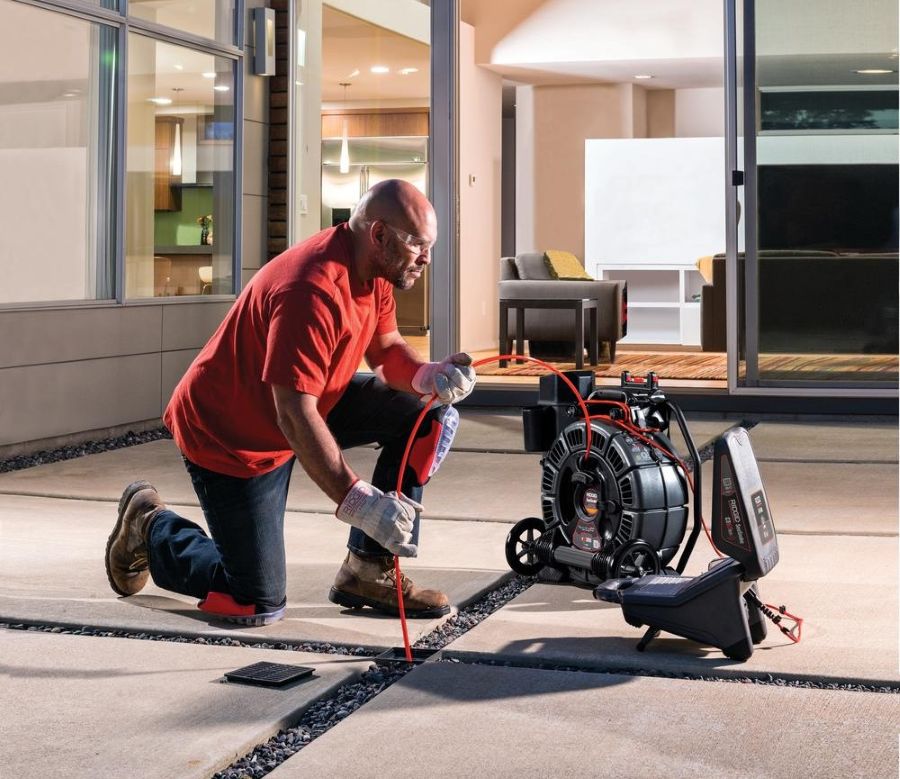

The SeeSnake rM200A is a portable, self-contained camera inspection reel built for professional drain cleaning, sewer inspection, and reinstatement and relining applications. The reel system is built around an interchangeable D2 drum series, which gives technicians the ability to swap drums on the job to match push cable specifications to the specific inspection at hand. The 63658 kit ships with the D2A drum as the standard configuration.

This reel rolls on smooth wheels with a multi-functional pull handle for repositioning between job setups and includes taller stow bins for increased on-reel storage.

A CS6x Versa Hanger is included for docking and transporting SeeSnake monitors, keeping the monitor integrated with the reel during setup and movement. The 63658 kit comes ready to run from day one:

• No separate monitor pairing setup required for field-ready inspection
• Full 1-1/2" to 4" line capacity covered with included pipe guides in standard configuration
• HQ software included on USB for footage review, documentation, and reporting

RIDGID defines the rM200A's core strengths as: Image Clarity, Drum Interchangeability, and Portability and Storage. Each reflects specific design decisions that separate this reel from basic inspection systems

Professional plumbing and drain cleaning work covers a wide range of pipe sizes depending on the building type, system age, and scope of the inspection. A residential service call may involve 2" to 3" residential drain lines. A commercial job might require running a camera through 4" to 6" building sewer laterals. Reinstatement and relining work often requires working across multiple pipe sizes on the same project.

The rM200A's range in standard configuration handles a significant portion of that work:

• Residential drain lines and traps starting at 1-1/2"
• Standard 3" and 4" residential and light commercial sewer laterals
• Commercial drain lines up to 4" in diameter with the standard setup
• Lines from 1-1/2" to 8" in diameter when a 5" pipe guide is used

The five pipe guides included in the 63658 kit are the practical tool for sizing the camera head to the specific line being inspected. Pipe guides center the camera head in the pipe and protect the lens as the cable travels through the line. Using the correct guide size for the pipe being inspected produces better image stability and reduces wear on the camera head. The 5" pipe guide specifically is what unlocks the rM200A's extended capacity range up to 8" lines.

The D2 drum design also adds versatility at the system level. The D2A drum included with the 63658 is optimized for a specific combination of cable stiffness and spring flexibility. RIDGID's D2B drum, available separately, offers a different combination of those properties for different inspection scenarios. Both drums are interchangeable on the same reel, which means one reel platform covers the variation in inspection conditions without requiring multiple dedicated reel systems.

The most common complaint about camera inspection footage, from both operators and report reviewers, is that the image either washes out in sections where there's light reflection from water or wet surfaces, or goes too dark in dry, unlit pipe runs.

Standard image sensors handle that contrast range poorly. What looks like a clean section may have a crack you can't see because the image is blown out. What looks like a shadow may be a blockage or root intrusion you can't fully assess because the darker area of the frame lacks detail.

Dynamic range in a camera sensor refers to its ability to capture detail in both the brightest and darkest parts of an image at the same time. A standard sensor clips the bright areas to white or the dark areas to black when the contrast between them exceeds what the sensor can handle. An HDR sensor expands that range, simultaneously capturing more information in the highlights and the shadows within a single frame. In pipe inspection, that means:

• Wet, reflective pipe interiors don't blow out to featureless white
• Dry, unlit sections of pipe retain detail instead of going black
• The full frame carries usable visual information from edge to edge
• Defects, intrusions, and pipe condition are visible in areas that a standard sensor would clip out

TruSense extends beyond the imaging sensor. It is a platform of on-camera sensors that convey additional information about the in-pipe environment beyond what the camera lens alone can provide.

TiltSense is the component on the camera head that functions as an inclinometer. An inclinometer measures the angle of tilt of the camera relative to level. In a self-leveling camera system, the camera head rotates to keep the image horizon upright as the reel moves through bends and changes in pipe orientation. TiltSense measures the camera's tilt at any given point in the inspection and displays that tilt angle on a compatible SeeSnake CSx series Wi-Fi enabled monitor.

That data is useful for identifying where a line may be out of grade, which is critical information on drain lines that rely on gravity flow and on sewer inspection reports that need to document slope conditions

Together, HDR imaging and TiltSense give the technician running the camera more actionable information than the image alone can convey.

The D2 series drum is the core working component of the rM200A. It is the part of the reel that houses the push cable, manages cable deployment and retrieval, and carries the camera head at its working end. The D2A drum shipped with the 63658 has the following specifications:

The push cable is:

• 200 feet (61 meters) in total deployed length, providing reach into longer residential and commercial drain lines without requiring additional cable
• 0.3 inches (7.5 mm) in diameter, sized for the 1-1/2" to 4" line range in standard configuration and for the 1" camera head
• Engineered with a specific combination of cable stiffness and spring flexibility that RIDGID optimizes for each D2 drum variant

The camera head is:

• 1 inch (25 mm) in diameter, sized appropriately for lines in the 1-1/2" to 4" range without requiring a pipe guide larger than what the kit provides for standard inspections
• Self-leveling, meaning the head rotates automatically to keep the horizon upright as the camera moves through bends, transitions, and changes in pipe slope without operator adjustment
• Powered with TruSense, integrating the HDR image sensor and TiltSense inclinometer directly in the camera head

The drum itself is designed for straightforward interchangeability on the rM200A reel platform. The interchange system allows operators to swap the D2A for a D2B drum in the field when a different cable stiffness or spring combination is better suited to the specific line being inspected.

A camera reel that is difficult to move between access points on a multi-drain or multi-lateral inspection job slows the entire operation. The rM200A was designed with repositioning as a specific performance requirement, not an afterthought.

The reel uses smooth wheels and a multi-functional pull handle that allows a single technician to move the reel efficiently between locations on a job site. The wheel and handle design is built for the varied terrain of a job site, from finished floor to outdoor surfaces, without requiring the unit to be lifted and carried between setups.

Storage on the reel has been increased compared to earlier reel configurations. Taller stow bins with larger internal capacity provide on-reel organization for pipe guides, accessories, and inspection supplies that go with the reel. Keeping the common accessories stored on the reel itself reduces the number of separate cases and bags that need to travel with the system.

The CS6x Versa Hanger included in the 63658 kit is designed to dock SeeSnake monitors directly to the reel during transport and repositioning. A monitor sitting in a separate location from the reel during inspection setup creates a cord management and trip hazard problem. The Versa Hanger keeps the monitor with the reel, reducing setup time and keeping the work area organized.

The operating temperature range of 14°F (-10°C) to 122°F (50°C) covers the conditions found on commercial inspection work across most climates, including cold-weather drain cleaning in unconditioned spaces and summer work in exposed outdoor environments.

Getting the rM200A set up correctly for a specific inspection involves two primary configuration choices: pipe guide selection and monitor pairing.

The five pipe guides included in the 63658 kit are the mechanism for matching the 1" camera head to the pipe size being inspected. A correctly sized guide centers the camera head in the pipe bore, protects the lens from contact with the pipe wall, and stabilizes the image as the cable advances. The general selection rule:

• Use a guide sized close to the inner diameter of the pipe being inspected
• The 5" pipe guide specifically expands the reel's operating range from 4" to 8" pipe diameters

• Running without a guide, or with an undersized guide, in larger-diameter pipe produces less stable footage and increases wear on the camera head

The rM200A camera and TruSense system are compatible with SeeSnake CSx series monitors. The CSx series monitors are Wi-Fi enabled, which allows footage review and reporting without a wired connection between the camera and the monitor. TiltSense data from the camera head displays on the CSx monitor in real time during inspection. The CS6x Versa Hanger included in the 63658 kit is designed specifically for CSx series monitor transport and docking on the reel.

The USB with HQ Software included in the kit provides the software platform for footage management, documentation, and report generation from recorded inspection video.

The D2B drum is the companion drum to the D2A and uses a different combination of push cable stiffness and spring flexibility than the D2A. The D2 drum series was designed specifically around the idea that different inspection jobs require different cable properties, and that one cable specification does not cover all conditions equally.

If your inspection work regularly involves lines that present specific pushability challenges, such as lines with multiple close-radius bends, older cast iron with interior irregularities, or long horizontal runs where cable stiffness affects how far the cable will advance, the D2B drum may be the right complement to the D2A that ships with the 63658 kit.

Both drums are fully interchangeable on the rM200A reel platform without tools.

The rM200A is a professional-grade inspection reel designed for the volume and variety of inspection work that plumbing and drain cleaning contractors encounter on commercial and residential projects.

• Professional plumbers who perform drain and sewer inspection as a regular part of their service workflow and need documented footage for diagnosis and customer reporting
• Drain cleaning contractors running camera inspections on residential and light commercial sewer laterals where the standard 1-1/2" to 4" range covers the majority of the work
• Reinstatement and relining crews who need accurate footage and grade information to document pre- and post-condition on lines being relined
• Contractors who inspect a mix of pipe sizes and need a reel with a range that handles the variation without switching to a separate inspection system for larger lines
• Technicians who file written or digital inspection reports and need the footage quality, HQ software, and TiltSense data to produce accurate documentation

• Operators primarily inspecting large-diameter main lines above 8" in diameter, where a higher-capacity inspection reel platform is the appropriate tool
• Occasional users who don't need the full performance range that TruSense and the D2 drum system provide
• Operators who don't have or plan to add a compatible SeeSnake CSx series monitor, as the TiltSense display requires a CSx series monitor to show tilt data in the field

The RIDGID 63658 SeeSnake rM200A is built around three practical advantages that directly affect what you can do with an inspection result:

• HDR imaging with TruSense that keeps the full frame usable in both the bright and dark sections of the pipe, so you're working with actual footage rather than guessing at what the washed-out or blacked-out sections might contain
• TiltSense inclinometer data that gives you the camera's tilt angle in real time, providing grade information that matters for drain slope assessments and relining documentation
• A portable, storage-forward reel platform with interchangeable D2 drums, an integrated monitor hanger, and smooth-rolling transport that keeps the inspection moving from one setup to the next without slowing the crew down

For professional plumbers and drain cleaning contractors working in 1-1/2" to 8" lines, the rM200A delivers the image quality and in-pipe data that turns an inspection into a diagnosis. With 200 feet of reach, a self-leveling 1" camera, and HQ software included, this reel is ready to work from the first job
