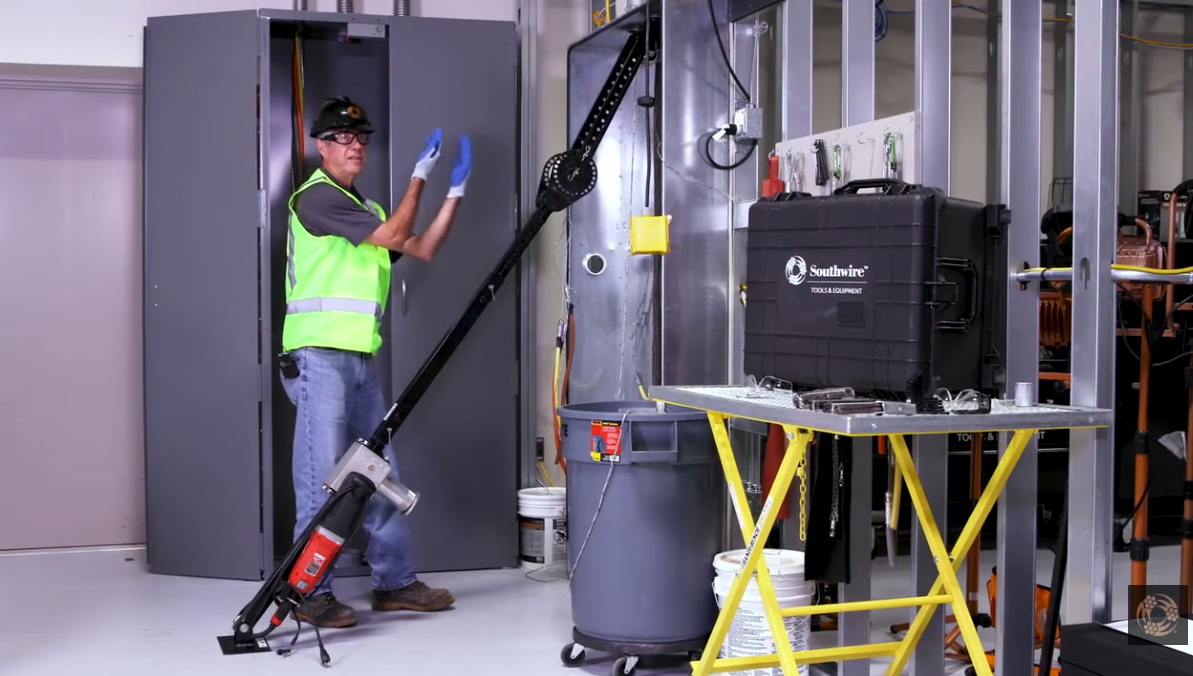

Southwire M6K-M Maxis 6K Cable Puller Review: The One-Man Wire Pulling Machine

If you've ever spent half your morning wrestling wire through conduit and still come up short, you already know why a solid cable puller matters. Pulling wire by hand is both time-consuming and strenuous, and for long runs and tight deadlines, professionals need a machine that can keep up.

That's where the Southwire M6K-M Maxis 6K Cable Puller comes in. This cable puller is built for trade sites.

Whether you're an electrician running wire on a commercial build, a lineman working utility pulls, or a contractor trying to get the job done faster with fewer people, the M6K-M is worth understanding and purchasing.

The Southwire M6K-M is a motorized cable puller rated for up to 6,000 lbs. of peak pulling force. It's designed to handle the kind of wire pulls that would take a full crew to do by hand, but with just one person running the machine.

Southwire has been in the wire and cable business for decades, and its Maxis line of cable-pulling equipment is well known in the electrical trade. The 6K is their heavy-duty model, built for demanding pulls in commercial, industrial, and utility environments.

The "M" in M6K-M stands for the motor package, which means this model comes with a Milwaukee Super Hawg 1/2" drill included as the power source. That's not a throwaway drill, either. The Super Hawg is a professional-grade right-angle drill that Milwaukee is known for, and it's a good fit for driving this puller.

At its core, the M6K-M is a capstan-style cable puller. It uses a rotating drum to grip and pull the wire using a rope attached to your cable. The motor spins the capstan, which does the pulling. It's a proven setup that works well in the field.

When you get the M6K-M, here's what comes in the box:

• (5) Conduit adapters covering 2" through 4" sizes
• (1) Puller cart with tool bag to keep everything organized and mobile on the job site
• (1) Milwaukee Super Hawg 1/2" right-angle drill as the power source

It's worth noting that 5" and 6" conduit adapters are sold separately. If your job regularly involves larger conduit sizes, you'll want to factor that into your purchase. But for most pulls in the 2" to 4" range, you're covered right out of the box.

Here's a quick look at the numbers:

• Model: M6K-M
• Southwire Stock #: 57648501
• Peak Pulling Capacity: 6,000 lbs.
• Rated Capacity: 3,000 to 6,000 lbs
• Low Speed: 12 feet per minute (at no load)
• High Speed: 44 feet per minute (at no load)
• Unit Weight (puller only): 76 lbs.
• Overall Dimensions (assembled): 45" L x 21" W x 20" D
• Full Package Weight: 194.5 lbs.
• Wire Pull Capacity: Up to 9 feet of wire out of conduit
• Power Source: Milwaukee 1/2" Super Hawg (included)

Those two pulling speeds give you real flexibility on the job. Low speed at 12 feet per minute lets you control tough pulls where you need to ease the wire in carefully. High speed at 44 feet per minute lets you move fast on easier runs and get out quicker.

One of the biggest selling points of the M6K-M is the claim that one person can set it up and start pulling in about 2 minutes. That's a bold claim in this industry, so let's be straight about it.

For most standard pulls, yes, one person really can handle this machine. Here's why that matters: when you're running a small crew or working a job where your guys are stretched thin across multiple tasks, having a puller that doesn't require two or three people to operate is a real advantage.

The setup process is straightforward. You attach the appropriate conduit adapter, connect the Milwaukee Super Hawg, hook up your pull rope to the capstan, and you're ready to go. The machine doesn't need to be bolted to the ground on most pulls, which saves a lot of time compared to older cable-pulling setups that required anchoring.

The cart makes it easy to wheel the entire setup into position, and the unit's design keeps everything within one person's reach.

One of the things that makes the M6K-M stand out is how quickly it can adapt from underground to overhead pulls. That kind of flexibility is a big deal when you're working jobs that involve both, and you don't want to be swapping equipment or rigging up different setups every time.

The design of the unit allows it to change orientations without a lot of hassle, which is something you'll appreciate on jobs that have you going from a trench to a conduit run up a wall or ceiling in the same day.

The unit can also be anchored to most standard truck 2" receiver hitches. That's a practical feature for utility and lineman work where you're pulling from a truck on the side of a road or in a utility corridor. Instead of trying to anchor the machine to the ground in a situation where that isn't practical, you back your truck up, hook the puller to the hitch, and you've got a solid anchor point right there.

The M6K-M has two pulling speeds, and understanding when to use each one is important for getting the most out of the machine.

Low speed at 12 feet per minute is your go-to for heavy pulls, tight bends, and situations where you need maximum control. If you're pulling a big bundle of wire through a conduit with several sweeps, low speed lets you manage tension and watch for problems before they turn into a damaged wire or a stuck pull.

High speed at 44 feet per minute is for straighter, lighter runs where you want to move fast and get the job done. On a clean, short pull with minimal bends, high speed saves you real time.

Having two speeds means you're not locked into one mode for every situation. A single-speed puller that's too slow wastes time. One that's too fast can cause problems on tough pulls. The two-speed setup on the M6K-M gives you the right tool for the right situation.

The M6K-M doesn't have its own built-in motor. It's powered by the Milwaukee 1/2" Super Hawg right-angle drill, which comes included with this package.

The Super Hawg is a professional-grade tool. It's got a strong motor, it handles sustained loads well, and it's built for the kind of continuous work that driving a cable puller involves. Milwaukee's name is well-known in the trades, and including a Super Hawg rather than a cheap generic drill is a choice that matters for long-term reliability.

Using a drill as the power source also means you're working with a tool you can service, replace, or even swap out if needed. It's a simpler system than a dedicated built-in motor in some ways, and it keeps the overall weight of the puller head down.

The puller head itself weighs 76 lbs. That's the number that matters for maneuverability on the job site. Once you've got the cart set up and the drill attached, you're working with a compact system that one person can wheel into position and operate.

Older cable pullers, and some current models, need to be bolted to the ground or anchored to a fixed structure to handle the reaction force when they're pulling heavy loads. That takes time, and it limits where you can set up.

The M6K-M is designed so that it doesn't need to be bolted to the ground on most pulls. That's a real time saver and a flexibility boost. You can set up in more locations, move the machine more easily between pulls, and get in and out of a job faster.

The key phrase is "most pulls." On very heavy pulls close to the 6,000 lb. limit, you're going to want to think about how the machine is secured. But for the majority of everyday wire pulls in commercial and industrial electrical work, you won't need to spend time drilling and anchoring before you can start pulling.

Hand pulling wire is slow and hard on the entire team, and even limits what you can realistically pull in a day. On a commercial job with long runs, heavy wire, and tight schedules, trying to do it all by hand isn't just inefficient. It's exhausting and it increases the chance of mistakes.

A motorized cable puller changes that equation. With the M6K-M running, one person can keep the wire moving through the conduit at a consistent speed without burning out the crew. You're getting more pulls done per day, your guys aren't beat up at the end of the shift, and you've got better control over the process.

The 6,000 lb. peak capacity means the machine can handle pulls that would be impossible by hand. Large wire, long runs, multiple bends in the conduit, these all add up to pulling tension that no crew can match safely without mechanical help.

This machine is built for people who pull wire for a living. That means:

Electricians working on commercial, industrial, or large residential jobs with long conduit runs. If you're doing work where you're pulling hundreds of feet of wire at a time, this machine pays for itself in time savings.

Linemen and utility workers who need a puller that can anchor to a truck hitch and handle heavy outdoor pulls in all kinds of conditions.

Contractors running wire on construction sites where speed and efficiency matter, and where having a small crew doesn't mean you have to limit what you can tackle.

Electrical contractors who want to add capacity without adding headcount. One person with a Maxis 6K can handle pulls that used to require two or three people working together.

If you're in the trades and pulling wire is a regular part of your job, the M6K-M is designed to get the job done without causing fatigue.

Southwire builds its Maxis equipment for field use. The M6K-M is going to get bumped, loaded on trucks, set up in dirt and mud, and used hard on job sites. The build quality reflects that expectation.

The cart keeps the machine off the ground and makes transport easier, and the tool bag keeps your adapters and accessories protected and organized. The five included conduit adapters are built to handle the torque and pressure that come with heavy pulls.

The fact that the puller head itself is a separate unit from the cart means that if something does take damage, you're not necessarily replacing the whole system. That's a practical consideration for tools that live on job sites.

Here are some tips and tricks to know before purchasing this cable puller:

The full package weighs 194.5 lbs. The cart helps with mobility, but this is not a tool you're going to carry up three flights of stairs by yourself. Plan your setup with access in mind.

5" and 6" conduit adapters are sold separately. The kit covers 2" through 4", which handles a lot of work, but if you're regularly doing large conduit pulls, budget for the additional adapters.

Speed ratings are at no load. The 12 fpm and 44 fpm speeds are no-load figures. Real-world pulling speeds will be lower depending on the weight and friction of your pull. That's standard for equipment like this, but it's worth understanding so you're not surprised.

The Milwaukee Super Hawg requires a corded power source. This isn't a battery-powered setup. You'll need a power supply on your job site, which for most commercial and industrial jobs isn't a problem, but it's something to factor into your planning.

The Southwire M6K-M Maxis 6K Cable Puller is built to handle all jobsites. The 6,000 lb. peak capacity, two pulling speeds, one-person setup, and the ability to work from underground to overhead without a major rig change make it one of the more versatile cable pullers on the market for trade professionals.
