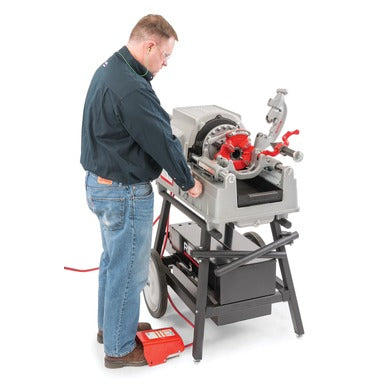

RIDGID 93287 Model 535: More Oil, Bigger Chip Tray, Same Legendary Threading Platform

The RIDGID Model 535 has been a backbone threading machine on plumbing and mechanical job sites for decades.

It built its reputation on ruggedness and consistent performance across years of hard daily use. The 93287 is the current production version of that machine, updated with refinements that address the practical realities of threading pipe continuously in the field or in the shop: a larger oil reservoir, a bigger chip tray, a new Speed Chuck, and a high-clearance carriage that gives the operator more room to work around the pipe.

The RIDGID 93287 Model 535 runs a 1/2 HP reversible universal motor at 36 RPM and threads 1/8 inch through 2 inch pipe and bolts from 1/4 inch through 2 inch. It ships with the No. 811A Universal Quick-Opening Die Head, a No. 341 reamer, a No. 820 cutter, die sets for 1/2 through 3/4 and 1 through 2 inch pipe, a gallon of premium oil, hex wrenches, and a spare cutter wheel. It is a complete, ready-to-thread package backed by RIDGID's full lifetime warranty against material defects and workmanship.

Here is a full breakdown of what the 535 includes, how it is built, and where it fits on the job.

• (1) No. 811A Universal Quick-Opening Die Head
• (1) No. 341 Reamer
• (1) No. 820 Wheel-Type Cutter
• (1) Set 1/2" to 3/4" Universal alloy dies
• (1) Set 1" to 2" Universal alloy dies
• (1) Gallon premium thread cutting oil

• (4) Hex wrenches
• (1) Spare E-1032 cutter wheel

The Model 535 is RIDGID's production-class pipe threading machine for 1/8 inch through 2 inch pipe. It runs a 1/2 HP single-phase reversible universal motor at 115V, 25 to 60 Hz, 15 amps. Spindle speed is 36 RPM standard with no load. The heavy-duty FOR/OFF/REV switch and integral foot switch give the operator hands-free speed control during threading operations. A cam-action rear centering device turns with the chuck to keep pipe aligned through the full thread cut.

The 93287 is the updated generation of the 535 platform, and the refinements are focused on reducing the time the machine spends not threading. The 1.75-gallon oil reservoir is 75 percent larger than previous versions, which means fewer oil stops during a full production threading session. The chip tray is 100 percent larger, so the machine runs longer between cleanouts. The high-clearance carriage gives the operator more room to maneuver pipe around the work area, and the 23 percent larger top cover area provides a working surface for tools and fittings within arm's reach of the operator.

The 535 maintains full part commonality with the 535A Automatic and other RIDGID threading equipment. It accepts the same die heads, stands, and accessories as the broader 535 series, and it is compatible with the geared Model 141 and Model 161 threaders for pipe work above 2 inch. RIDGID backs the 535 with a full lifetime warranty against material defects and workmanship.

The two upgrades that separate the new Model 535 from its predecessor are the oil reservoir and the chip tray. Threading pipe continuously burns through oil and generates a steady stream of metal chips. On older threading machines with smaller reservoirs, the operator has to stop the job to top off the oil before the run is complete. On machines with undersized chip trays, the tray overflows and chips end up in the oil or on the floor around the machine, which is a cleanup problem and an oil contamination problem.

The 93287's 1.75-gallon oil reservoir is 75 percent larger than the previous 535 generation. That added capacity means the machine runs significantly longer between oil checks on a full threading session. The chip tray is 100 percent larger, doubling the collection capacity before a cleanout is needed. Combined, these two changes reduce the number of production interruptions per shift and keep the machine operating in the threading position longer. For a shop or field crew threading large quantities of pipe on a deadline, fewer stops per shift adds up to real time returned to the job.

The self-priming gerotor oil pump circulates cutting oil to the die head during threading without manual intervention. The system is self-priming so there is no manual priming step when starting a fresh session or after an oil refill.

The RIDGID Speed Chuck on the Model 535 uses three replaceable rocker-action jaw inserts that center and grip the pipe instantly when the chuck is closed. The rocker-action design compensates for minor pipe diameter variation and grips consistently across the full range of pipe sizes without manually adjusting the chuck for each size change. When the jaw inserts wear, they are individually replaceable without replacing the full chuck assembly.

The cam-action rear centering device turns with the chuck throughout the threading cycle, keeping the pipe centered from both ends during the cut. On longer pipe sections where the pipe's weight can cause sag and affect thread alignment, the rear centering device is working continuously to maintain pipe position through the full cut. Off-center threads from uncorrected pipe sag are a source of rejected work on long-run threading operations, and the cam-action rear device addresses that issue at the machine design level rather than relying on the operator to compensate manually.

The high-clearance carriage on the 535 provides increased vertical space between the carriage and the machine bed, which gives the operator more room to maneuver pipe through the work area during loading, threading, and unloading. On larger diameter pipe sizes, the additional clearance reduces the physical effort required to position and guide the pipe and reduces the chance of the pipe contacting the machine body during the threading cycle.

The Model 535 is designed to accept three different RIDGID die head systems, which gives the operator flexibility in how the threading operation is set up based on job requirements and production pace.

The 811A Universal Quick-Opening Die Head ships with the 93287 kit. It accepts universal alloy die sets for 1/2 through 3/4 inch and 1 through 2 inch pipe, both of which are included in the kit. The quick-opening design releases the dies at the end of the cut without back-threading the head off the pipe, which speeds up cycle time between each stick. The universal head is the standard configuration for most field and shop threading operations.

The 535 also accepts the No. 815A Self-Opening Die Head and the No. 816/817 Semiautomatic Die Heads, both sold separately. The 815A automatically opens the dies at the completion of the thread without the operator touching the die head, which further reduces cycle time on high-volume threading. The 816/817 semiautomatic heads provide a middle ground between the manual quick-opening 811A and the fully automatic 815A. Which die head is the right choice depends on production volume and how much automation the operation justifies.

The No. 820 Wheel-Type Cutter included in the kit handles pipe from 1/8 inch through 2 inch and bolt from 1/4 inch through 1 inch. A spare E-1032 cutter wheel is included in the kit so downtime from a worn cutter wheel does not require a separate parts order. The optional No. 821 Blade-Type Cutter handles pipe from 1/2 inch through 2 inch and is available as an upgrade for operations where a blade-type cut is preferred over the standard wheel-type cut. Both cutters are self-centering and full-floating on the 535 carriage.

The Model 535's standard pipe threading capacity tops out at 2 inch. For operations that also thread larger diameter pipe, the 535 is compatible with RIDGID's geared threader attachments that extend the machine's reach into larger pipe sizes without requiring a separate standalone machine for above-2-inch work.

The RIDGID Model 141 Geared Threader connects to the 535's spindle and extends threading capacity from 2-1/2 inch through 4 inch pipe. For plumbing and mechanical contractors who occasionally thread larger diameter pipe but do not need a dedicated large-capacity threading machine, the 141 attachment on the 535 covers that range without a second machine investment.

The RIDGID Model 161 Geared Threader extends 535 capacity from 4 inch through 6 inch pipe. Industrial mechanical, fire suppression, and large-diameter piping contractors who thread 4 inch through 6 inch pipe as part of their regular scope can use the 161 on the 535 rather than sourcing a separate large-capacity threading machine for that size range. Both geared threaders are sold separately from the 93287 kit.

The RIDGID 93287 Model 535 is a production-class pipe threading machine for plumbers, pipefitters, and mechanical contractors who thread pipe regularly in the shop or in the field. Here is where it fits and where it does not.

• Plumbers and pipefitters who thread pipe continuously in the field or in a shop setting and need a machine that runs longer between oil checks and chip tray cleanouts
• Contractors who want maximum die head flexibility, with the ability to run the 811A quick-open, 815A self-open, or 816/817 semiautomatic heads as job requirements change
• Operations that occasionally thread pipe above 2 inch and want to extend the 535's range to 4 inch or 6 inch using the geared threader attachments rather than investing in a second machine
• Shops and contractors who value part commonality across their fleet, as the 535 shares dies, die heads, accessories, and components with the 535A Automatic and other RIDGID threading equipment
• Contractors who thread bolt stock from 1/4 inch through 2 inch as part of their regular scope, using the same machine and die sets as pipe threading operations

• Contractors who primarily thread pipe above 2 inch as their core work, where the RIDGID 1224 or a dedicated large-capacity threading machine is more appropriate
• Service plumbers who thread pipe infrequently and do not need a full production threading machine for the occasional field cut and thread
• Operations running 230V power only, where the 115V 93287 model is not compatible and the 230V model variant should be specified instead
• Operations that need a higher spindle speed for increased production pace, where the 54 RPM model variant should be considered over the standard 36 RPM 93287

The RIDGID Model 535 earns its reputation by being the machine that shows up on the job, does the work, and keeps running. The 93287 takes that proven platform and adds the refinements that matter most to a production threading operation: a 1.75-gallon oil reservoir that reduces oil stops, a doubled chip tray that runs longer between cleanouts, a Speed Chuck that centers and grips instantly, and a high-clearance carriage that gives the operator room to work.

The die head compatibility across the 811A quick-open, 815A self-open, and 816/817 semiautomatic heads gives the operator flexibility to configure the machine for the pace of the job. The geared threader compatibility extends reach to 6 inch pipe without a second machine. And the full part commonality with the rest of the RIDGID 535 platform means accessories, die heads, and replacement parts transfer across the fleet.

For plumbers, pipefitters, and mechanical contractors who thread pipe as a regular part of their daily work, the 535 is a machine built around maximum uptime and minimum interruption. Backed by RIDGID's full lifetime warranty against material defects and workmanship, it is a straightforward choice for any threading operation that needs a production-capable machine that will still be running years from now.
