At a Glance
Specifications Met
ANSI/ISEA Z87.1
Sub-Brand
Speedglas
Application
Welding
Description
Description
3M 7100239917 Description

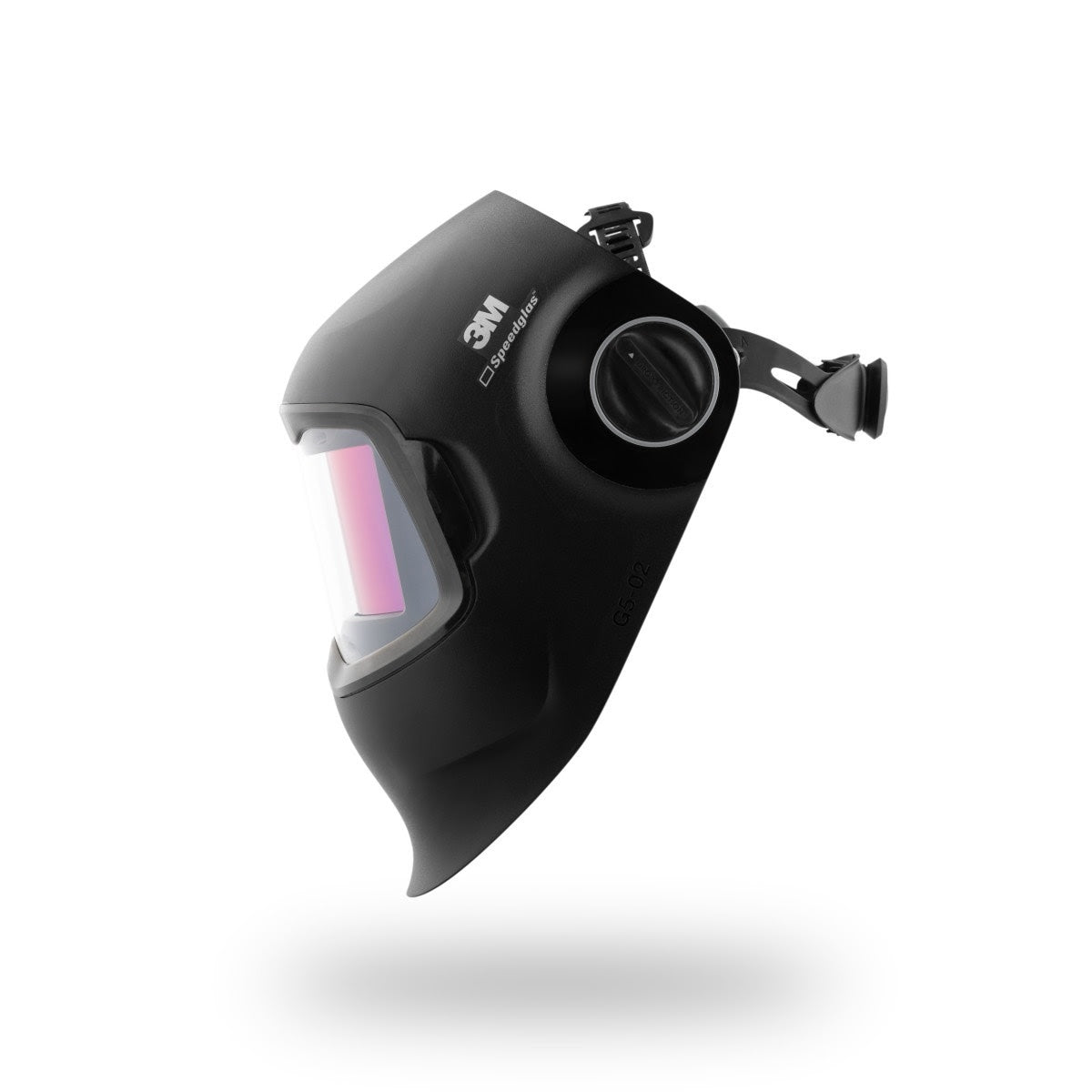

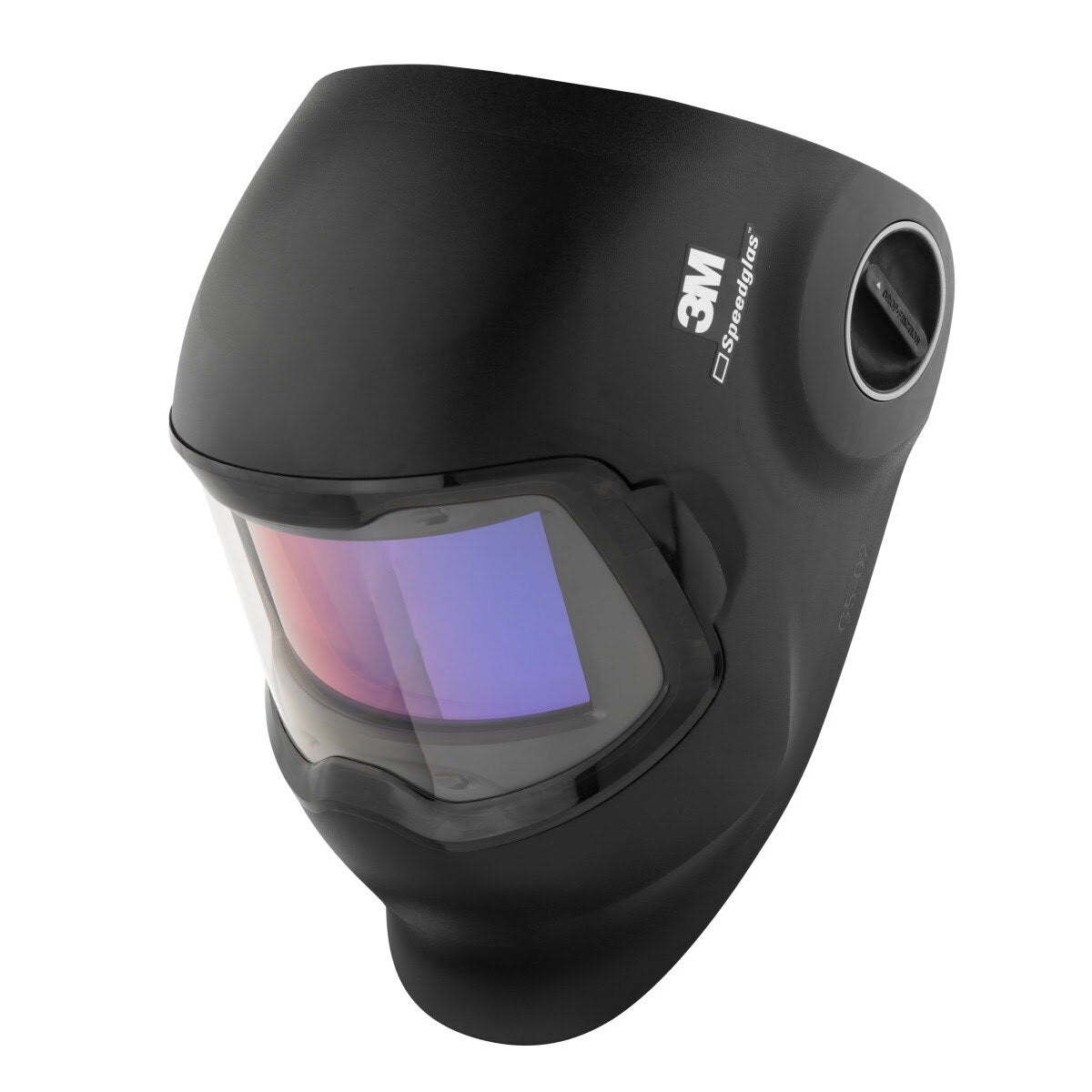

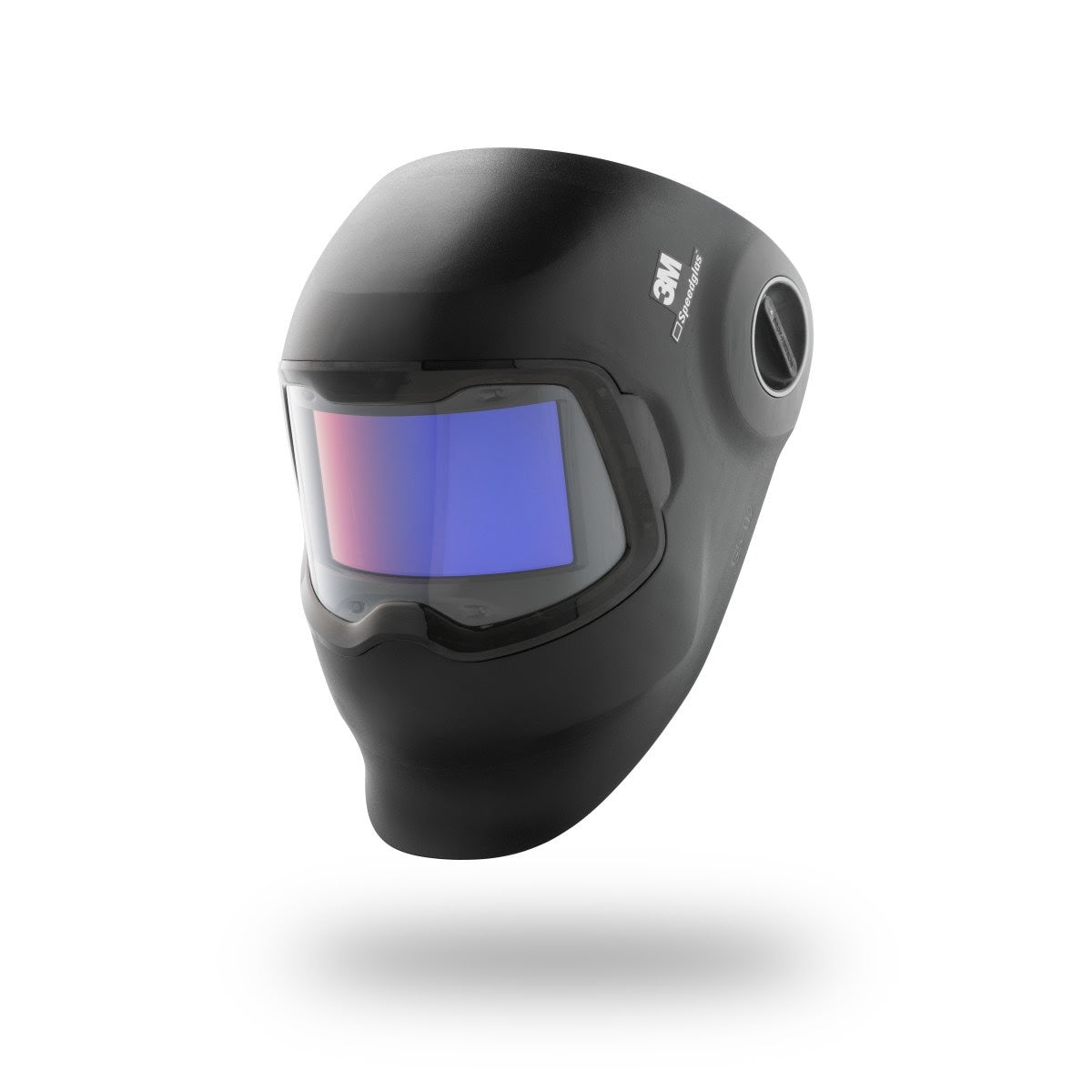

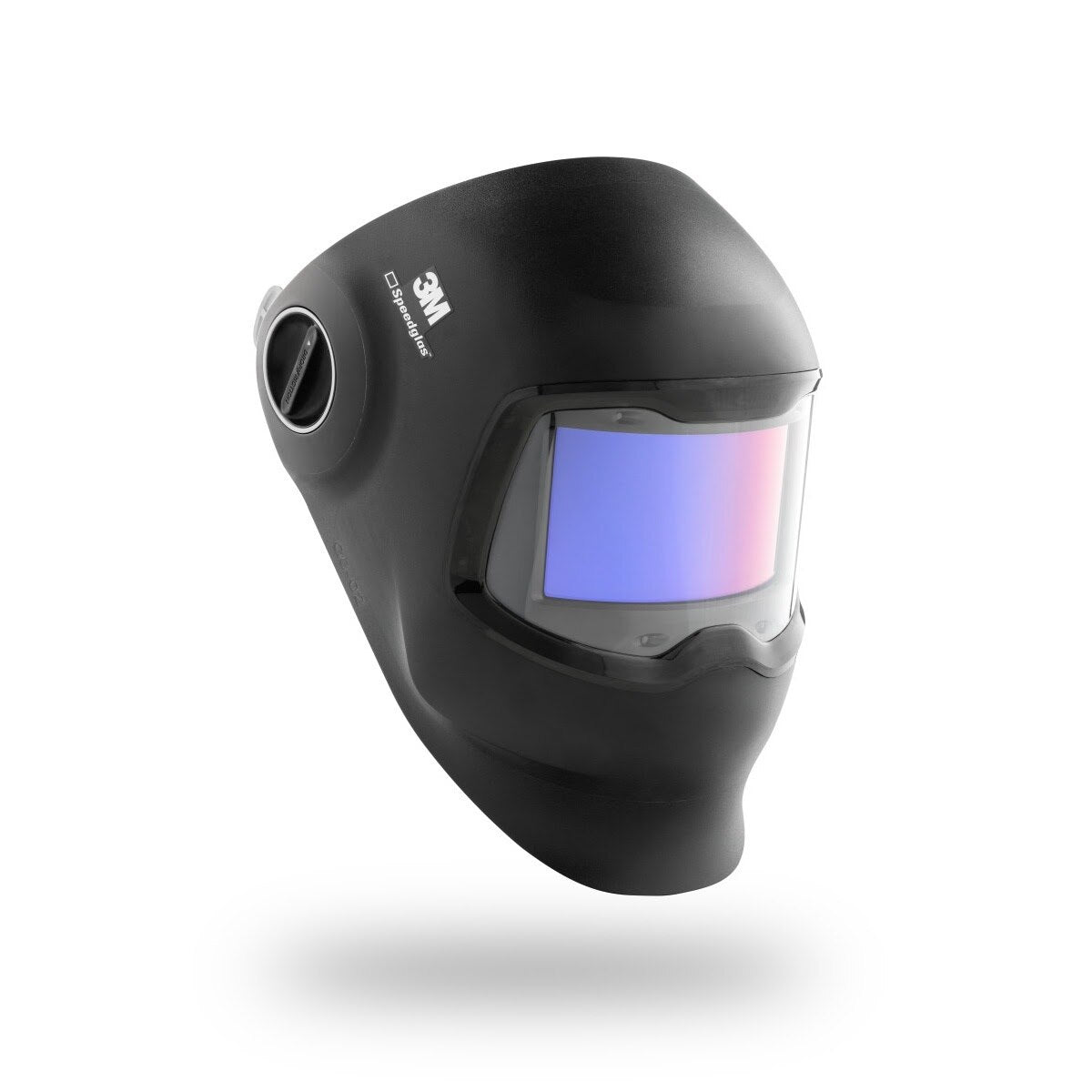

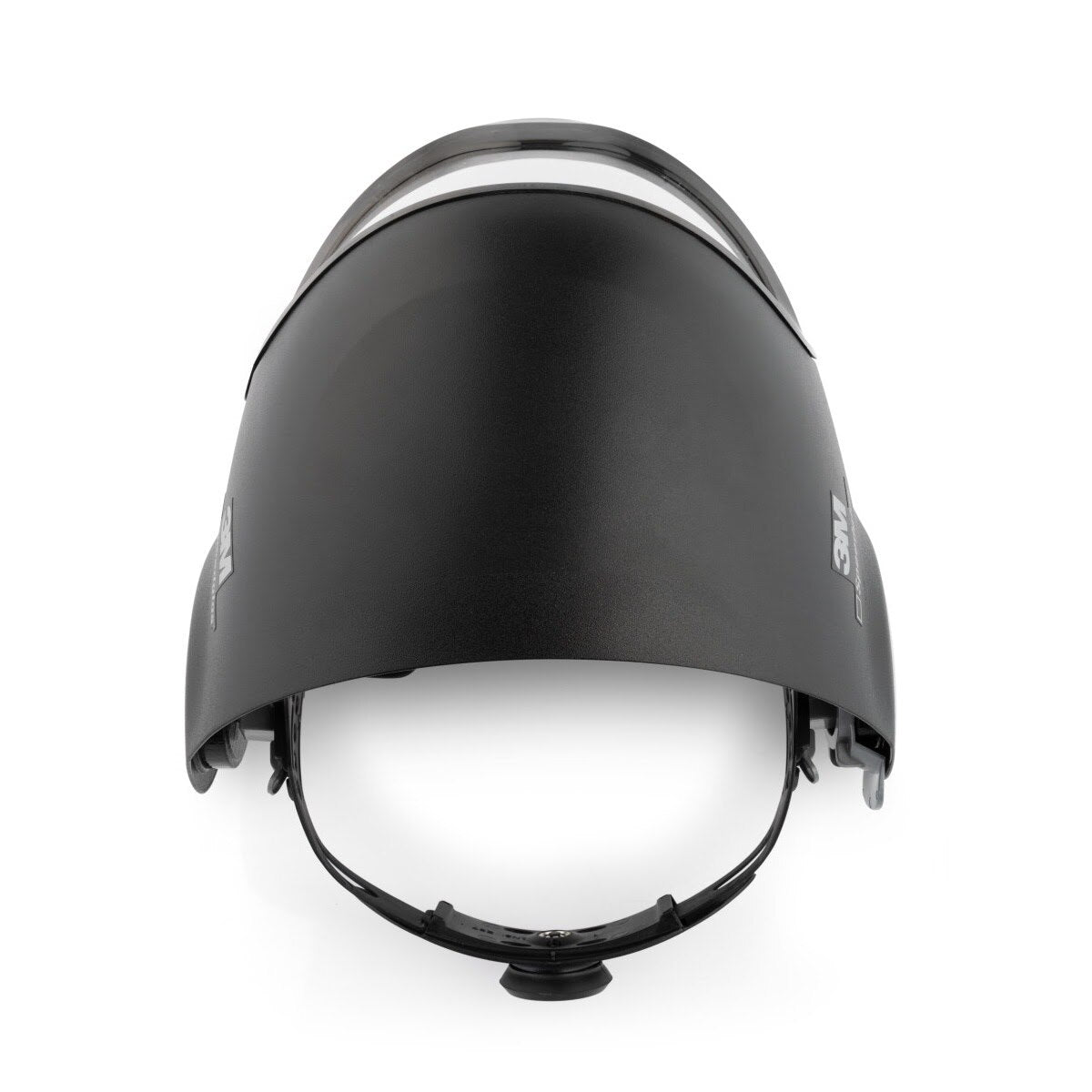

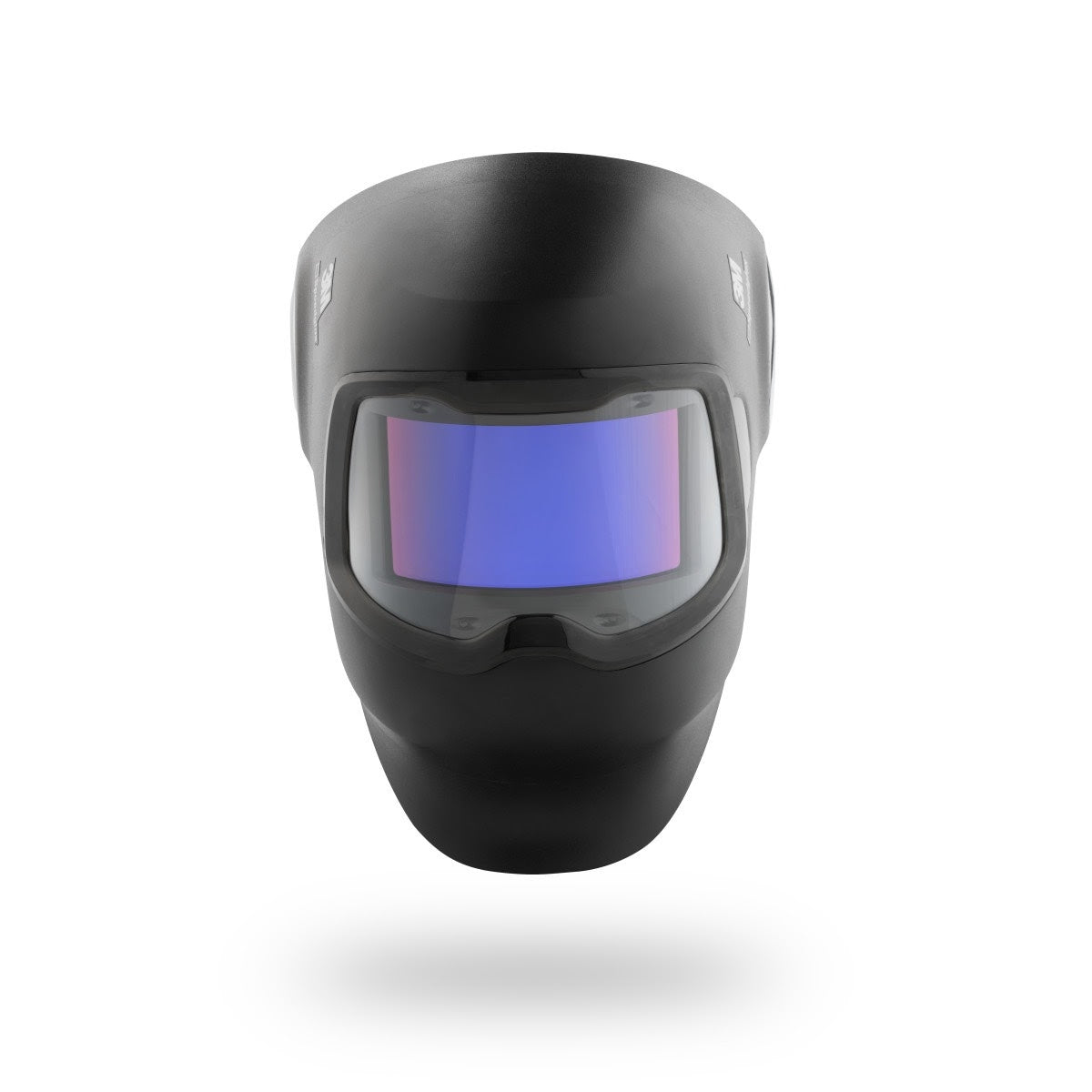

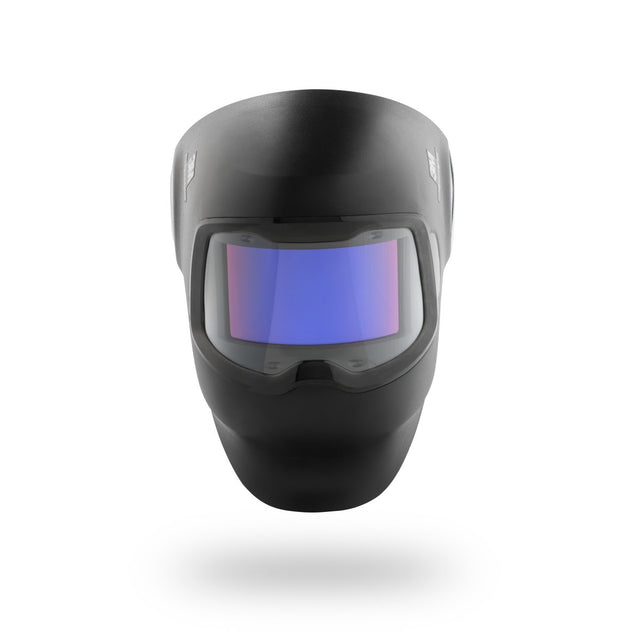

The 3M Speedglas G5-02 welding helmet features a curved auto darkening filter for a wide field of view and improved clarity using Natural Color Technology. Bluetooth connectivity supports app based management, while adjustable sensitivity and delay settings help optimize performance for TIG and other welding processes.
3M 7100239917 Includes
- (1) G5-02 welding helmet with curved auto darkening filter
- (1) Headband
- (1) Cleaning wipe
- (1) Welding helmet bag
3M 7100239917 Features
- Curved auto darkening filter for wide viewing area
- Large viewing area 150 mm x 76 mm
- Light state 2.5 with variable dark shades 8 to 12
- Bluetooth connectivity with app management
- Natural Color Technology for improved color recognition and clarity
- Highly sensitive arc detection ideal for TIG welding operations
- Adjustable dark to light delay function
- Meets ISO 16321 TIG plus standards
- 4 arc sensors
- Suitable for Stick MIG MAG TIG greater than 1A and Plasma welding processes
3M 7100239917 Specifications
| Product Type | Welding Helmet with Auto Darkening Filter |
| Product Series | G5 |
| Product Color | Black |
| Lens Type | Auto darkening |
| Lens Shade Range | 8 to 12 |
| Light State | 2.5 |
| ADF Viewing Area | 150 mm x 76 mm |
| Sensitivity | 5 Level TIG greater than 1A and MIG MAG Stick |
| Side Windows Included | No |
| Recommended Application | Welding |
| Welding Processes | Stick MIG MAG TIG greater than 1A Plasma |
| Bluetooth Enabled | Yes |
| Arc Sensors | 4 |
| Secondary Part Number | 08-0100-50iC |
Toolup Part # :
853980
