3M 7000132169 Description

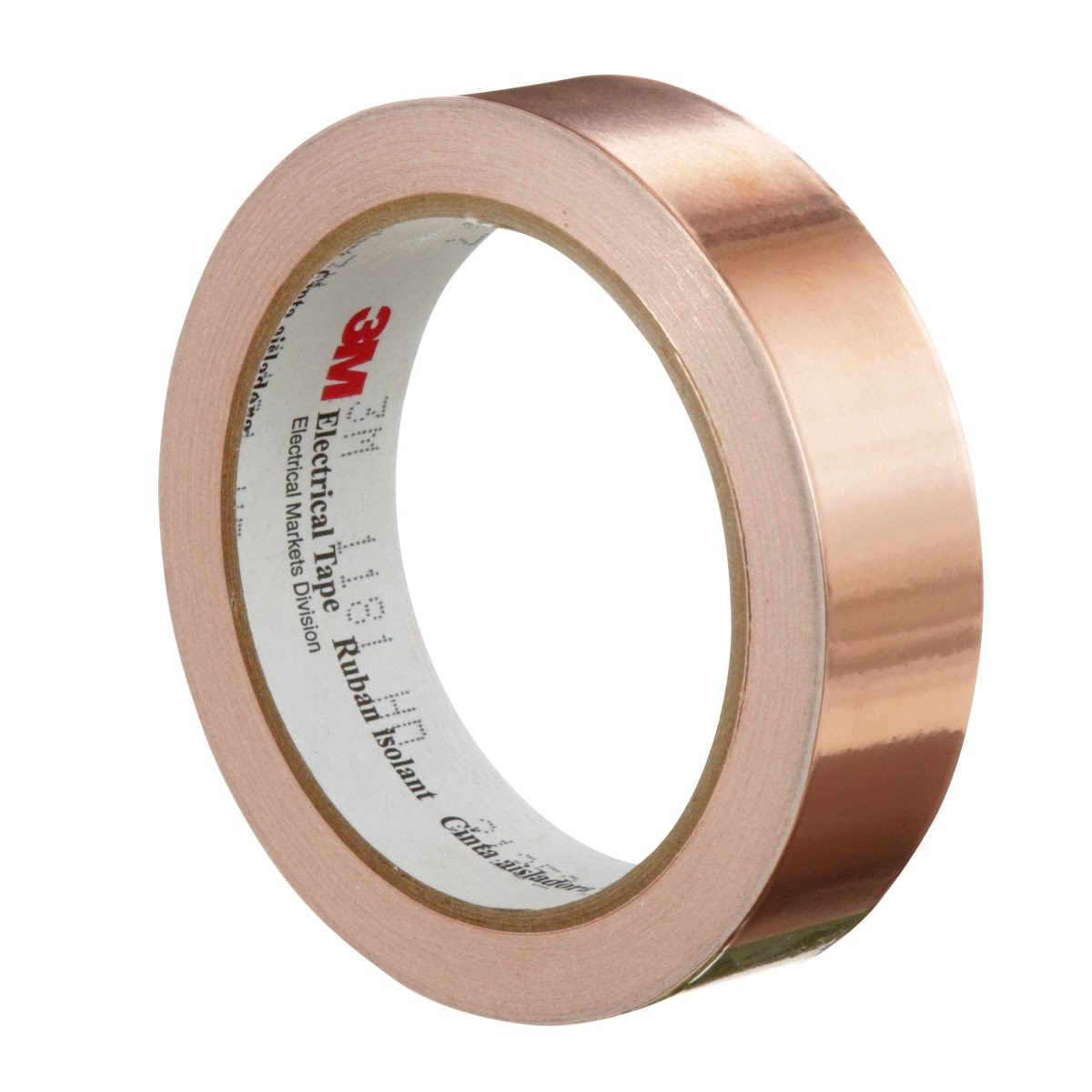

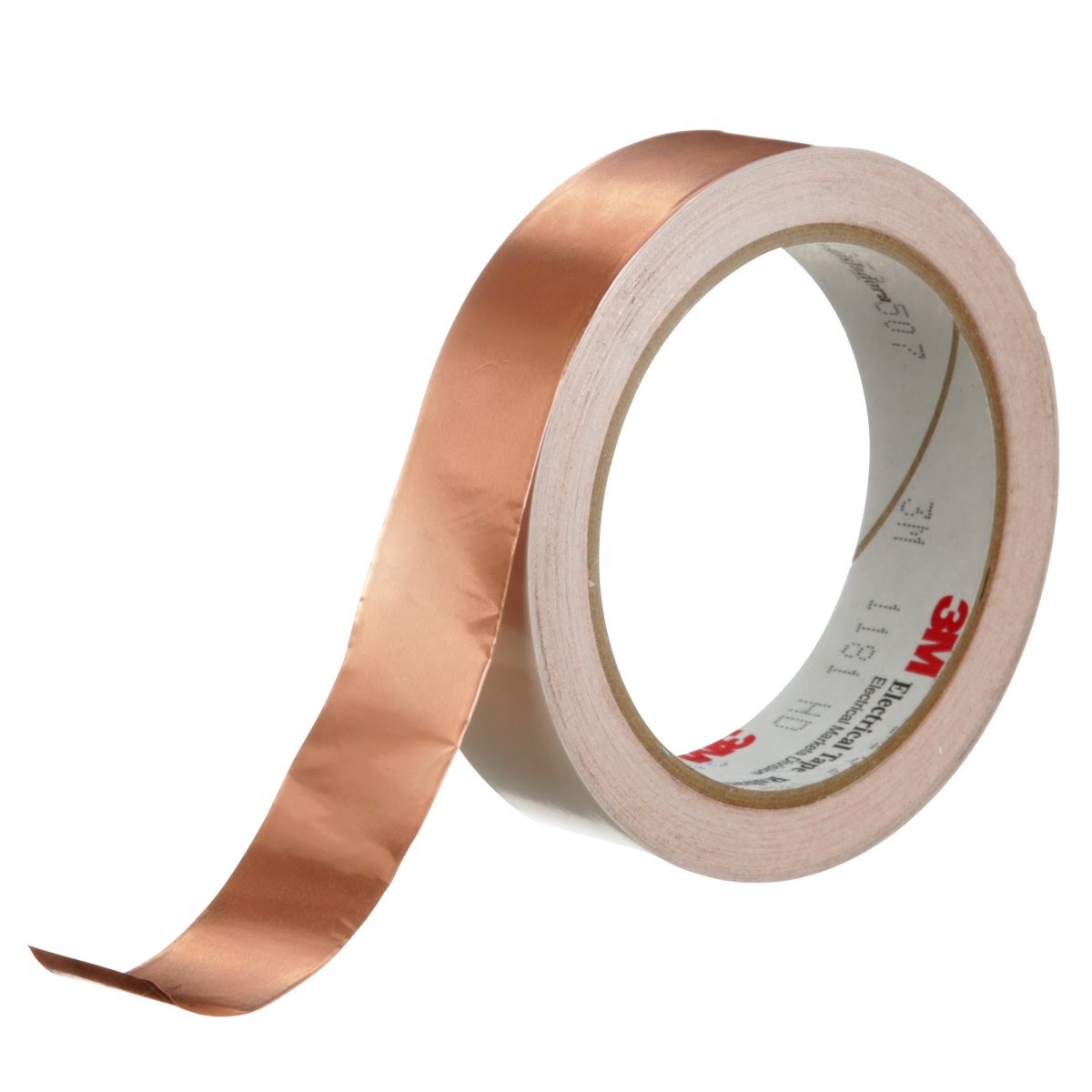

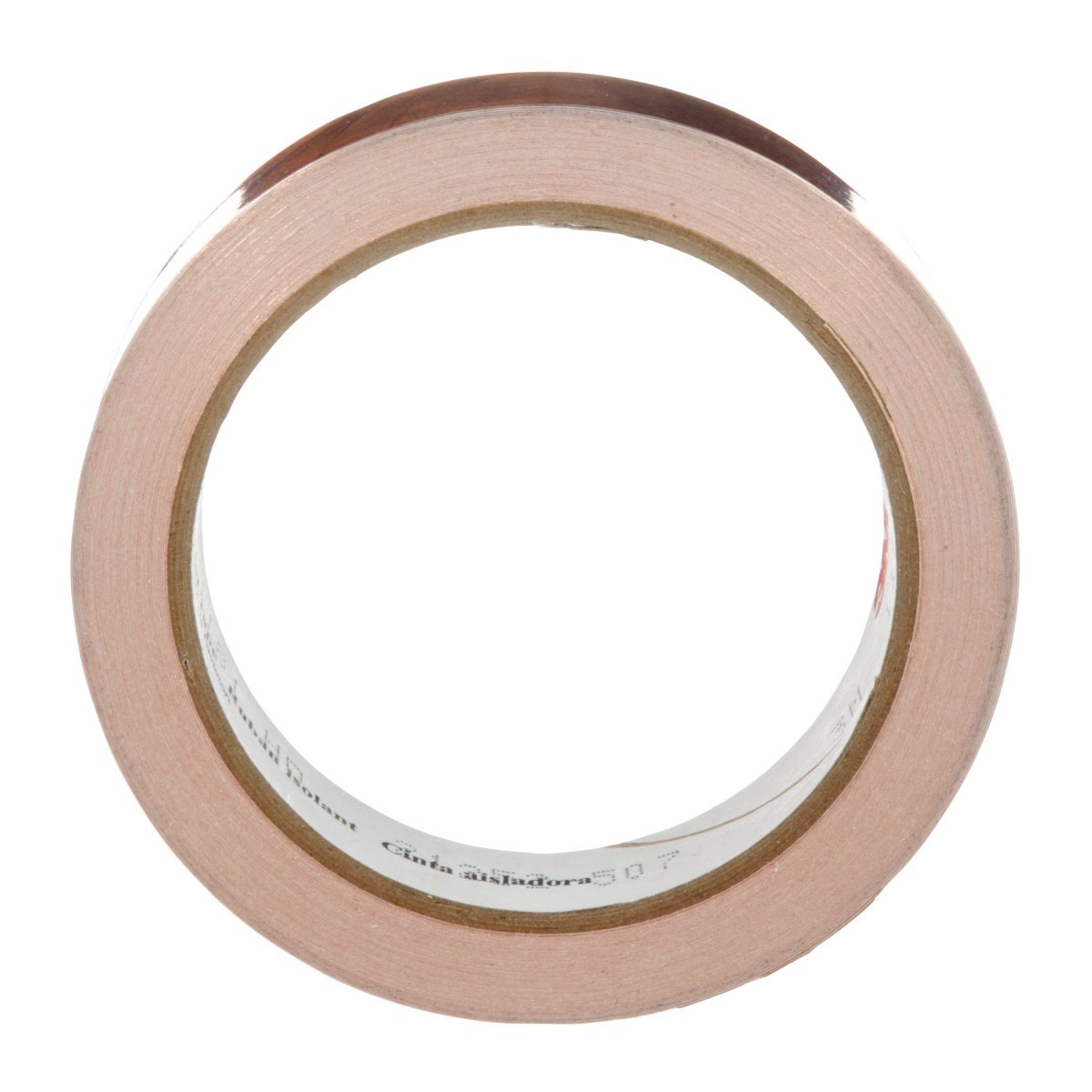

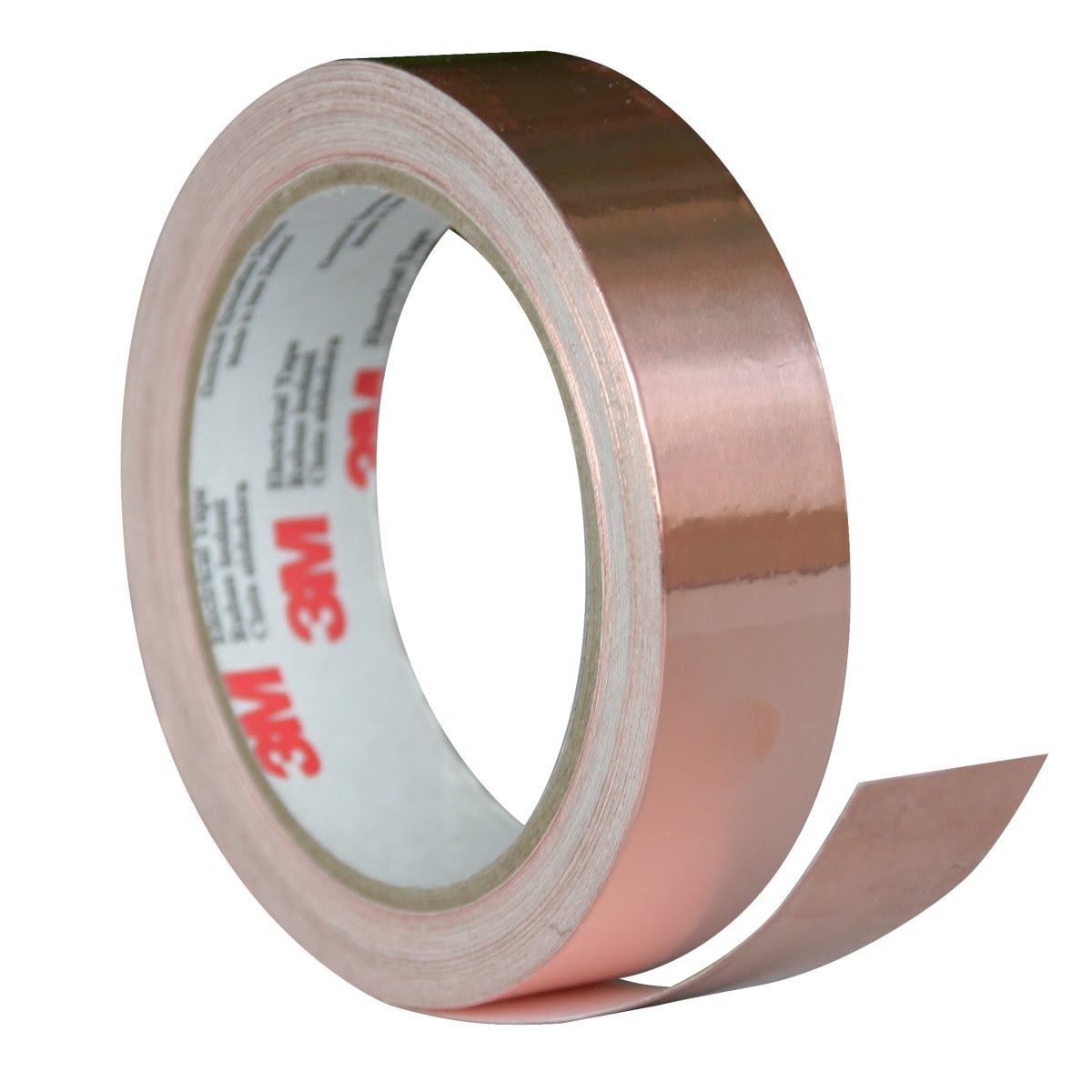

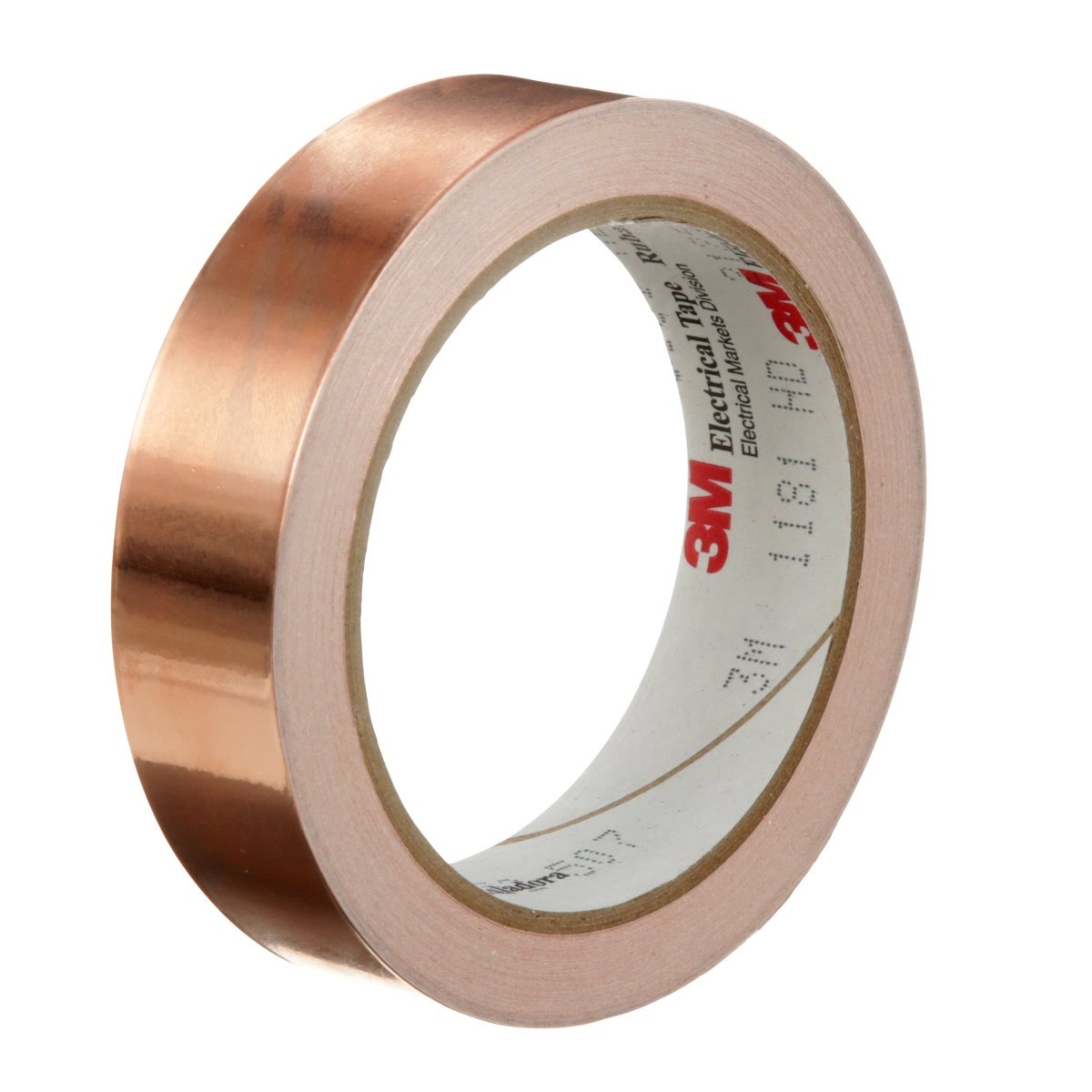

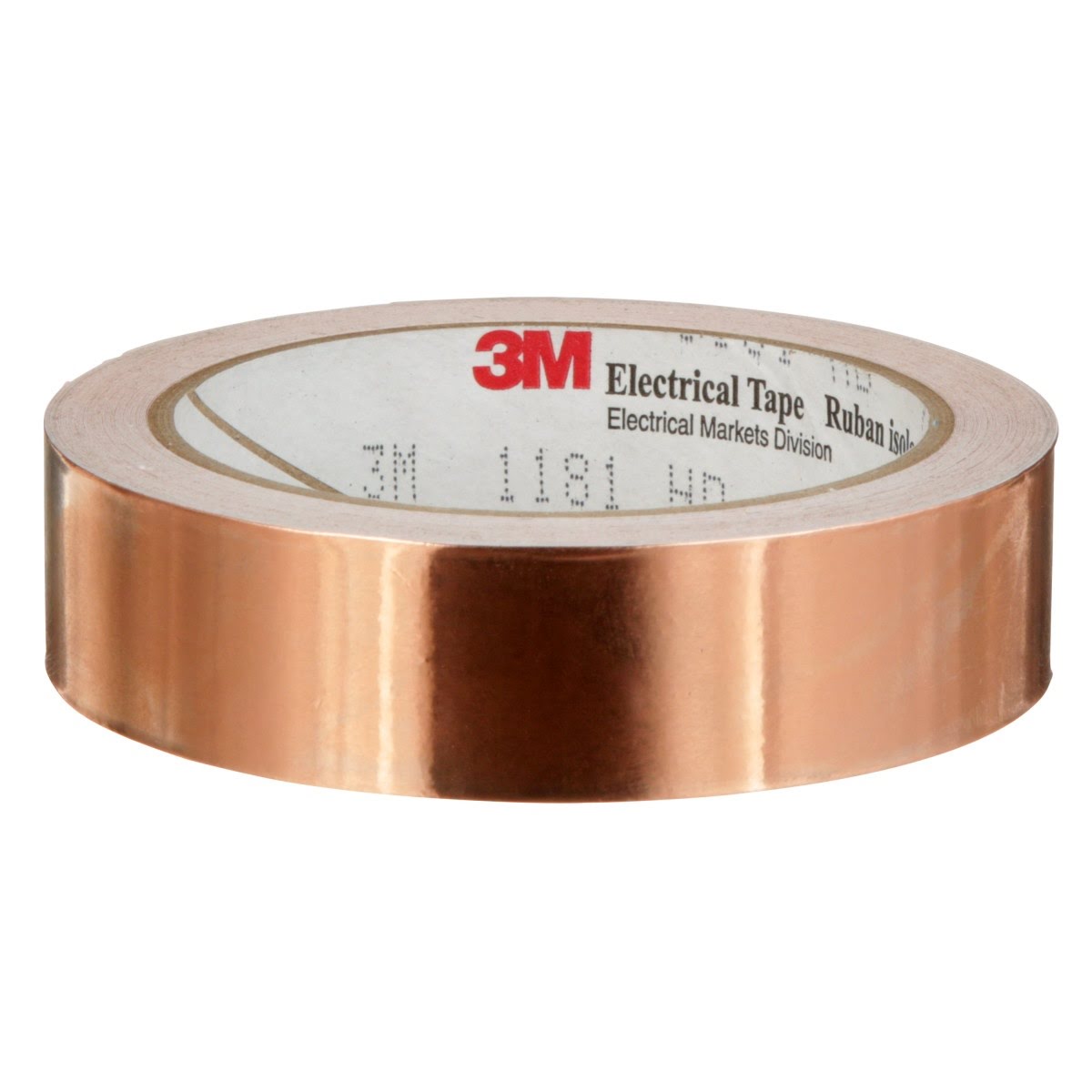

3M EMI Copper Foil Shielding Tape 1181 is a copper foil tape with a pressure sensitive, electrically conductive acrylic adhesive designed to create reliable point to point electrical contact for EMI shielding, grounding, and static charge draining applications. This tape includes a removable liner for easy die cutting and handling and is rated for 600V dry applications.
3M 7000132169 Includes
- (9) 3M EMI Copper Foil Shielding Tape 1181 Rolls
3M 7000132169 Features

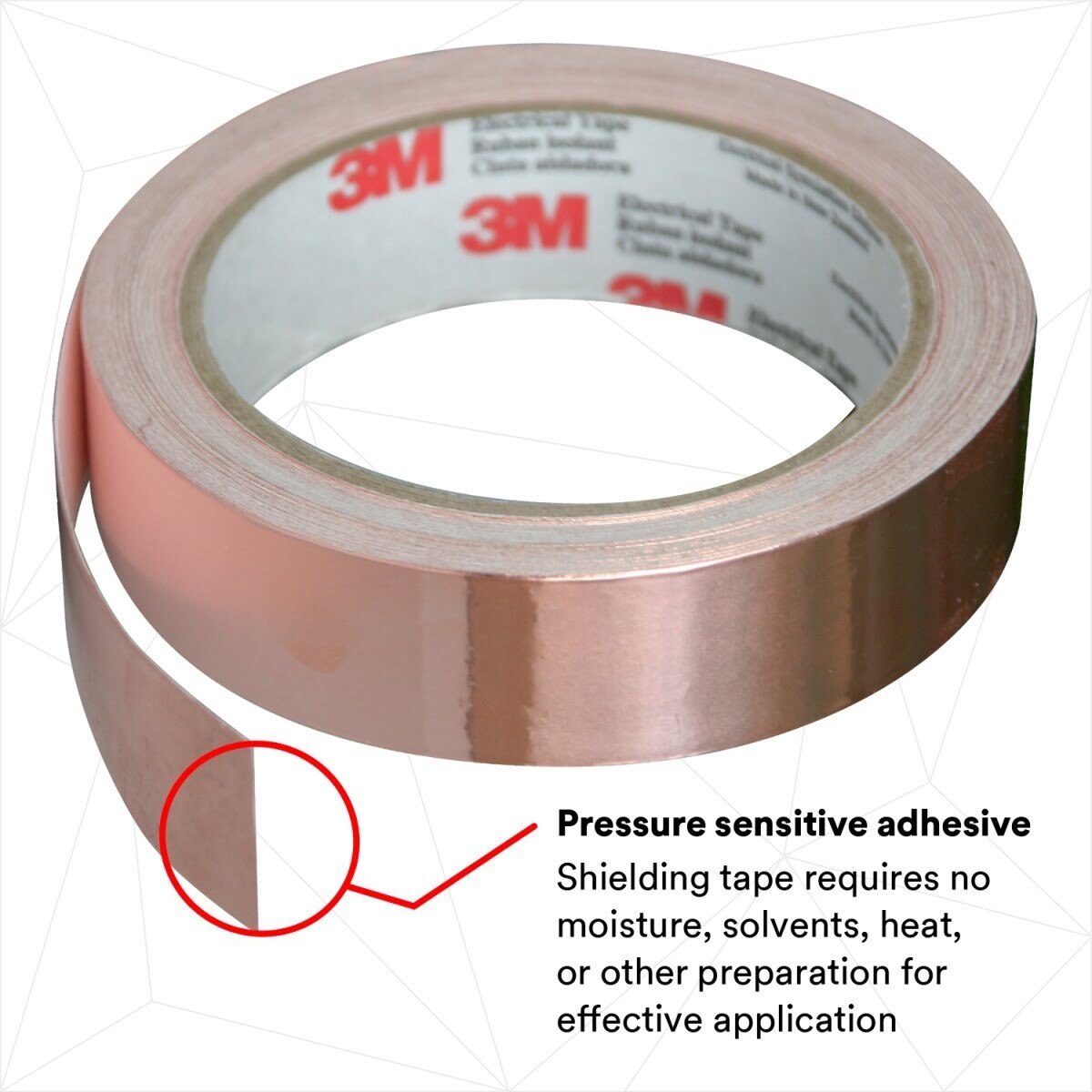

- Copper foil backing with conductive acrylic pressure sensitive adhesive
- Designed for reliable point to point electrical contact

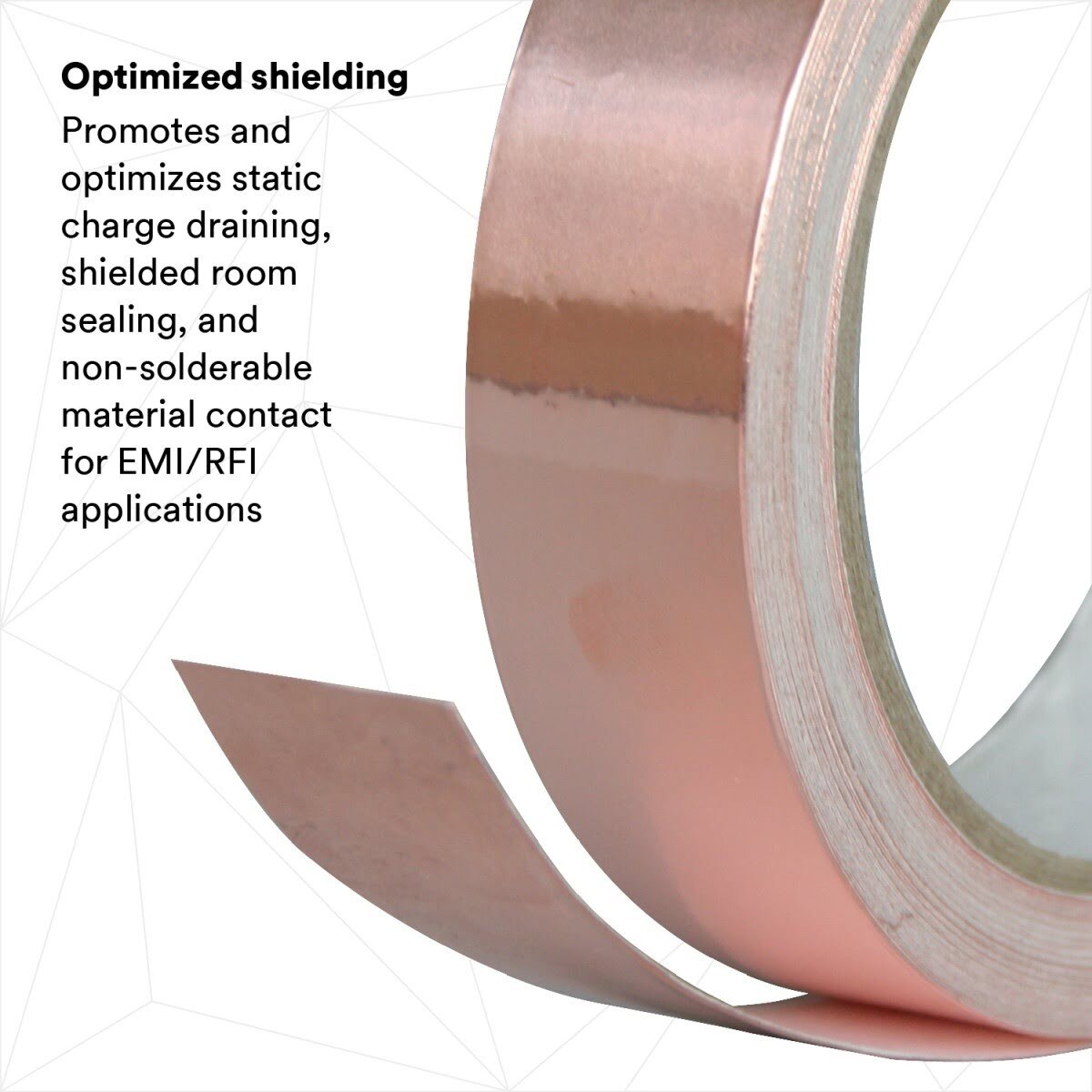

- Suitable for EMI shielding, grounding, and static charge draining
- Removable liner supports easy die cutting and handling
- Flame retardant construction
- Rated for 600V dry applications
- UL listed and RoHS 2011/65/EU compliant
- Excellent resistance to oxidation and discoloration
- Conductive particles help provide low resistance between substrate and backing

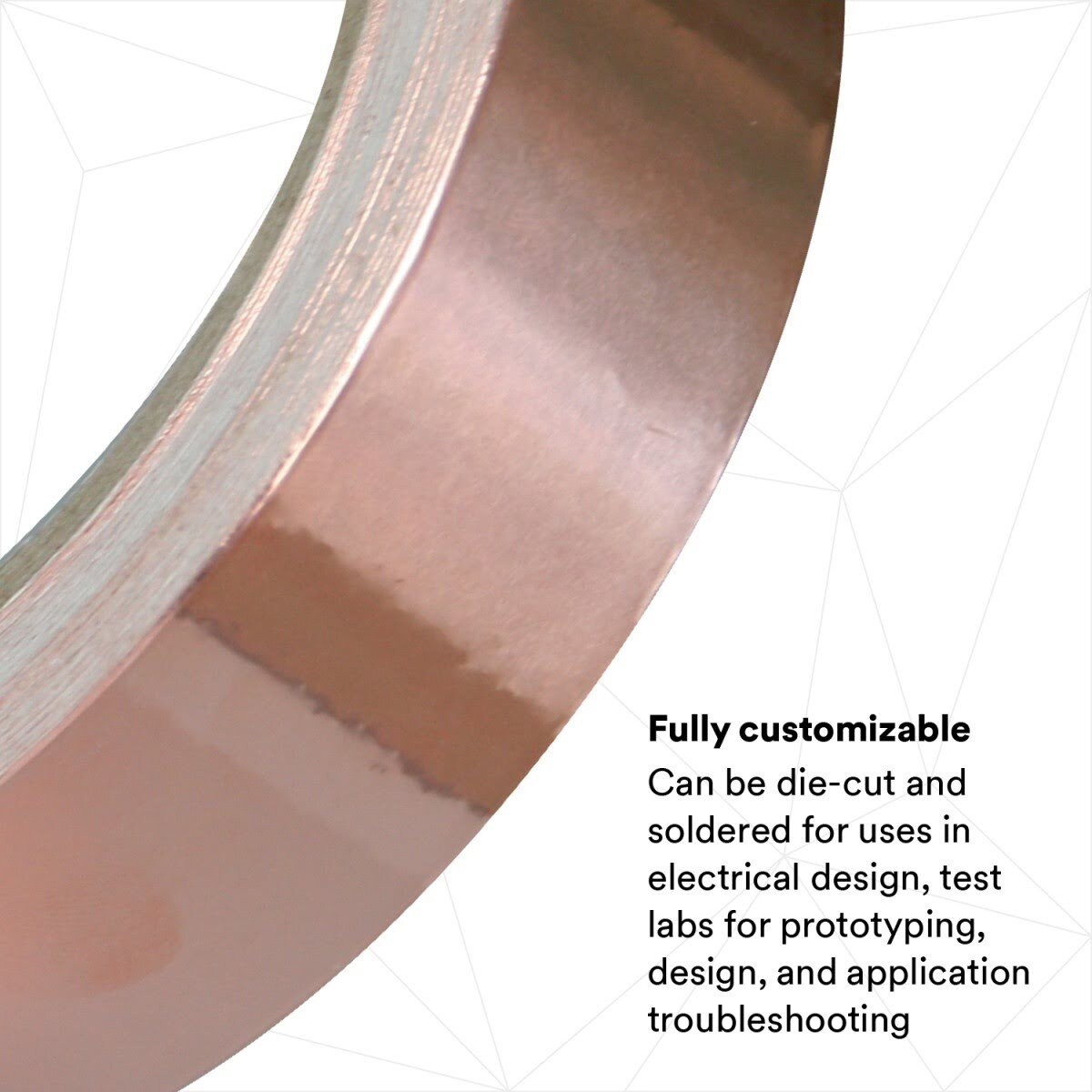

- Can be die cut and soldered for customized designs
3M 7000132169 Specifications
| Product Type | Copper foil EMI shielding tape |
| Application | Shielding |
| Backing Material | Copper Foil |
| Adhesive Type | Conductive Acrylic |
| Backing Thickness | 1.4 mil |
| Width | 1.0 in (25.4 mm) |
| Length | 18.0 yd (16.5 m) |
| Color | Copper |
| Voltage Rating | 600V dry applications |

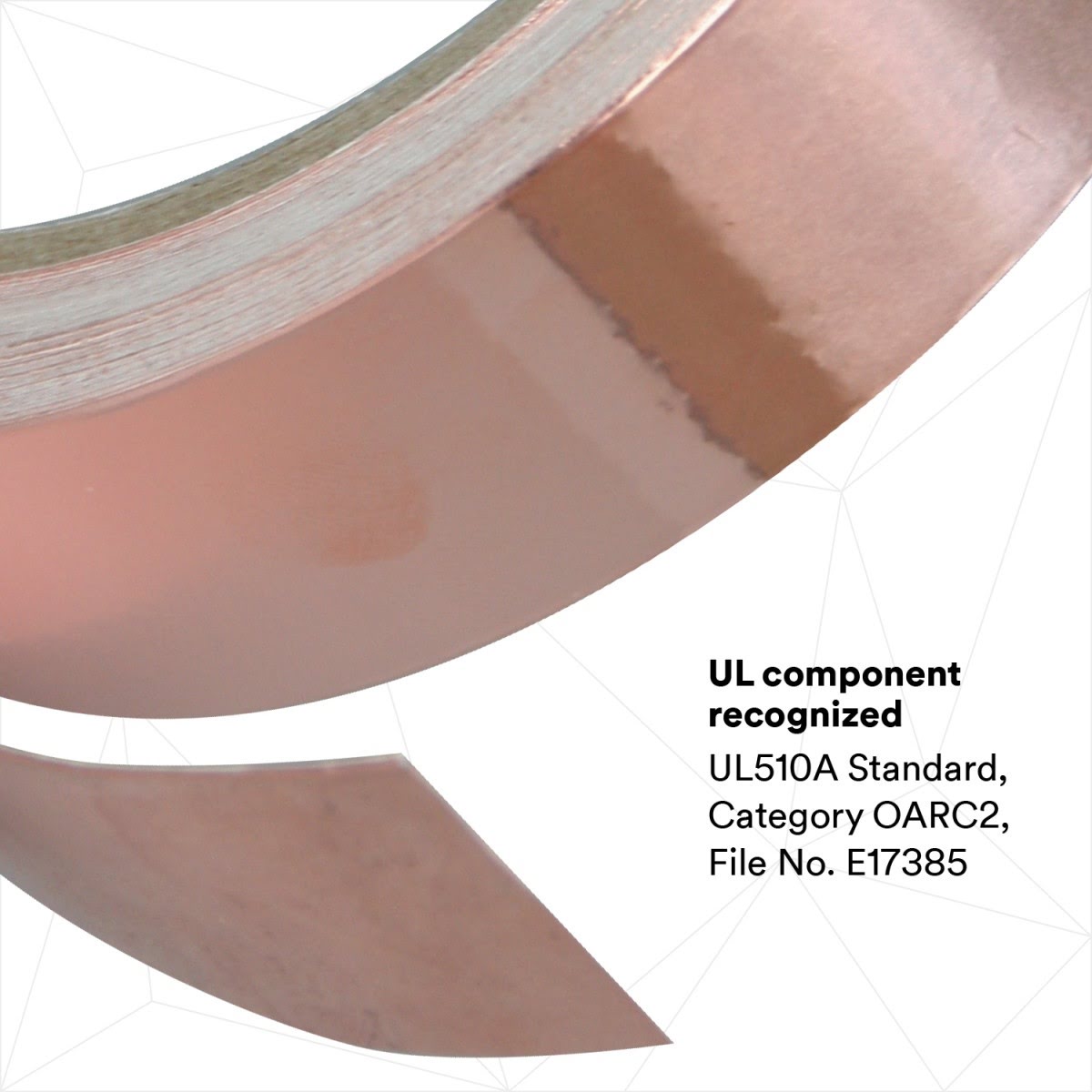

| Specifications Met | RoHS 2011/65/EU; UL Recognized |
| Shelf Life | 5 Year |
| Part Number | 1181-1X18YD |
| Quantity Per Case | 9 Rolls |
