3M 7100043849 Description

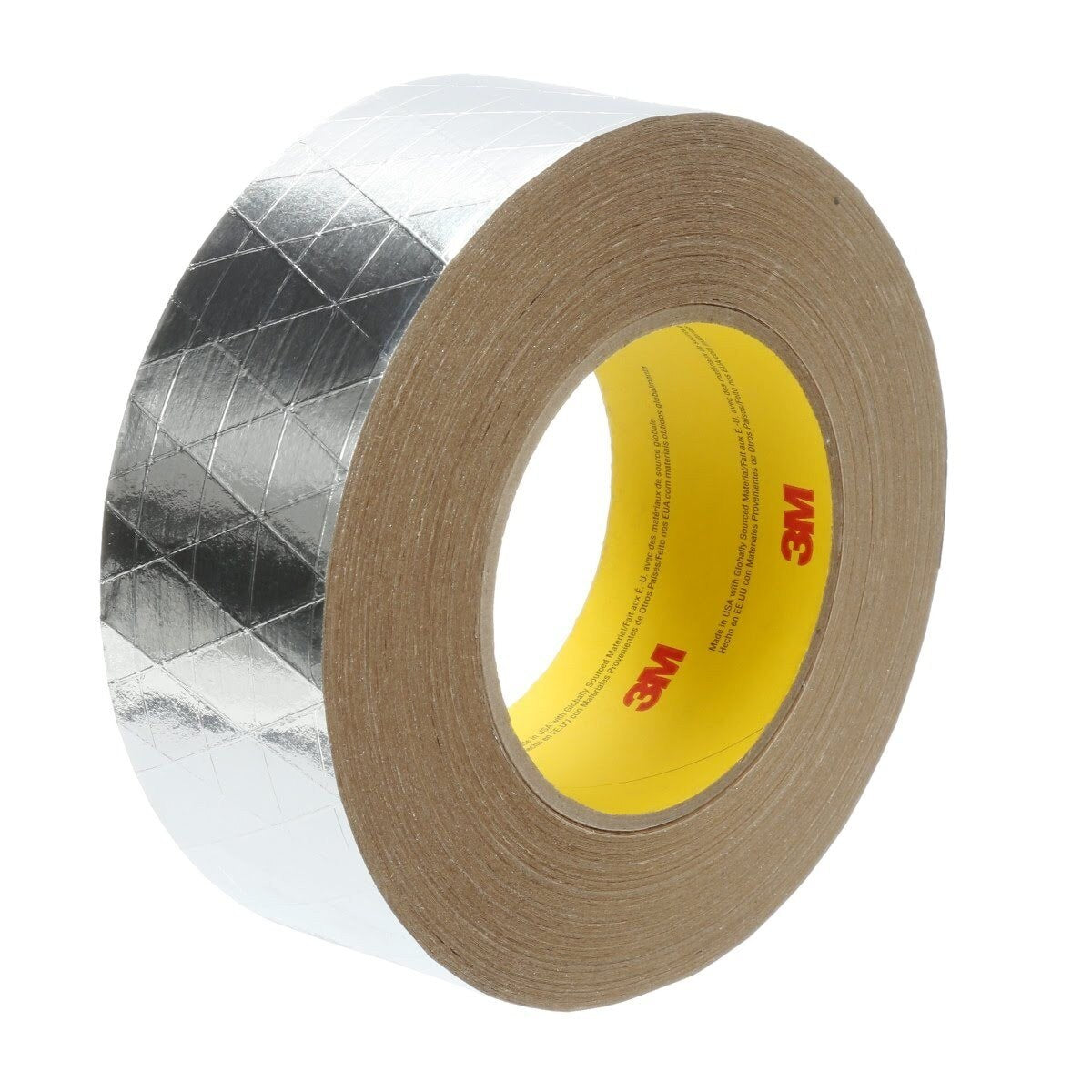

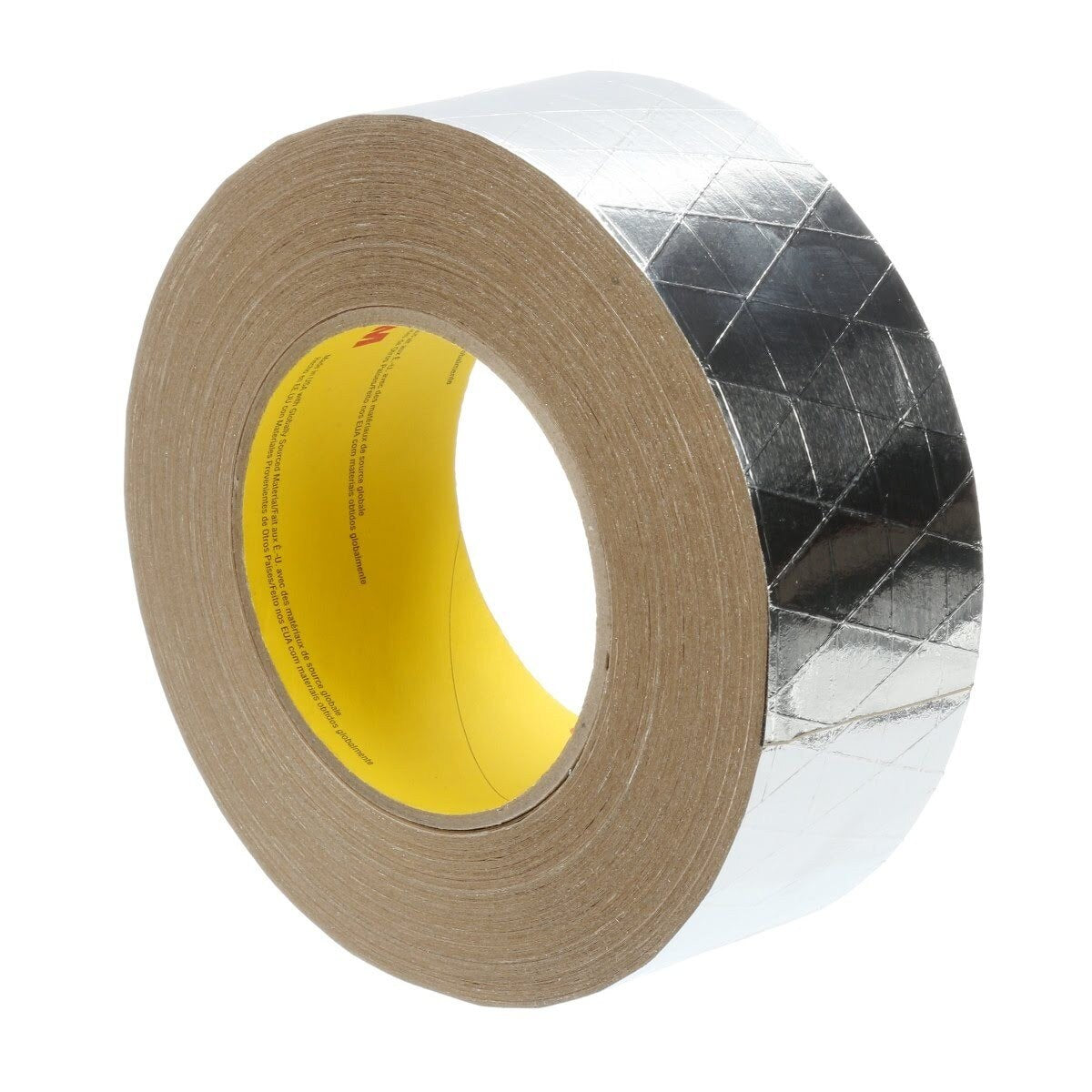

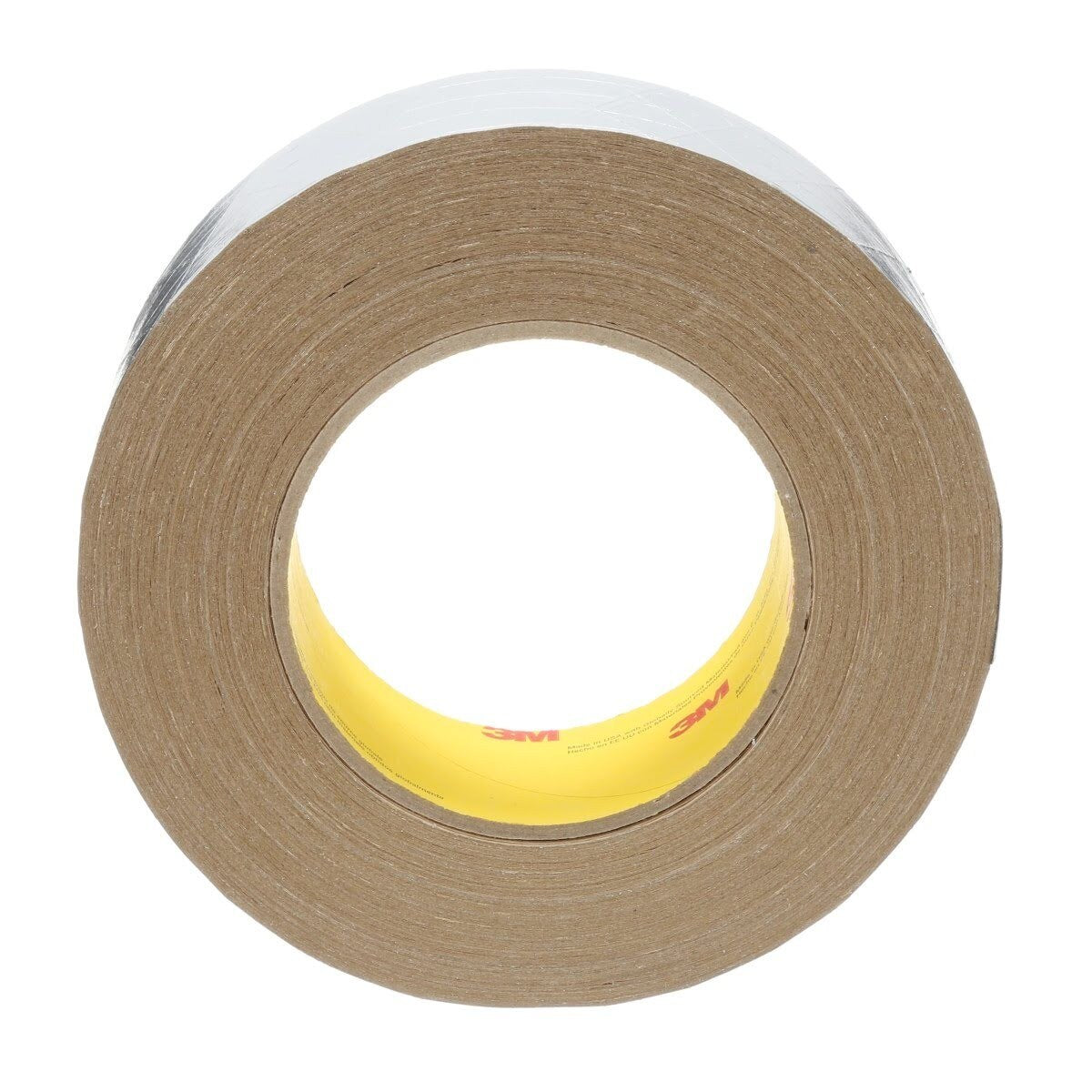

3M Venture Tape FSK Facing Tape 1525CW is a foil scrim kraft laminated HVAC insulation tape designed for sealing and patching FSK faced duct wrap and for use as a vapor seal on insulation and sheet metal. The cold weather acrylic pressure sensitive adhesive conforms to irregular surfaces and provides a durable seal across a wide temperature range.
3M 7100043849 Includes
- (24) 3M Venture Tape FSK Facing Tape 1525CW, Silver, 48 mm x 45.7 m Roll
3M 7100043849 Features

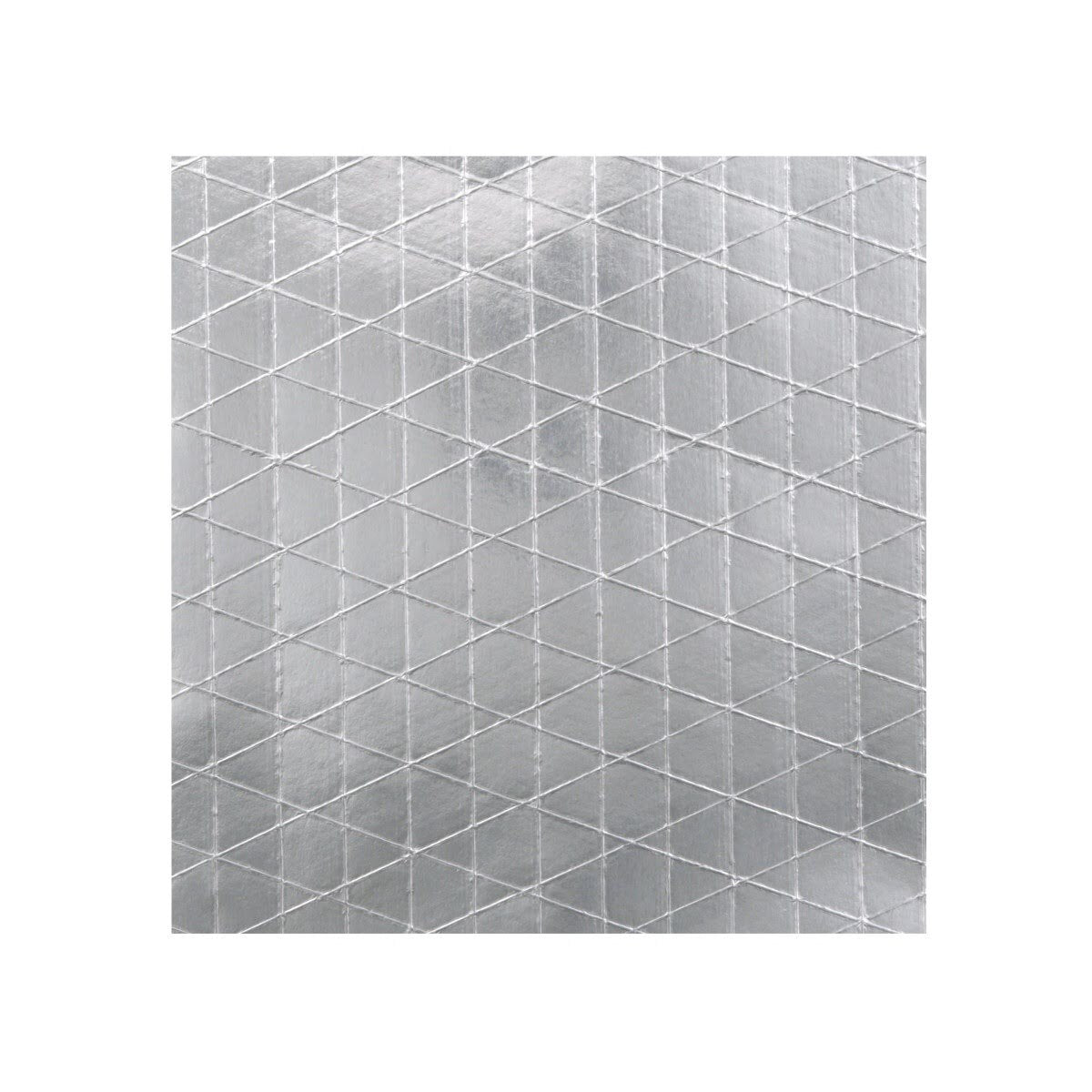

- Foil scrim kraft laminate backing for use on fibrous and sheet metal ducts
- Cold weather acrylic pressure sensitive adhesive for low temperature performance
- Flexible backing conforms to curved or irregular surfaces
- High puncture and tear resistance for durability
- Applies easily without special tools or application methods
- Designed for sealing and patching FSK faced duct wrap insulation
- Can be used as a vapor seal for reinforced aluminum faced fiberglass or mineral wool insulation
- Service temperature range from -40 Degree F to 240 Degree F
- UL723 Classified 10 10 flame smoke rating
- Meets ASTM C1136 Type II and IV
3M 7100043849 Specifications
| Brand | Venture Tape |
| Product Type | FSK Facing Tape |
| Color | Silver |
| Adhesive Type | Acrylic |
| Backing Material | Foil Scrim Kraft |
| Overall Width | 48 mm (1.89 in) |
| Overall Length | 45.7 m (54.68 yd) |
| Total Tape Thickness without Liner | 5.5 mil (0.14 mm) |
| Backing Thickness | 4.0 mil (0.1 mm) |
| Elongation at Break | 2% |
| Tensile Strength | 40 lb/in (68.3 N/100mm) |
| Minimum Operating Temperature | -40 Degree F (-40 Degree C) |
| Maximum Operating Temperature | 240 Degree F (116 Degree C) |
| Primary Liner | Polycoated Kraft |
| Applications | Sealing HVAC and duct work; interior seams and joints; exterior seams and joints |
| Flame Smoke Rating | UL723 10/10 |
| ASTM Specification | ASTM C1136 Type II and IV |
| Part Number | 1525CW |
Toolup Part # :
852535
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
