At a Glance
Length
50 yd
Width
4-7/8 in
Thickness
10.8 mil
Adhesive Type
Acrylic
Max Temperature
240�F
Min Temperature
-40�F
Material
Kraft Paper
Description
Description

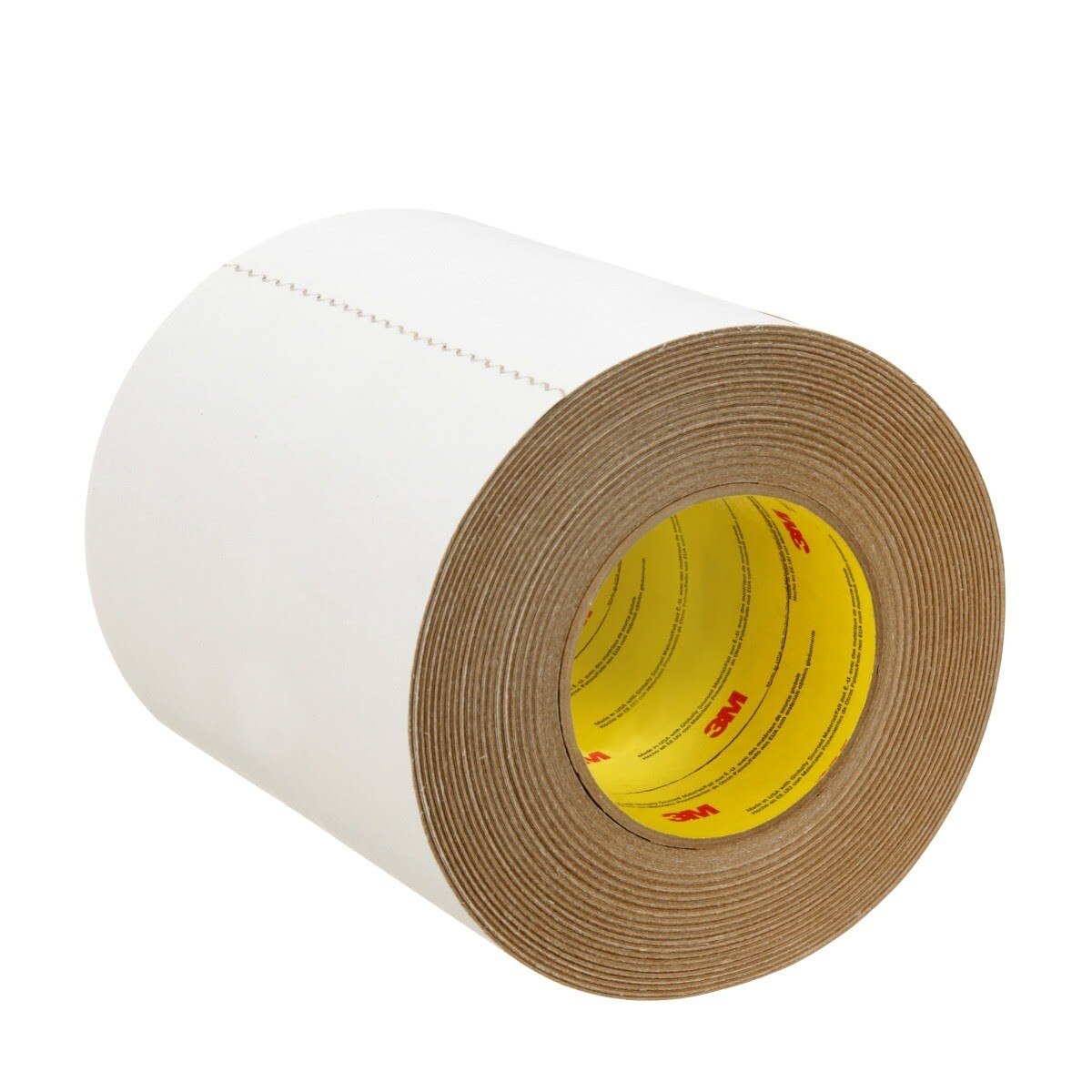

3M 7100087495 Description
3M Venture Tape ASJ Facing Tape 1540CW is designed for cold weather and high humidity applications. It features a kraft scrim foil laminate backing with acrylic adhesive for sealing HVAC and duct work, including ASJ faced duct piping systems and pipe insulation. The tape conforms to curved and irregular surfaces and provides durable puncture and tear resistance.
3M 7100087495 Includes
- (8) 3M Venture Tape ASJ Facing Tape 1540CW Roll
3M 7100087495 Features
- Designed for cold weather and high humidity applications
- Kraft scrim foil laminate backing
- Acrylic adhesive
- High puncture and tear resistance for durability
- Mold inhibitor helps maintain adhesive performance
- Conforms to curved and irregular surfaces
- Ideal for closure seal on ASJ faced duct piping systems
- Use as a vapor seal on ASJ faced duct board and pipe insulation
- Easy installation without special tools
3M 7100087495 Specifications
| 3M Product Number | 1540CW |
| Color | White |
| Overall Width | 123.75 mm (4.87 in) |
| Overall Length | 45.7 m (50 yd) |
| Adhesive Type | Acrylic |
| Backing Thickness | 6.5 mil (0.16 mm) |
| Elongation at Break | 2 percent |
| Tensile Strength | 55 lb per in (70.1 N per 100mm) |
| Applications | Exterior seams and joints; interior seams and joints; sealing HVAC and duct work |
| Shelf Life | 12 Month |
| Package Quantity | 8 Rolls per Case |
Toolup Part # :
853720
