At a Glance
Form
Roll
Length
20 yd
Width
3/4 in
Thickness
6 mil
Adhesive Type
Rubber
Max Temperature
194�F
Min Temperature
32�F
Material
PVC
Performance
Flame Retardant
Description
Description
3M 7100169490 Description

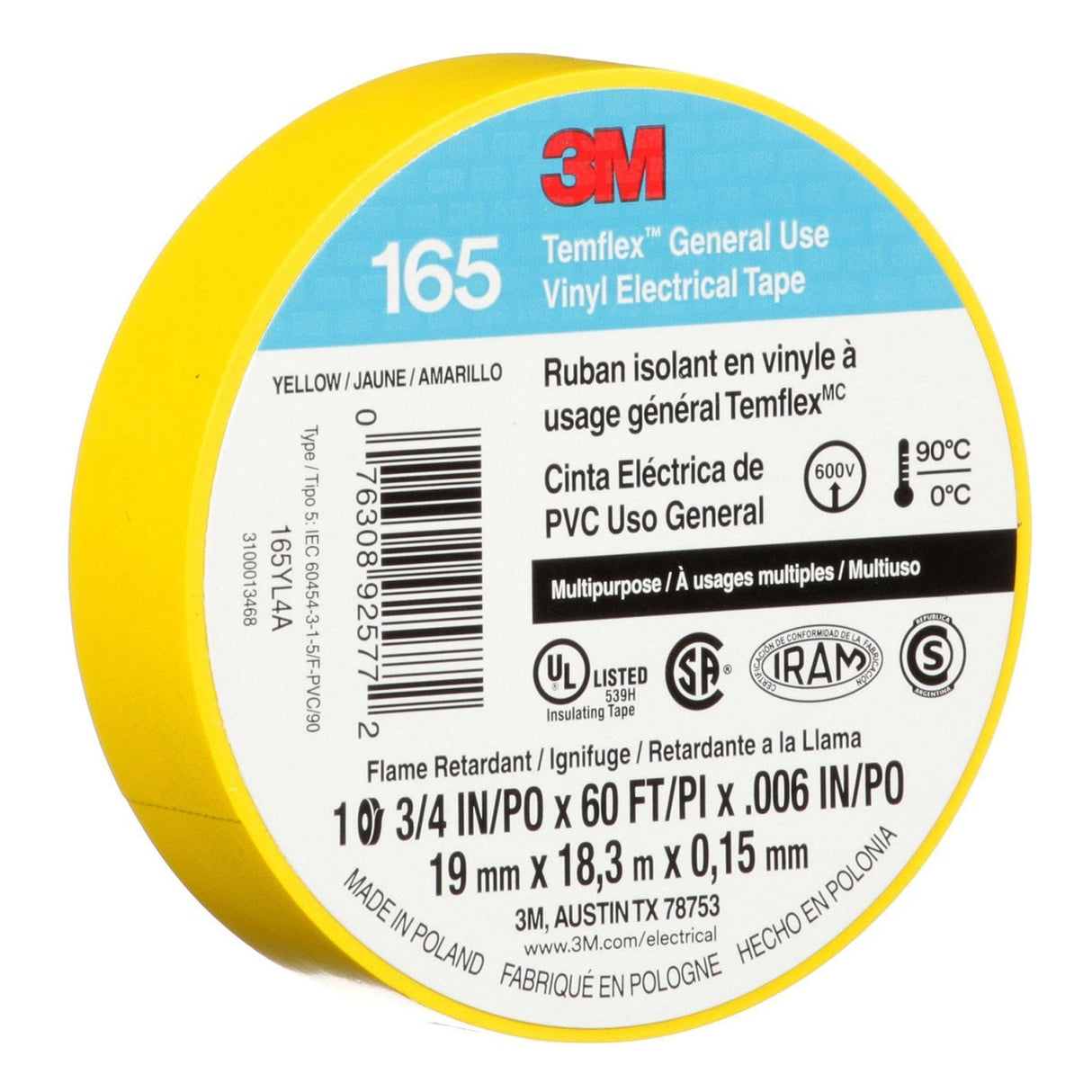

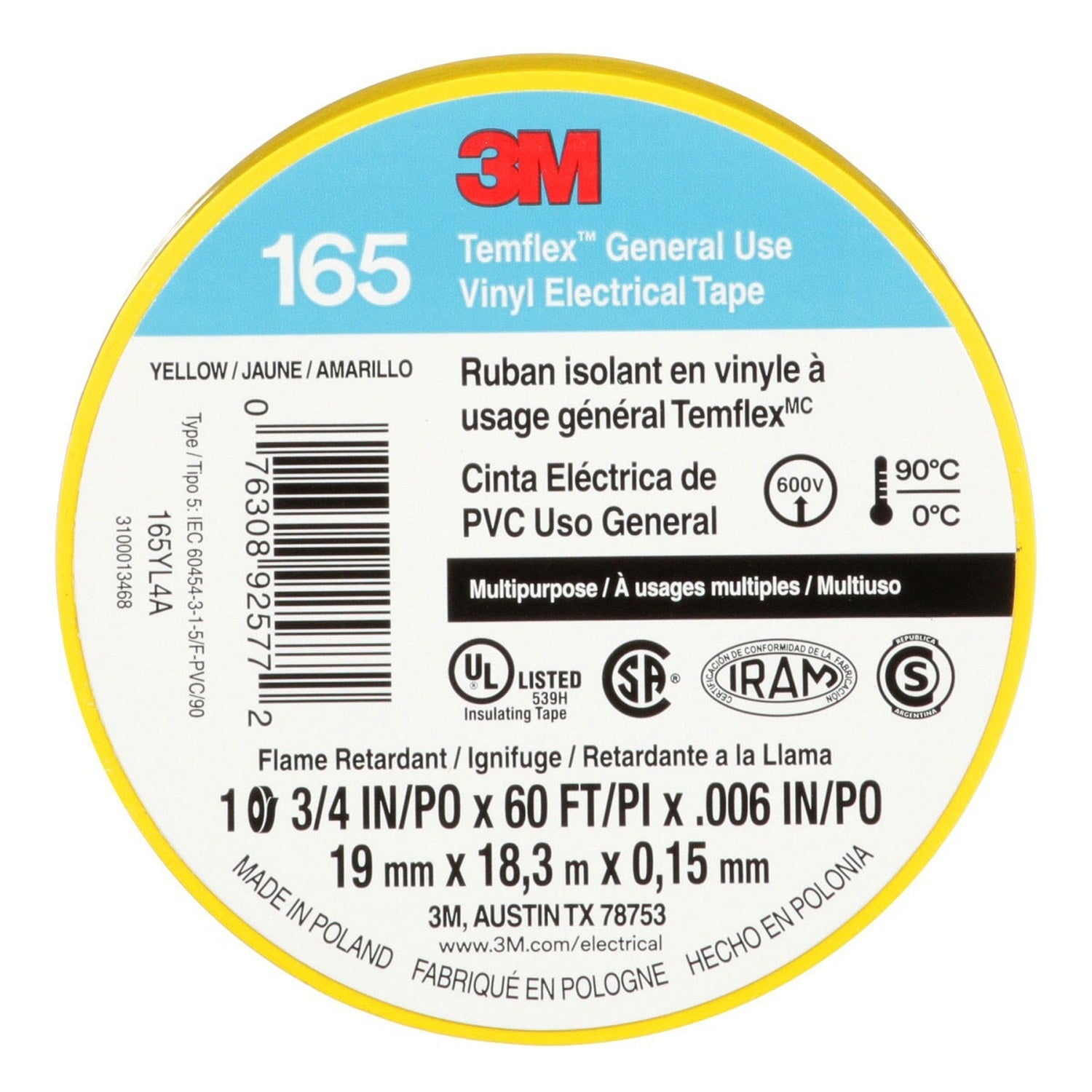

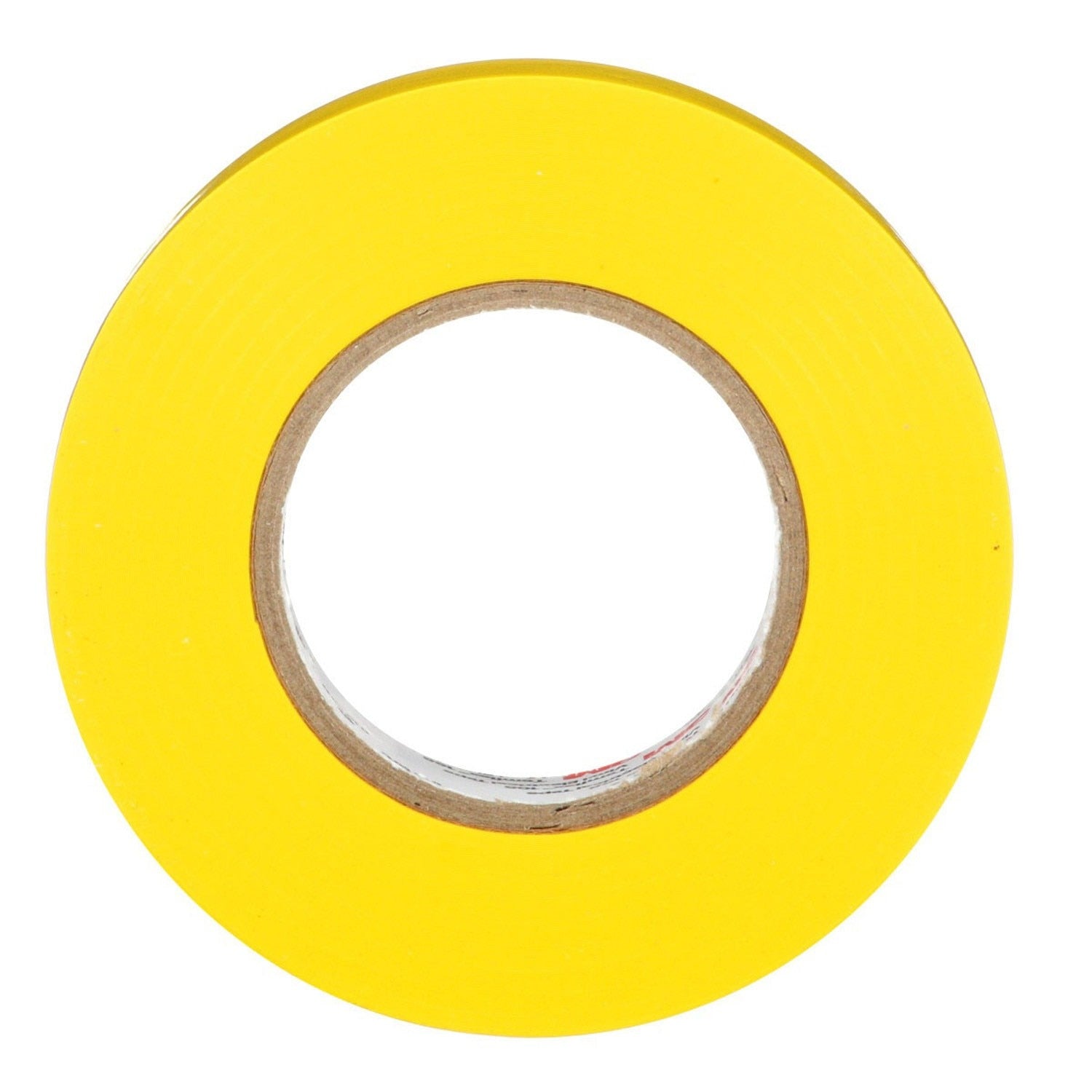

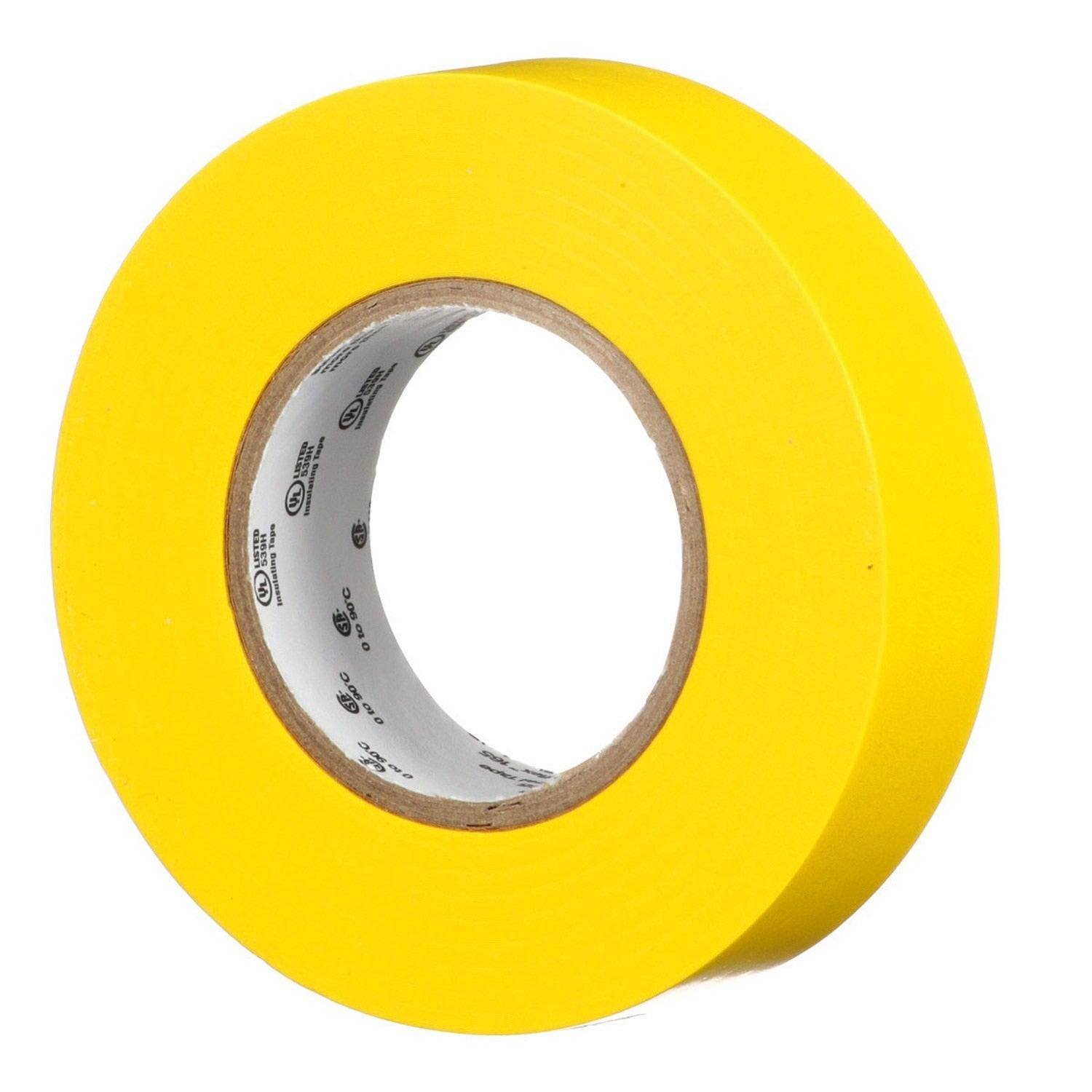

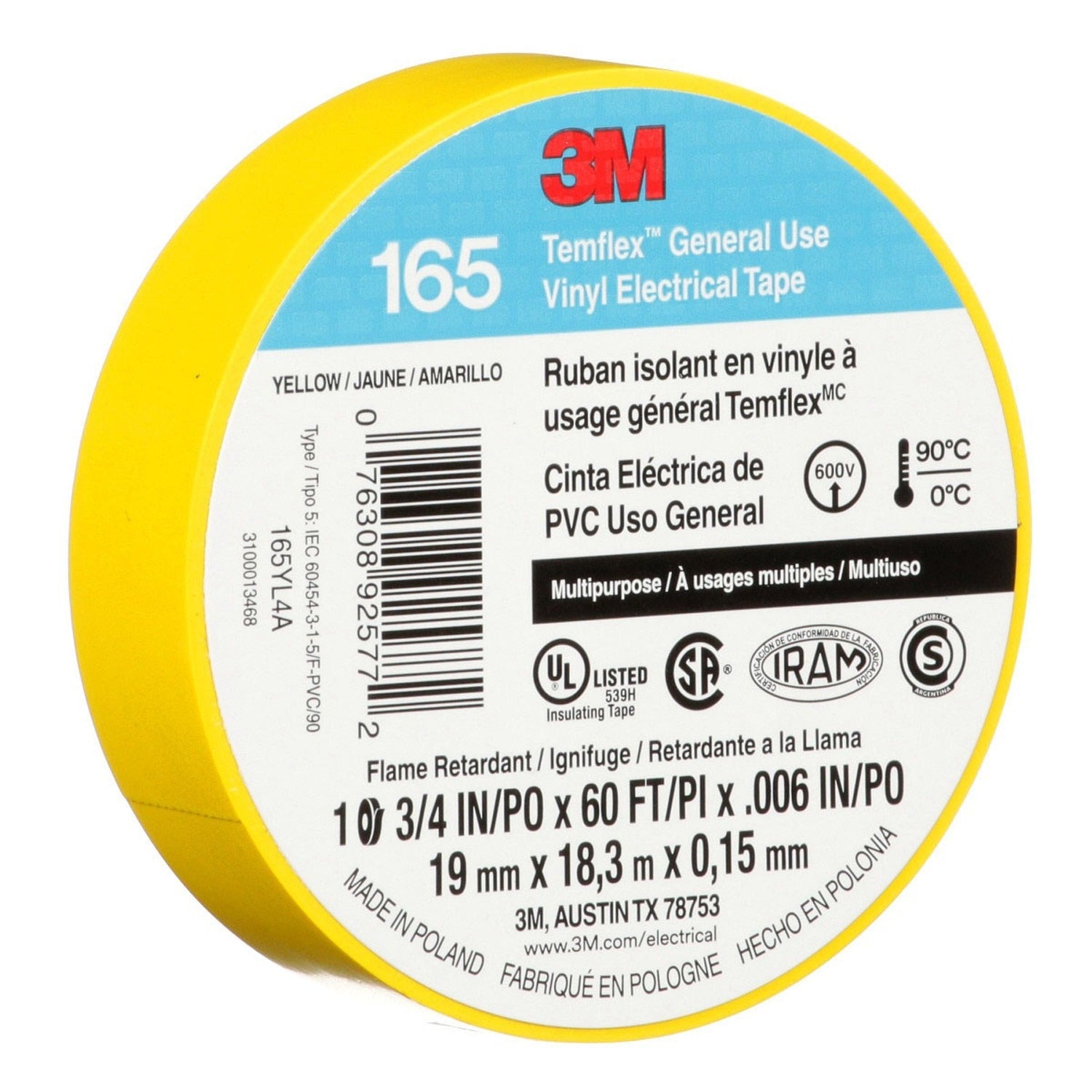

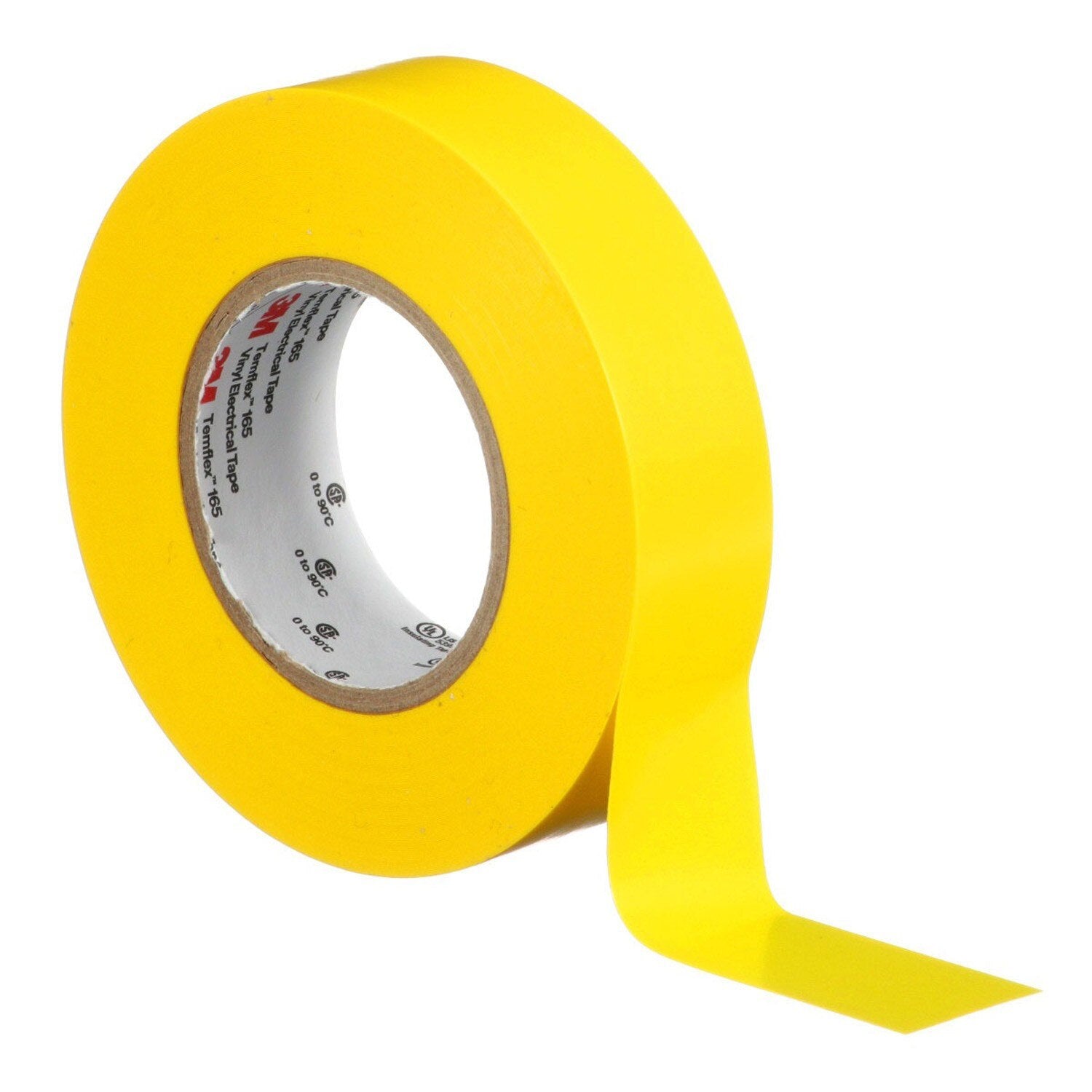

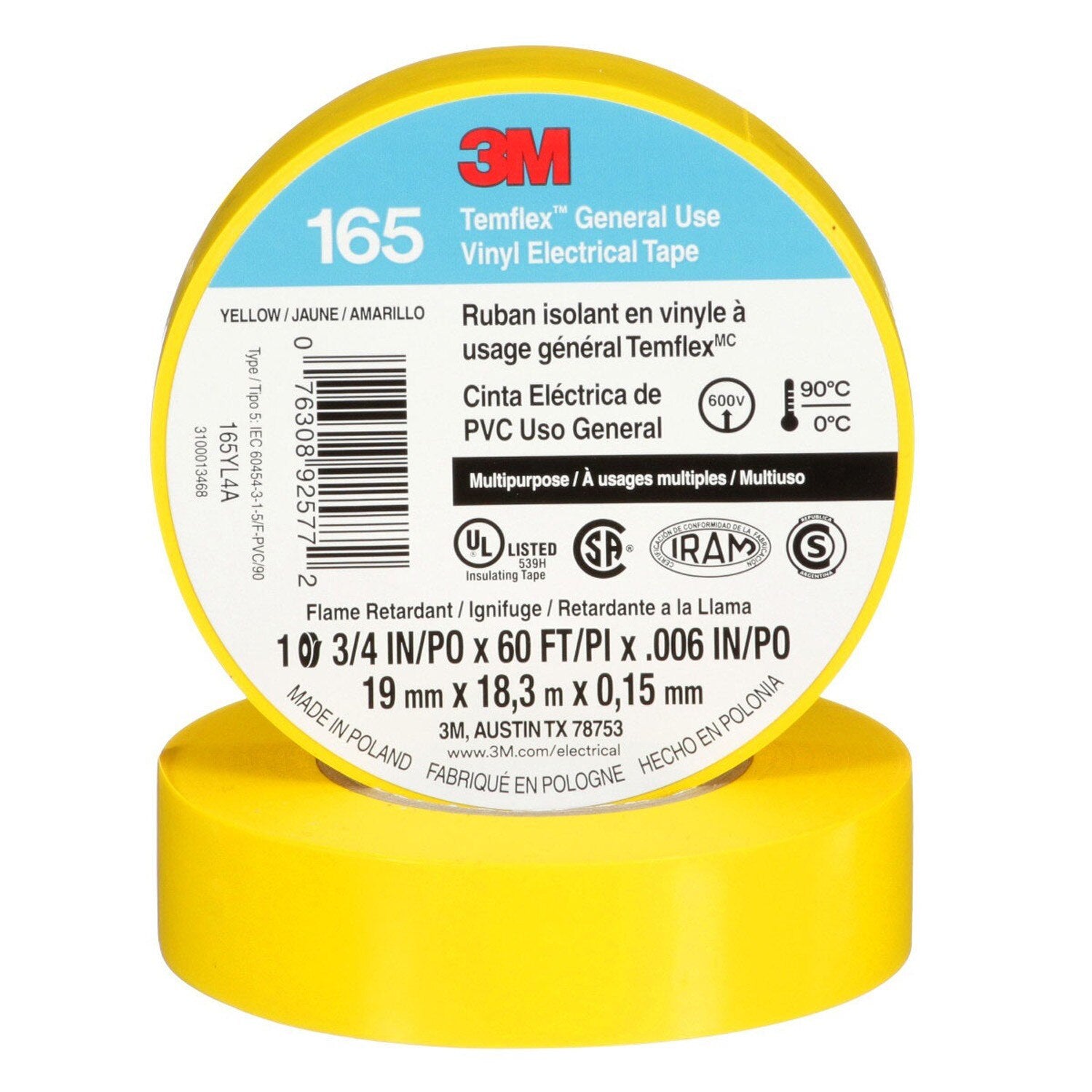

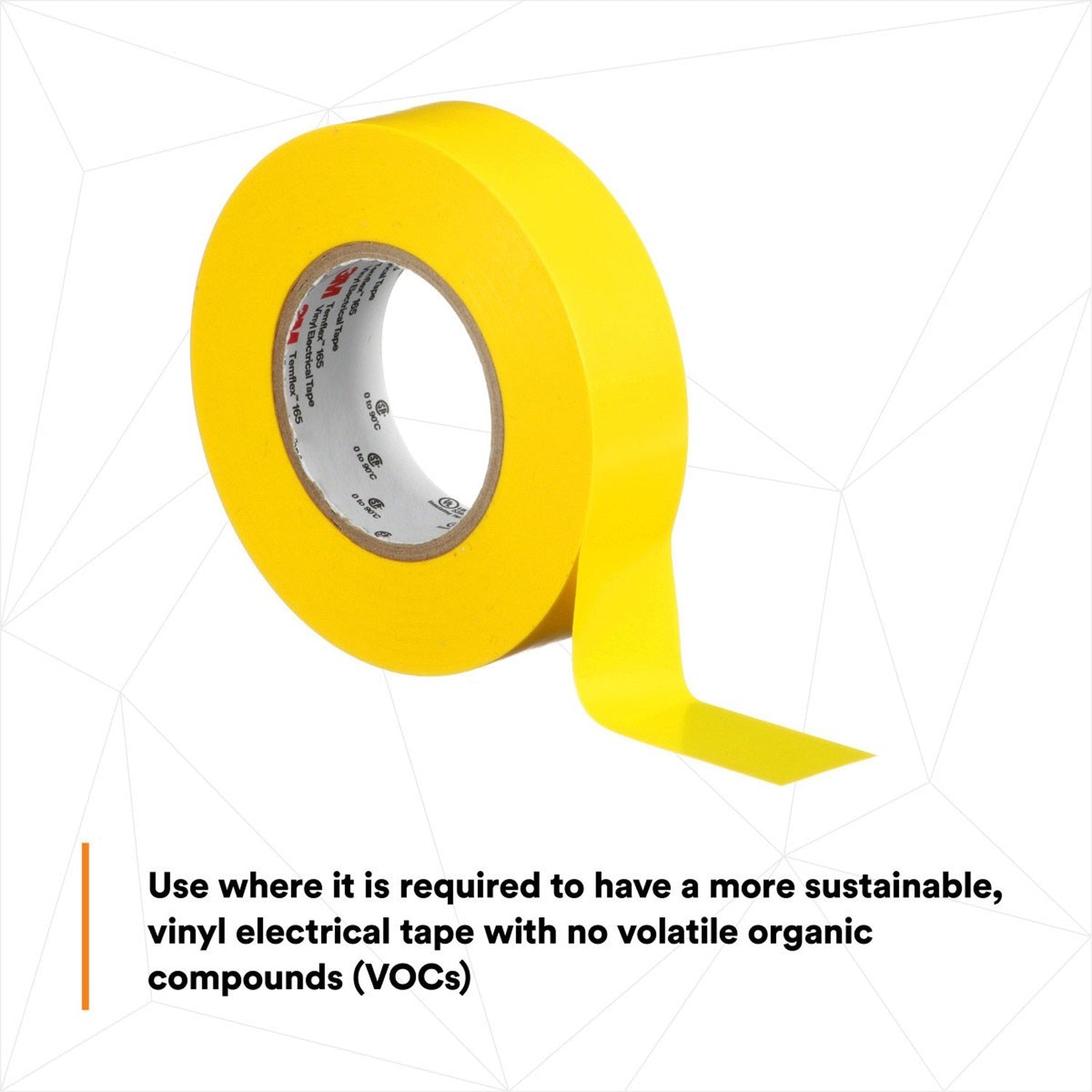

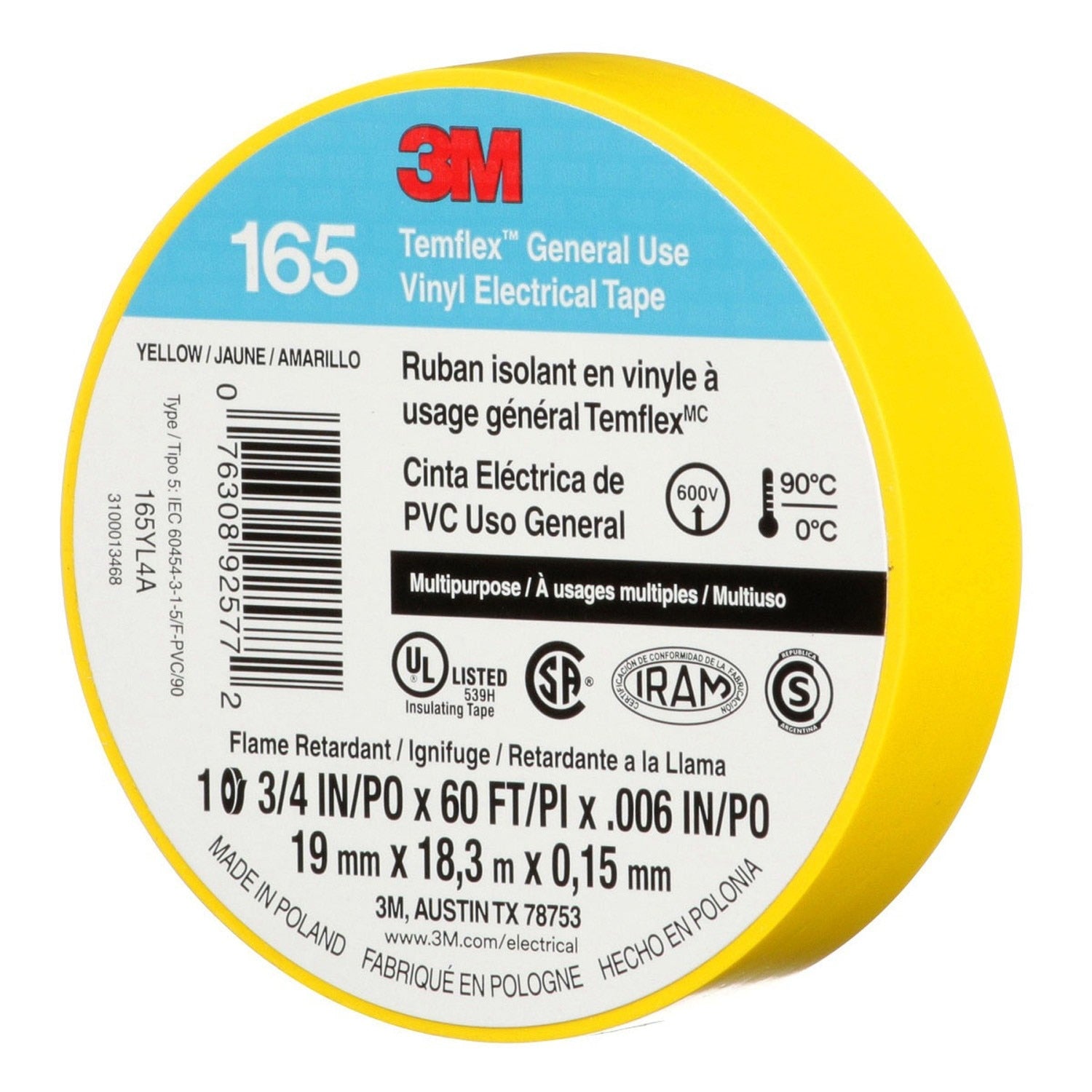

Temflex 165 general-use vinyl electrical tape offers flame-retardant PVC backing with rubber adhesive for reliable insulation and color coding; 0.75 in width, 60 ft length, 6 mil thickness, yellow.
3M 7100169490 Includes
- (10) - 3M 7100169490 Temflex Multi-Purpose Vinyl Electrical Tape 165, Yellow, 3/4 in x 60 ft (19 mm x 18 m) (165YL4A)
3M 7100169490 Features
- General-use vinyl electrical insulating tape
- Flame-retardant PVC backing
- Rubber adhesive
- 0.75 in width x 60 ft length
- 6 mil thickness (0.15 mm)
- Rated to 600 V
- Operating range: 0°C to 90°C (32°F to 194°F)
- Dielectric strength 40 kV/mm
- Conformable and easy to apply
- Resists abrasion, moisture, alkalis, solvents and acids
- UL Listed and CSA Certified
- Yellow color for wire identification
3M 7100169490 Specifications
| Sub-Brand | Temflex |
| 3M Product Number | 165 |
| Color | Yellow |

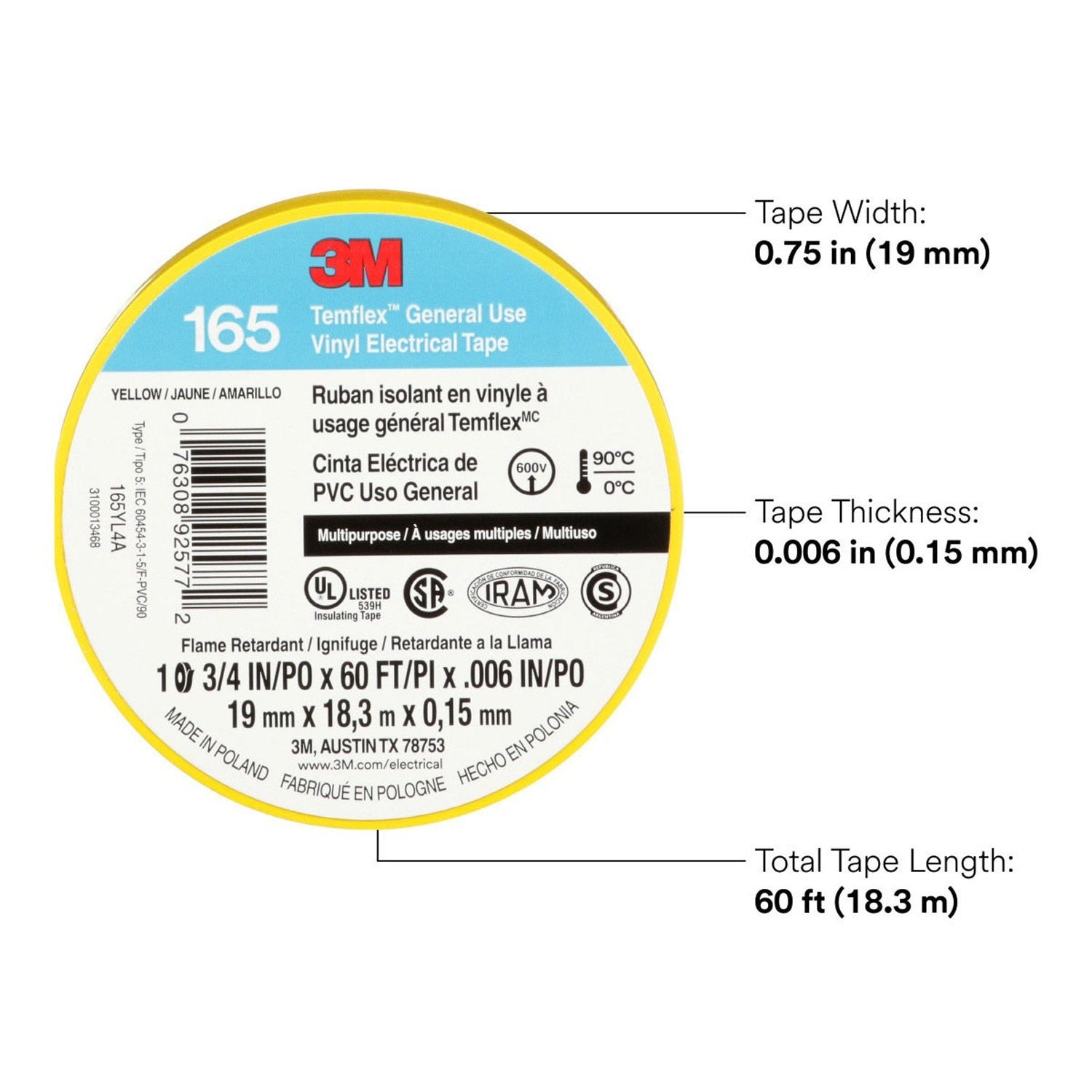

| Width | 0.75 in (19 mm) |
| Length | 60 ft (18.3 m) |
| Thickness | 0.006 in (0.15 mm) |
| Backing Material | PVC |
| Adhesive Type | Rubber |
| Voltage Rating | 600 V |
| Maximum Operating Temperature | 90°C (194°F) |
| Minimum Operating Temperature | 0°C (32°F) |
| Dielectric Strength | 40 kV/mm |
| Elongation at Break | 200% |
| Tape Grade | General Use |
| Flame Retardant | Yes |
| UL Listed | Yes |
| CSA Certified | Yes |
| Shelf Life | 5 Year |
| Pack Quantity | 10 Rolls |
Toolup Part # :
860974
