At a Glance
Form
Roll
Length
20 yd
Width
3/4 in
Thickness
6 mil
Adhesive Type
Rubber
Max Temperature
194�F
Min Temperature
32�F
Material
PVC
Performance
Flame Retardant
Description
Description

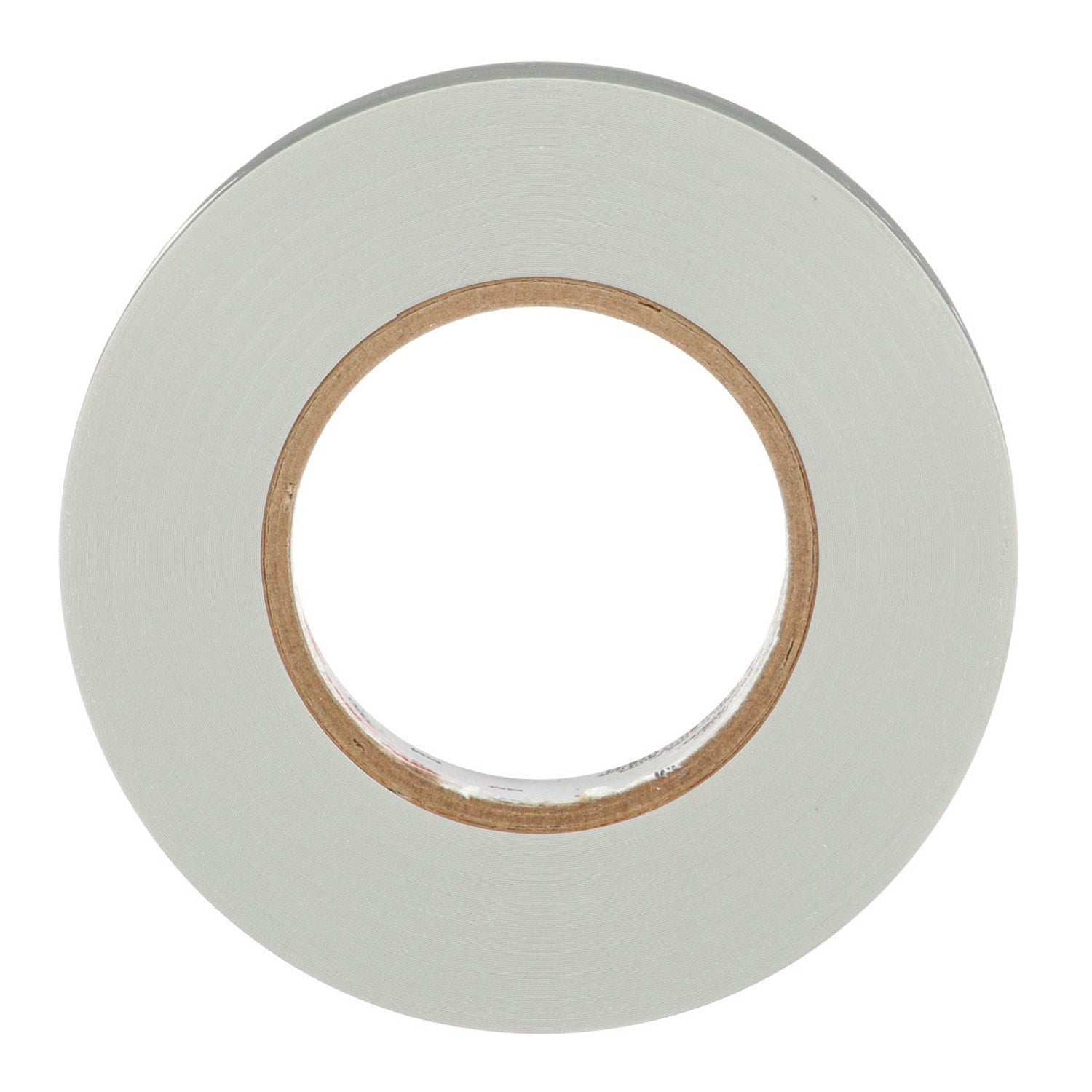

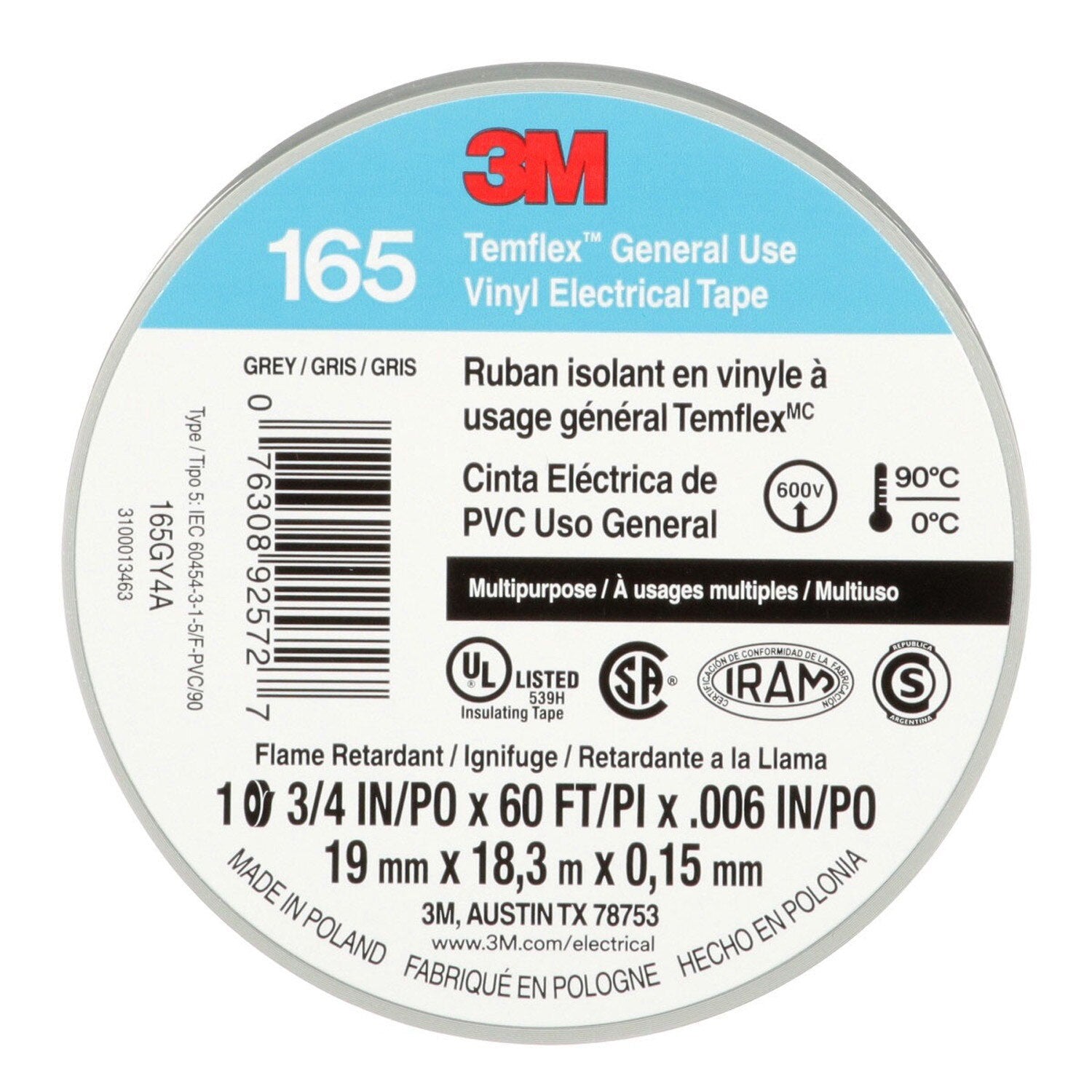

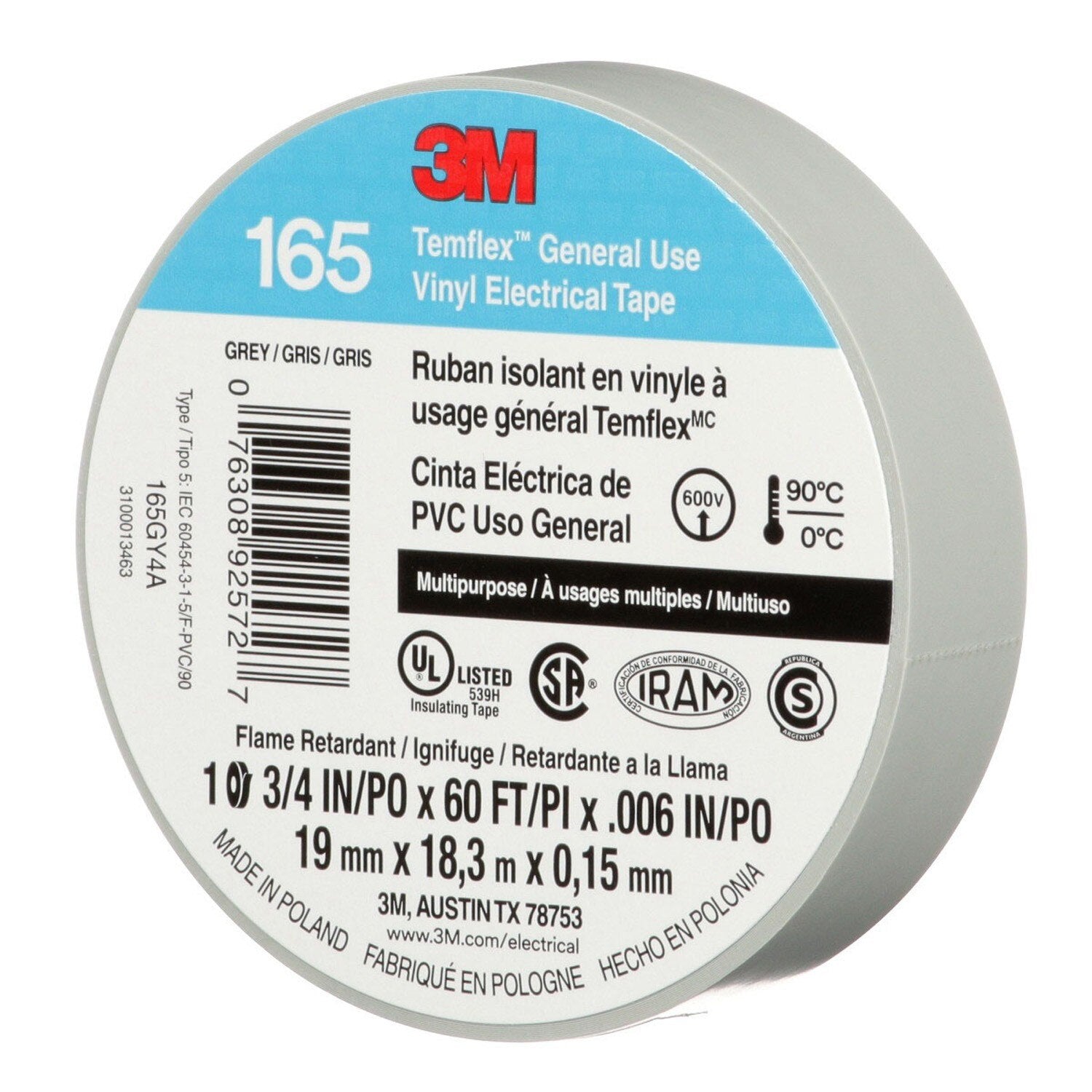

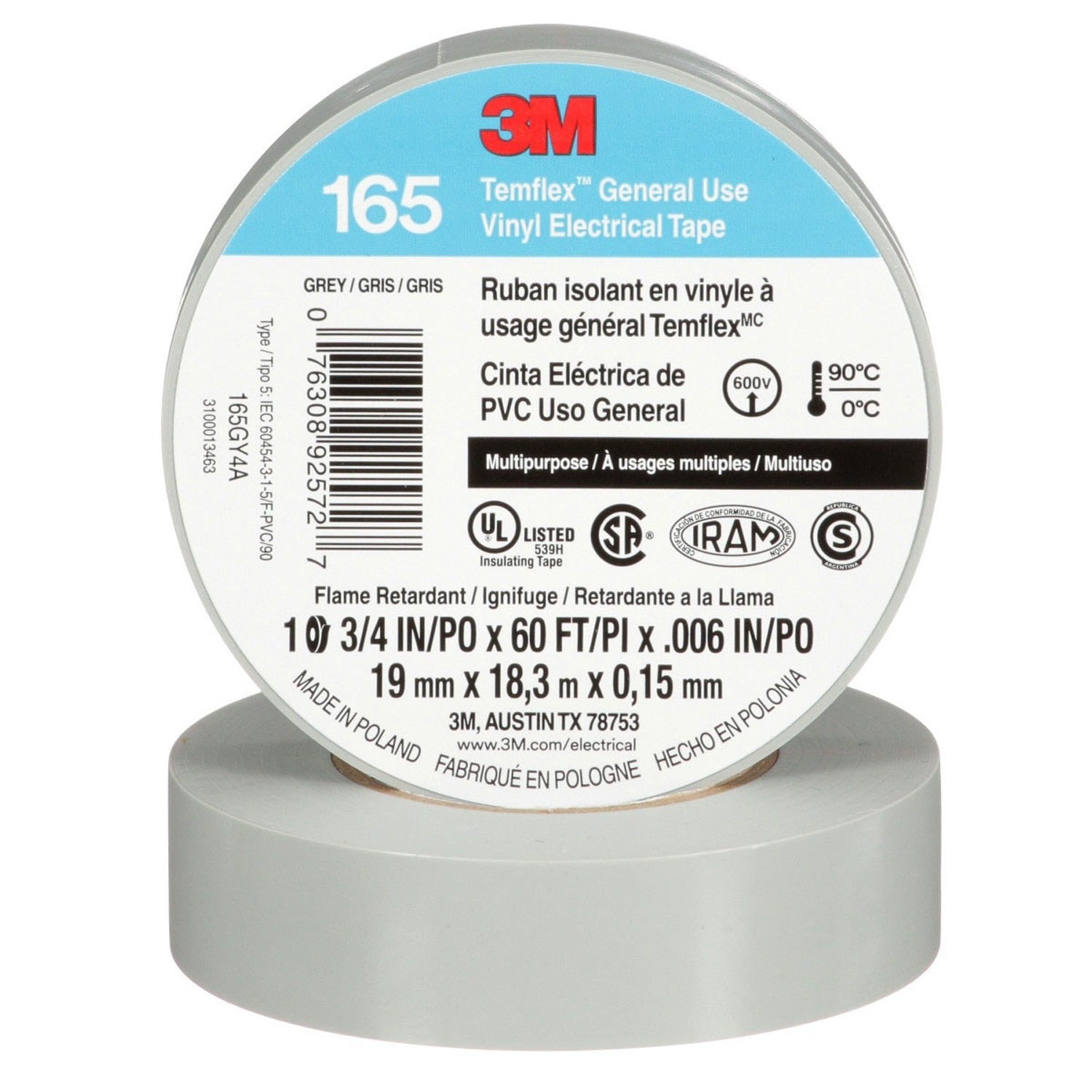

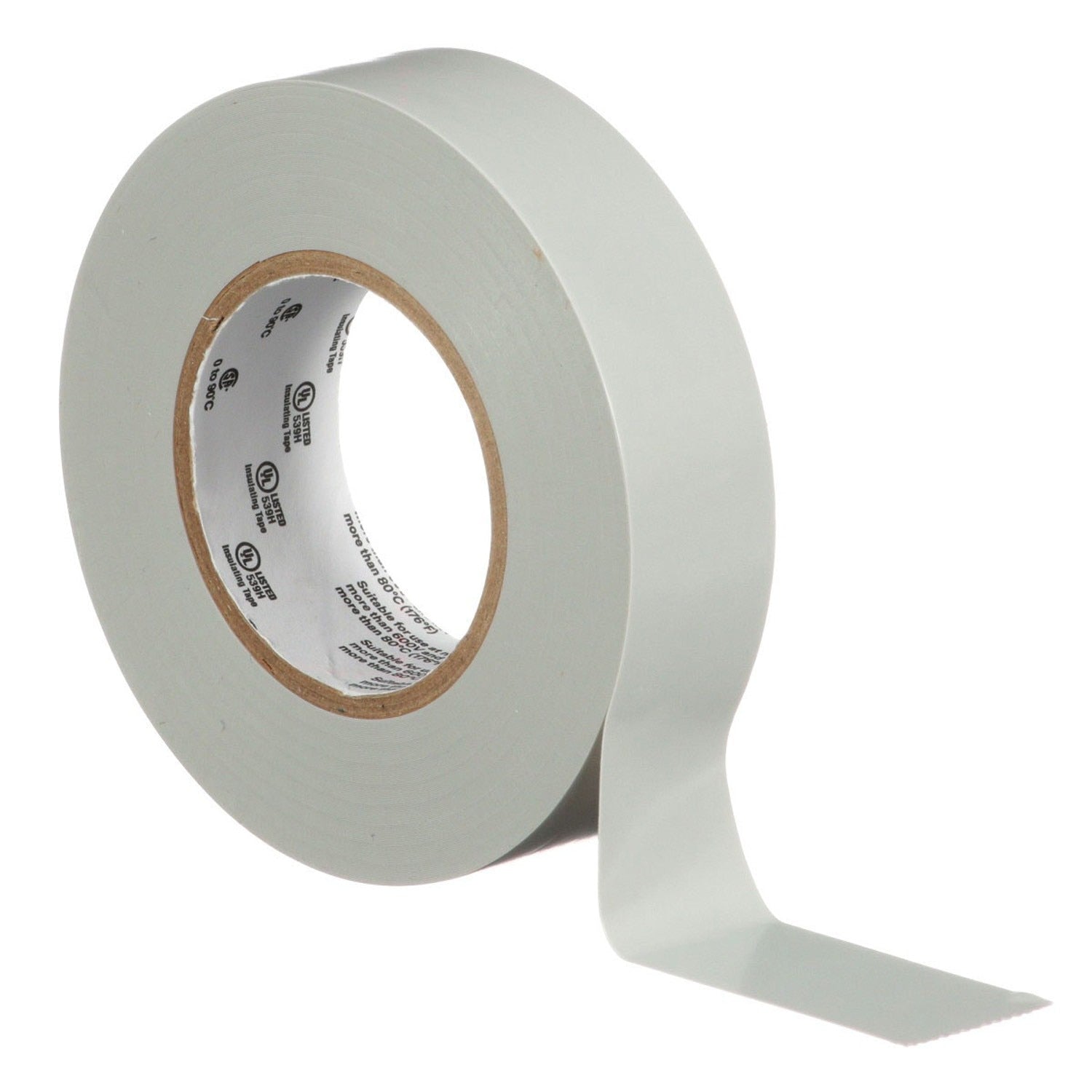

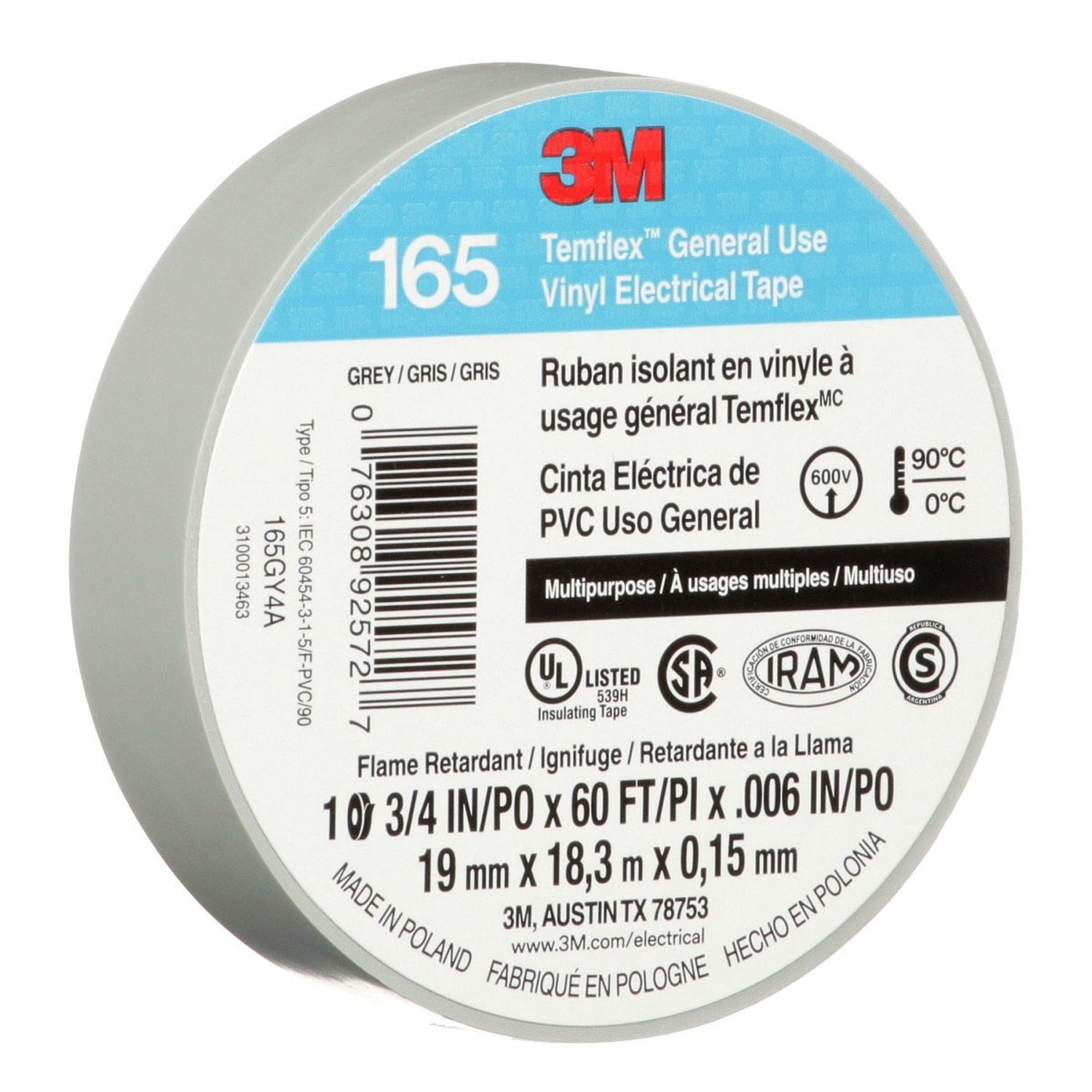

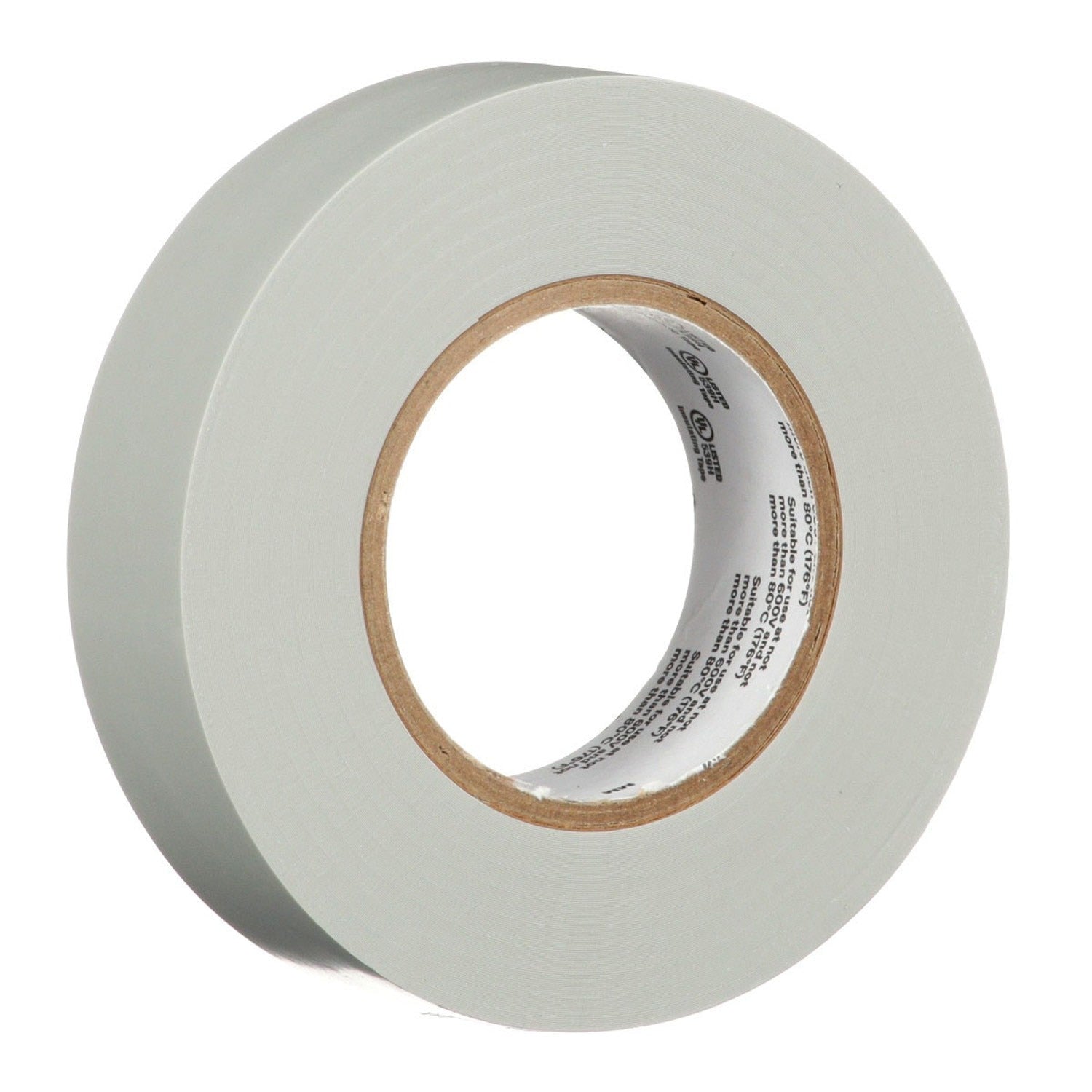

3M 7100169192 Description

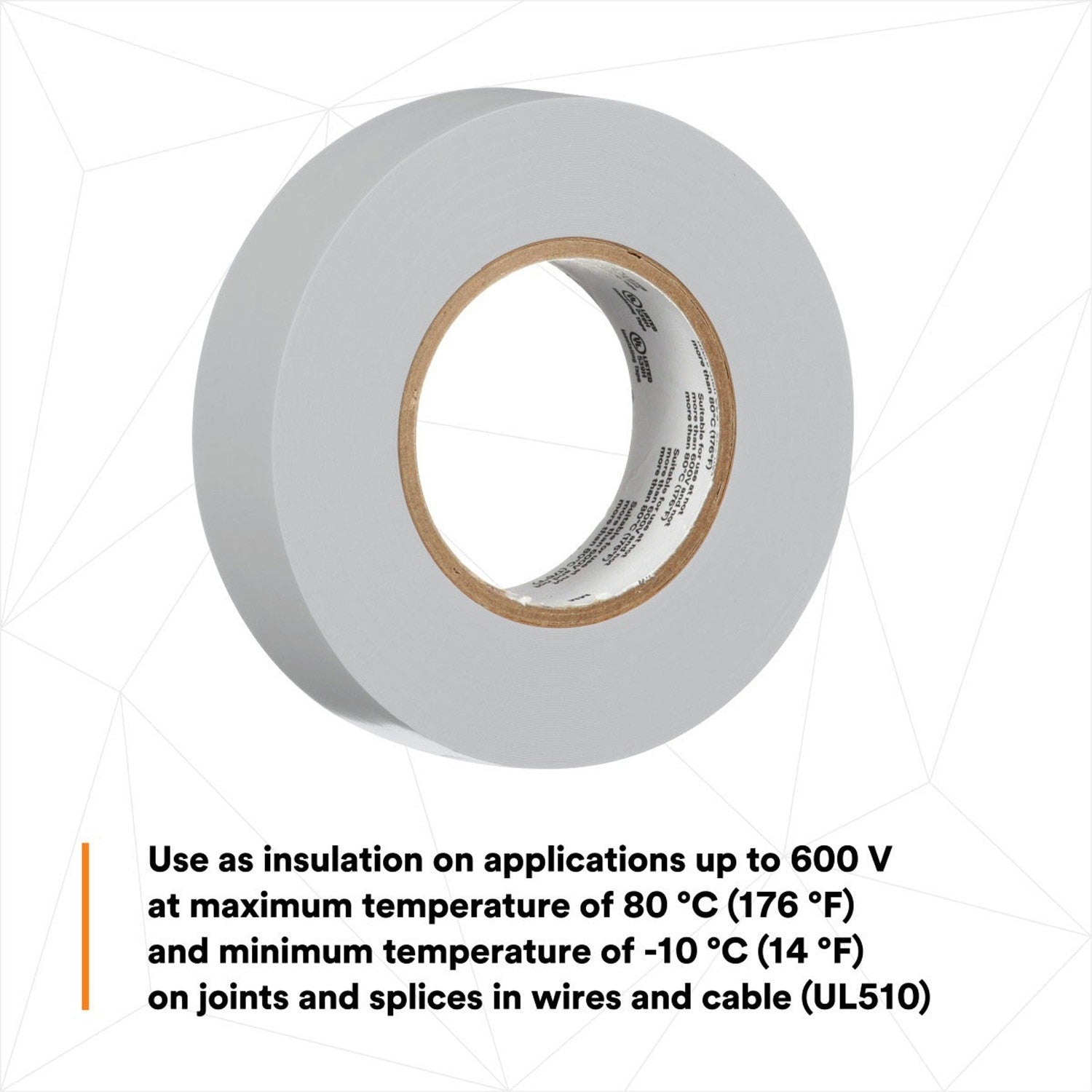

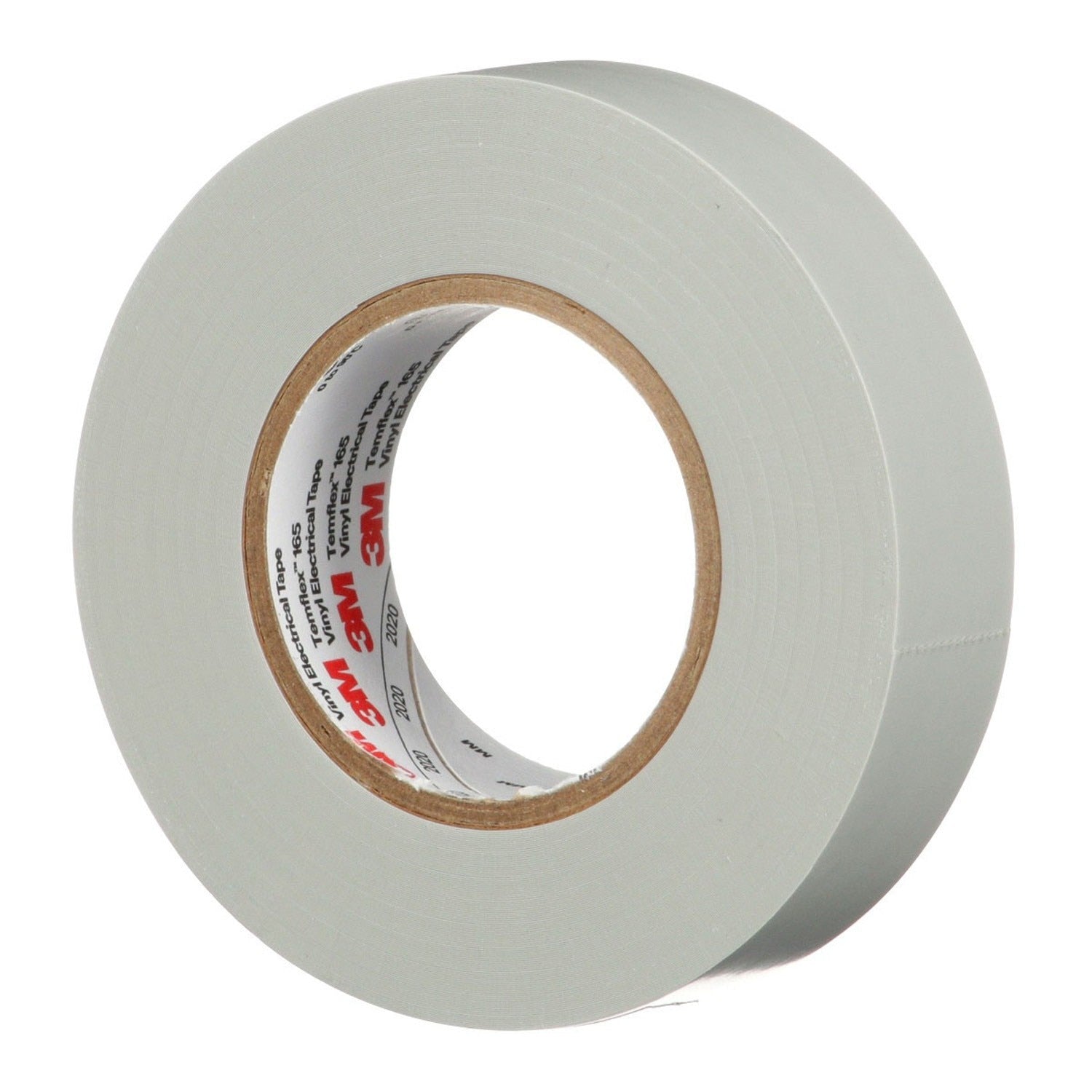

Temflex 165 is a general-use, multi-purpose vinyl electrical insulating tape offering 6?mil PVC backing with rubber adhesive. It is flame-retardant, UL/CSA listed, and rated to 600 V for applications from 0°C to 90°C.
3M 7100169192 Includes
- (10) - 3M 7100169192 Temflex Multi-Purpose Vinyl Electrical Tape 165, Gray, 3/4 in x 60 ft (19 mm x 18 m),(165GY4A)
3M 7100169192 Features
- General-use multi-purpose electrical insulating tape
- PVC backing with rubber adhesive
- 6 mil thickness for durable insulation
- Flame retardant
- Rated up to 600 V
- Operating temperature range 0°C to 90°C
- Resists abrasion, moisture, alkalis, solvents and acids
- UL Listed and CSA Certified
3M 7100169192 Specifications
| Sub-Brand | Temflex |
| 3M Product Number | 165 |
| Color | Gray |

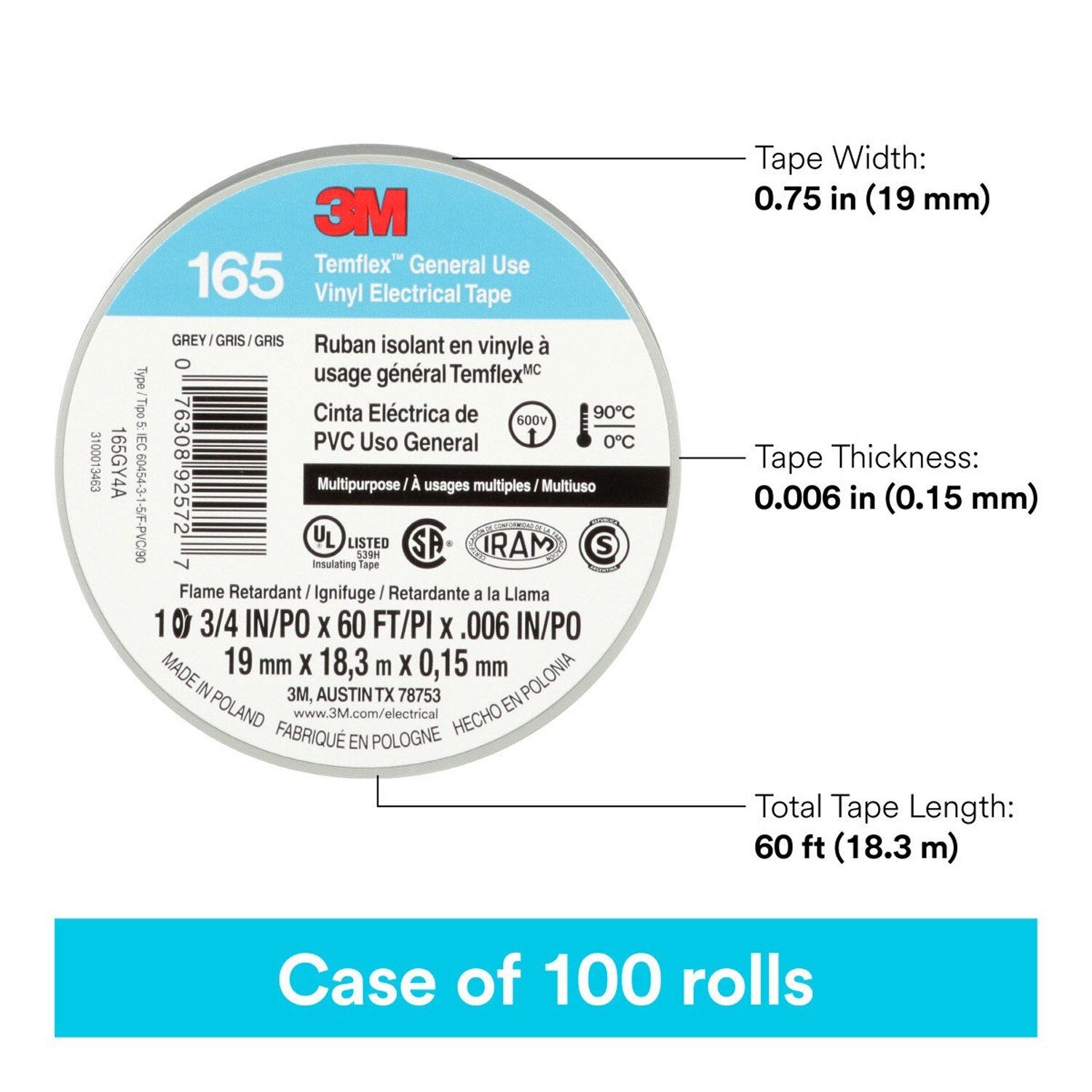

| Tape Width | 0.75 in (19 mm) |
| Tape Length | 60 ft (18 m) |
| Tape Thickness | 0.006 in (0.15 mm) |
| Adhesive Type | Rubber |
| Backing Material | PVC |
| Voltage Rating | 600 V |
| Operating Temperature Range | 0°C to 90°C (32°F to 194°F) |
| Dielectric Strength | 40 kV/mm |
| Elongation at Break | 200% |
| Tape Grade | General Use |
| Shelf Life | 5 Year |
Toolup Part # :
859038
