3M 7100169492 Description

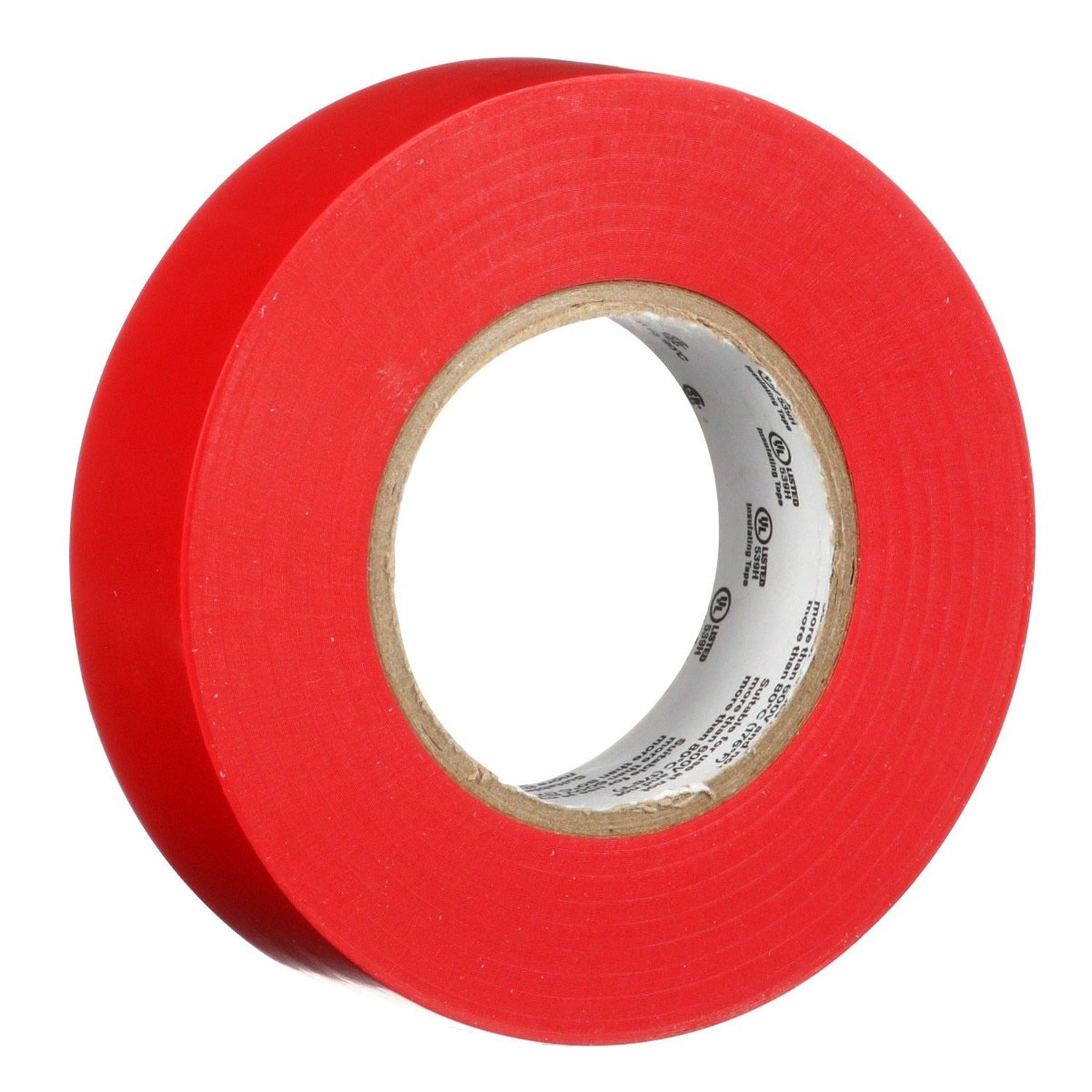

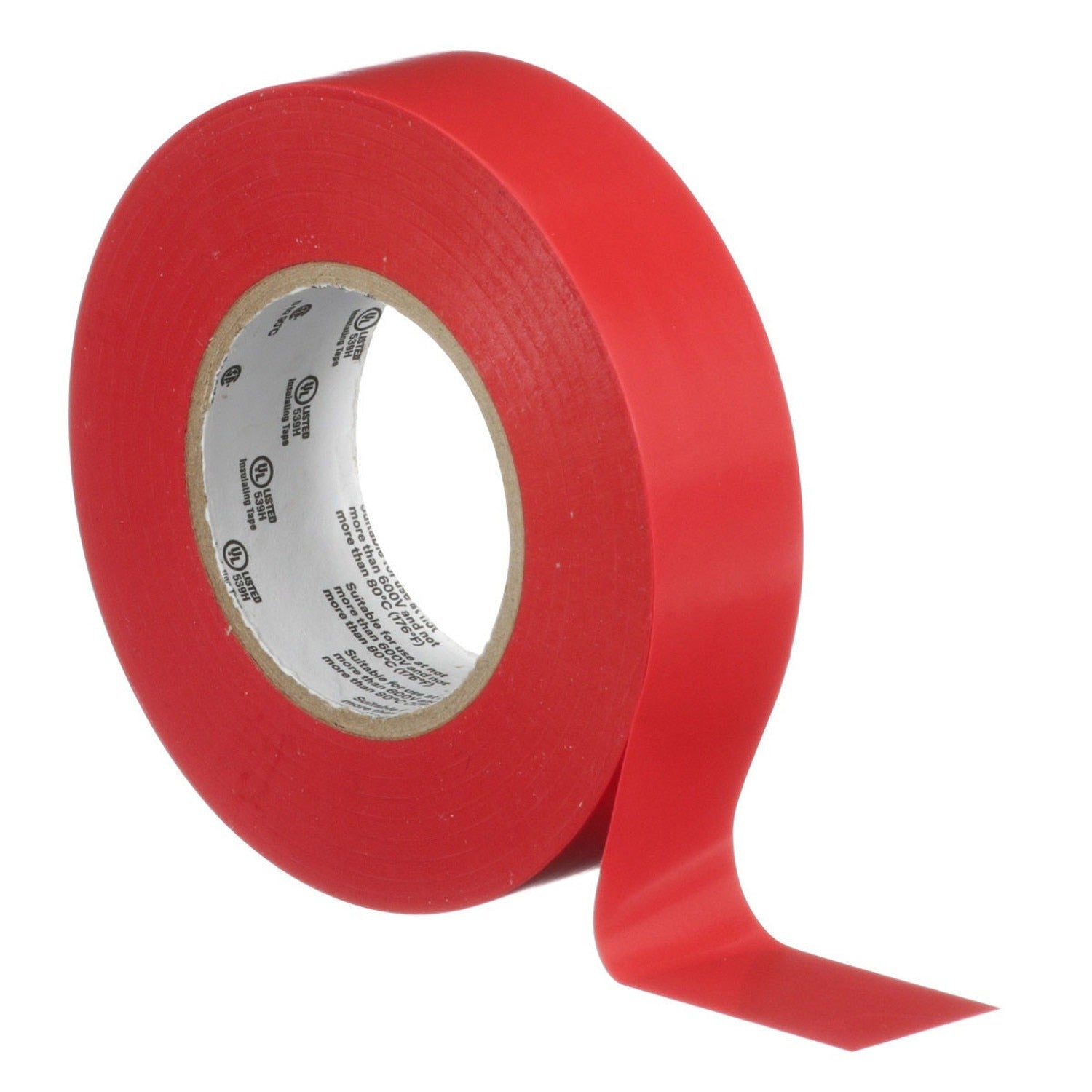

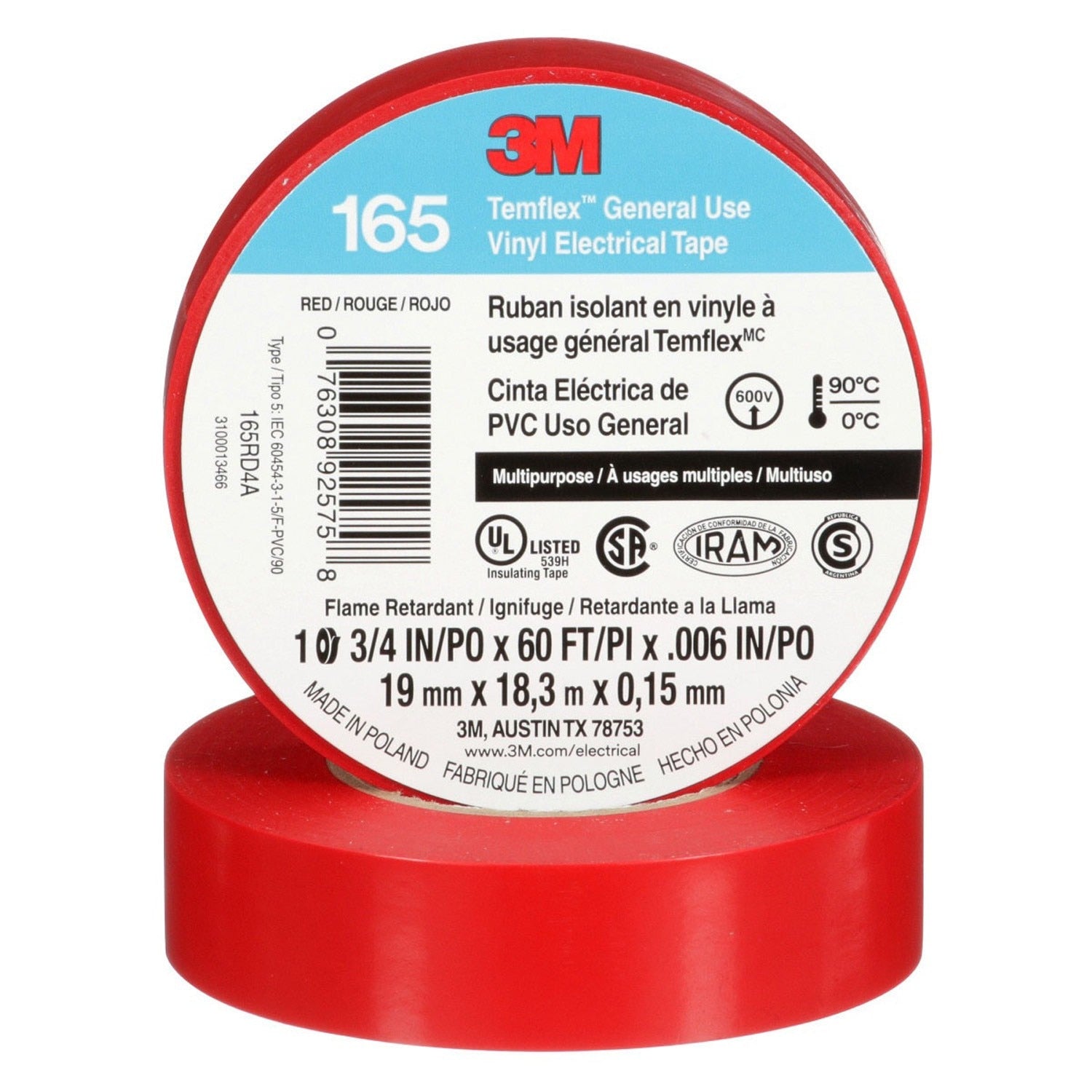

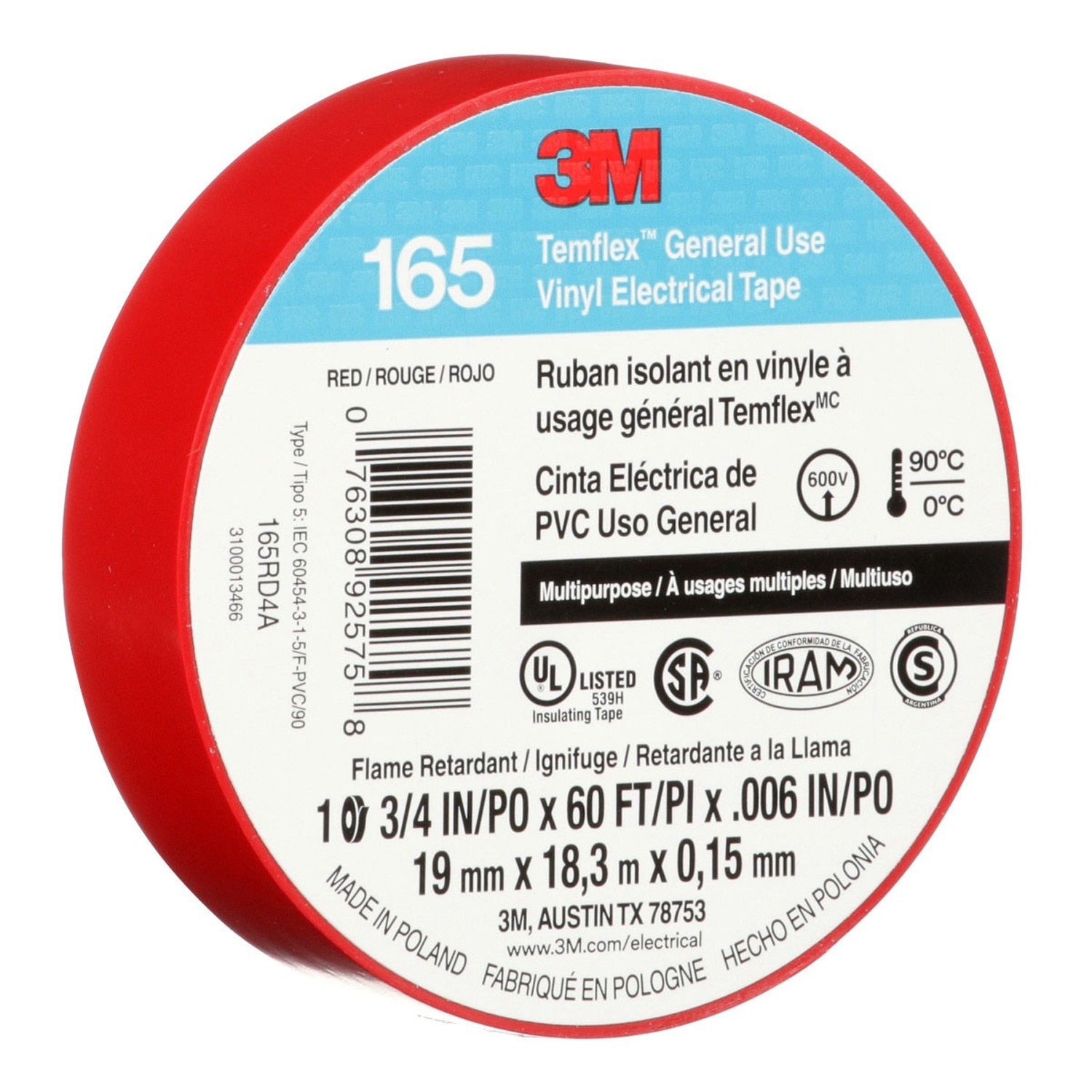

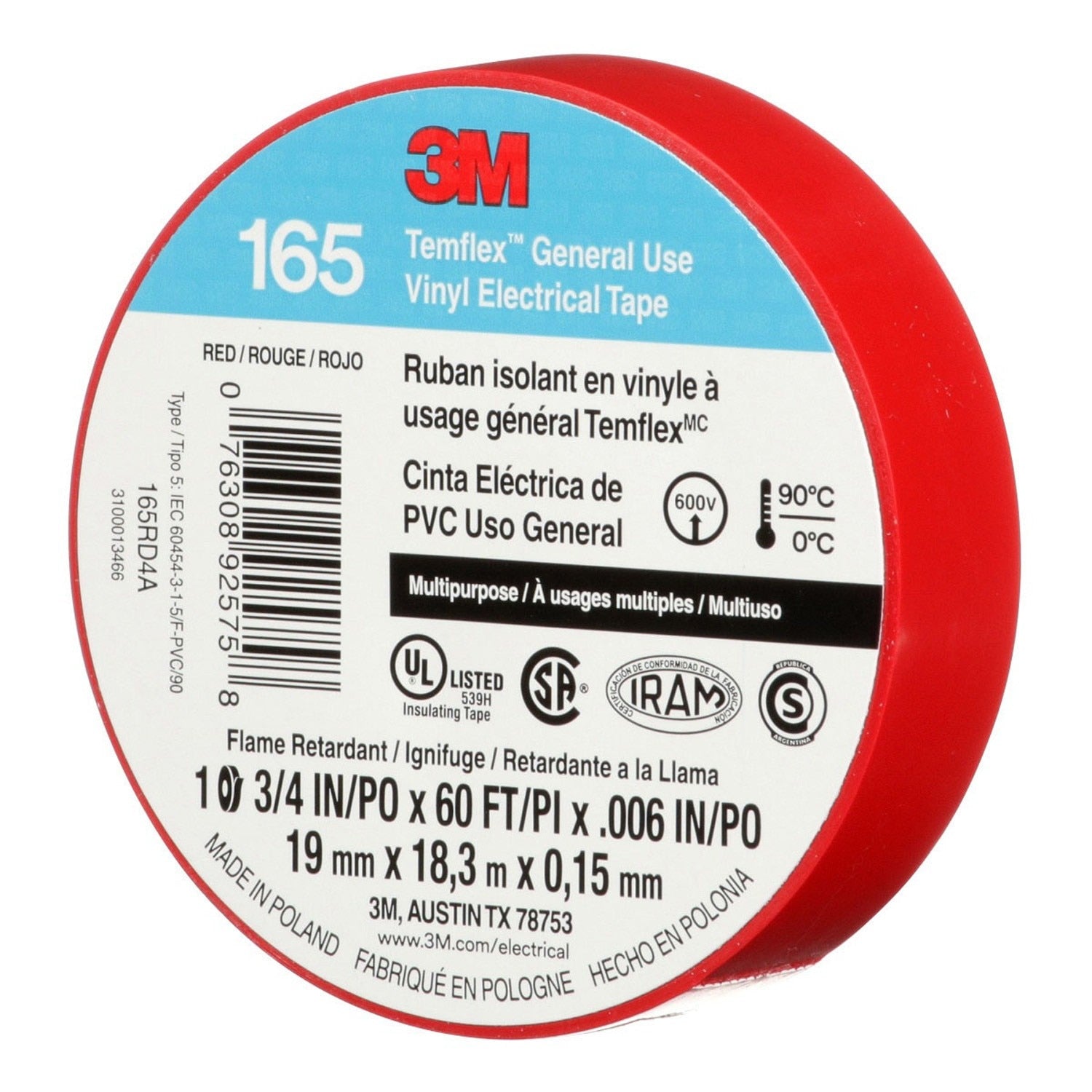

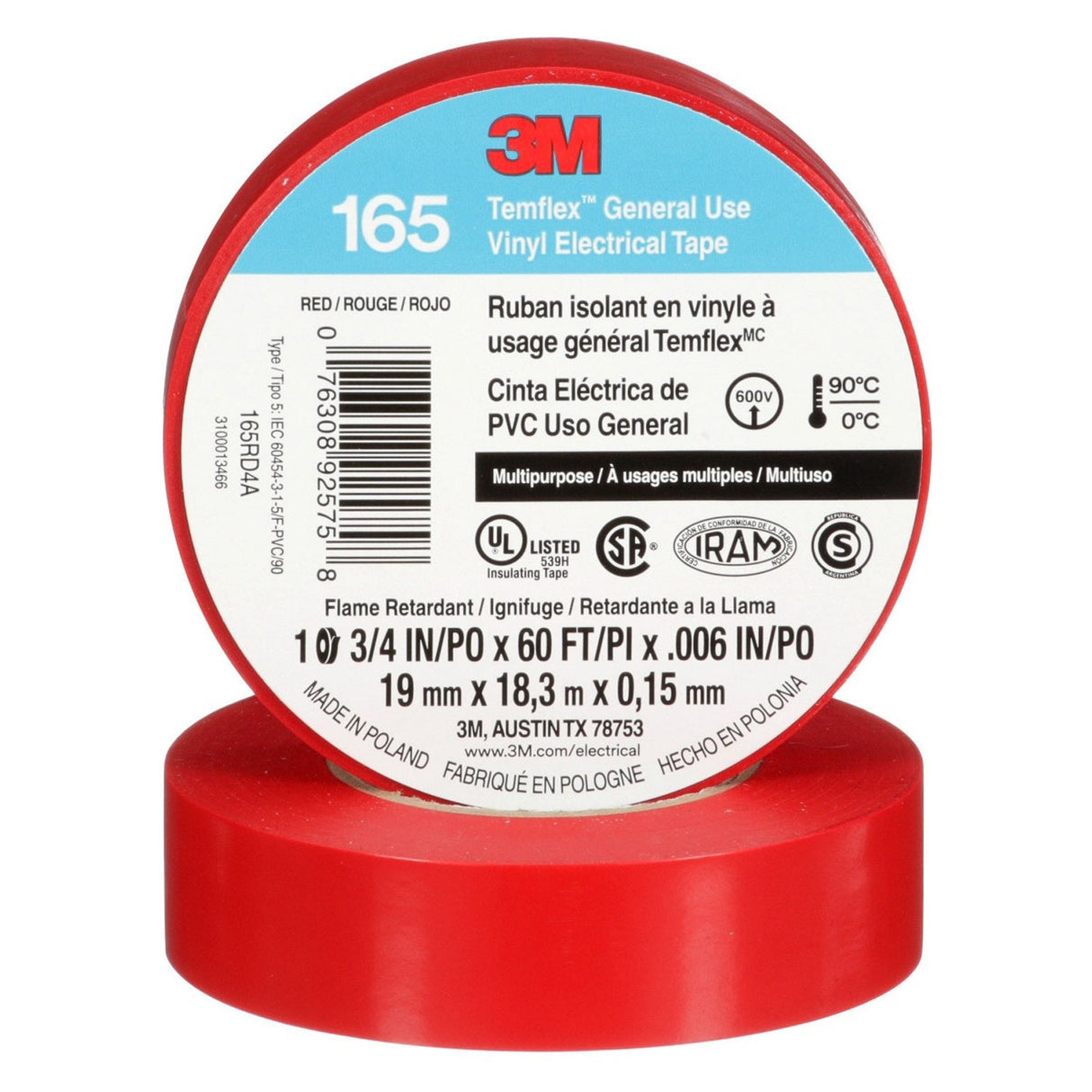

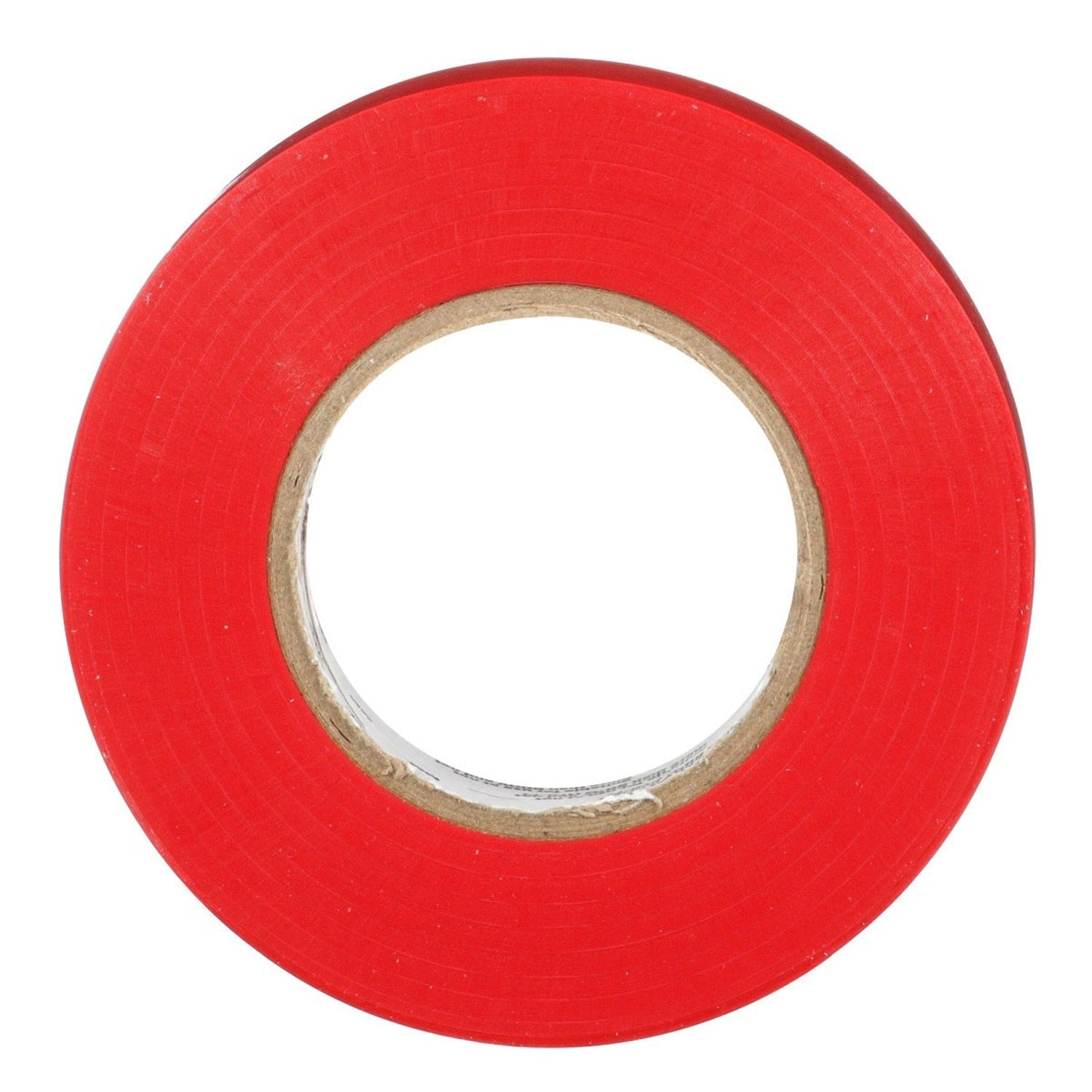

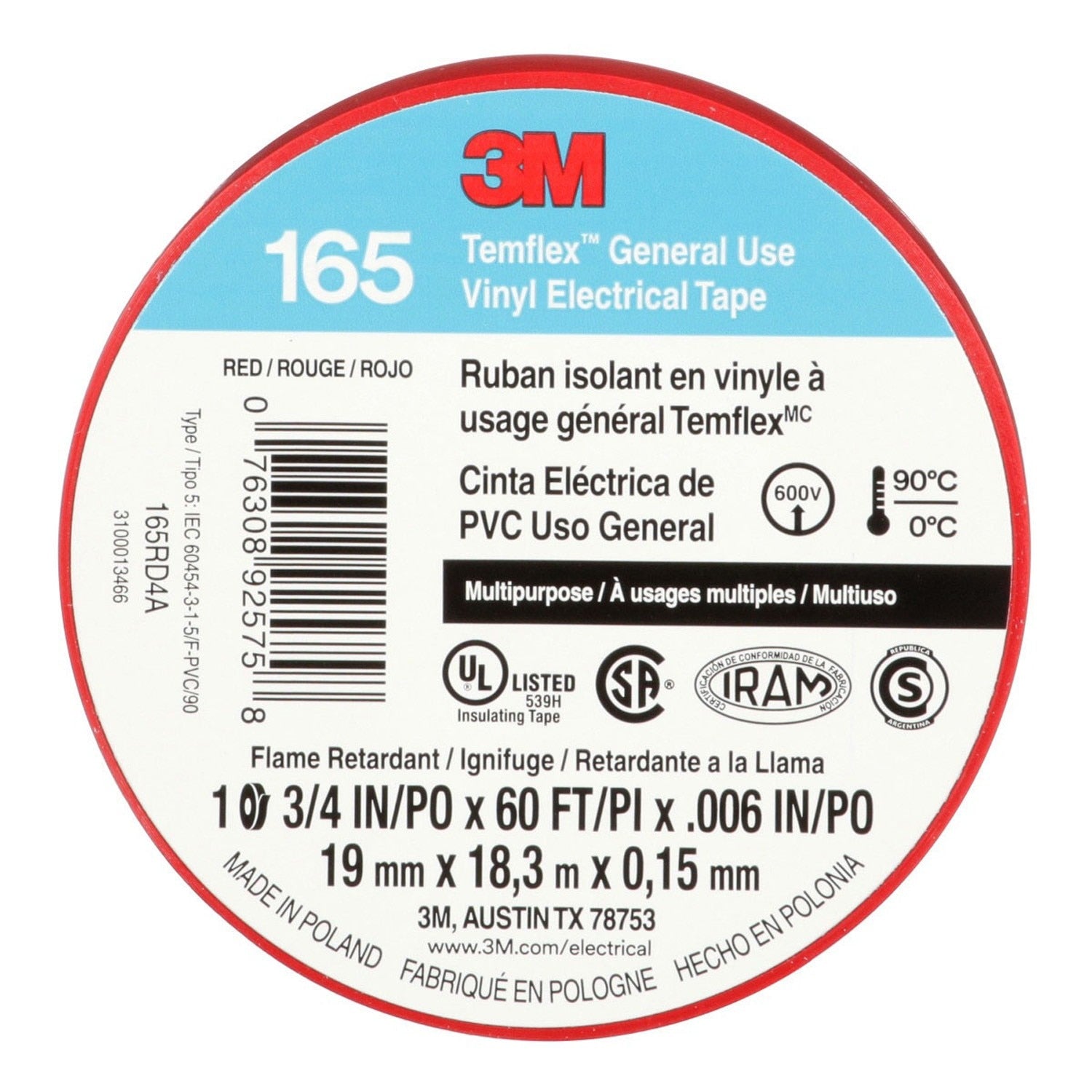

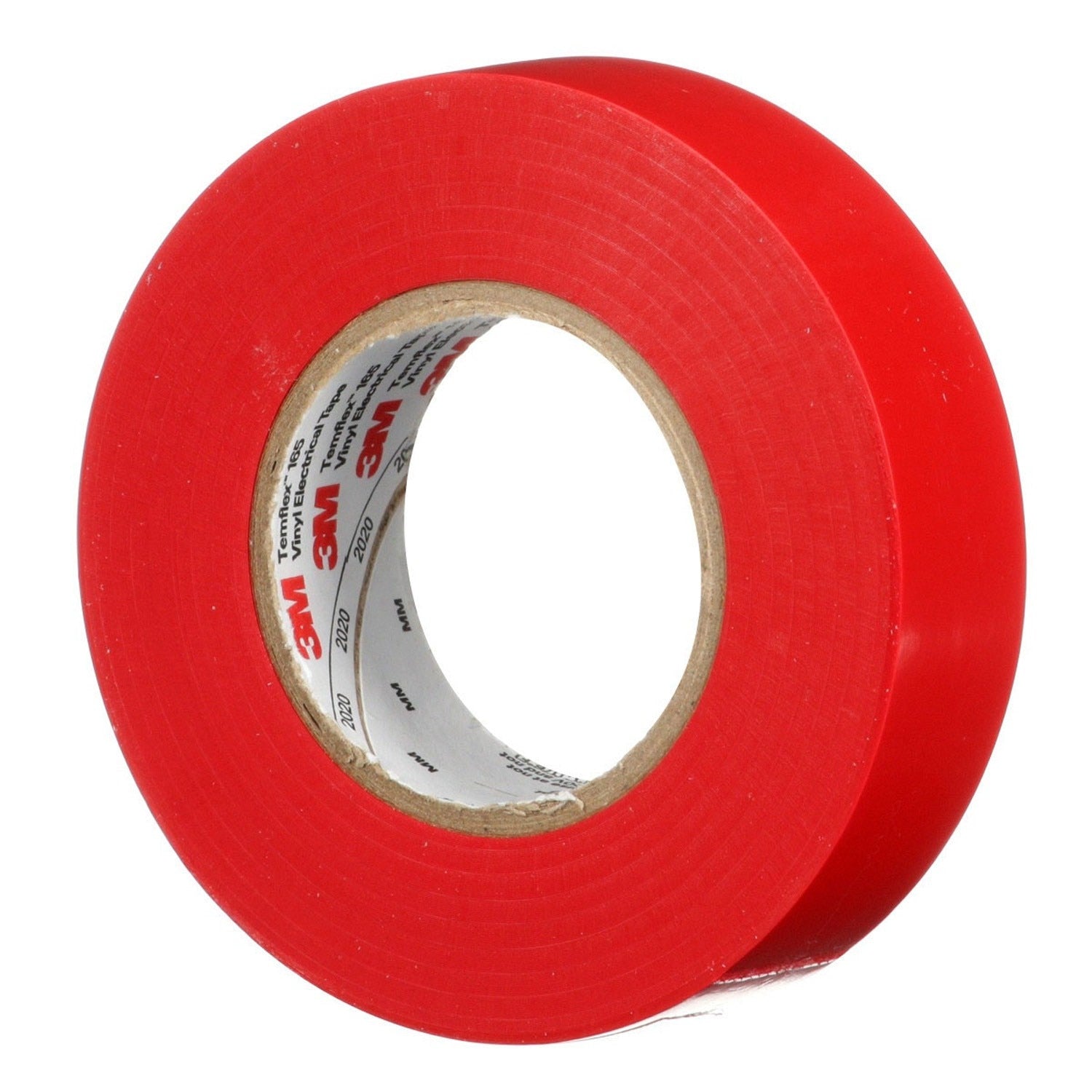

Temflex Vinyl Electrical Tape 165 is a general-use, flame-retardant PVC electrical insulating tape with rubber adhesive. This red 6 mil tape measures 0.75 in x 60 ft, is UL Listed and CSA Certified, rated to 600 V, and performs from 0°C to 90°C. Sold as a 10-roll pack.
3M 7100169492 Includes
- (10) - 3M 7100169492 Temflex Multi-Purpose Vinyl Electrical Tape 165, Red, 3/4 in x 60 ft (19 mm x 18 m)(165RD4A)
3M 7100169492 Features
- General-use vinyl electrical insulating tape
- PVC backing with rubber adhesive
- 6 mil thickness for mechanical protection with minimum bulk
- Resists abrasion, moisture, alkalis, solvents and acids
- Flame-retardant; UL Listed and CSA Certified

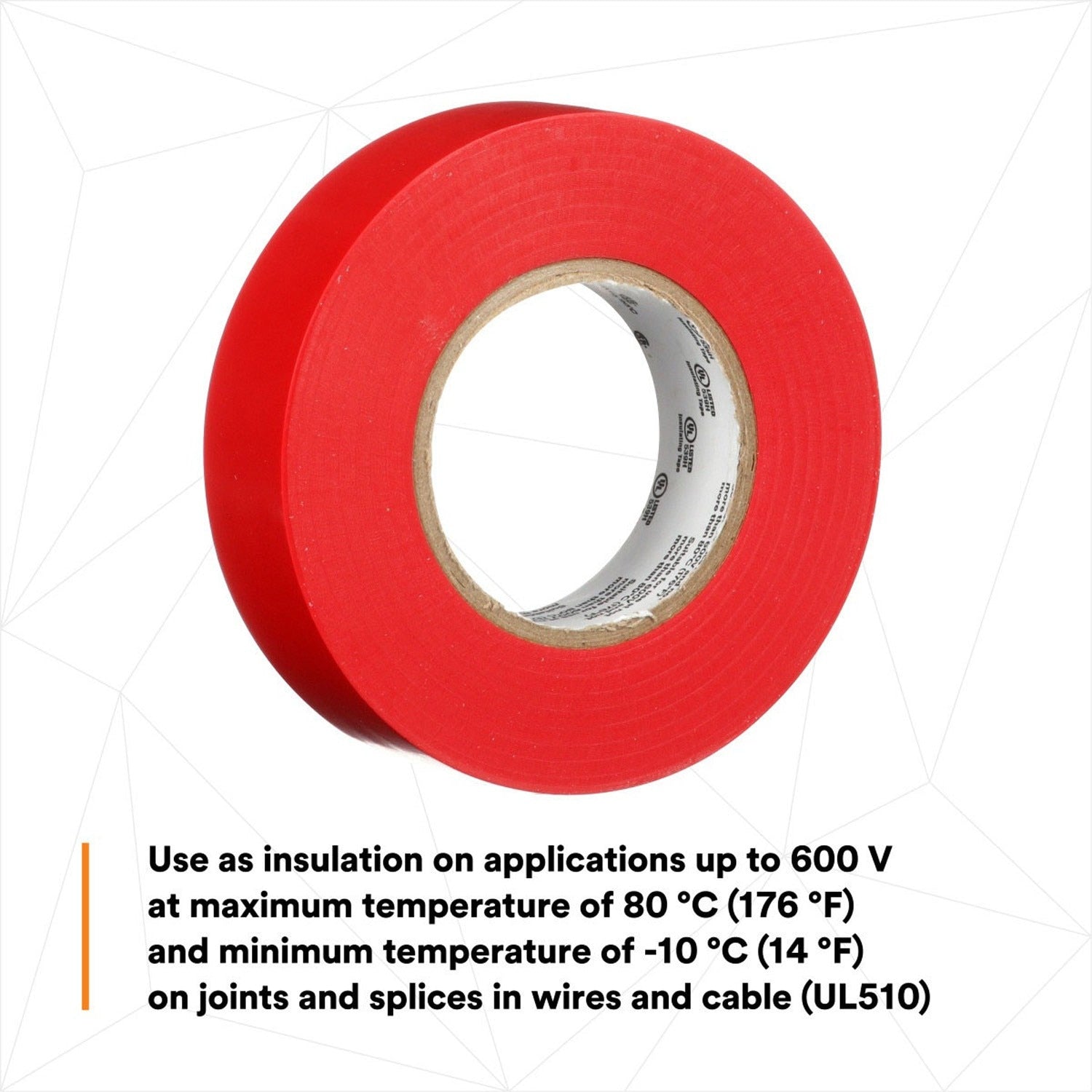

- Rated for 600 V electrical applications
- Conformable for easy handling and application
- Operating temperature range: 0°C to 90°C
- Color-coded Red for identification

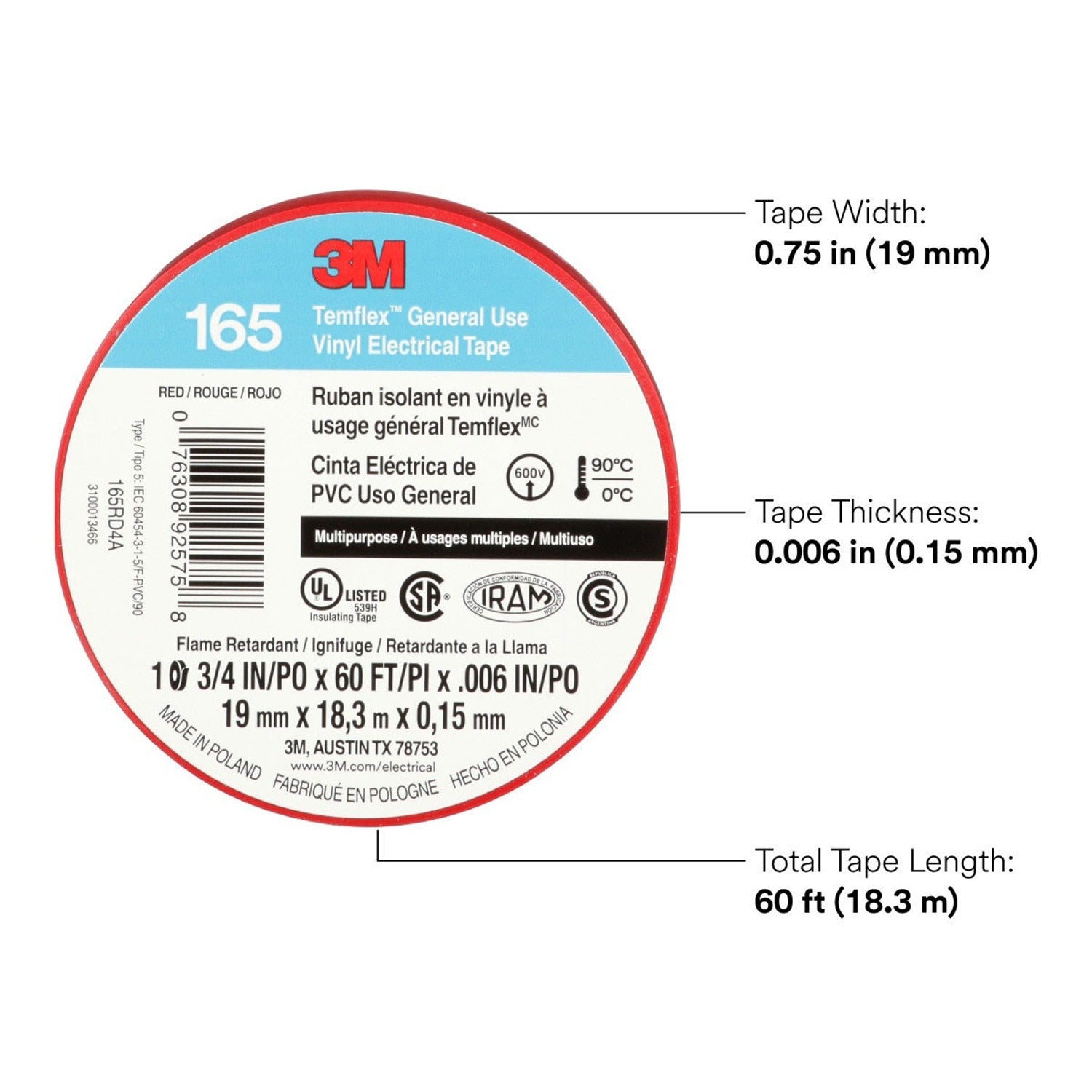

- Each roll size: 0.75 in width x 60 ft length
3M 7100169492 Specifications
| 3M Product Number | 165 |
| Secondary Part Number | 165RD4A |
| Color | Red |
| Width | 0.75 in (19 mm) |
| Length | 60 ft (18.3 m) |
| Thickness | 0.006 in (0.15 mm) |
| Tape Grade | General Use |
| Adhesive Type | Rubber |
| Backing Material | PVC |
| Voltage Rating | 600 V |
| Operating Temperature Range | 0°C to 90°C |
| Dielectric Strength | 40 kV/mm |
| Elongation at Break | 200% |
| Flame Retardant | Yes |
| UL Listed | Yes |
| CSA Certified | Yes |
| Each Weight | 0.1803 lbs |
| Pack Quantity | 10 rolls |
Toolup Part # :
858925
