At a Glance
Form
Roll
Length
20 yd
Width
3/4 in
Thickness
6 mil
Adhesive Type
Rubber
Max Temperature
194�F
Min Temperature
32�F
Material
PVC
Performance
Flame Retardant
Description
Description

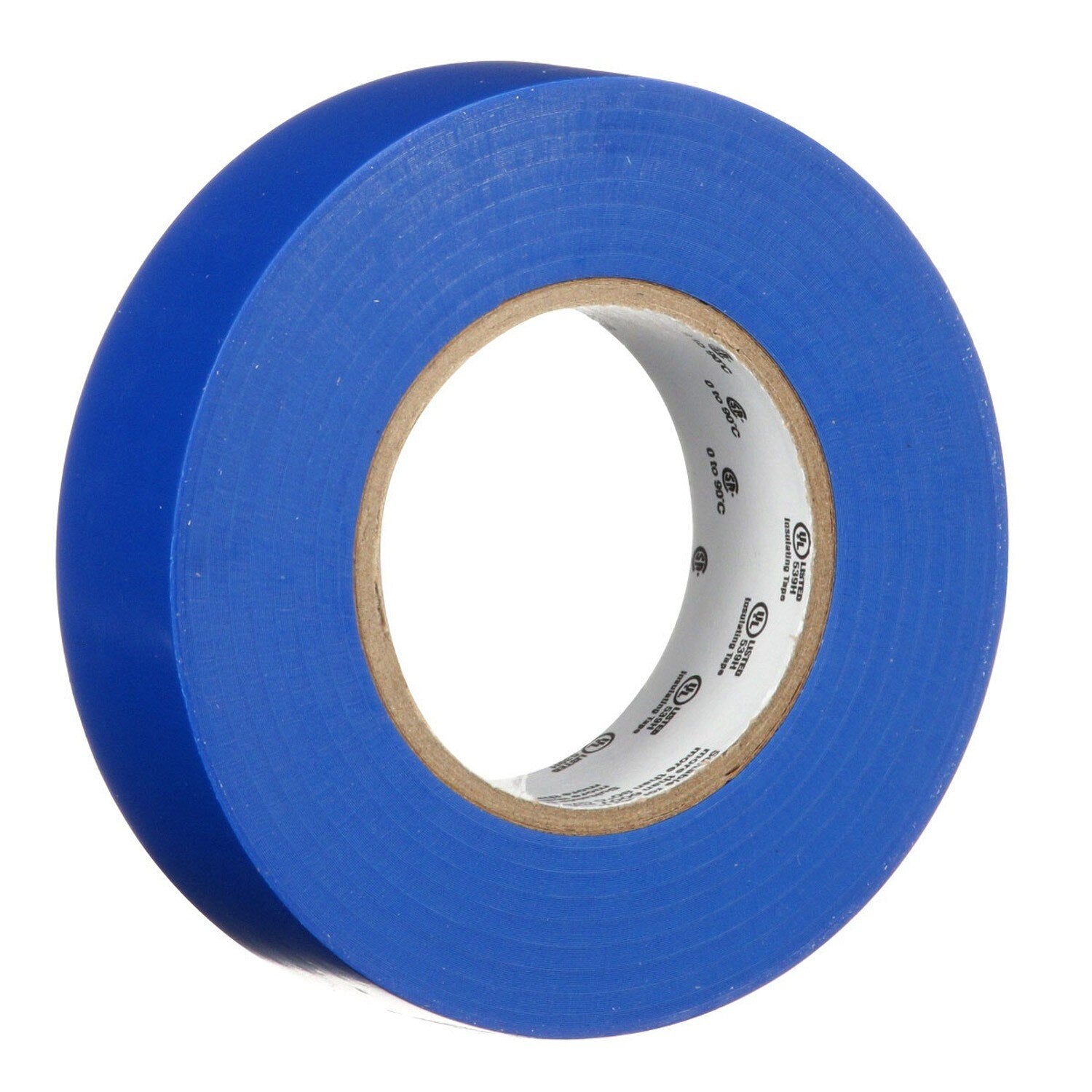

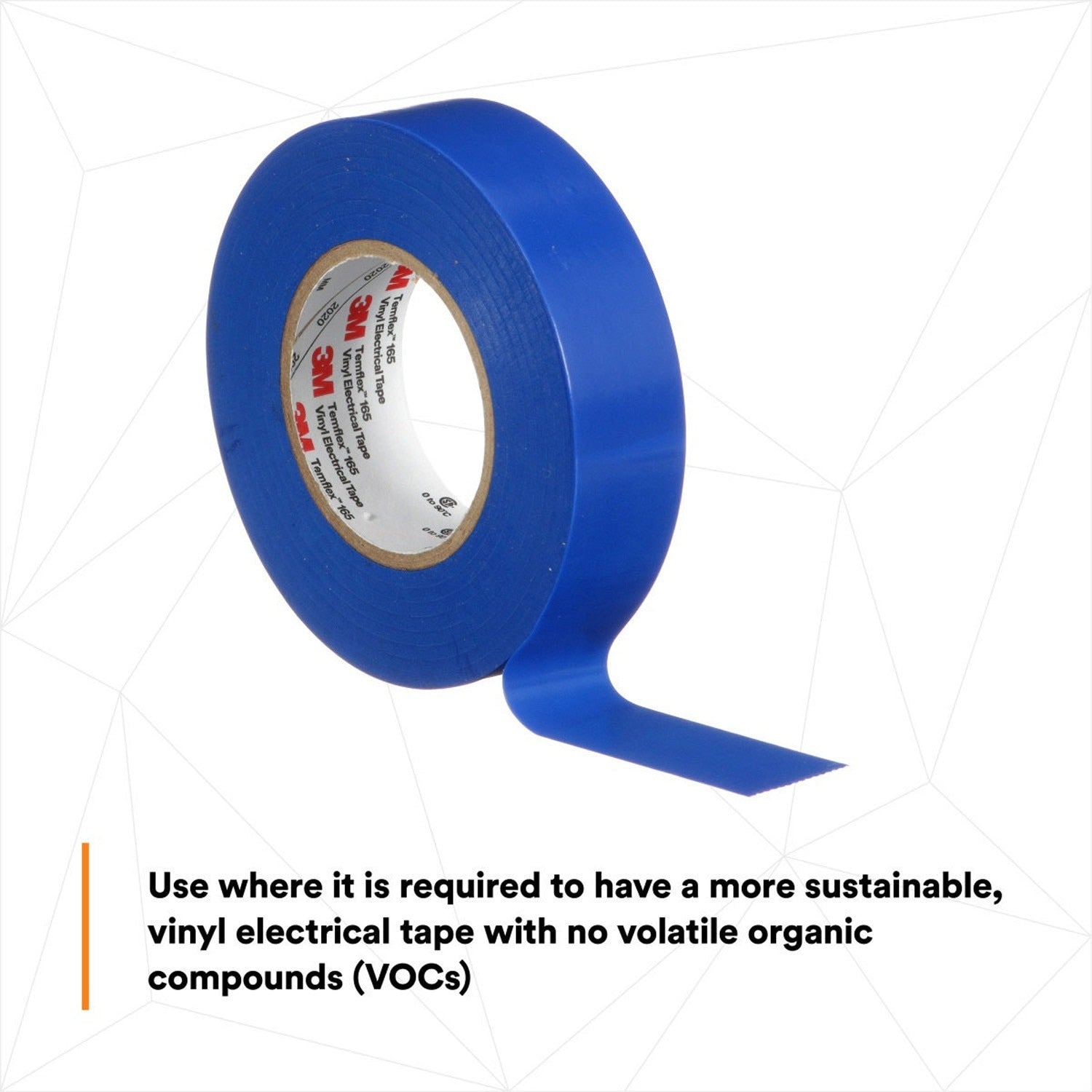

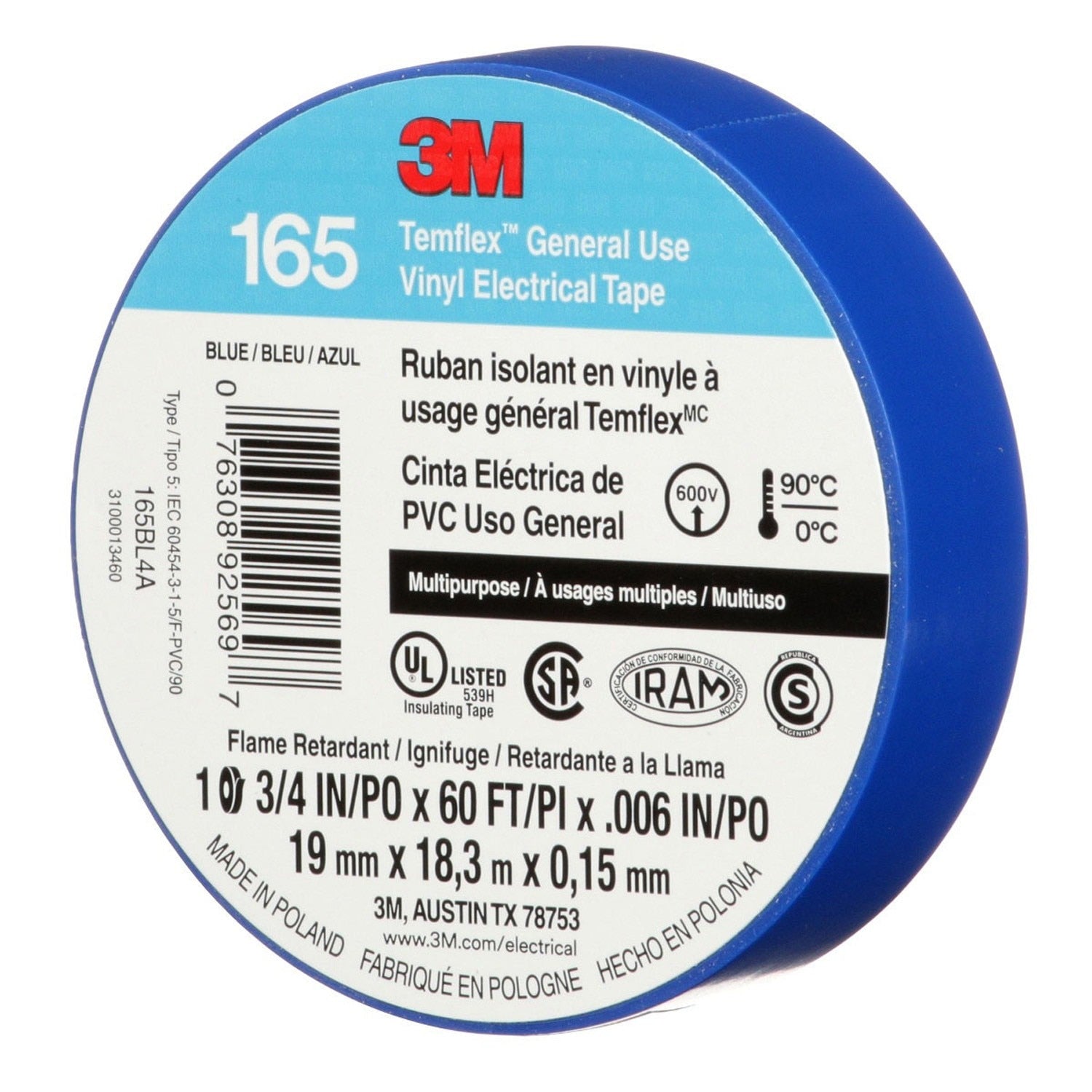

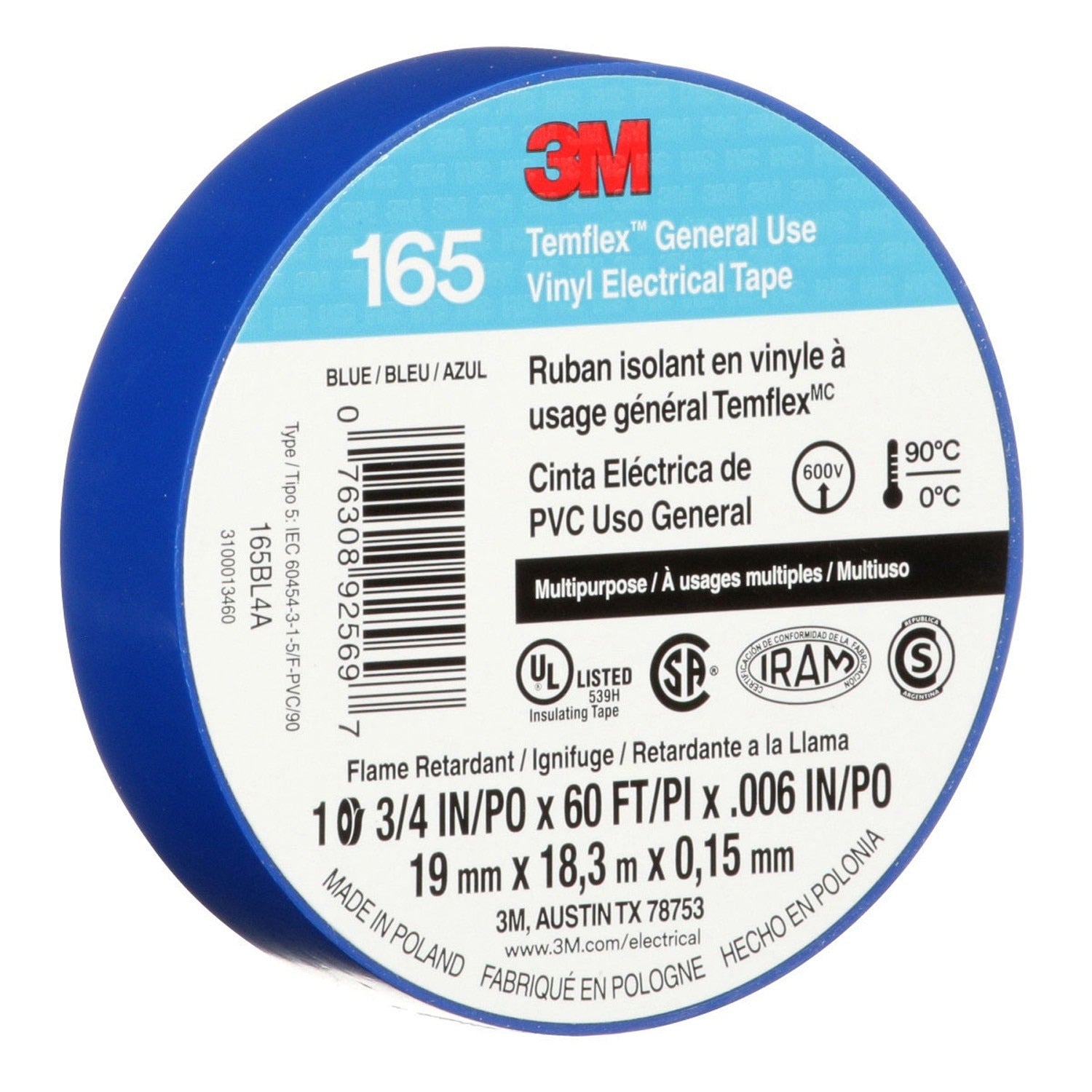

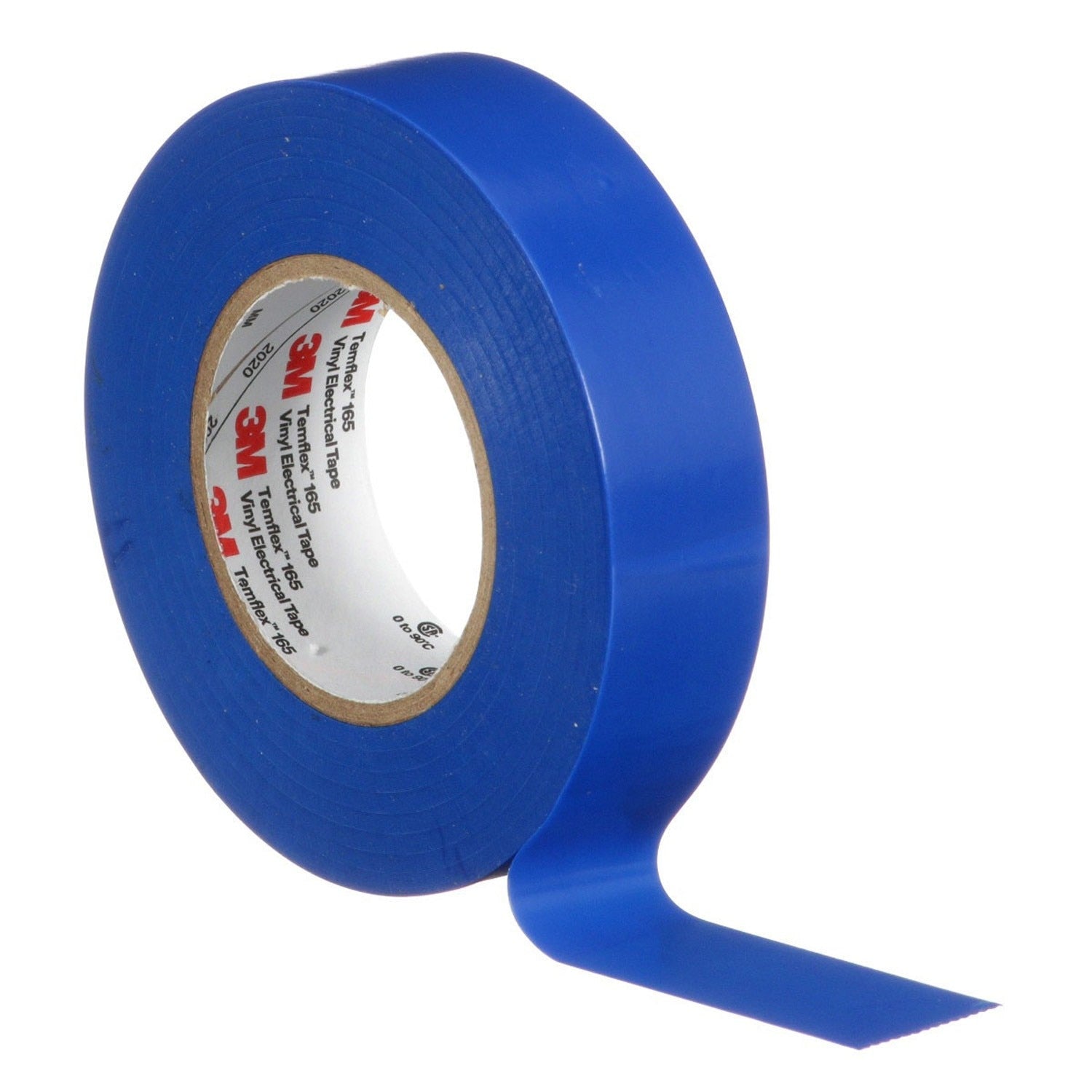

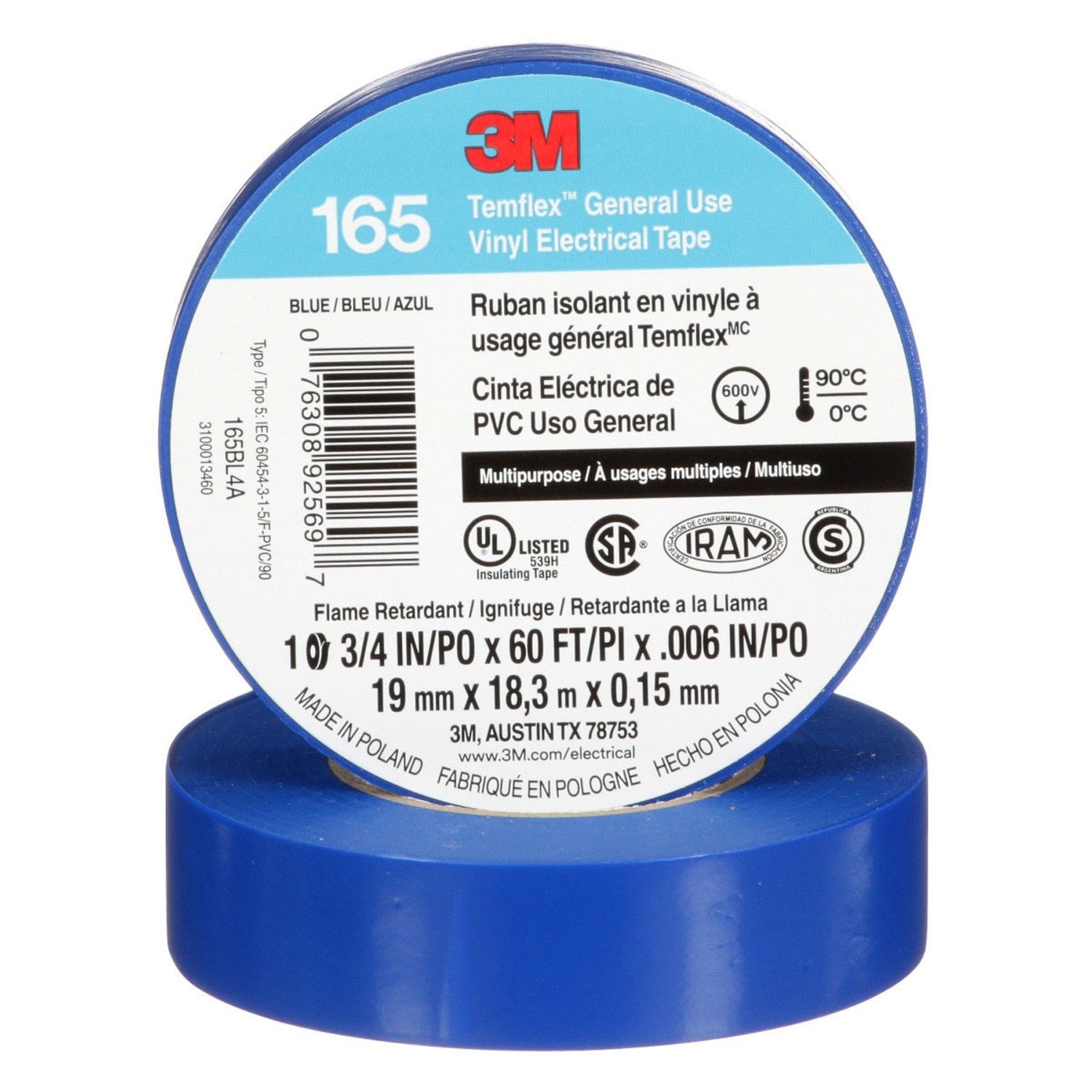

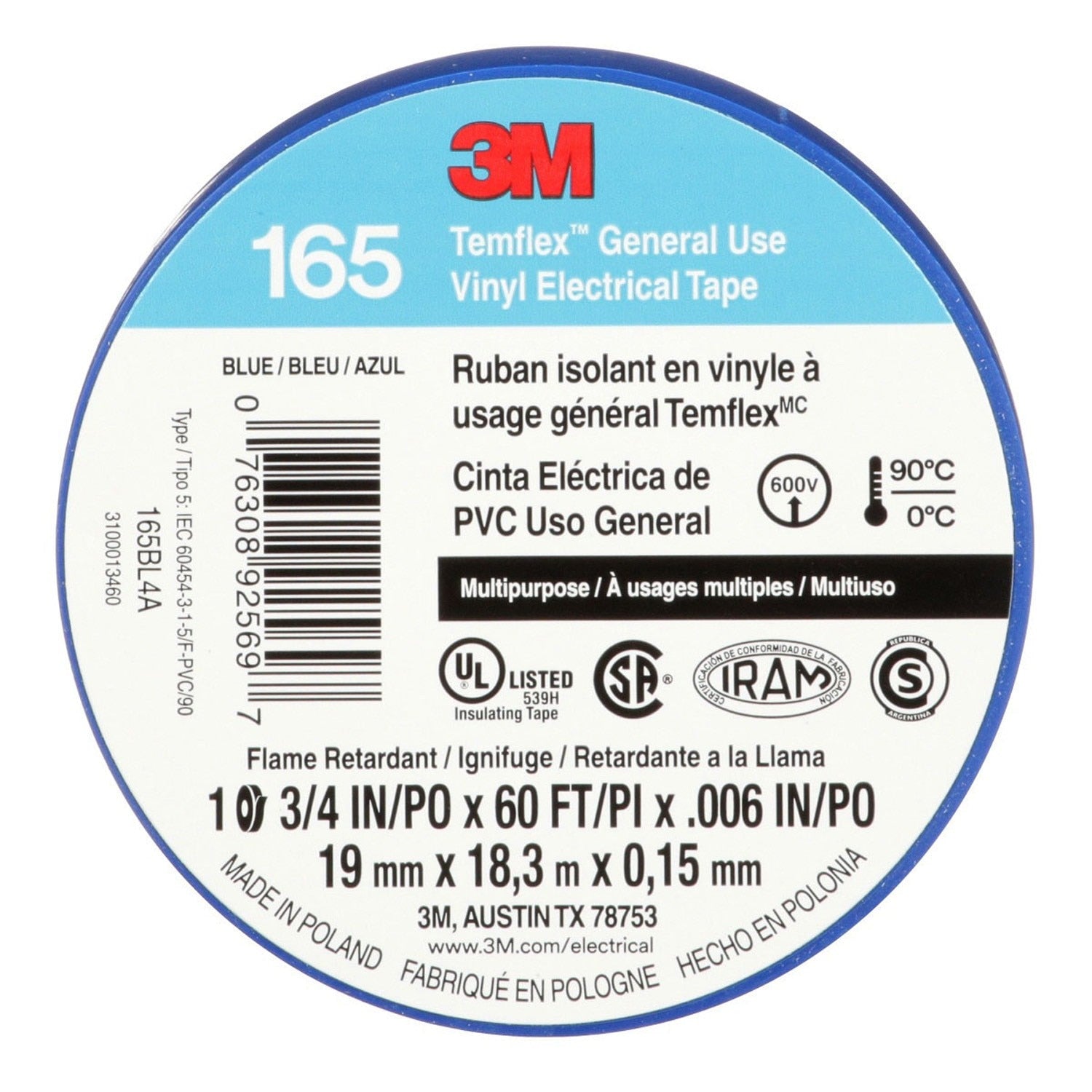

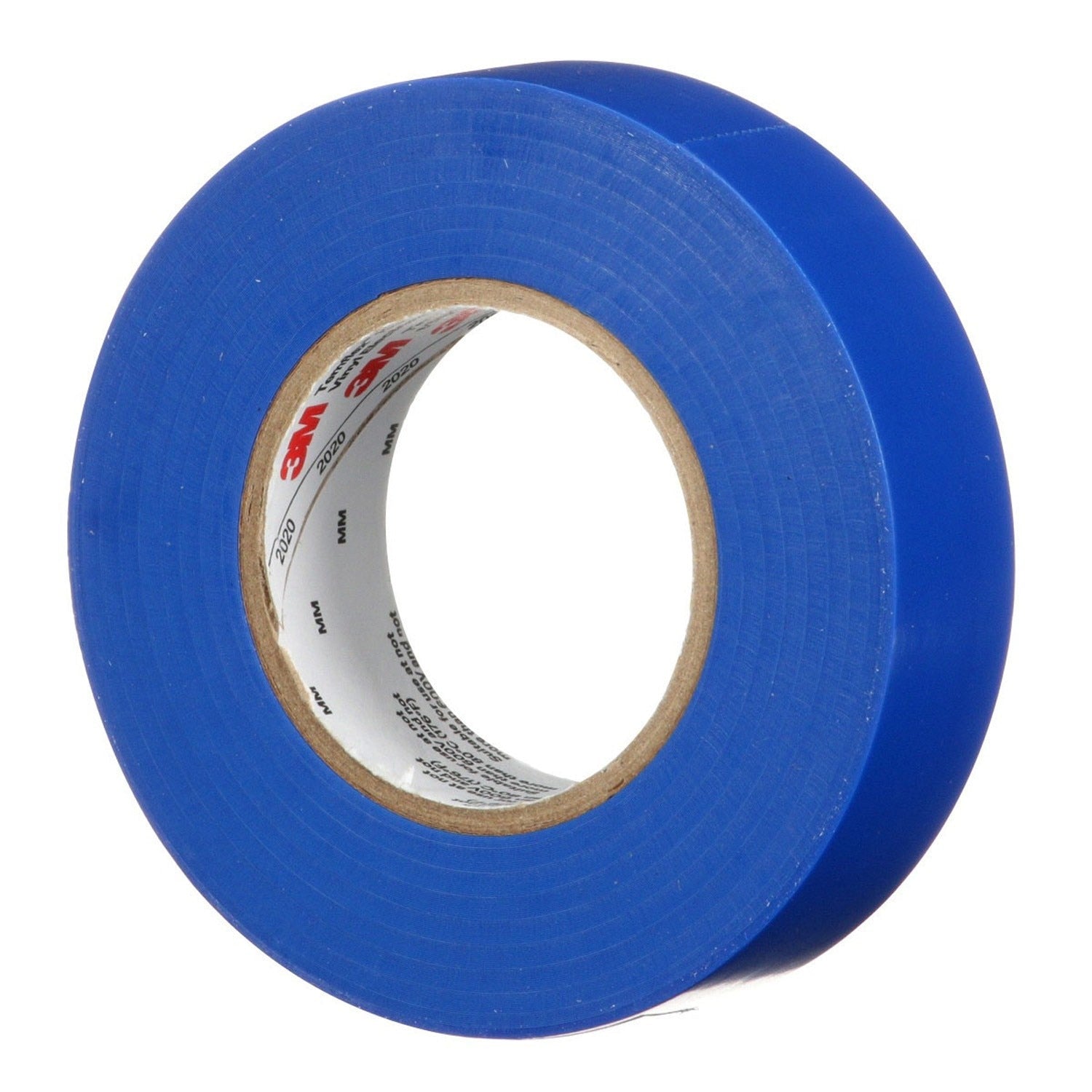

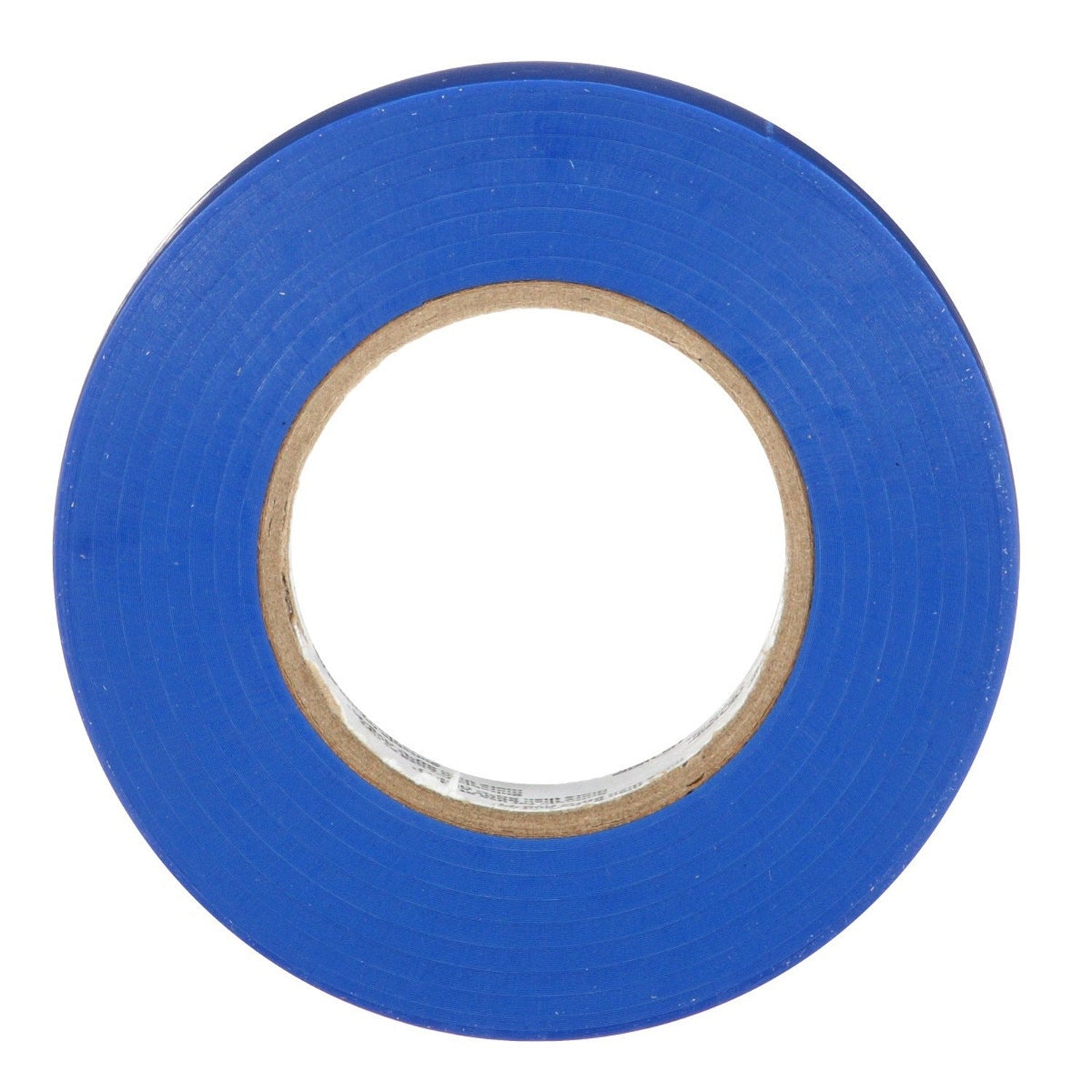

3M 7100169429 Description
General-use vinyl electrical tape for insulation and wire identification; flame retardant PVC backing with rubber adhesive, 600 V rating, 0.006 in thickness, and 0° C to 90° C operating range.
3M 7100169429 Includes
- (10) - 3M 7100169429 Temflex Multi-Purpose Vinyl Electrical Tape 165, Blue, 3/4 in x 60 ft (19 mm x 18 m) (165BL4A)
3M 7100169429 Features
- General-use, multi-purpose electrical insulation
- Flame retardant PVC backing
- Rubber adhesive for secure hold
- 600 V rating
- Operating range 0° C to 90° C (32° F to 194° F)
- 0.006 in (0.15 mm) thickness
- 60 ft length; 0.75 in width
- Resists abrasion, moisture, alkalis, solvents and acids
- UL Listed; CSA Certified
- Available in multiple colors for wire identification
3M 7100169429 Specifications
| Sub-Brand | Temflex |
| Product Color | Blue |

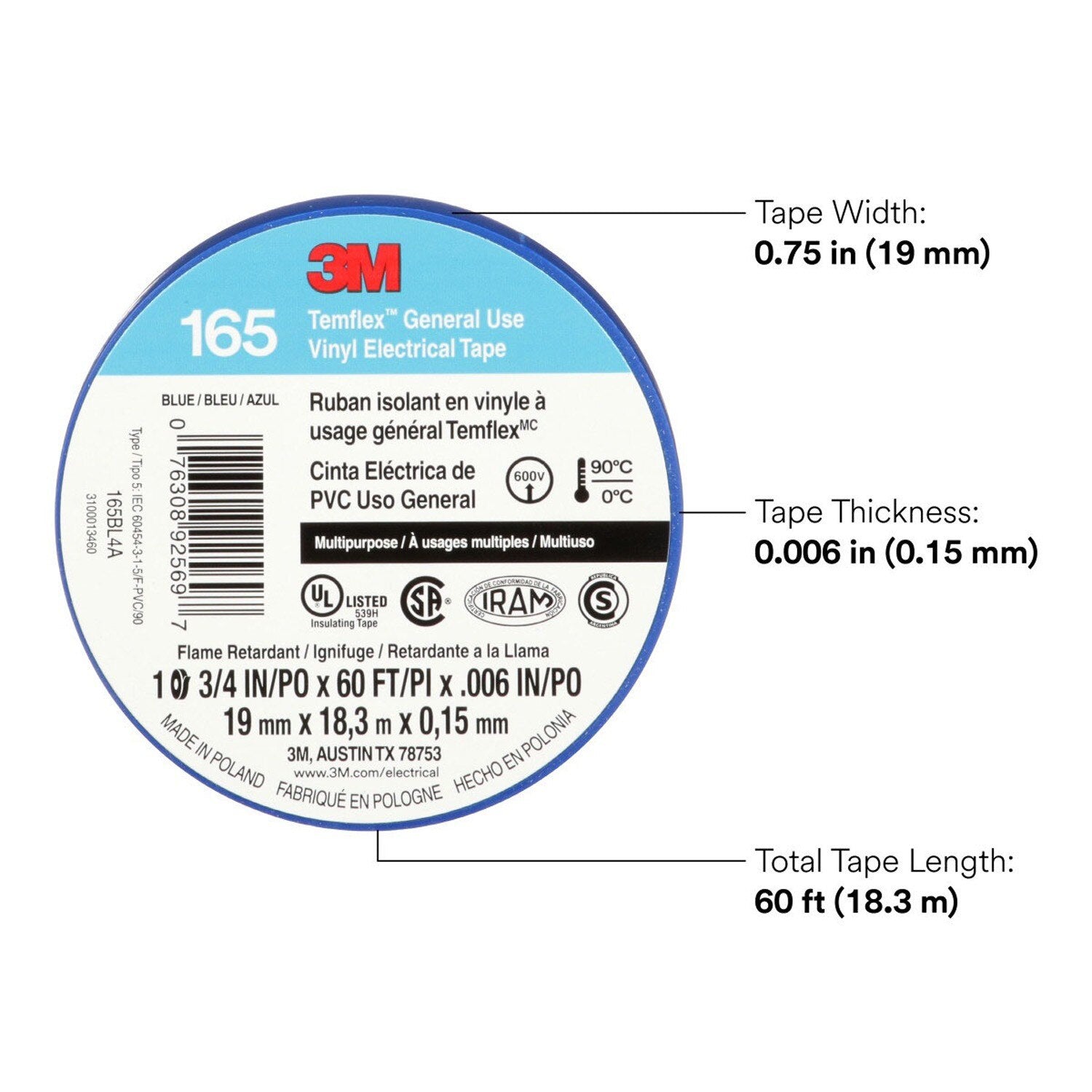

| Tape Width | 0.75 in (19 mm) |
| Tape Length | 60 ft (18.3 m) |
| Total Tape Thickness | 0.006 in (0.15 mm) |
| Adhesive Type | Rubber |
| Backing Material | PVC |
| Voltage Rating | 600 V |
| Operating Temperature Range | 0° C to 90° C (32° F to 194° F) |
| Dielectric Strength | 40 kV/mm |
| Elongation at Break | 200% |
| Flame Retardant | Yes |
| Tape Grade | General Use |
| Shelf Life | 5 Year |
Toolup Part # :
860999
