3M 7000049108 Description

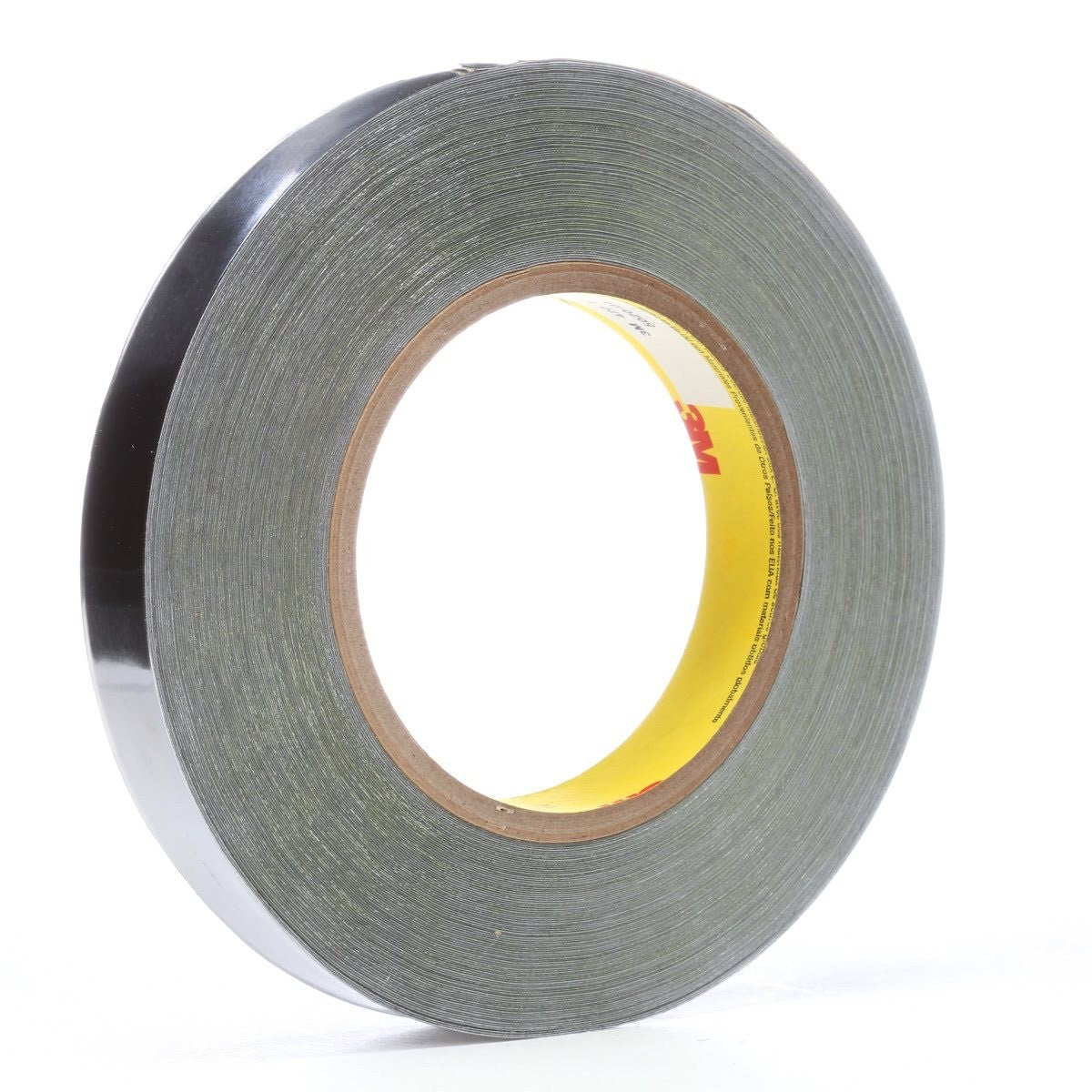

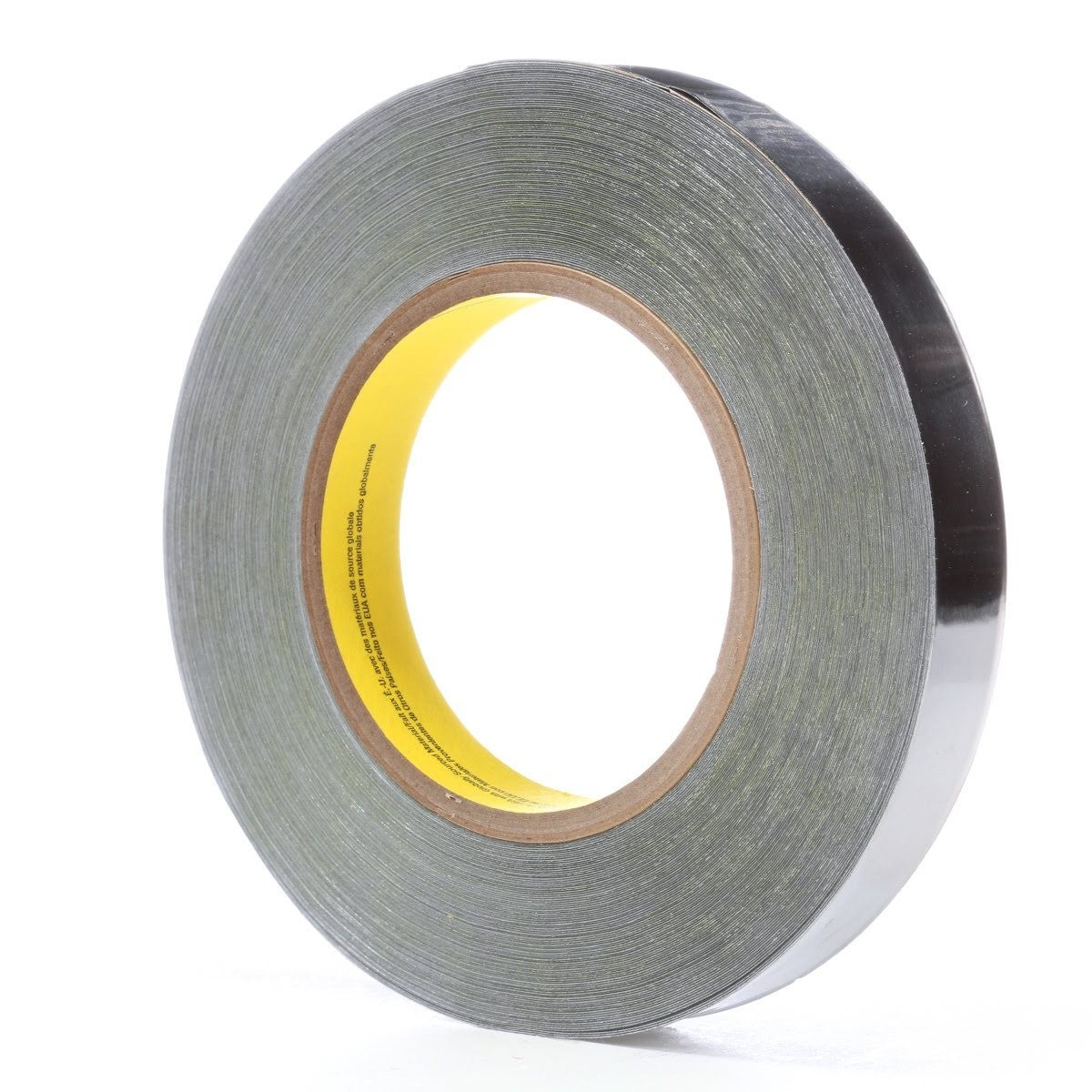

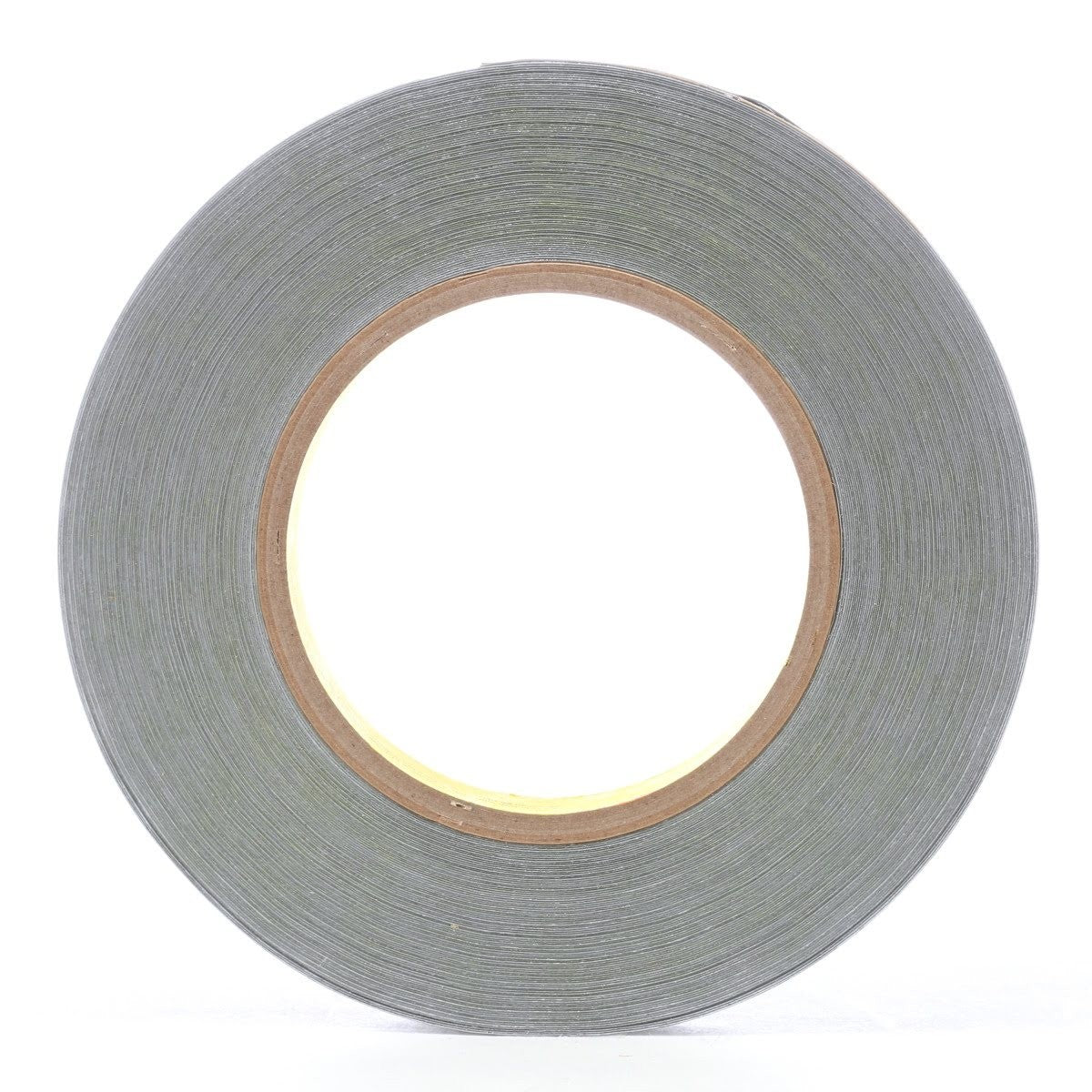

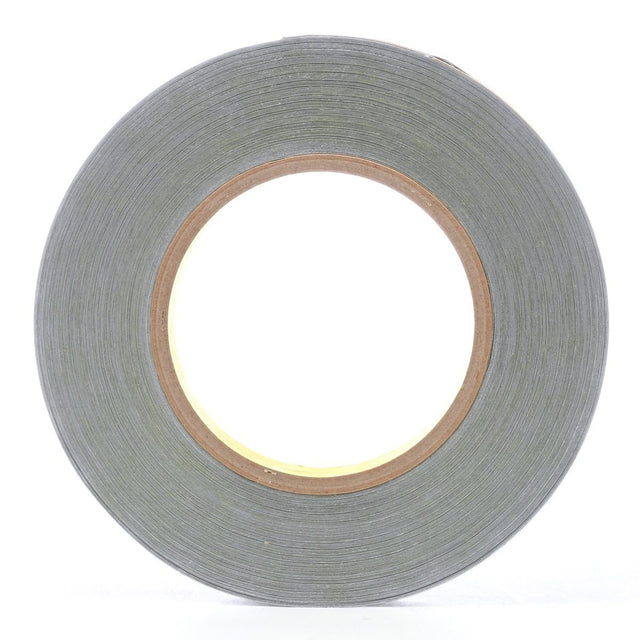

3M Lead Foil Tape 420 is an electrically and thermally conductive lead foil backed tape designed for demanding masking and barrier applications. This highly conformable tape resists flame, moisture, weather, UV degradation, chemicals, and radiation, and includes an easy release film liner for die cutting and shaping into detailed patterns.
3M 7000049108 Includes
- (18) - 3M 7000049108 Lead Foil Tape 420, Dark Silver, 1-1/4 in x 36 yd, 6.8 mil
3M 7000049108 Features
- Electrically and thermally conductive lead foil tape
- Highly conformable and pliable for detailed shapes and patterns
- Resists flame, moisture, weather, UV degradation, chemicals, and radiation
- Rubber based adhesive bonds well to a variety of surfaces including most metals
- Performs over a wide operating temperature range
- Easy release film liner supports die cutting for assembly and manufacturing processes
3M 7000049108 Specifications
| Part Number | 420 |
| Product Color | Dark Silver |
| Backing Material | Lead Foil |
| Overall Width | 1.25 in |
| Overall Length | 36 yd |
| Total Tape Thickness Without Liner | 6.8 mil |
| Maximum Operating Temperature | 225 Degree Fahrenheit |
| Minimum Operating Temperature | -60 Degree Fahrenheit |
| Elongation at Break | 12% |
| Tensile Strength | 20 lb per in |
| Shelf Life | 18 Month |
