3M 7000049101 Description

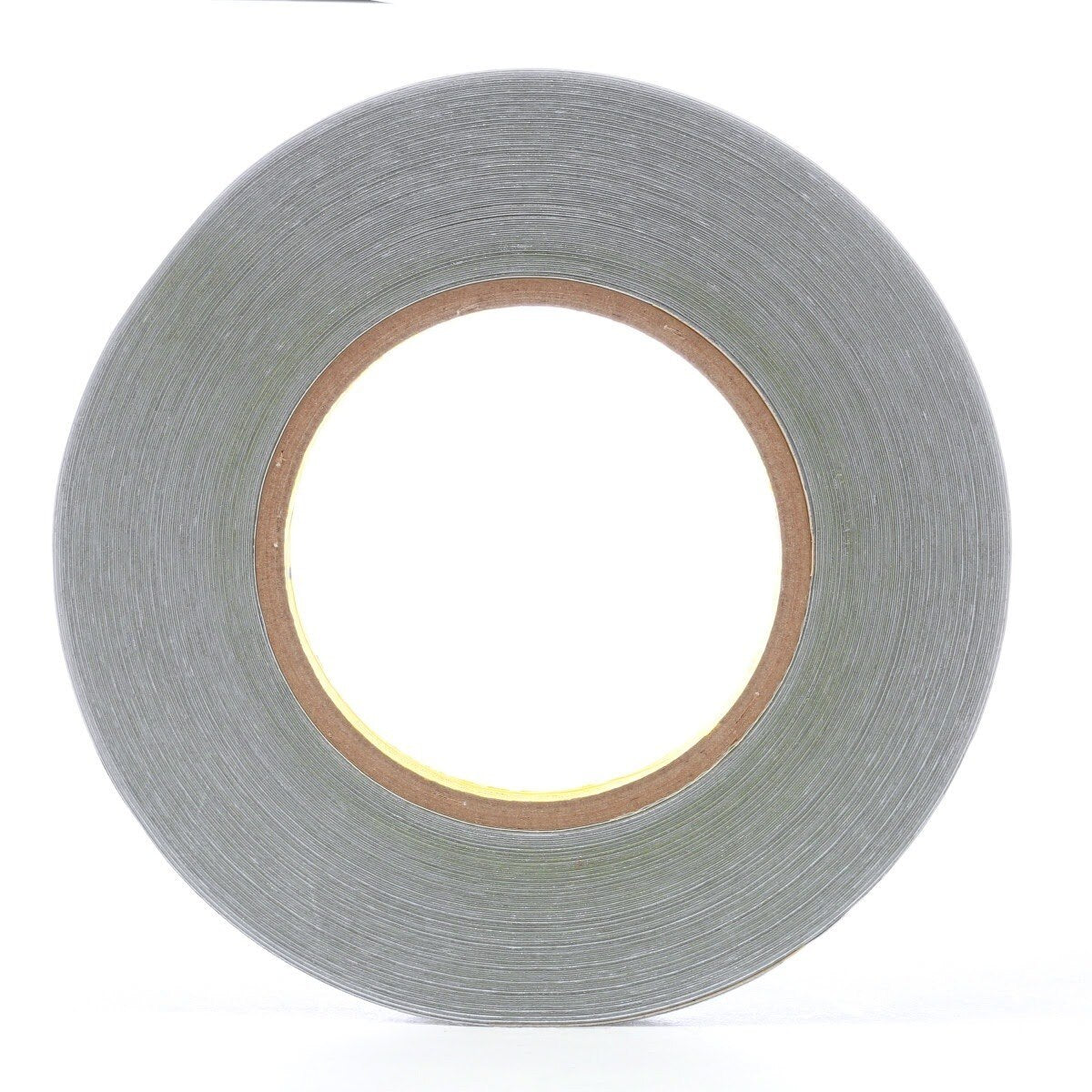

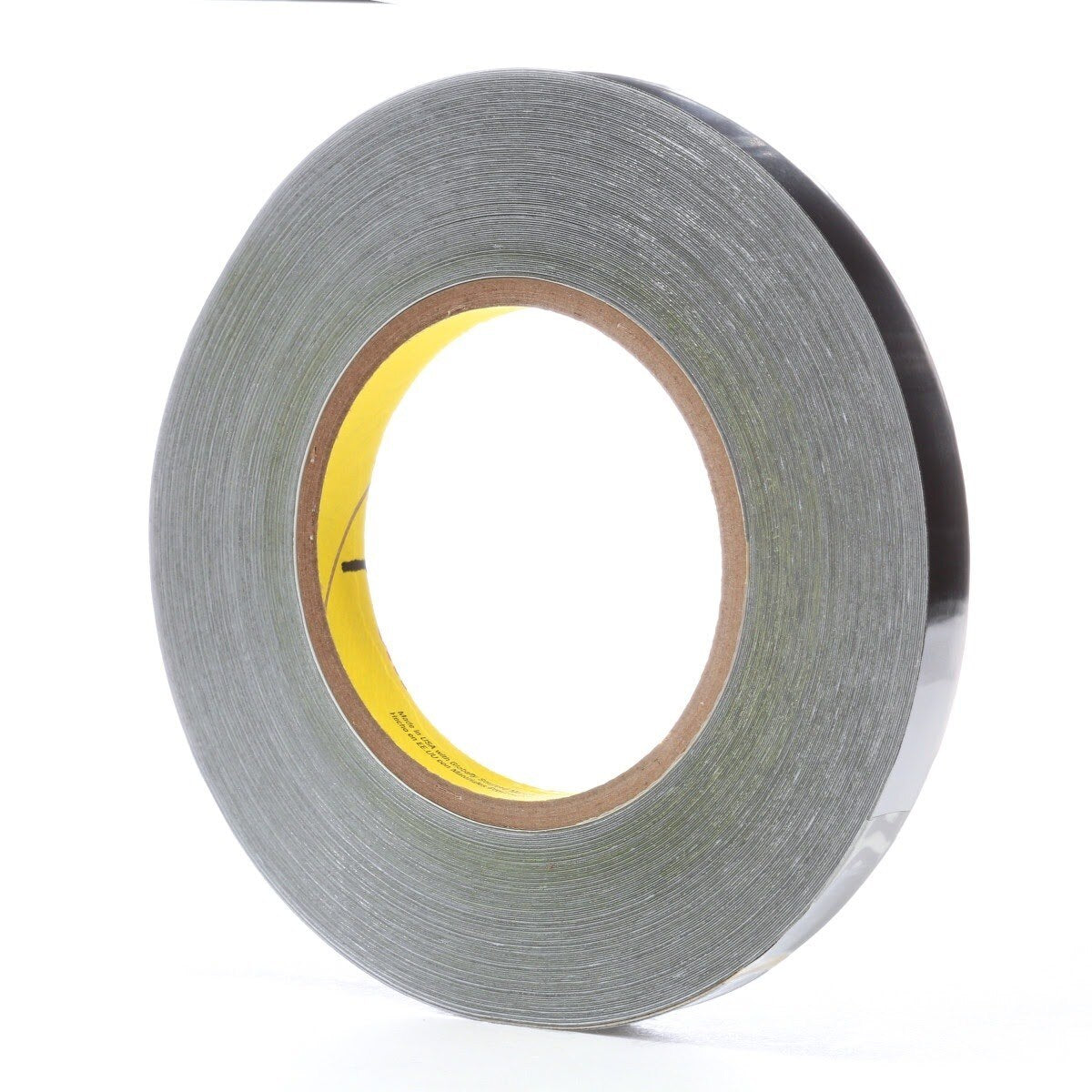

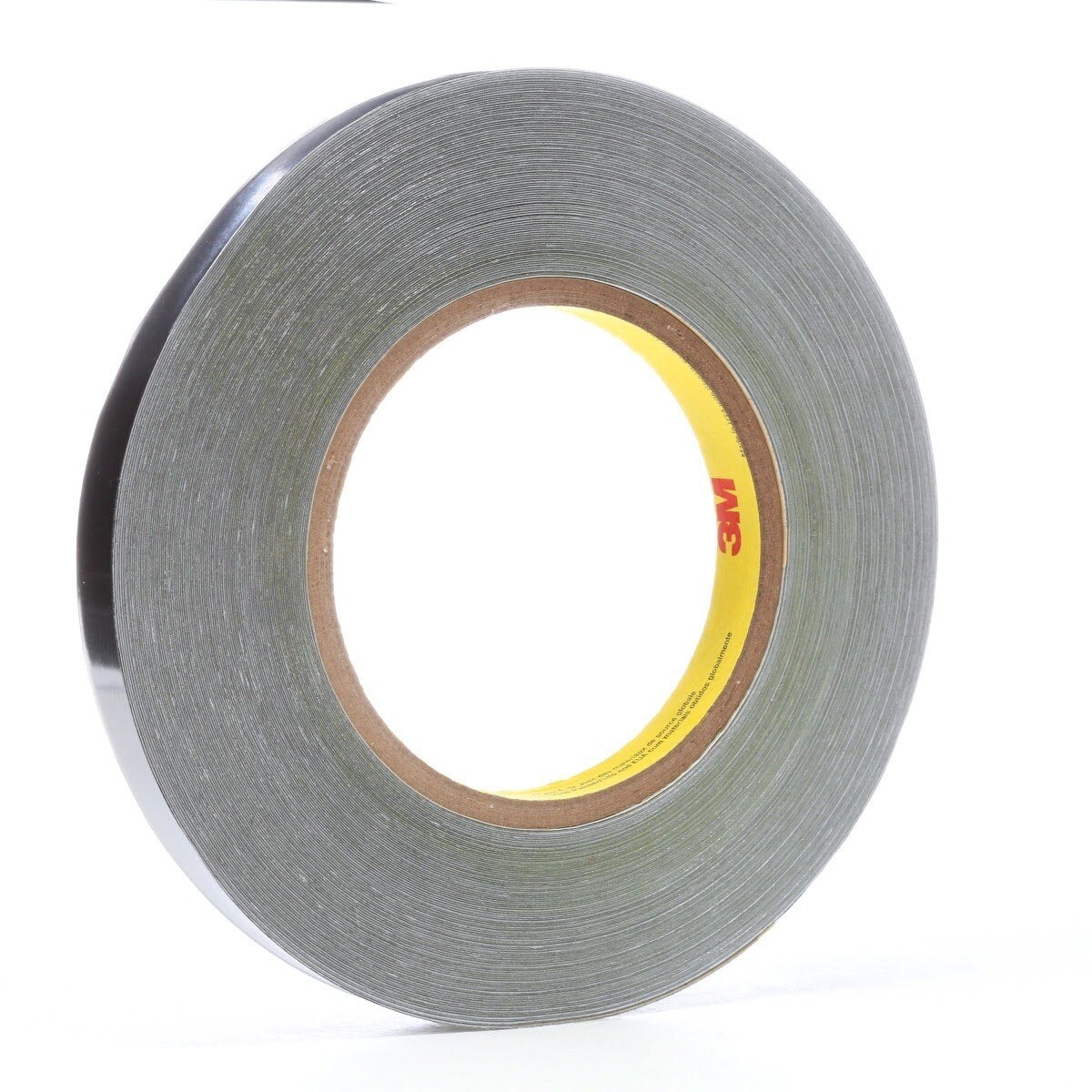

3M Lead Foil Tape 420 is a conformable lead foil backed tape with rubber adhesive designed for electrically and thermally conductive applications. It resists flame, moisture, weather, UV degradation, chemicals, and radiation, and includes an easy release film liner for die cutting and detailed masking patterns.
3M 7000049101 Includes
- (18) 3M Lead Foil Tape 420 Roll, 1/2 in x 36 yd
3M 7000049101 Features
- Electrically and thermally conductive lead foil tape for masking and shielding applications
- Highly conformable backing can be shaped into complex or detailed patterns
- Rubber based adhesive bonds well to most metals and many other surfaces
- Resists flame, moisture, weather, UV degradation, chemicals, and radiation
- Easy release film liner supports die cutting into specific shapes for assembly and manufacturing
- Suitable for electroplating masking, moisture barrier, radiation barrier, and chemical milling
3M 7000049101 Specifications
| Tape Type | Lead Foil Tape |
| Adhesive Type | Rubber |
| Backing Material | Lead Foil |
| Color | Dark Silver |
| Overall Width | 1/2 in |
| Overall Length | 36 yd |
| Total Tape Thickness without Liner | 6.8 mil |
| Maximum Operating Temperature | 225 Degree Fahrenheit |
| Minimum Operating Temperature | -60 Degree Fahrenheit |
| Specifications Met | ASTM D3652; ASTM D3759; ASTM D3833 |
| Shelf Life | 18 Month |
| Case Quantity | 18 Rolls |
Toolup Part # :
854905
