At a Glance
Form
Roll
Length
27 ft
Width
1/2 in
Thickness
3/8 in
Adhesive Type
Acrylic
Max Temperature
180�F
Material
Polyurethane
Description
Description
3M 7000048517 Description

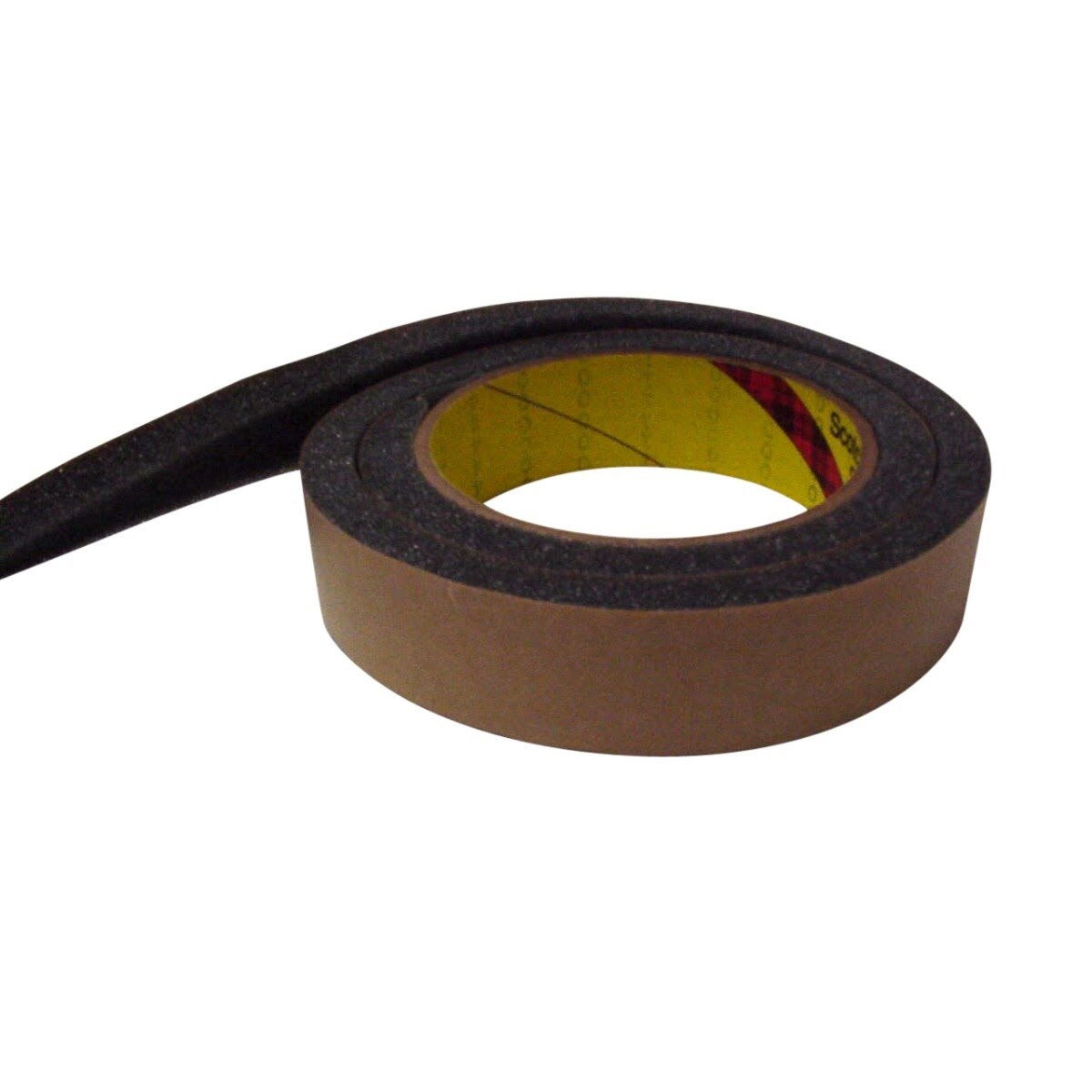

3M Urethane Foam Tape 4317 is a conformable, low density, open cell urethane foam tape with a single sided acrylic adhesive designed to adhere to a variety of substrates. It is used for sealing and mounting applications where cushioning, sound dampening, and vibration absorption are needed.
3M 7000048517 Includes
- (18) 3M Urethane Foam Tape 4317 Roll, 1/2 in x 9 yd, 375 mil
3M 7000048517 Features
- Open cell, low density urethane foam tape provides cushioning and conformability
- Single sided pressure sensitive acrylic adhesive delivers high initial quick stick

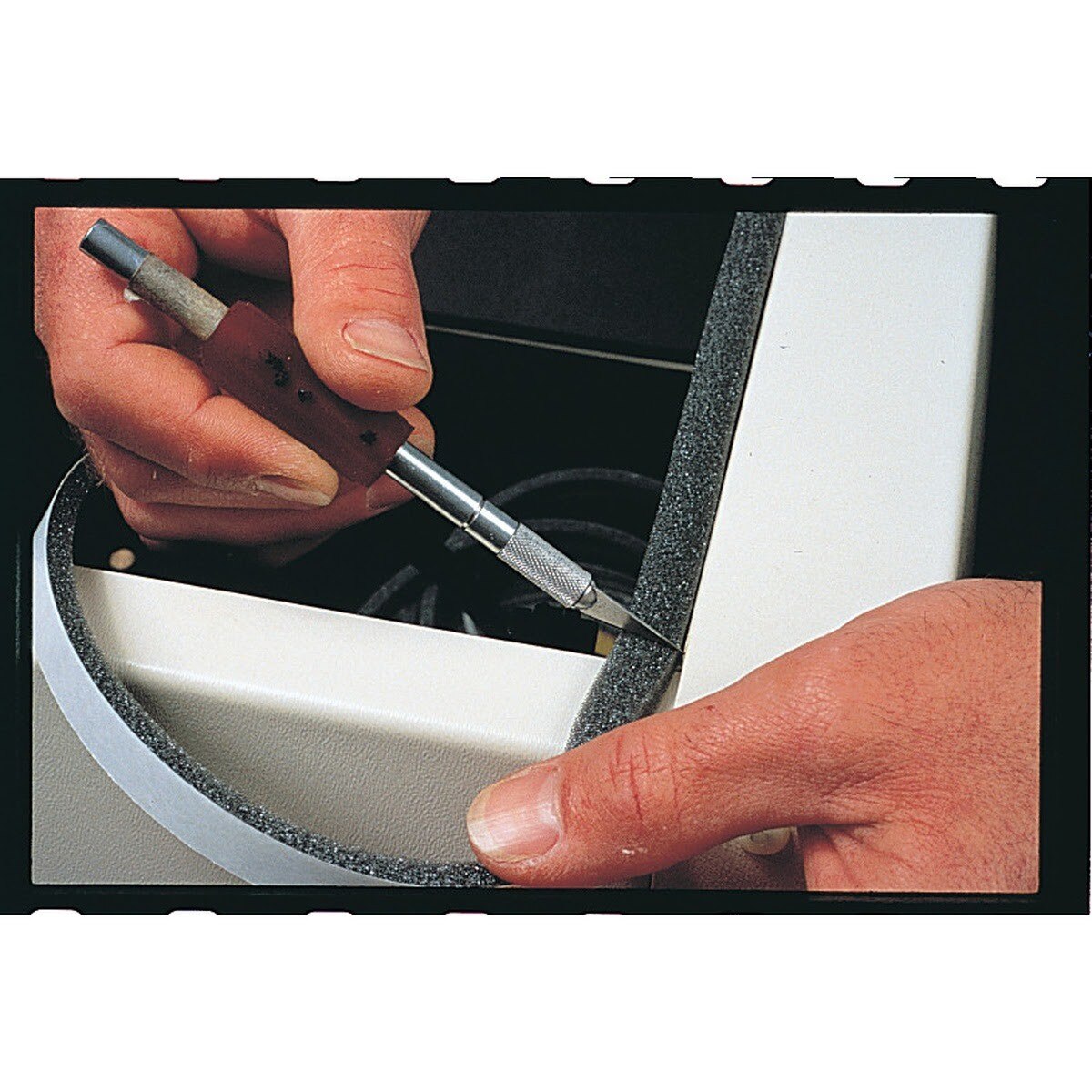

- Helps seal out moisture, dust, drafts, air, and light when compressed
- Dampens sound and absorbs vibration for electronics and assembly applications
- High shear strength and temperature performance for durable bonds
- Silicone treated paper liner protects adhesive prior to application
3M 7000048517 Specifications
| Product Type | Urethane Foam Tape |
| Part Number | 4317 |
| Color | Charcoal Gray |
| Adhesive Type | Acrylic |
| Backing Material | Urethane |
| Number of Adhesive Sides | Single sided |
| Overall Width | 0.5 in |
| Overall Length | 9 yd |
| Total Tape Thickness without Liner | 375 mil |
| Primary Liner | Silicone Treated Paper |
| Application | Sealing, Window and Door Glazing |
| Shelf Life | 24 Month |
| Case Quantity | 18 Rolls per Case |
| Tensile Strength | 25 lb/in |
| Shipping Length | 13.385826771653543 in |
| Shipping Width | 13.385826771653543 in |
| Shipping Height | 10.590551181102363 in |
| Shipping Weight | 3.999846822820234 lbs |
