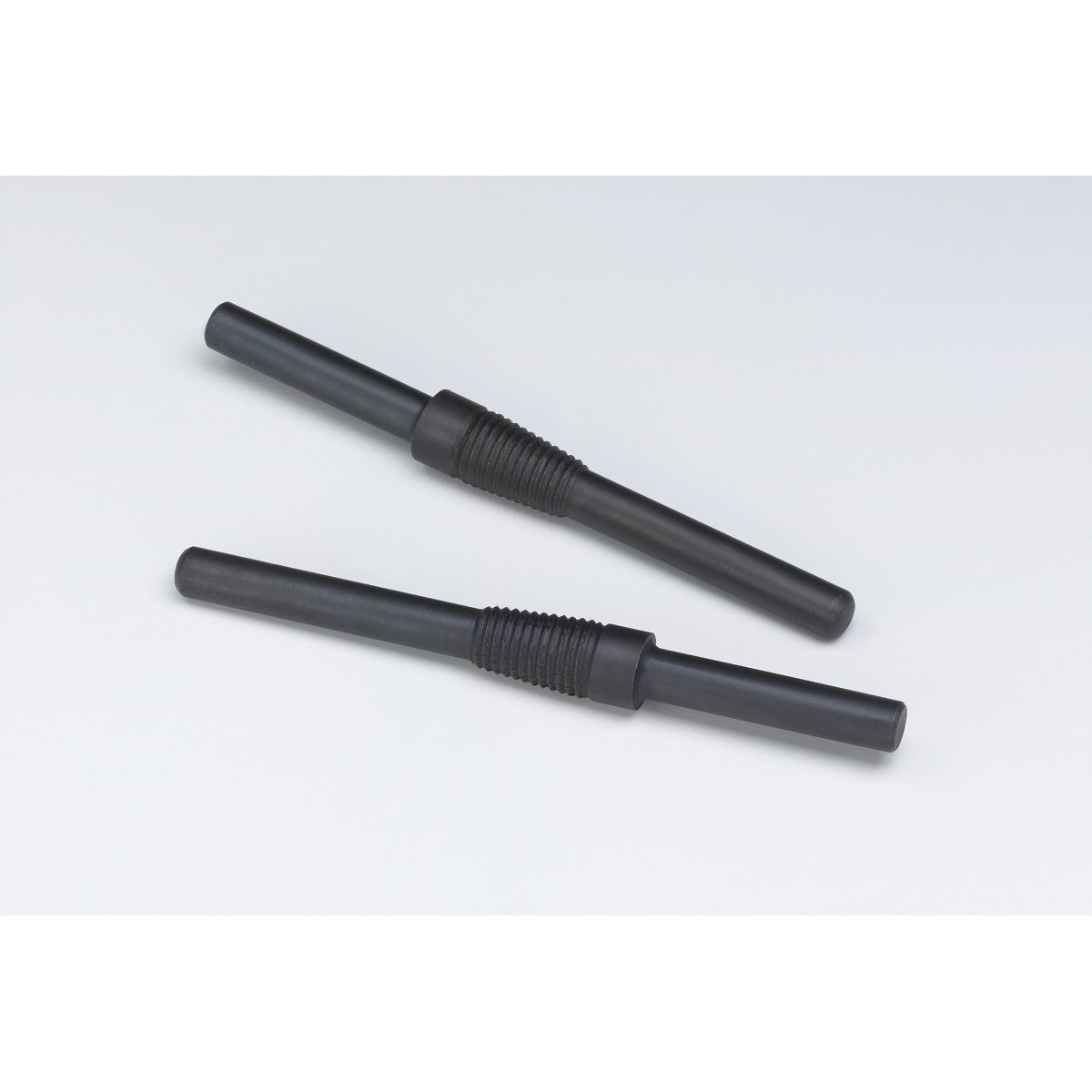

3M 7010328350 Description
3M Cartridge Roll Mandrel is a tool attachment that holds an abrasive cartridge roll sold separately. Together, the mandrel and cartridge roll enable the user to grind or finish hard to reach areas of a workpiece such as angles and curves. The mandrel attaches to a rotary tool such as a die grinder or drill and comes in different sizes to fit a variety of cartridge roll sizes.
3M 7010328350 Includes
- (25) Cartridge Roll Mandrel 45116
3M 7010328350 Features
- Holds an abrasive cartridge roll sold separately for grinding and finishing
- Shank secures into the collet assembly or drill chuck of a rotary power tool
- Helps access tight spaces such as angles and curves

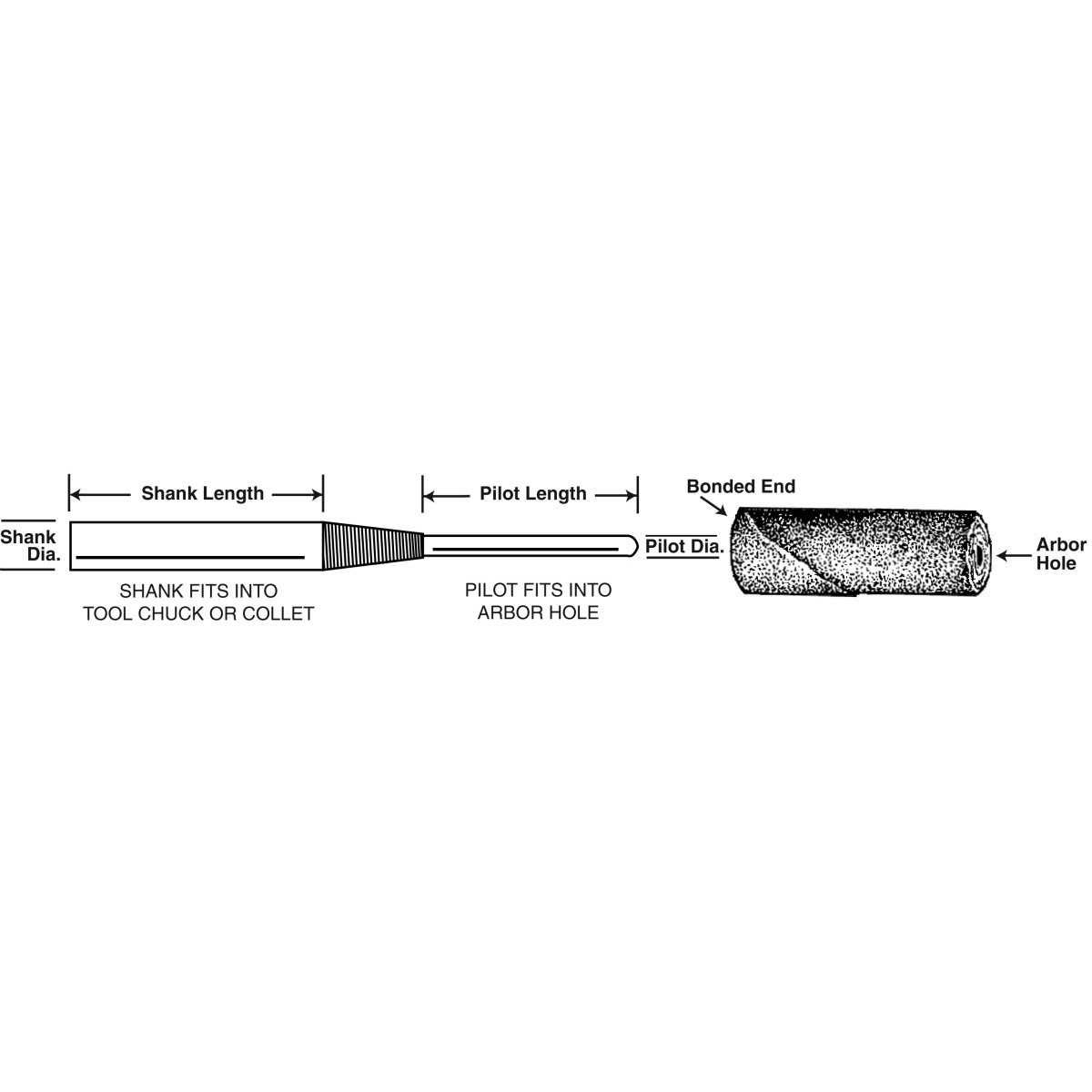

- Shank size must match the power tool collet or drill chuck
- Pilot diameter must match the cartridge roll size
- Steel mandrel construction
- Max RPM 24000
3M 7010328350 Specifications
| Part Number | 45116 |
| Product Type | Mandrel |
| Form Type | Cartridge Roll |
| Material | Steel |
| Attachment Type | Shaft |
| Max RPM | 24000 |
| Overall Length | 3.5 in |
| Pilot Diameter | 0.25 in |
| Pilot Length | 1.5 in |
| Shank Size | 6.35 mm |
| Equipment | Die Grinders |
Toolup Part # :
853145
