At a Glance
Diameter
3/16 in
Length
3.5 in
Max RPM
24000
Material
Steel
Compatible Equipment
Die Grinders
Application
Grinding
Mount Type
Shank
Description
Description

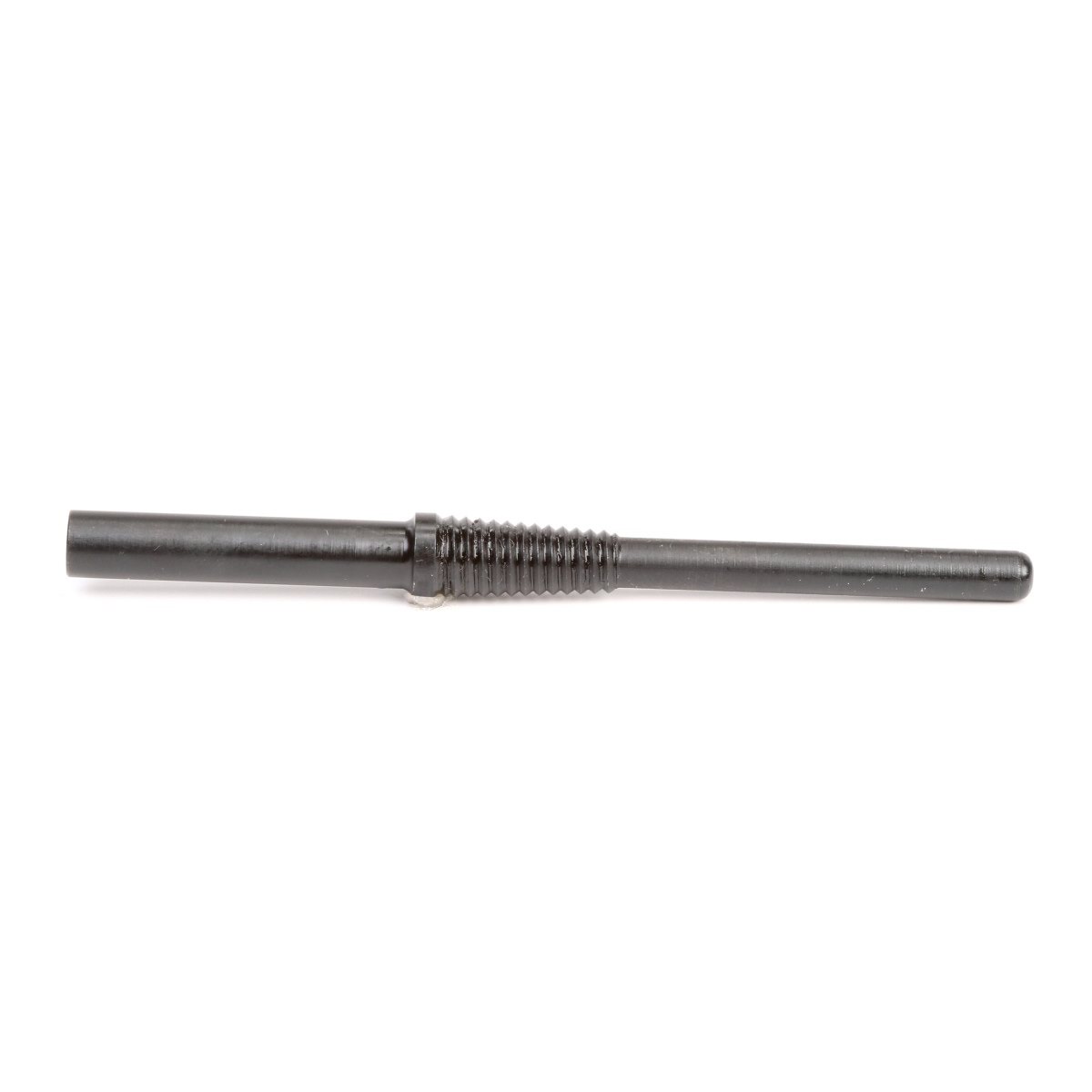

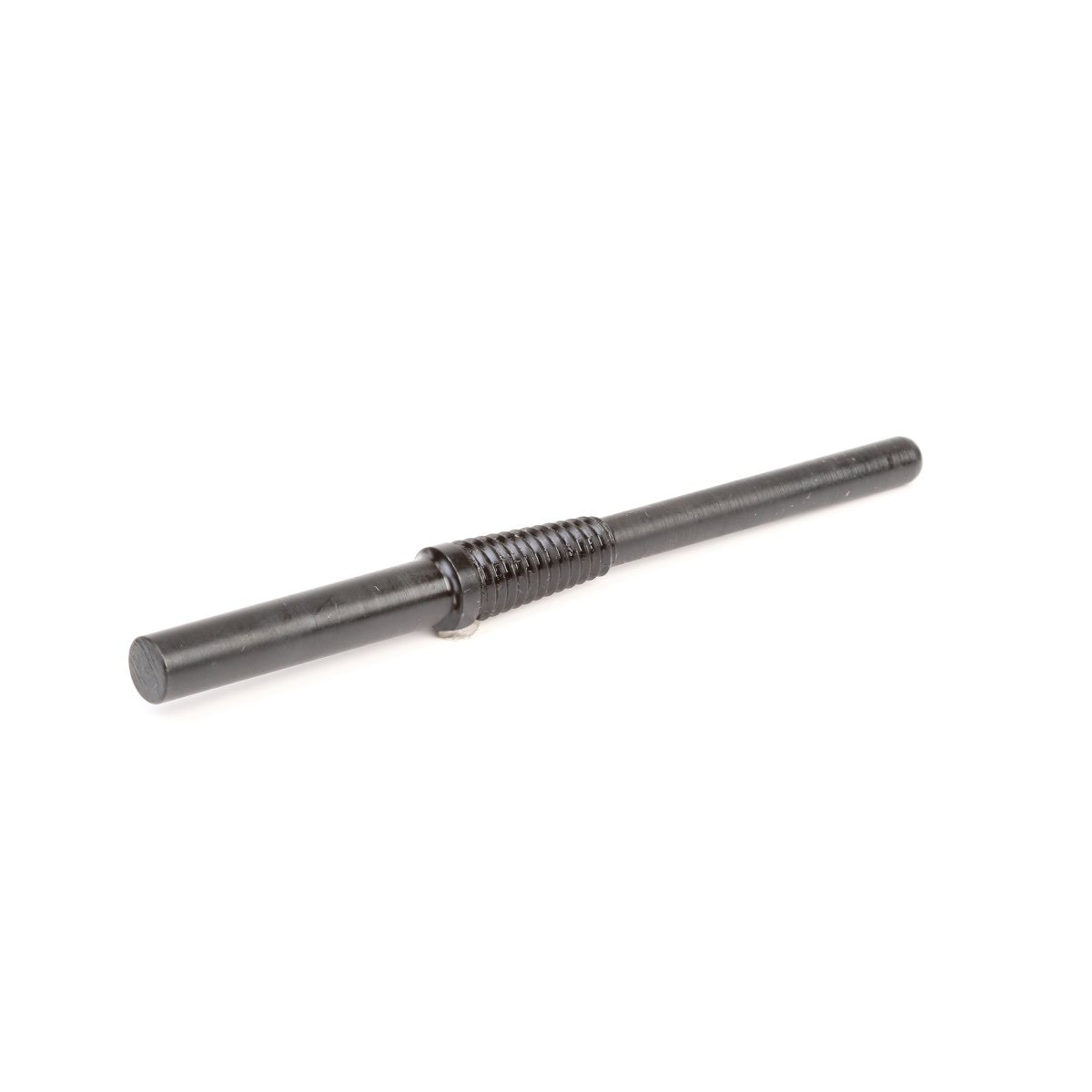

3M 7000045772 Description

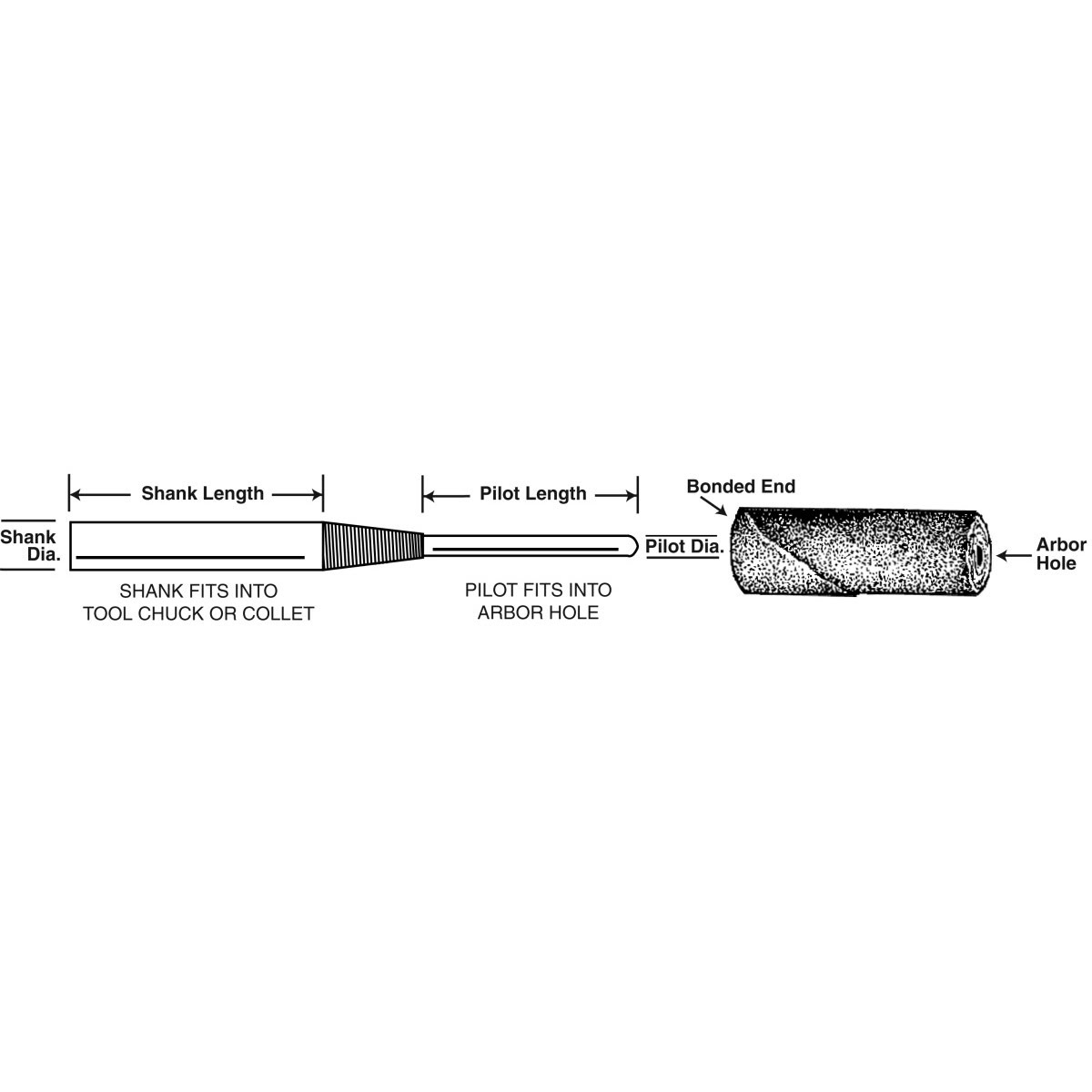

This 3M cartridge roll mandrel is a steel mandrel designed to hold an abrasive cartridge roll (sold separately) for grinding and finishing hard-to-reach areas such as angles and curves. It mounts into a rotary power tool such as a die grinder or drill and is sized for a 3/16 in pilot diameter with a 1-1/2 in pilot length and 1/4 in shank size.
3M 7000045772 Includes
- (25) - 3M 7000045772 Cubitron Cartridge Roll Mandrel - Attaches Abrasive Cartridge Roll to Die Grinder - Power Tool Accessory - 3/16 in x 1.5 in x 1/4 in (45118)
3M 7000045772 Features
- Holds an abrasive cartridge roll sold separately for grinding and finishing
- Shank secures into a rotary tool collet or drill chuck
- Helps access tight spaces such as angles and curves
- Pilot diameter must match the cartridge roll arbor hole
- Rated for up to 24000 RPM
3M 7000045772 Specifications
| Product Type | Mandrel |
| Form Type | Cartridge Roll |
| Material | Steel |
| Max RPM | 24000 |
| Overall Length | 3.5 in |
| Pilot Diameter | 0.18 in |
| Pilot Length | 1.5 in |
| Attachment Type | Shaft |
| Type | Regular |
| Equipment | Die Grinders |
| Part Number | 45118 |
| UPC | 51144451180 |
Toolup Part # :
860534
