At a Glance
Diameter
3/32 in
Length
2.75 in
Max RPM
24000
Material
Steel
Compatible Equipment
Die Grinders
Application
Grinding
Mount Type
Shank
Description
Description
3M 7010328349 Description

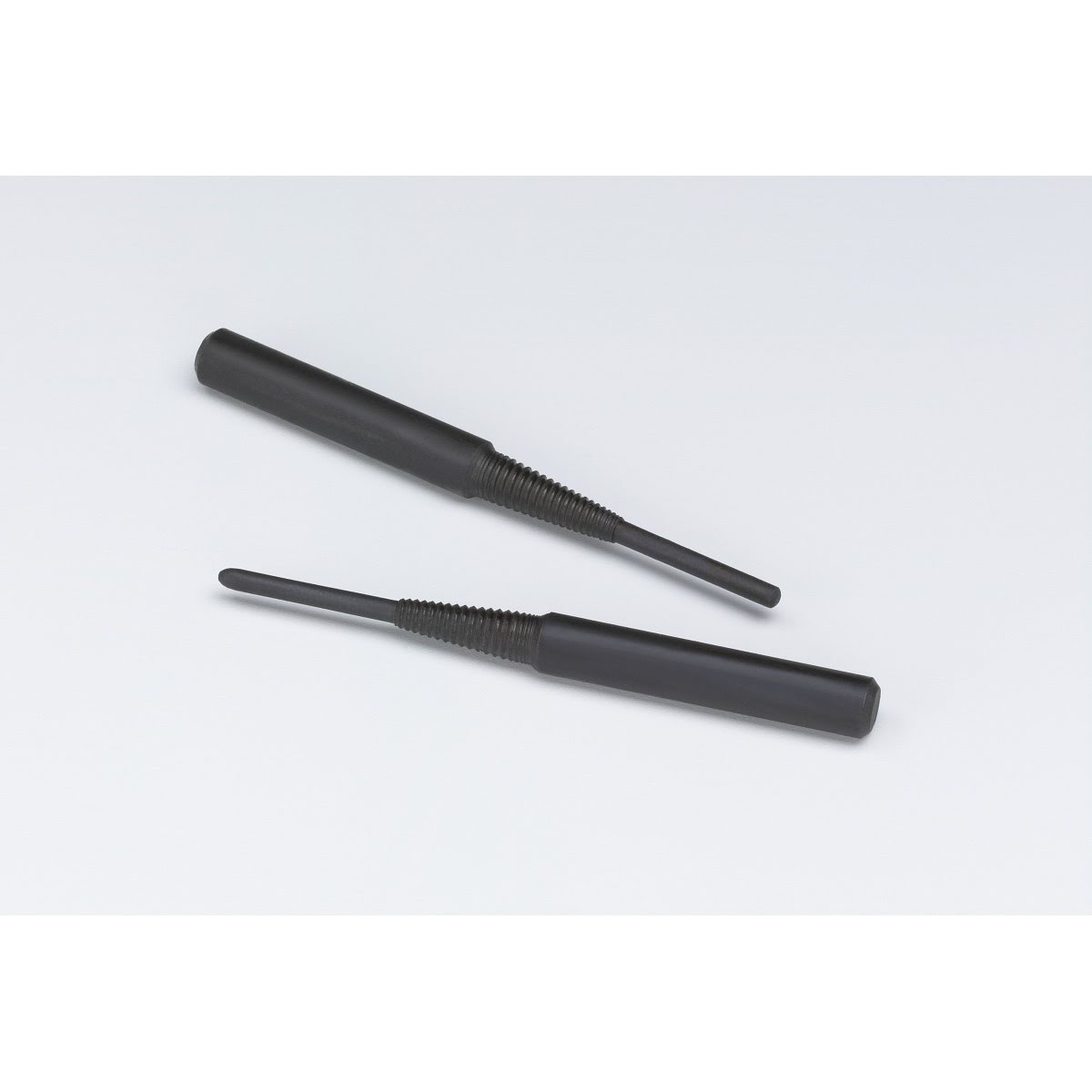

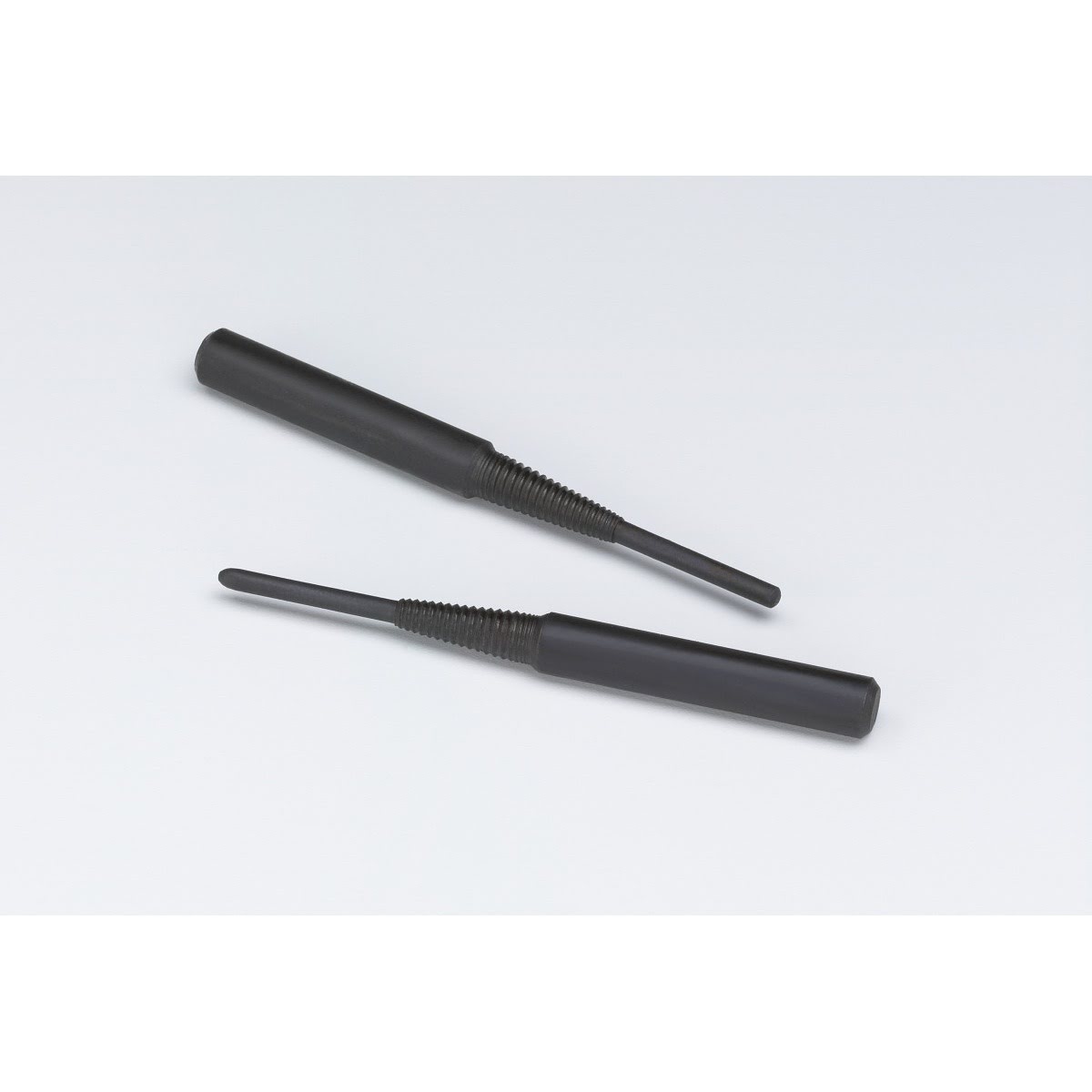

This 3M cartridge roll mandrel holds an abrasive cartridge roll sold separately to help grind and finish hard to reach areas such as angles and curves. The shank secures into a rotary tool collet or drill chuck for use with die grinders and similar tools.
3M 7010328349 Includes
- (25) Cartridge Roll Mandrel
3M 7010328349 Features
- Tool attachment holds an abrasive cartridge roll sold separately
- Helps grind or finish hard to reach areas such as angles and curves
- Shank secures into the collet assembly or drill chuck of a rotary power tool

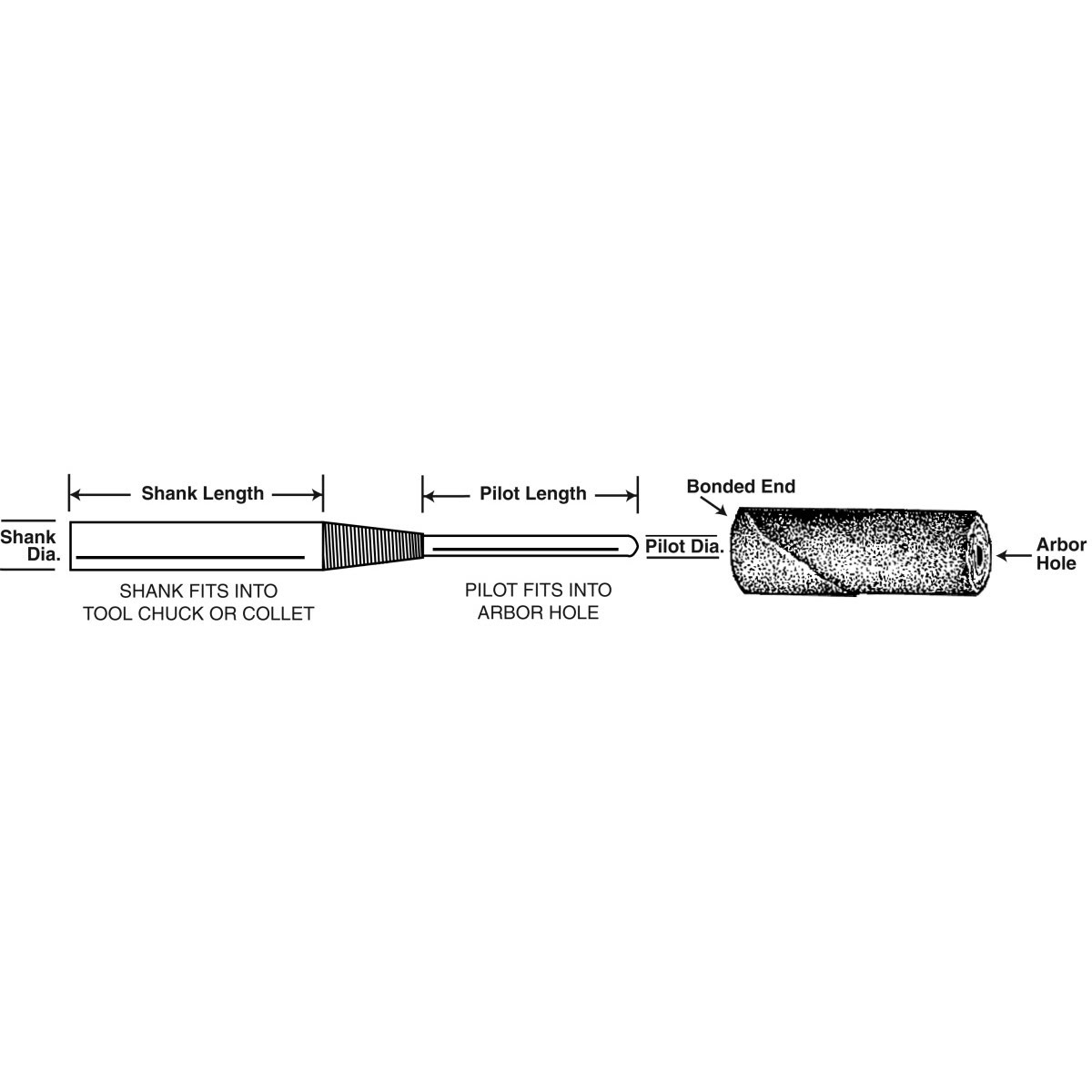

- Pilot diameter must match the cartridge roll size
- Shank must match the size of the power tool collet or drill chuck
3M 7010328349 Specifications
| Product Type | Mandrel |
| Form Type | Cartridge Roll |
| Material | Steel |
| Max RPM | 24000 |
| Overall Length | 2.75 in |
| Pilot Diameter | 0.09 in |
| Pilot Length | 0.75 in |
| Shank Size | 6.35 mm |
| Equipment | Die Grinders |
| Attachment Type | Shaft |
| Type | Regular |
| Part Number | 45120 |
