3M 7000001178 Description

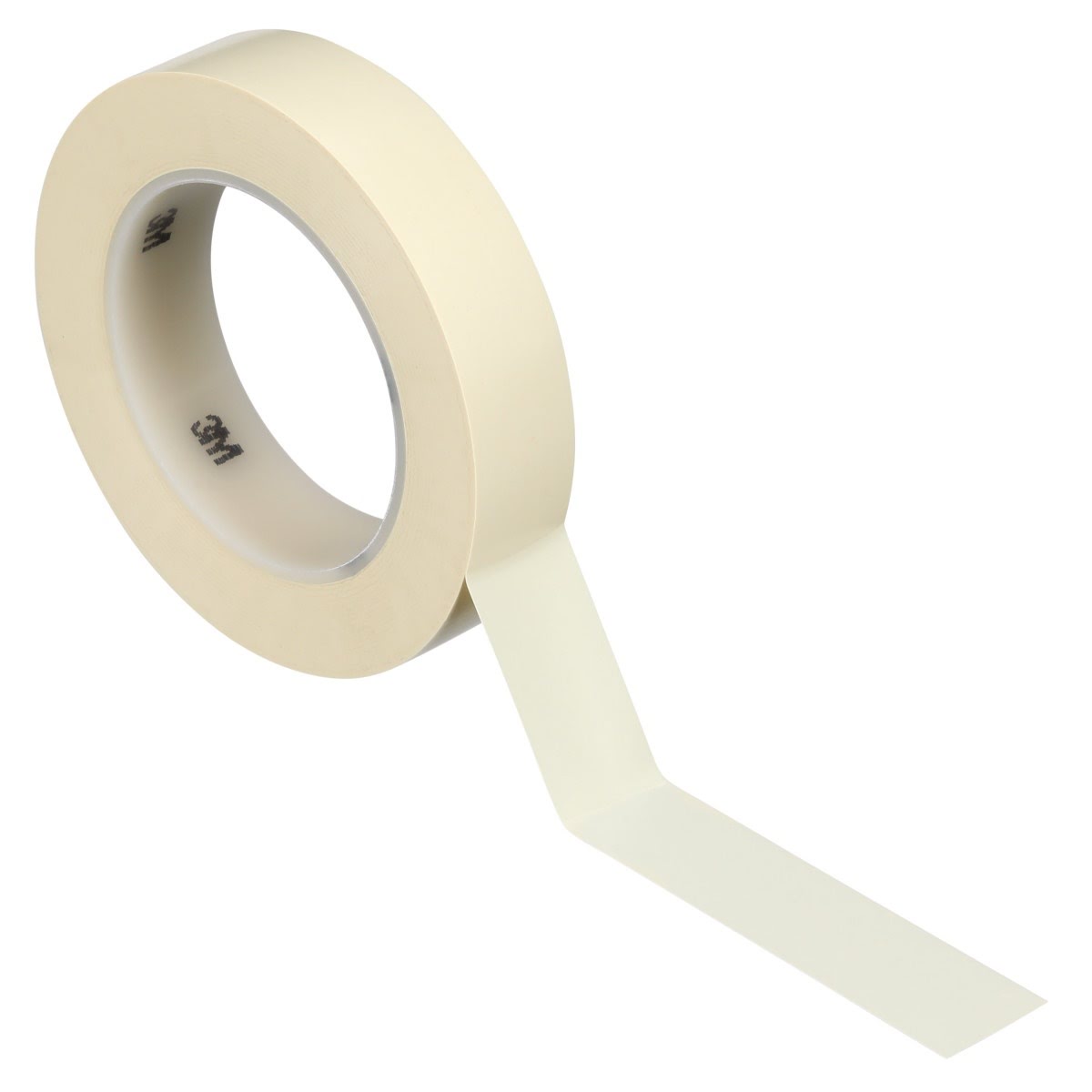

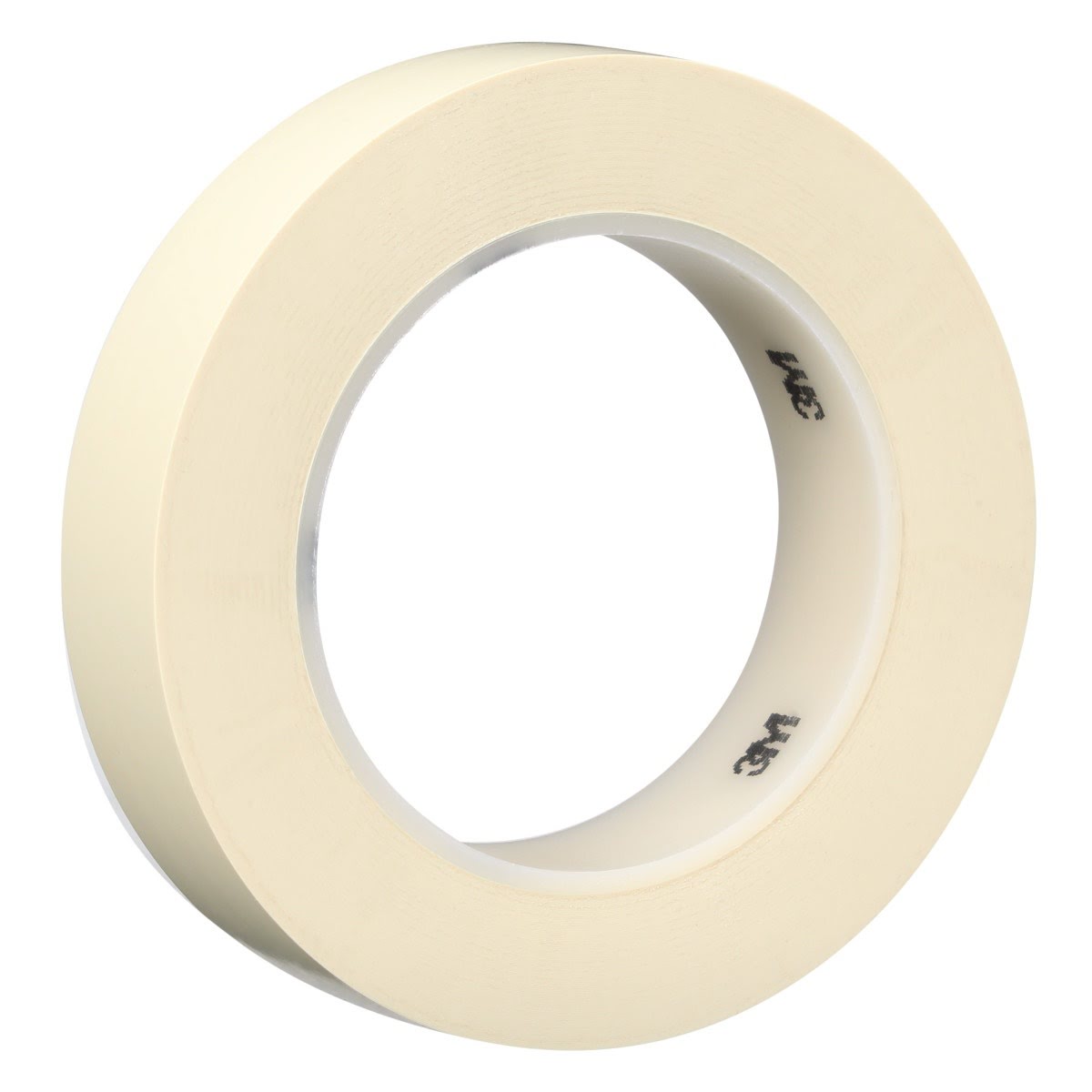

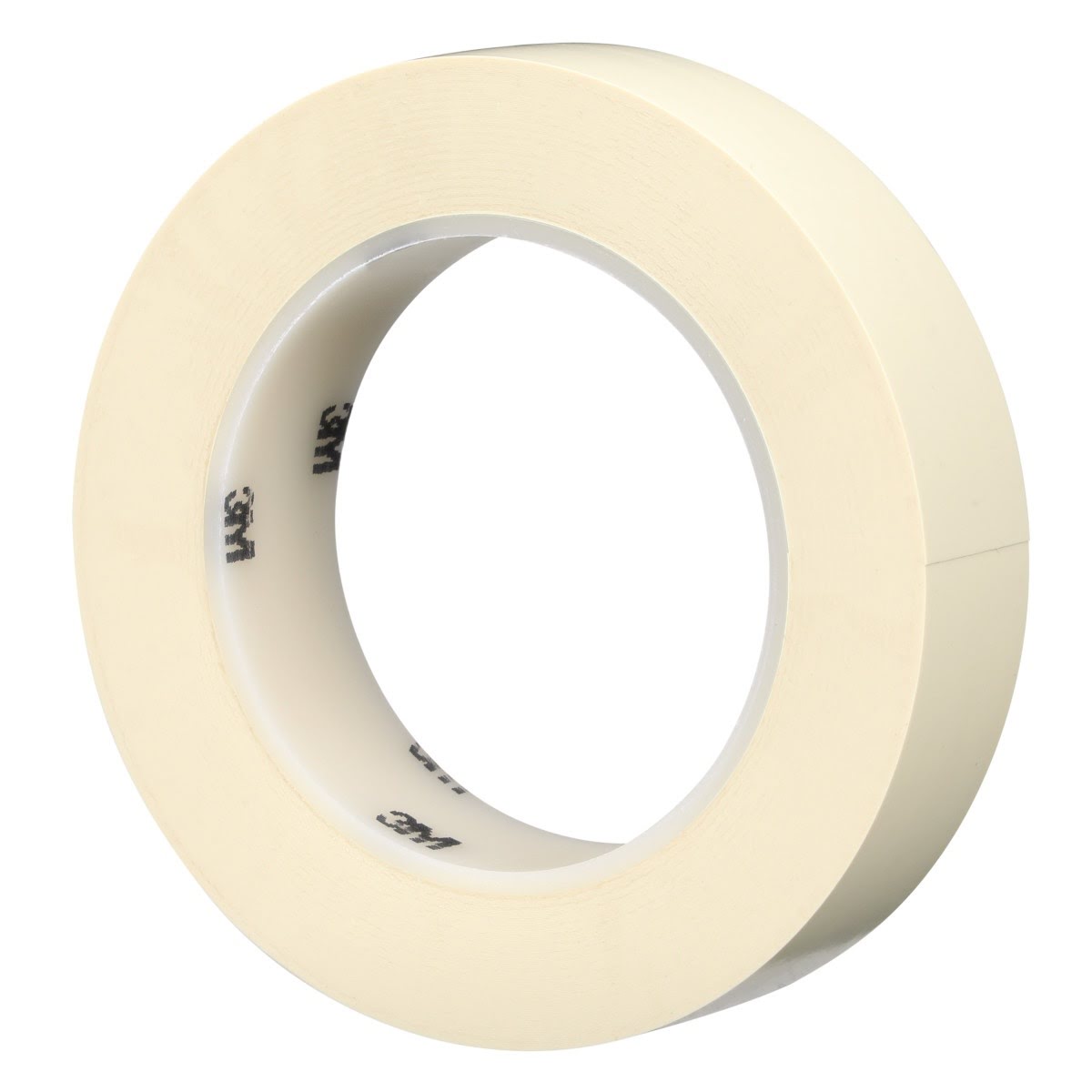

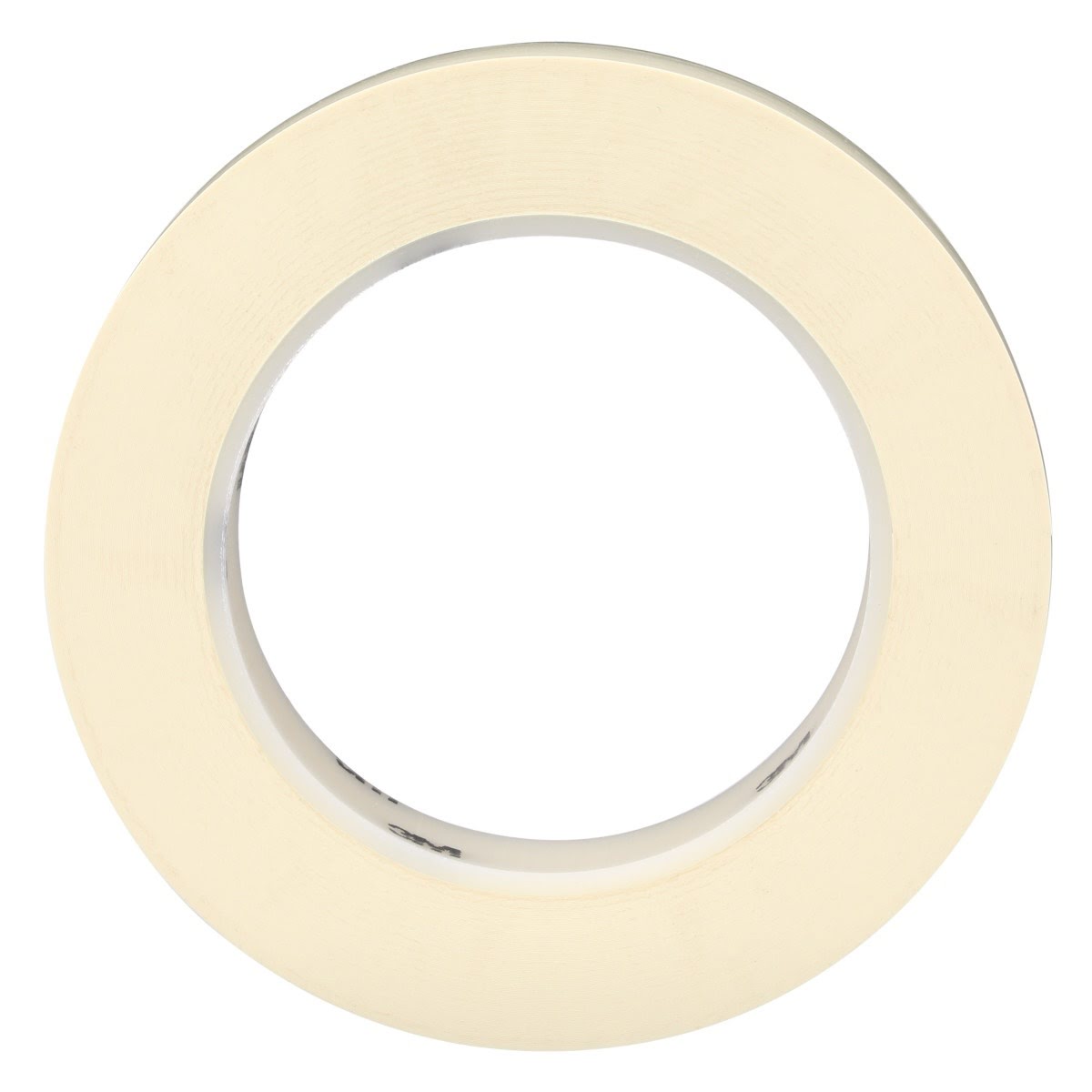

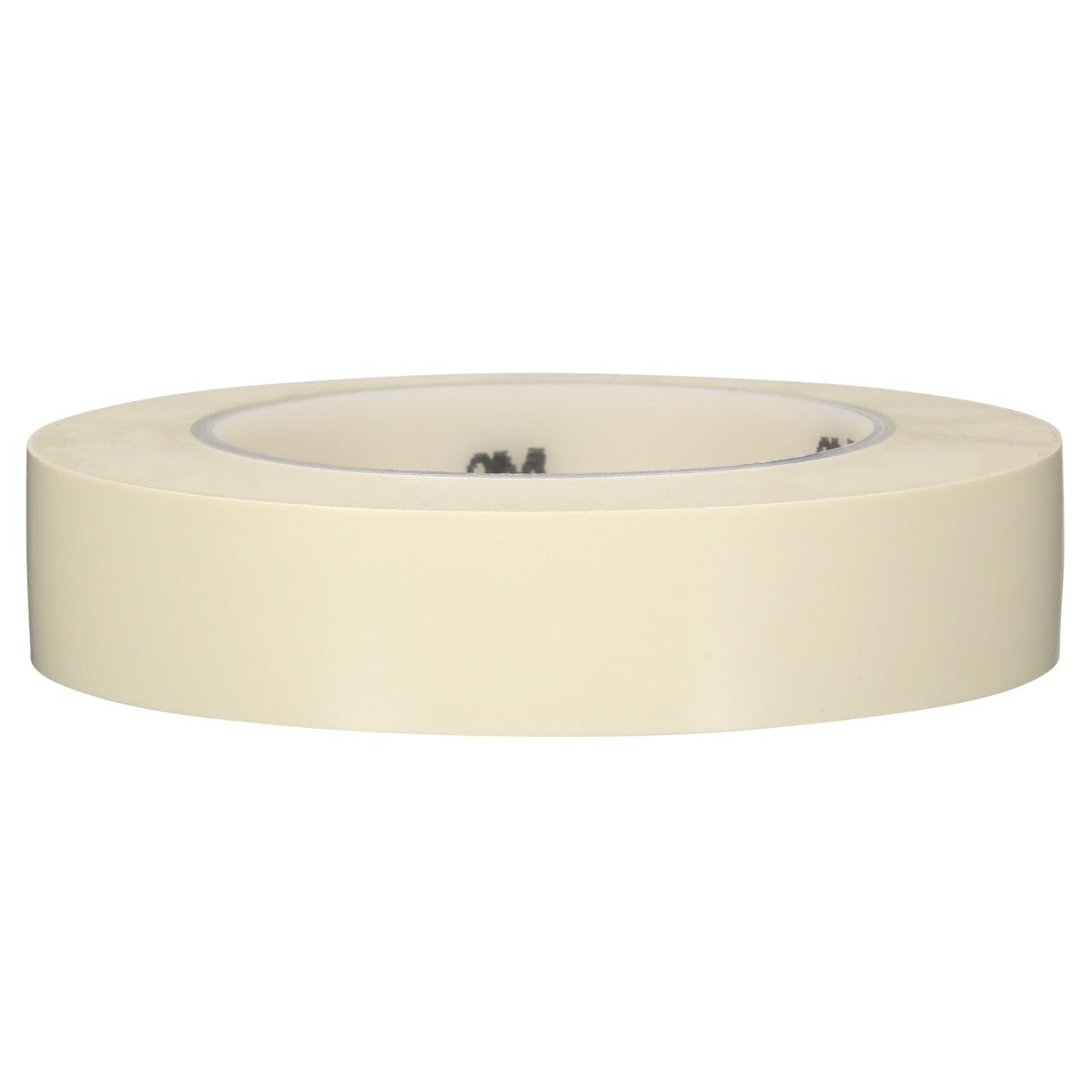

3M Electroplating Tape 470 is a tan vinyl tape designed for masking and surface protection in electroplating and anodizing processes. Its conformable, abrasion resistant backing and rubber adhesive provide strong holding power while resisting many common solvents and plating chemicals.
3M 7000001178 Includes
- (36) 3M Electroplating Tape 470 Roll
3M 7000001178 Features
- Designed for masking in electroplating and anodizing operations
- Excellent resistance to many chemicals used in plating and anodizing
- Resists many common solvents
- Abrasion and wear resistant vinyl backing
- Conformable backing for curved and irregular surfaces
- Rubber adhesive provides strong holding strength on many surfaces
- Clean removal from most surfaces
- Operates up to 250 Degree F maximum temperature
- No liner construction
3M 7000001178 Specifications
| Product Type | Electroplating Tape |
| Part Number | 470 |
| Color | Tan |
| Product Form | Roll |
| Backing Material | Vinyl |
| Adhesive Type | Rubber |
| Overall Width | 1.0 in |
| Roll Length | 36 yd |
| Overall Thickness | 7.1 mil |
| Core Size | 3.0 in |
| Clean Removal | Yes |
| Maximum Operating Temperature | 250 Degree Fahrenheit |
| Minimum Operating Temperature | 40 Degree Fahrenheit |
| Tensile Strength | 20.0 lb/in |
| Elongation at Break | 180% |
| Adhesion Strength | 37.0 oz/in |
| Shelf Life | 18 Month |
| Case Pack | 36 Rolls |
| Shipping Length (in) | 10.748031496062993 |
| Shipping Width (in) | 10.748031496062993 |
| Shipping Height (in) | 10.236220472440944 |
| Shipping Weight (lb) | 17.240148902857428 |
Toolup Part # :
849988
