At a Glance
Form
Roll
Length
36 yd
Width
4 in
Thickness
7.1 mil
Adhesive Type
Rubber
Max Temperature
250�F
Min Temperature
40�F
Material
Vinyl
Description
Description
3M 7000123463 Description

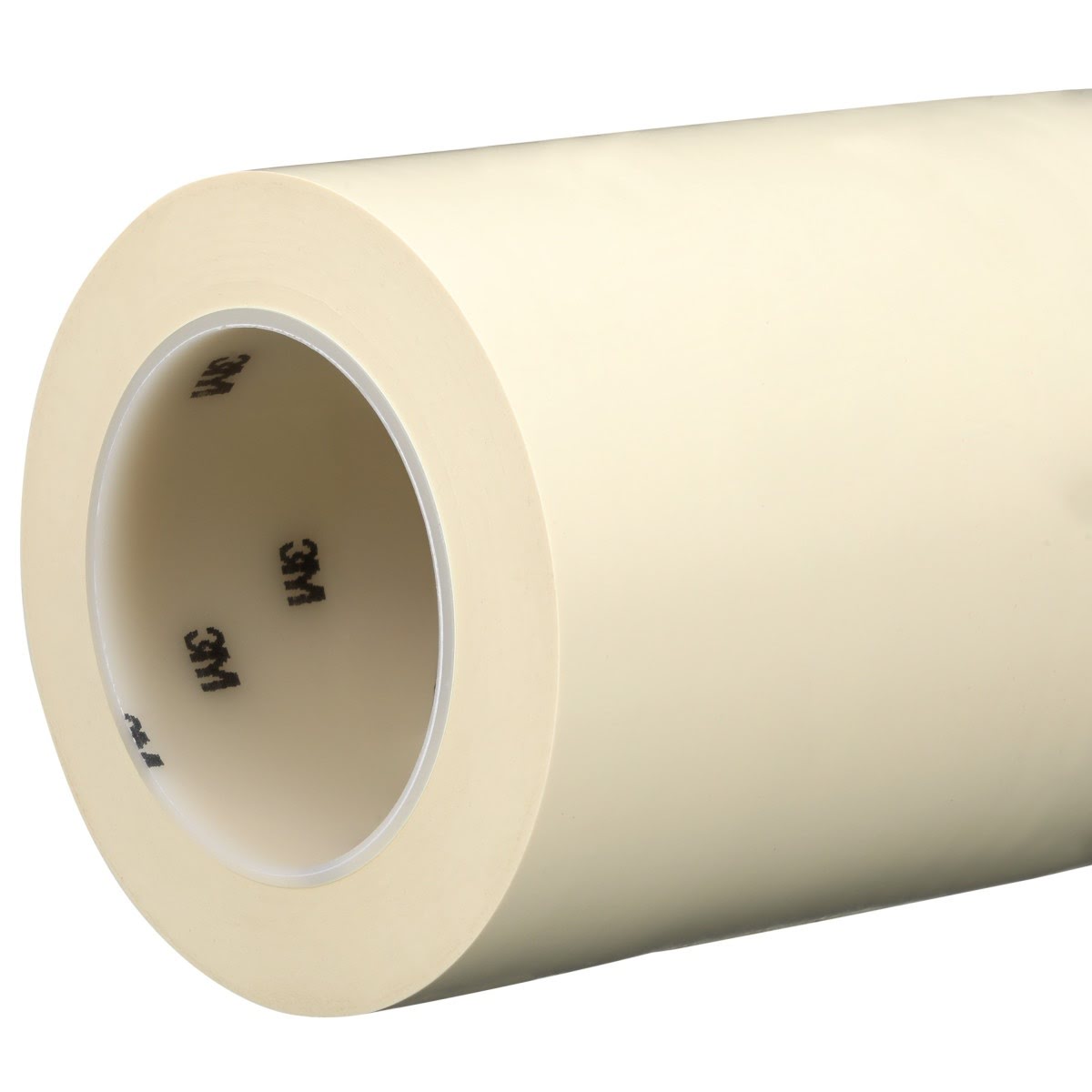

3M Electroplating Tape 470 is a tan, conformable vinyl tape designed for masking in electroplating and anodizing operations. It features an abrasion resistant backing and rubber adhesive for strong holding power, plus resistance to many common solvents and plating chemicals. Supplied as a case of 8 rolls, each roll is 4 in x 36 yd with 7.1 mil overall thickness and no liner.
3M 7000123463 Includes
- (8) 3M Electroplating Tape 470 Roll, Tan, 4 in x 36 yd
3M 7000123463 Features
- Excellent resistance to many chemicals used in electroplating and anodizing operations
- Resists many common solvents and operates up to 250 Degree F
- Abrasion resistant backing for rugged conditions
- Conformable vinyl backing helps mask curved and irregular surfaces
- Rubber adhesive provides strong holding power on many surfaces
- Removes cleanly from most surfaces
- No liner design
- Backing accepts marker ink and can be thermal transfer printed
3M 7000123463 Specifications
| Tape Type | Electroplating Tape |
| Part Number | 470 |
| Color | Tan |
| Backing Material | Vinyl |
| Adhesive Type | Rubber |
| Width | 4 in |
| Length | 36 yd |
| Overall Thickness | 7.1 mil |
| Backing Thickness | 6.3 mil |
| Core Size | 3 in |
| Maximum Operating Temperature | 250 Degree Fahrenheit |
| Clean Removal | Yes |
| Elongation at Break | 180% |
| Tensile Strength | 20 lb/in |
| Shelf Life | 18 Month |
| Product Form | Roll |
| Substrate | Metal |
