3M 7000005804 Description

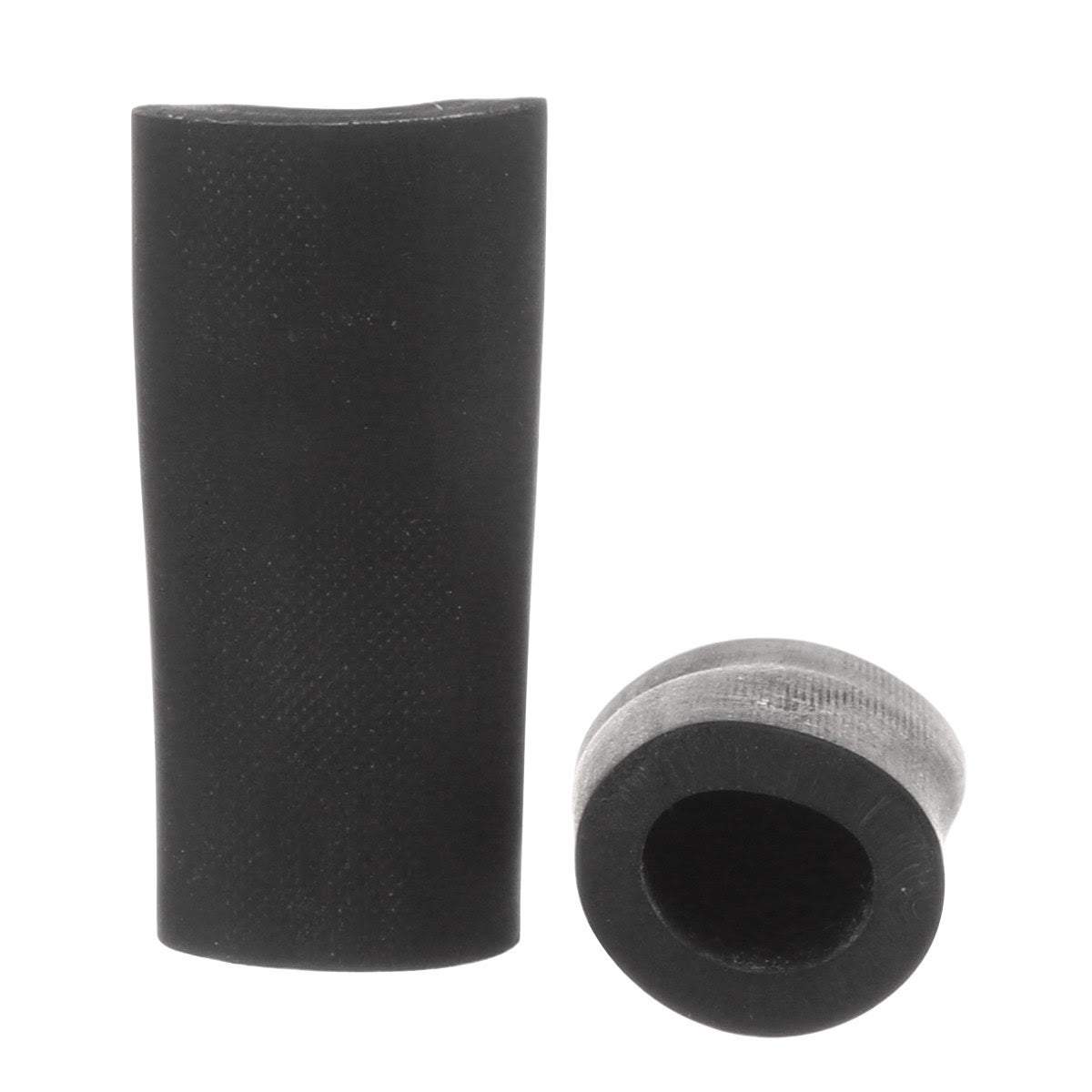

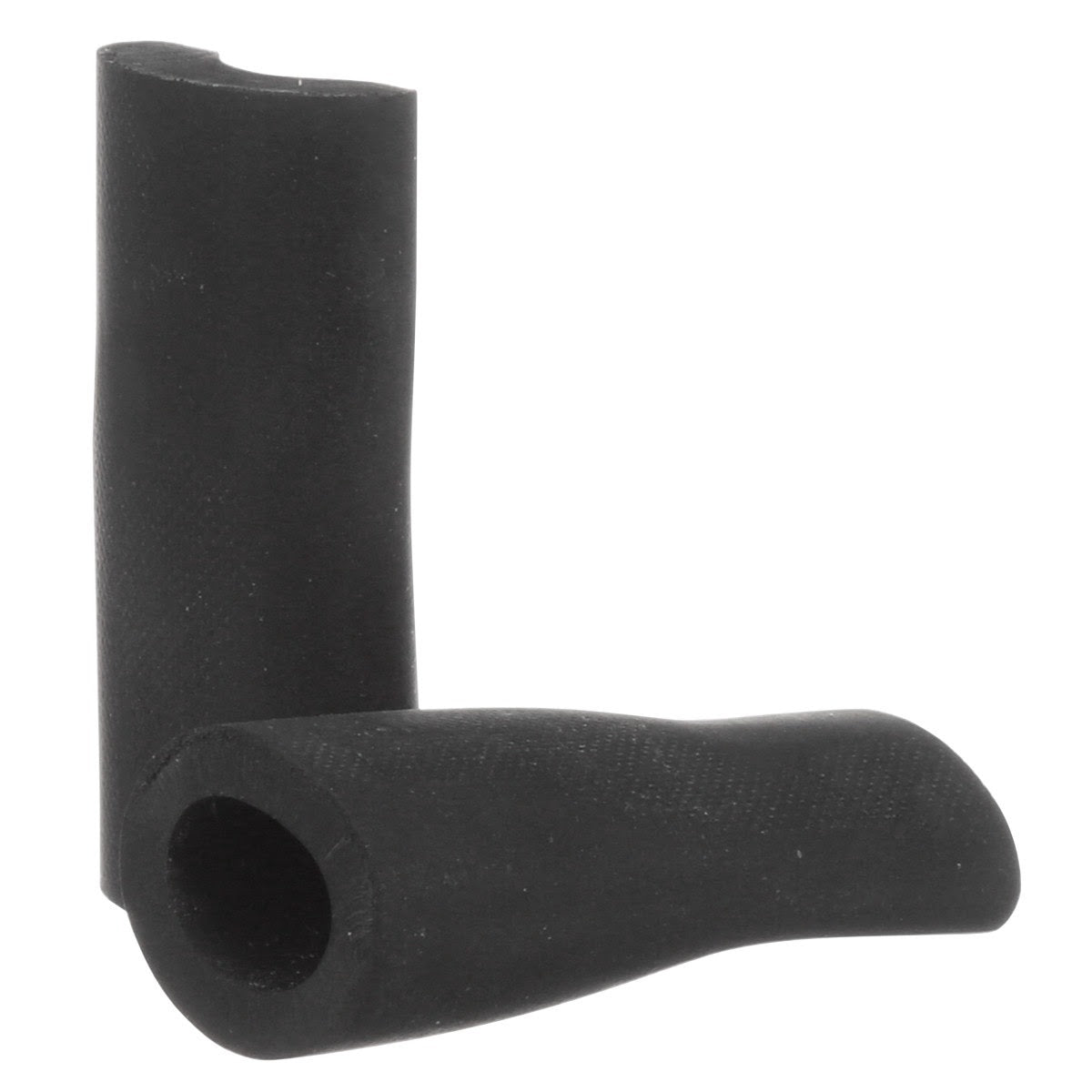

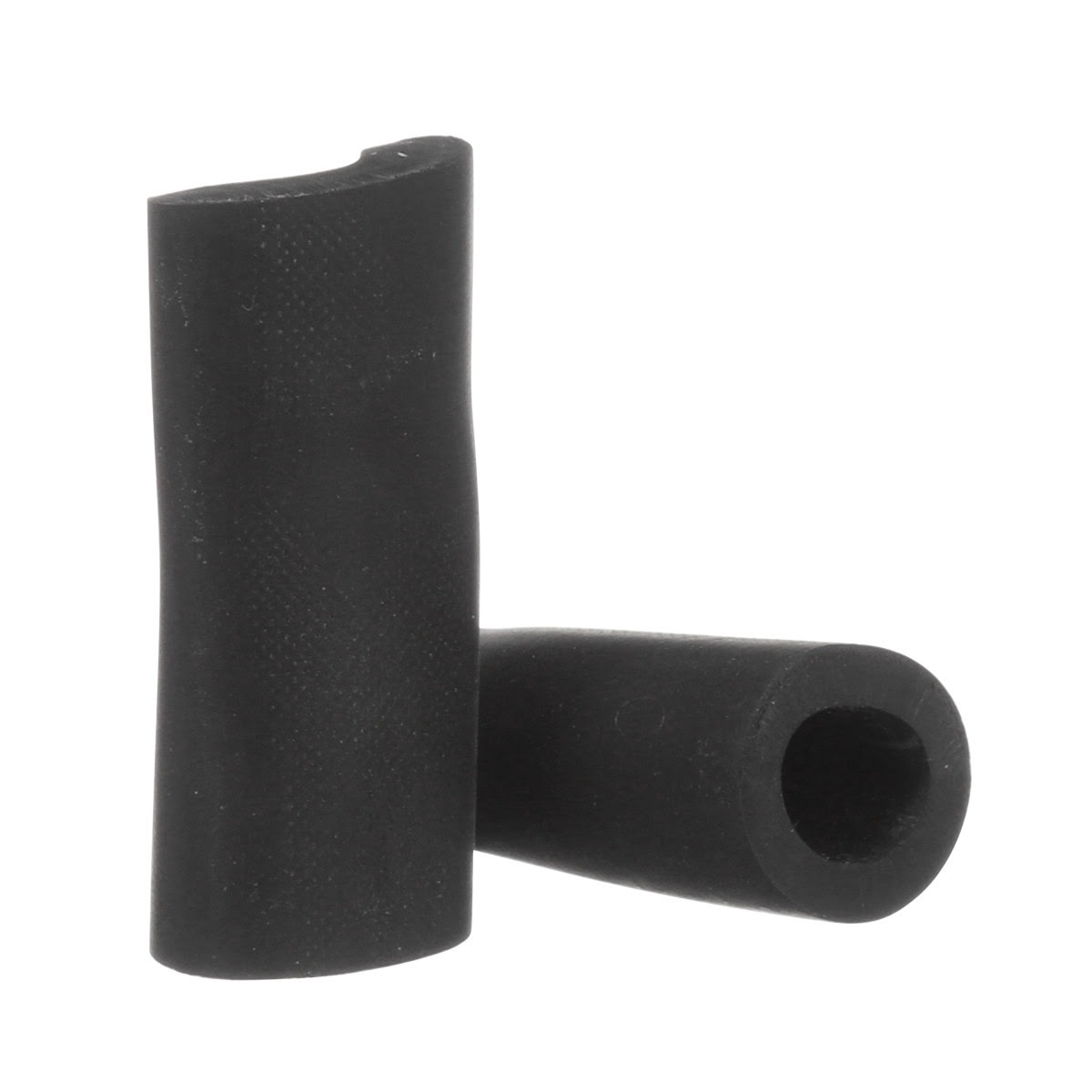

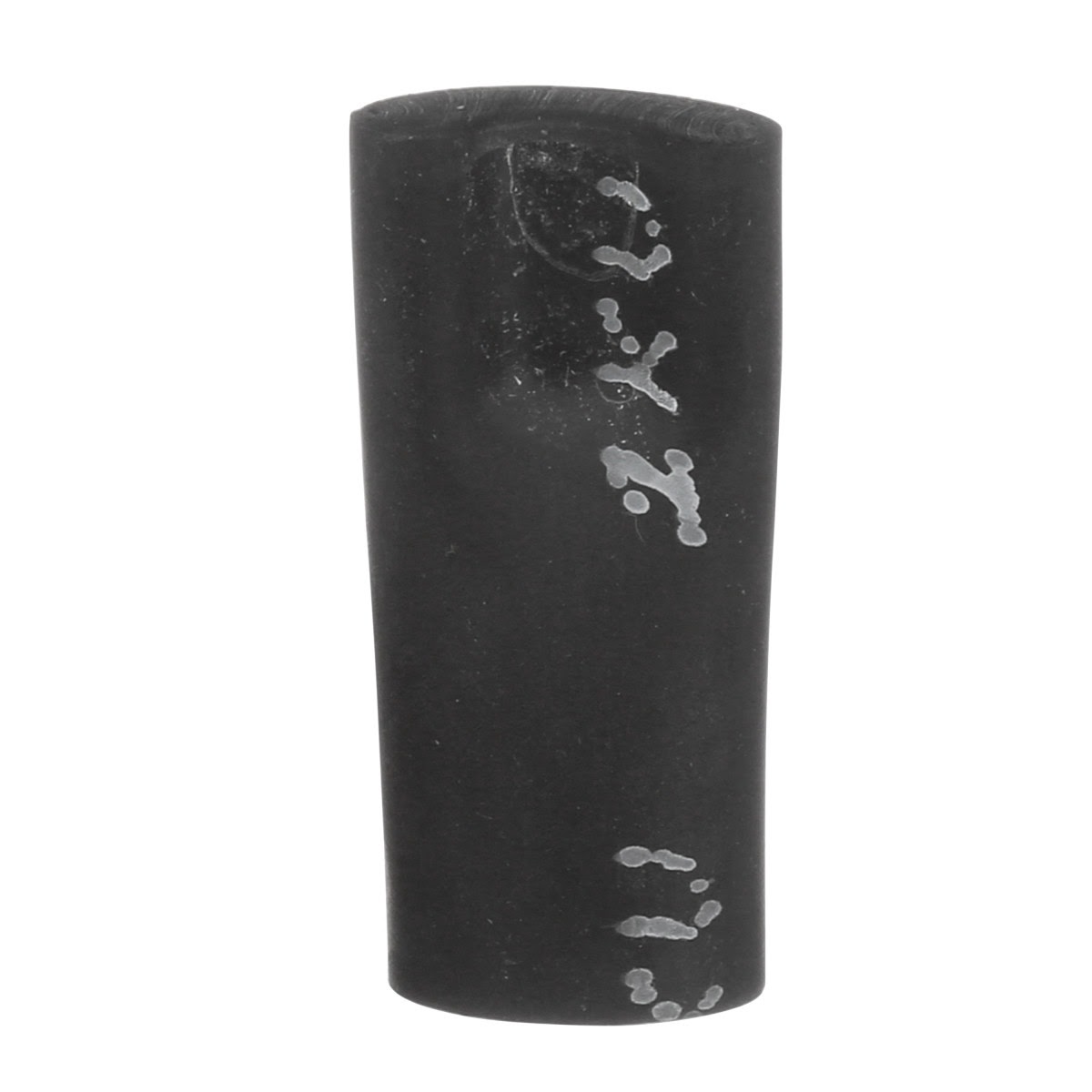

3M Motor Lead Pigtail Splice Kit 5300 is designed for splicing motor lead cables to incoming feeder cables for pigtail stub connections up to 1 kV. The slip on lug cover is made from durable EPDM rubber and uses mastic sealing strips for moisture sealing. Lugs are not included and must be purchased separately.
3M 7000005804 Includes
- (1) 3M Motor Lead Pigtail Splice Kit 5300
- (3) Pigtail lug covers
- (3) Mastic sealing strips
- (3) Tubes of silicone grease
- (1) Instruction sheet
3M 7000005804 Features
- Splices motor lead cables to incoming feeder cables
- Designed to use with copper compression 1 hole lugs (lugs sold separately)
- Slip on lug cover made of durable EPDM rubber
- For pigtail stub connections at 1 kV or less
- Moisture seal using mastic strips
- Includes components to make three splices
- CSA certified
- RoHS 2011 65 EU compliant
3M 7000005804 Specifications
| Secondary Part Number | 5300 |
| Maximum Operating Voltage | 1 kV |
| Connection Type | Pigtail (Non-shielded) |
| Splice Type | Pigtail Only |
| Feeder Conductor Size Range | 14-10 AWG |
| Motor Lead Conductor Size Range | 16-12 AWG |
| Insulation Outside Diameter Range | 0.12-0.21 in |
| Lug Cover Inner Diameter | 0.45 in |
| Lug Cover Length | 2.1 in |
| Maximum Bolt Length | 3/8 in |
| Lug Cover Material | EPDM rubber |
| Splices Per Kit | 3 |
| Certifications | CSA Certified |
| RoHS Compliance | RoHS 2011/65/EU compliant |
