3M 7000005806 Description

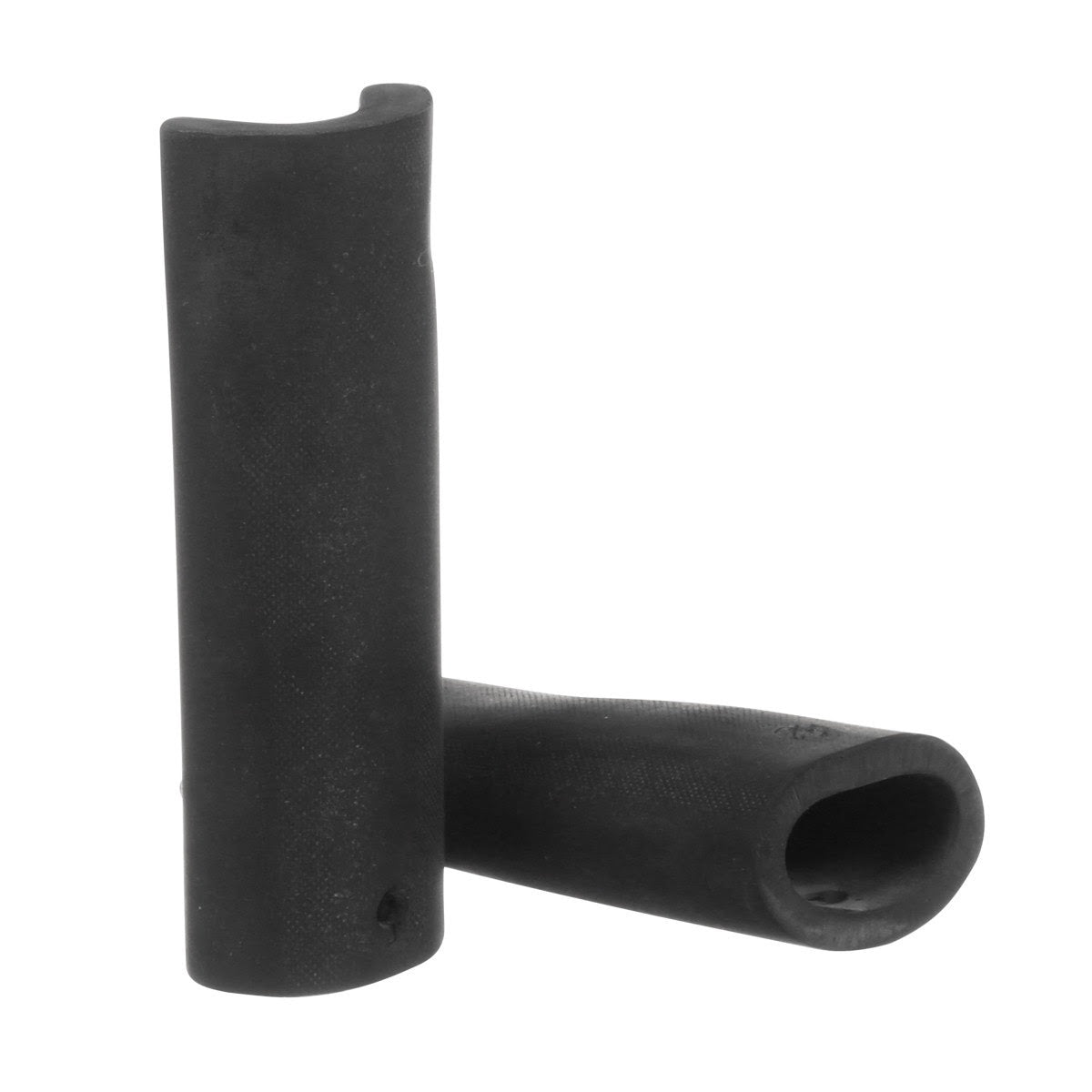

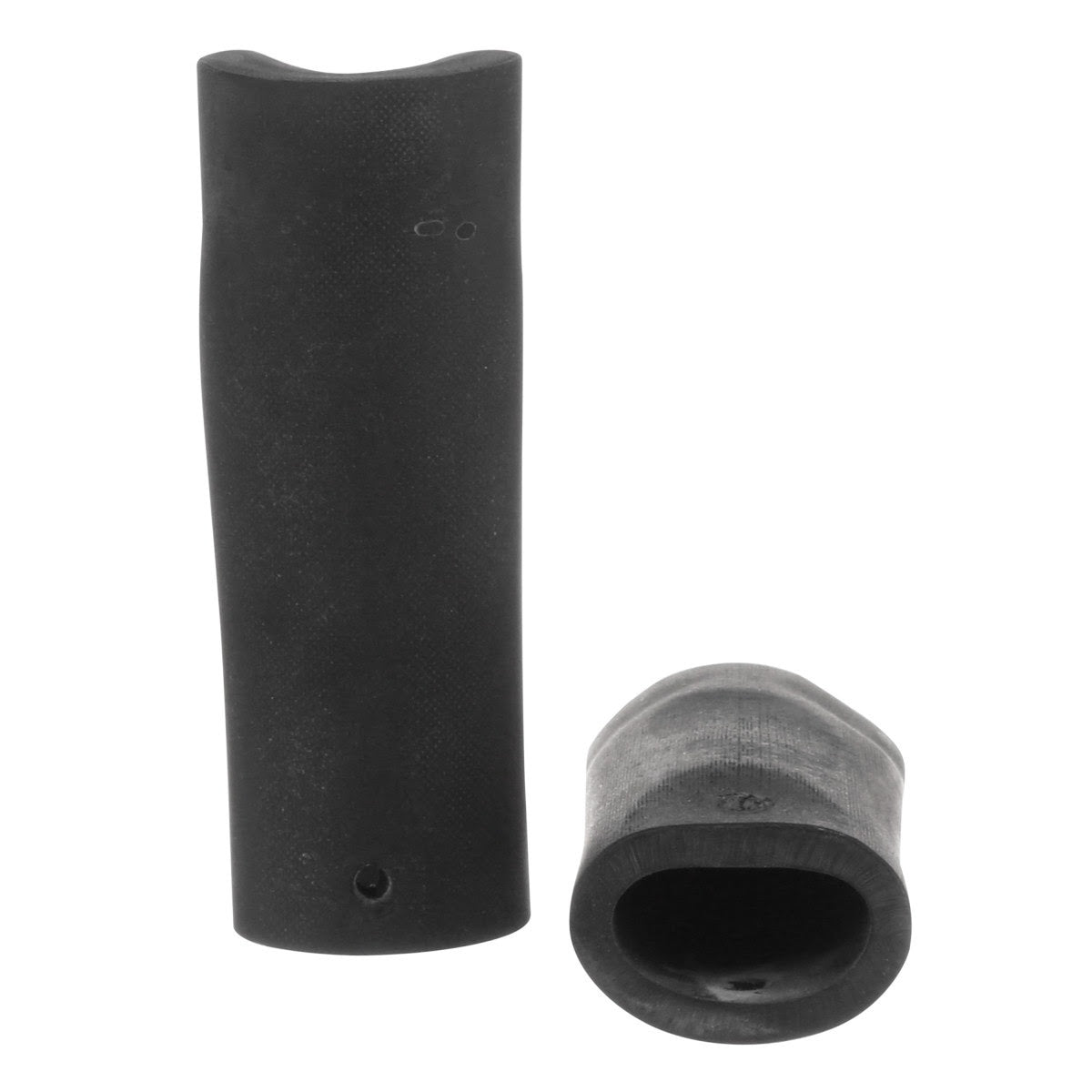

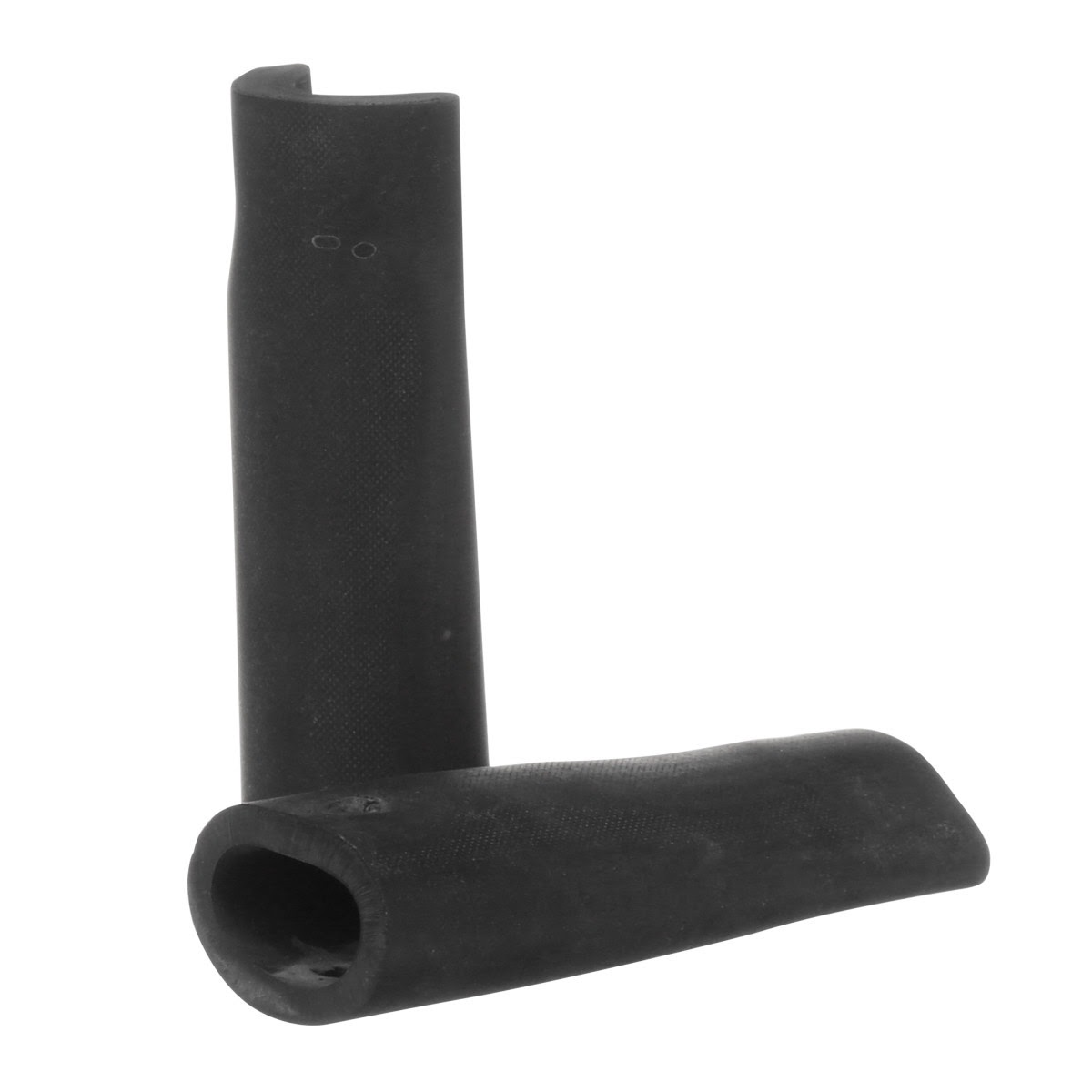

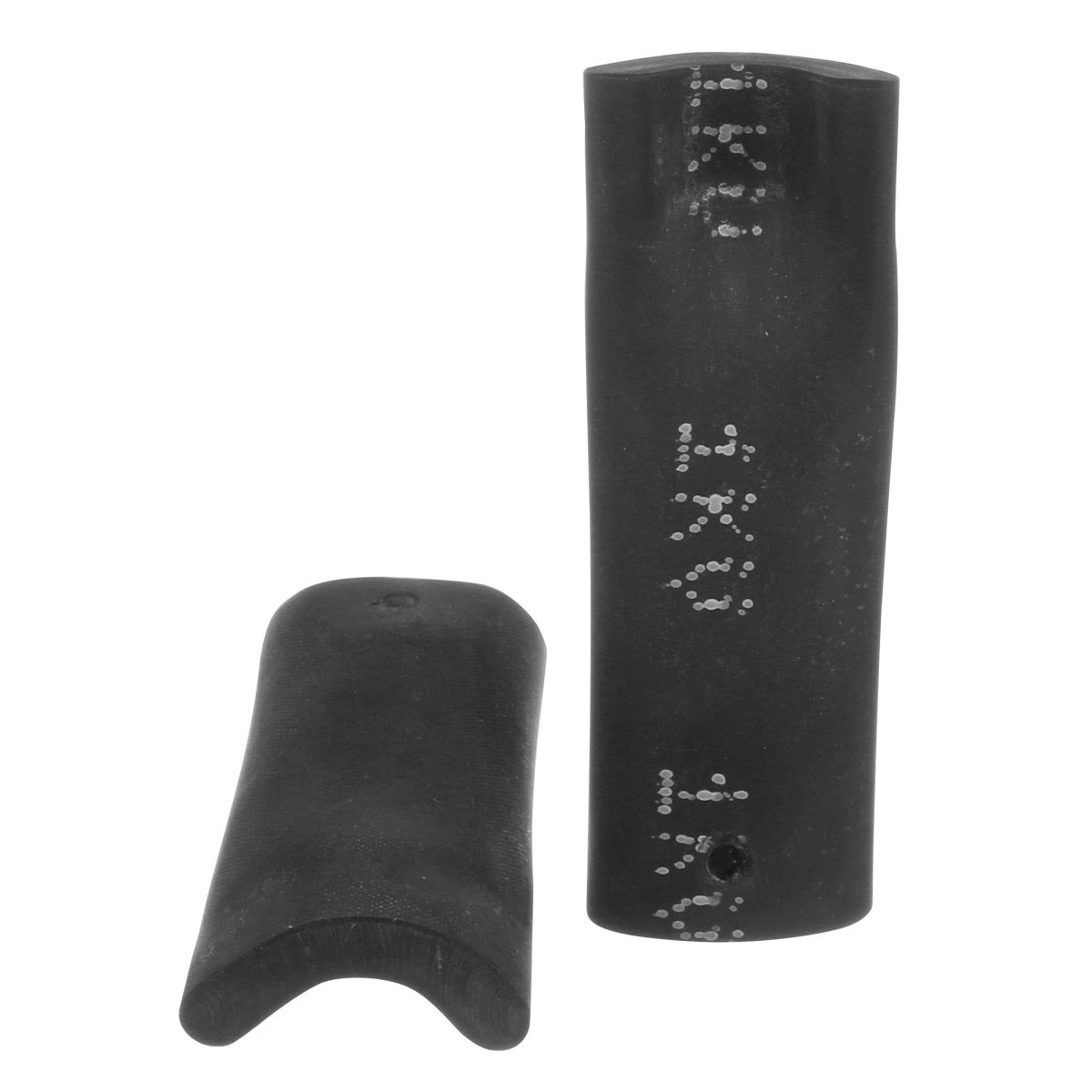

3M Motor Lead Pigtail Splicing Kits 5300 Series are designed for splicing motor lead cables to incoming feeder cables, including pigtail stub connections at 1000 volts and less. The splice main component is a slip on lug cover made from EPDM rubber. Mastic strips are used for the moisture seal. These kits are designed to be used with copper compression one hole lugs. After being crimped onto the cables, the lugs are bolted together in a pigtail configuration, then insulated and sealed with the kit. Each kit makes three splices. Lugs are required and sold separately.
3M 7000005806 Includes
- (1) 3M Motor Lead Pigtail Splice 5302 Kit
- (3) Pigtail lug covers
- (3) Mastic sealing strips
- (3) Locking pins
- (3) Tubes of silicone grease
- (1) Instruction sheet
3M 7000005806 Features
- Designed for splicing motor lead cables to incoming feeder cables
- For pigtail stub connections up to 1 kV
- Works with copper compression one hole lugs lugs sold separately
- Slip on lug cover made from EPDM rubber
- Mastic strips provide moisture sealing
- Each kit makes three splices
- CSA certified
- RoHS 2011 65 EU compliant
3M 7000005806 Specifications
| Part Number | 5302 |
| Maximum Operating Voltage | 1 kV |
| Connection Type | Pigtail non shielded |
| Splice Type | Pigtail Only |
| Feeder Conductor Size | 2-1/0 AWG |
| Motor Lead Conductor Size | 4-1/0 AWG |
| Insulation Outside Diameter Range | 0.34-0.54 in |
| Lug Cover Length | 4.2 in |
| Lug Cover Inner Diameter | 0.95 in |
| Maximum Bolt Length | 3/4 in |
| Material | EPDM rubber |
| Cable Shielding | Single Conductor Cable |
| Color | Black |
Toolup Part # :
855201
