At a Glance
Length
5.3 in
Material
EPDM
For Use On
Copper
Application
Electrical
Description
Description
3M 7000005807 Description

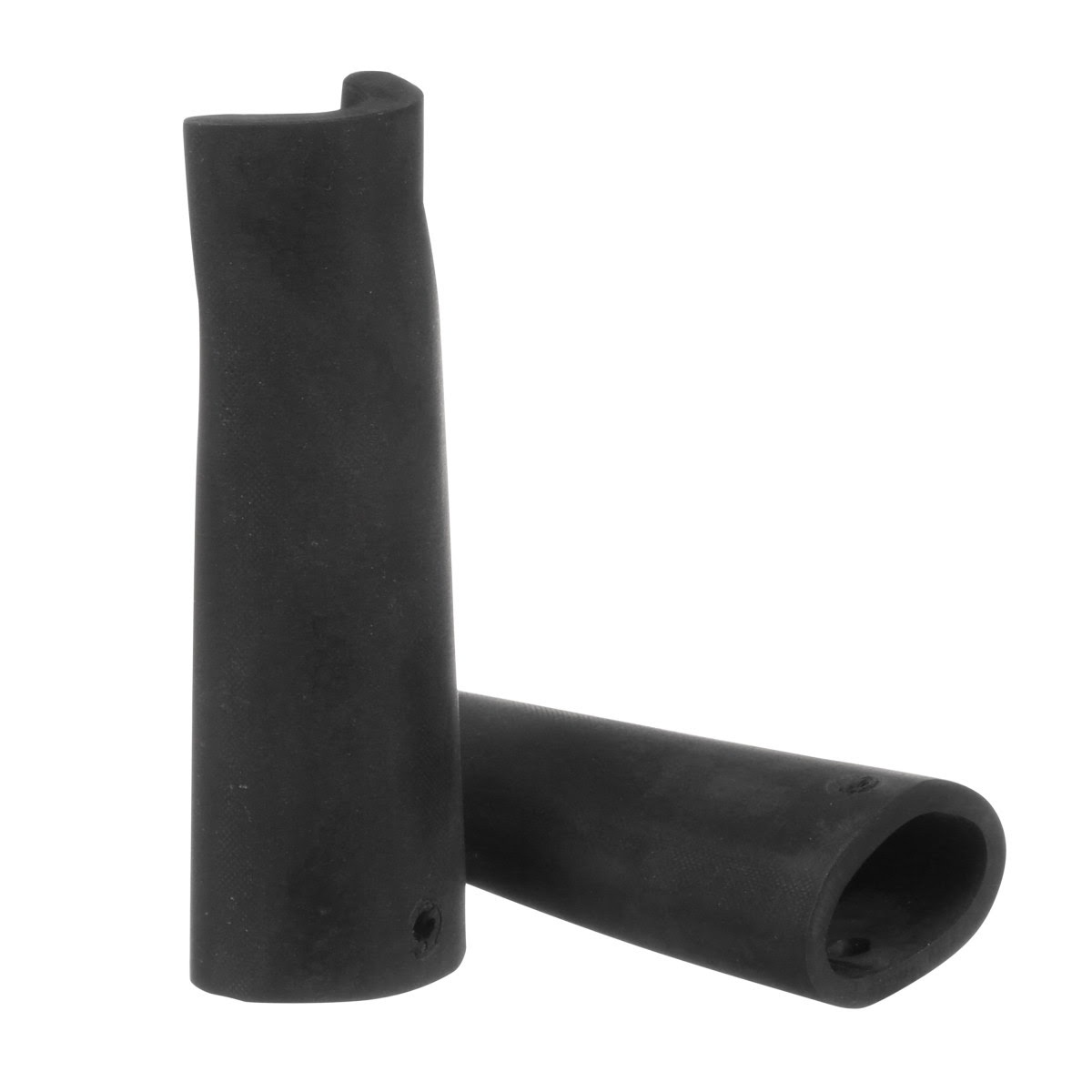

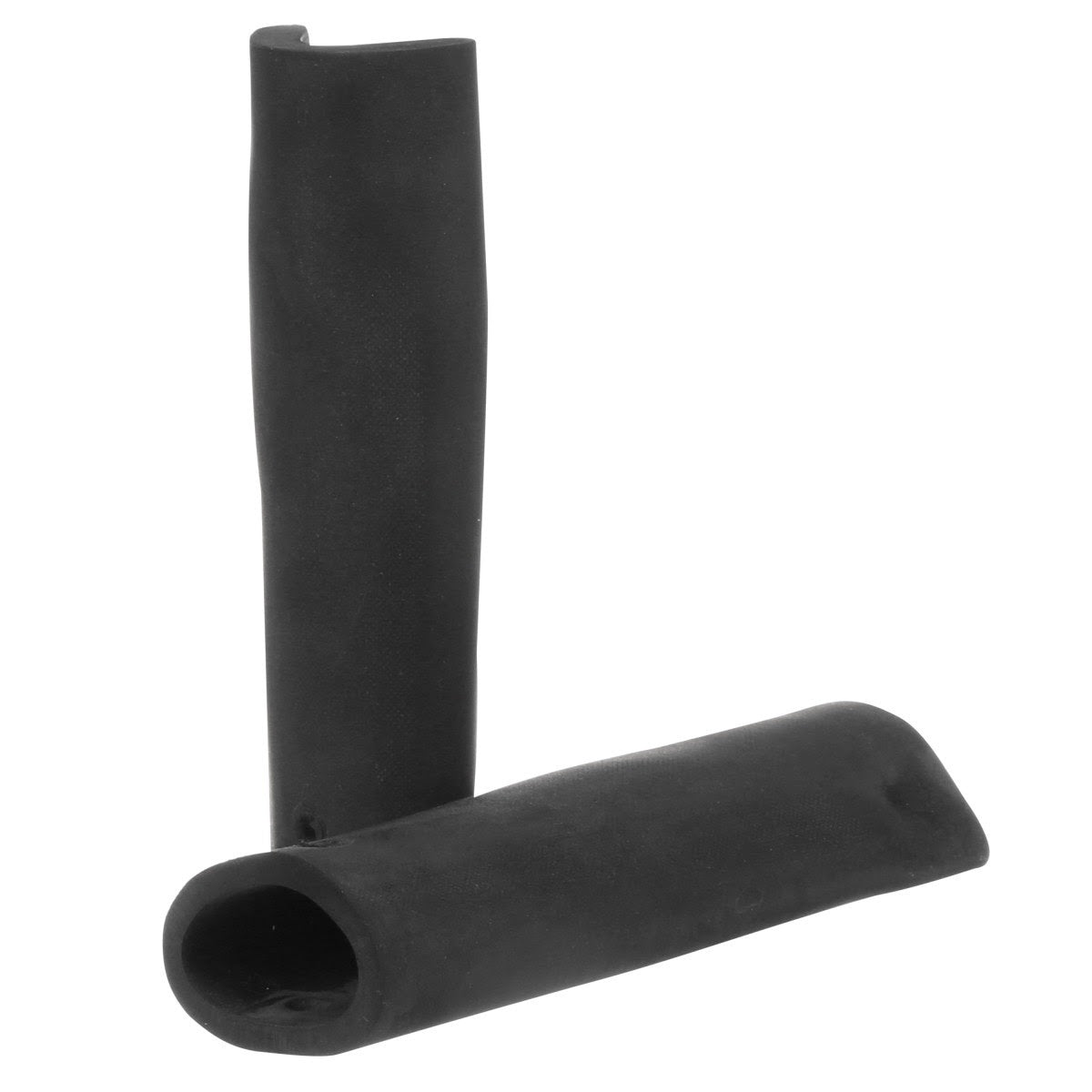

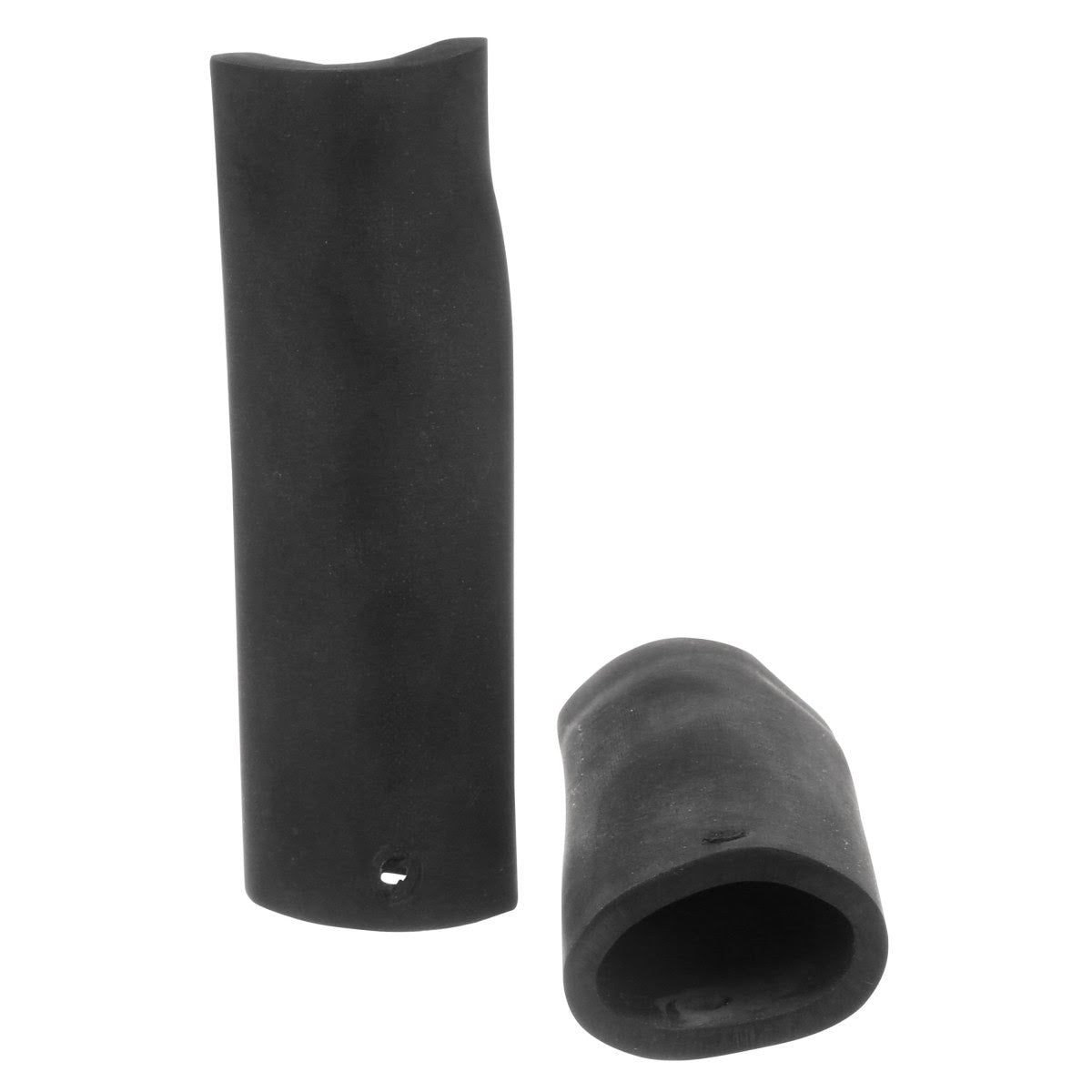

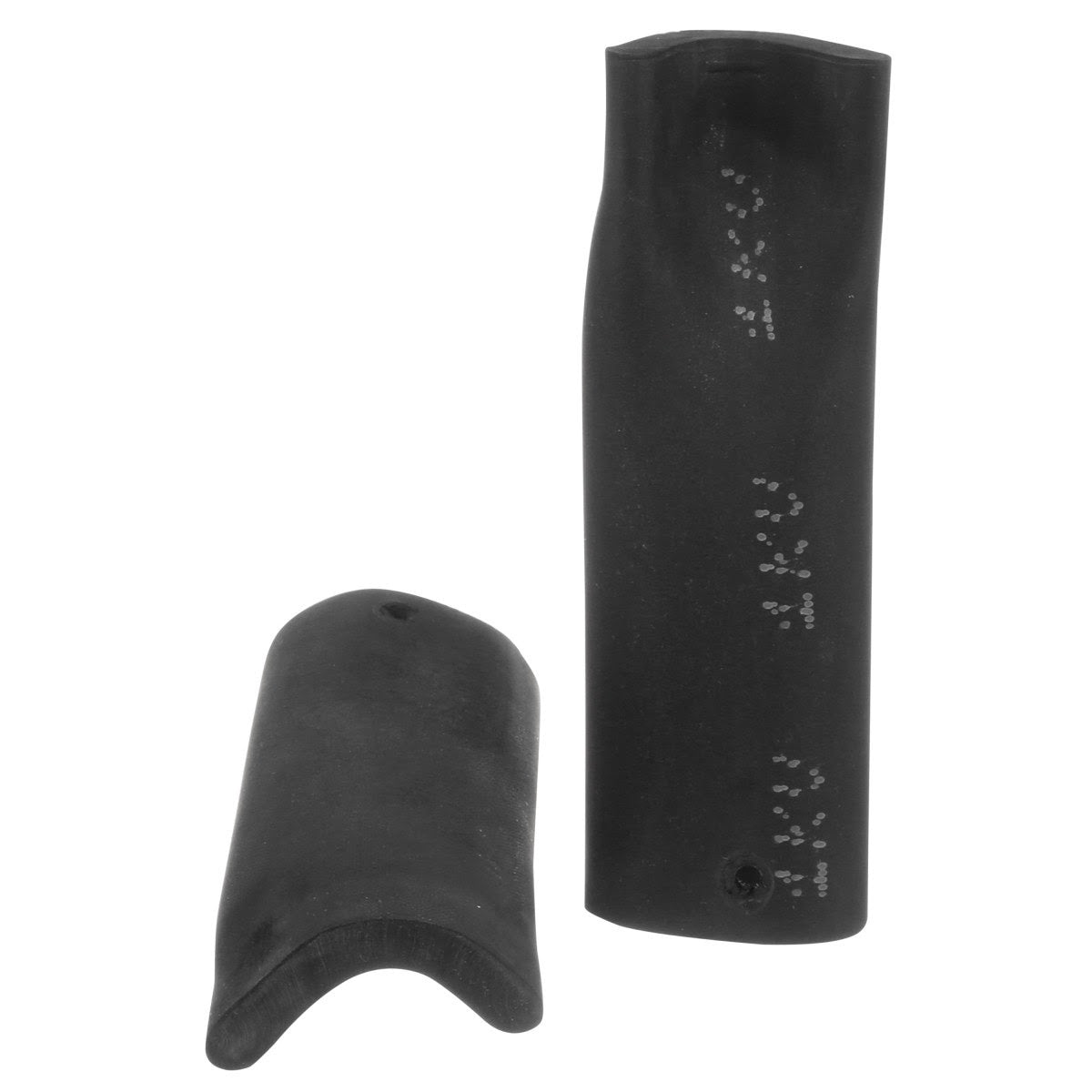

3M Motor Lead Pigtail Splice Kit 5303 is designed to splice motor lead cables to incoming feeder cables for pigtail non shielded connections up to 1 kV. The slip on lug cover is made of durable EPDM rubber and uses mastic sealing strips to help provide a moisture resistant seal. Kit makes three splices and is intended for use with copper compression one hole lugs which are sold separately.
3M 7000005807 Includes
- (1) 3M Motor Lead Pigtail Splice Kit 5303
- (3) Pigtail lug covers
- (3) Mastic sealing strips
- (3) Locking pins
- (3) Tubes of silicone grease
- (1) Instruction sheet
3M 7000005807 Features
- Designed for splicing motor lead cables to incoming feeder cables
- For pigtail stub connections at 1000V or less
- Compatible with copper compression one hole lugs sold separately
- Slip on lug cover made from EPDM rubber
- Mastic sealing strips help provide a moisture seal
- Each kit makes three splices
- CSA Certified
- RoHS 2011 65 EU compliant
3M 7000005807 Specifications
| Part Number | 5303 |
| Maximum Operating Voltage | 1 kV |
| Connection Type | Pigtail Non shielded |
| Splice Type | Pigtail Only |
| Maximum Feeder Lead Size | 250 kcmil |
| Maximum Motor Lead Size | 250 kcmil |
| Lug Connection | 1 hole |
| Insulation Outside Diameter Range | 0.40-0.80 in |
| Lug Cover Inner Diameter | 1.20 in |
| Lug Cover Length | 5.3 in |
| Maximum Bolt Length | 1-1/4 in |
| Material | EPDM rubber |
| Certifications | CSA |
| RoHS | RoHS 2011/65/EU compliant without exemption |
| Shelf Life | 1800 days |
