3M 7000006042 Description

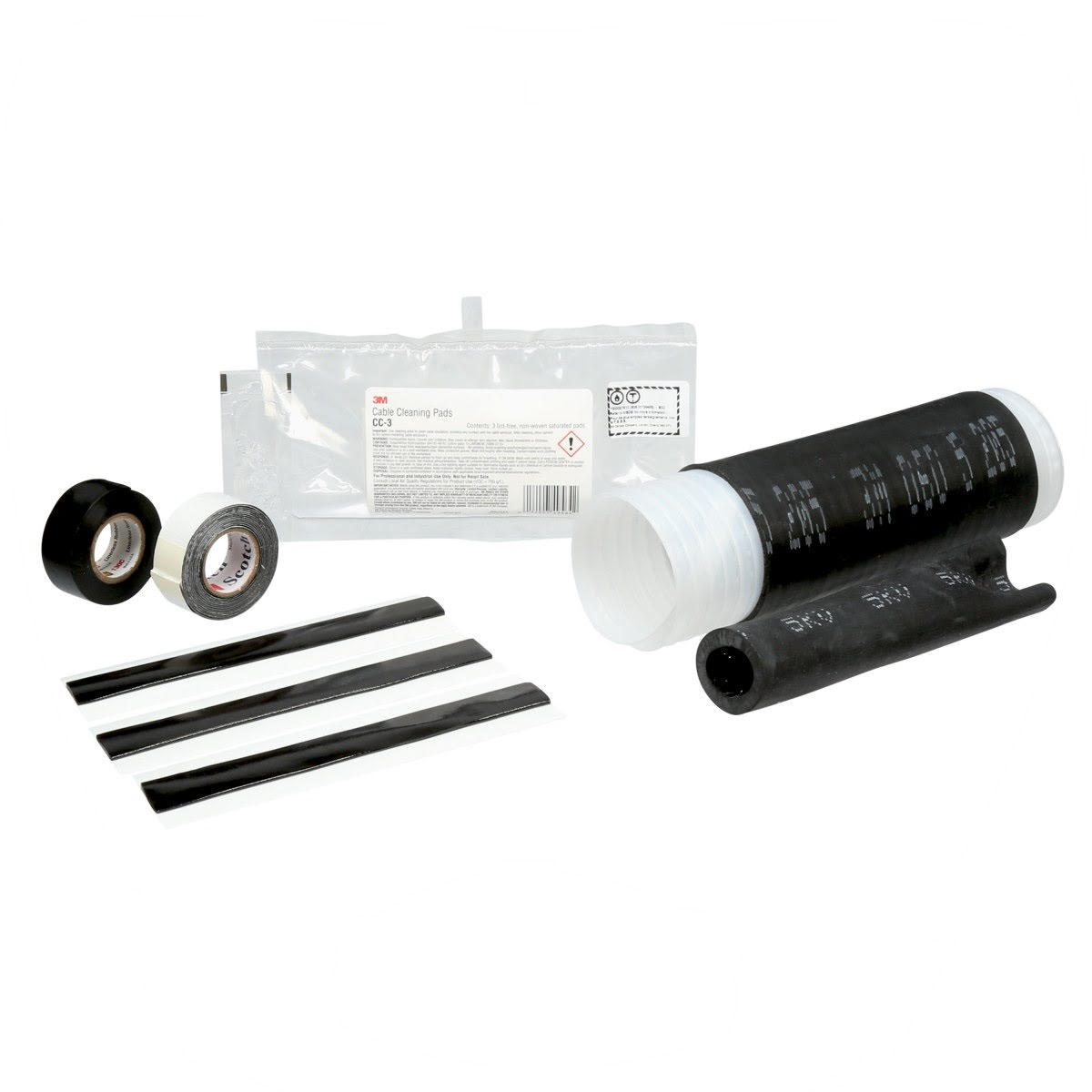

The 3M 5300 Series Motor Lead Pigtail Splice Kit 5322 is a non-shielded pigtail splice solution designed for 5 to 8 kV motor lead applications. It features a durable EPDM rubber slip-on splice cover and mastic sealing strips to help provide moisture sealing and stress control for copper conductor splicing.
3M 7000006042 Includes
- (1) Motor Lead Pigtail Splice Kit 5322
- (3) Pigtail lug covers
- (3) Cold shrink tubes
- (3) Silicone grease tubes
- (3) Solvent cleaning cloths
- (3) Splicing tape 130C
3M 7000006042 Features
- Non-shielded motor lead pigtail splice kit for 5 kV to 8 kV applications

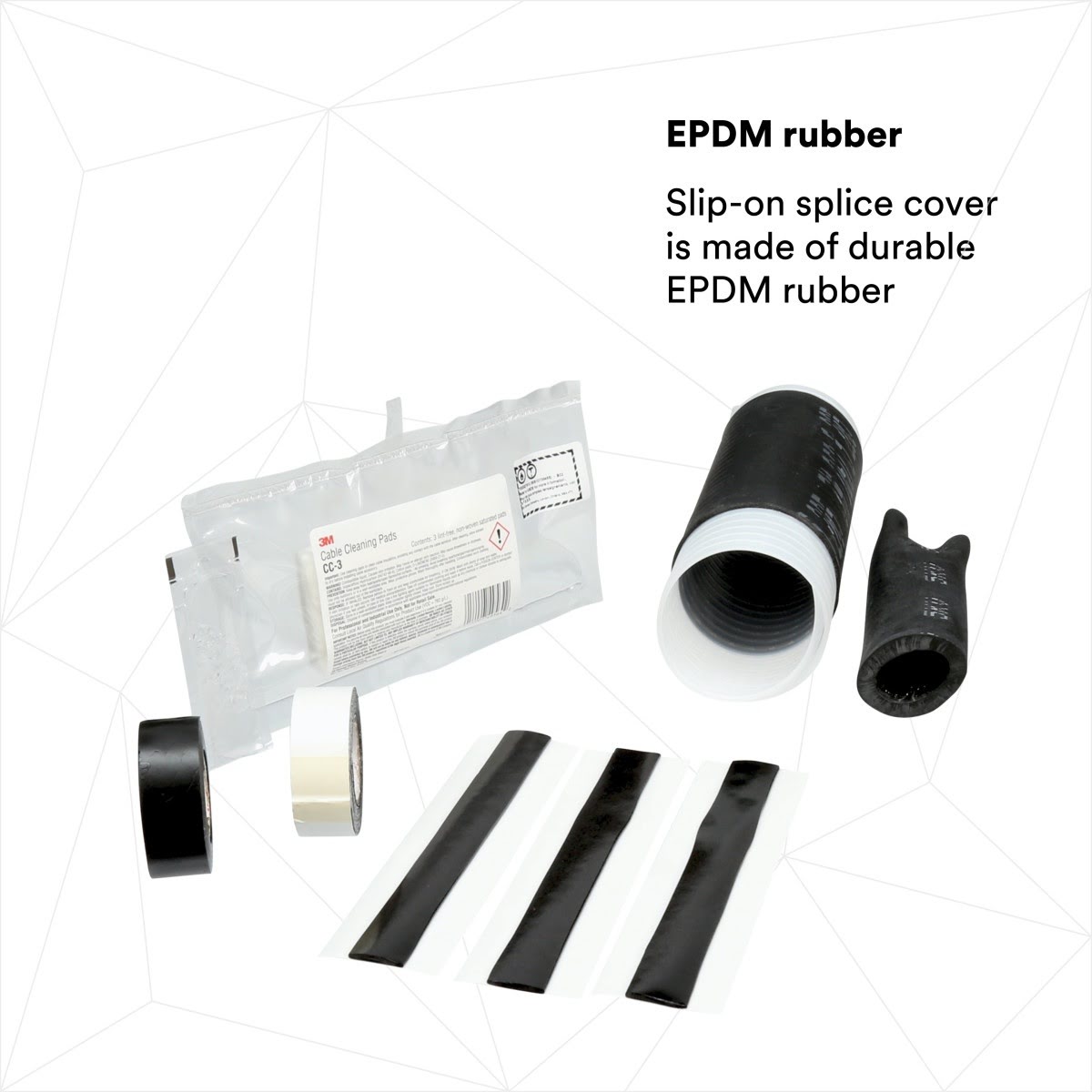

- Slip-on splice cover made of durable EPDM rubber

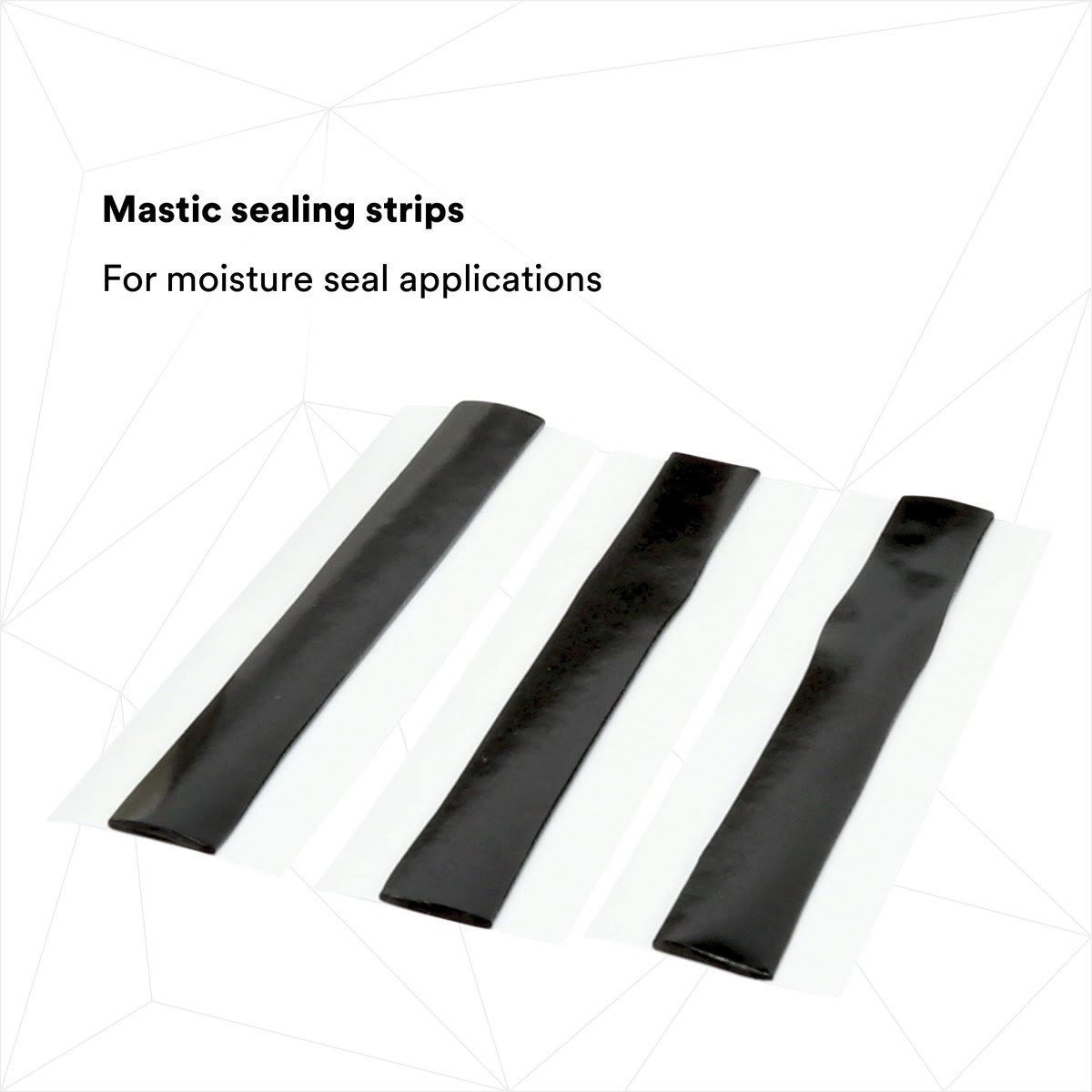

- Mastic sealing strips for moisture seal applications
- High dielectric constant stress control helps reduce electrical stress
- Compatible with polyethylene and cross linked cable and ethylene propylene rubber cable
- Designed for copper conductor splicing

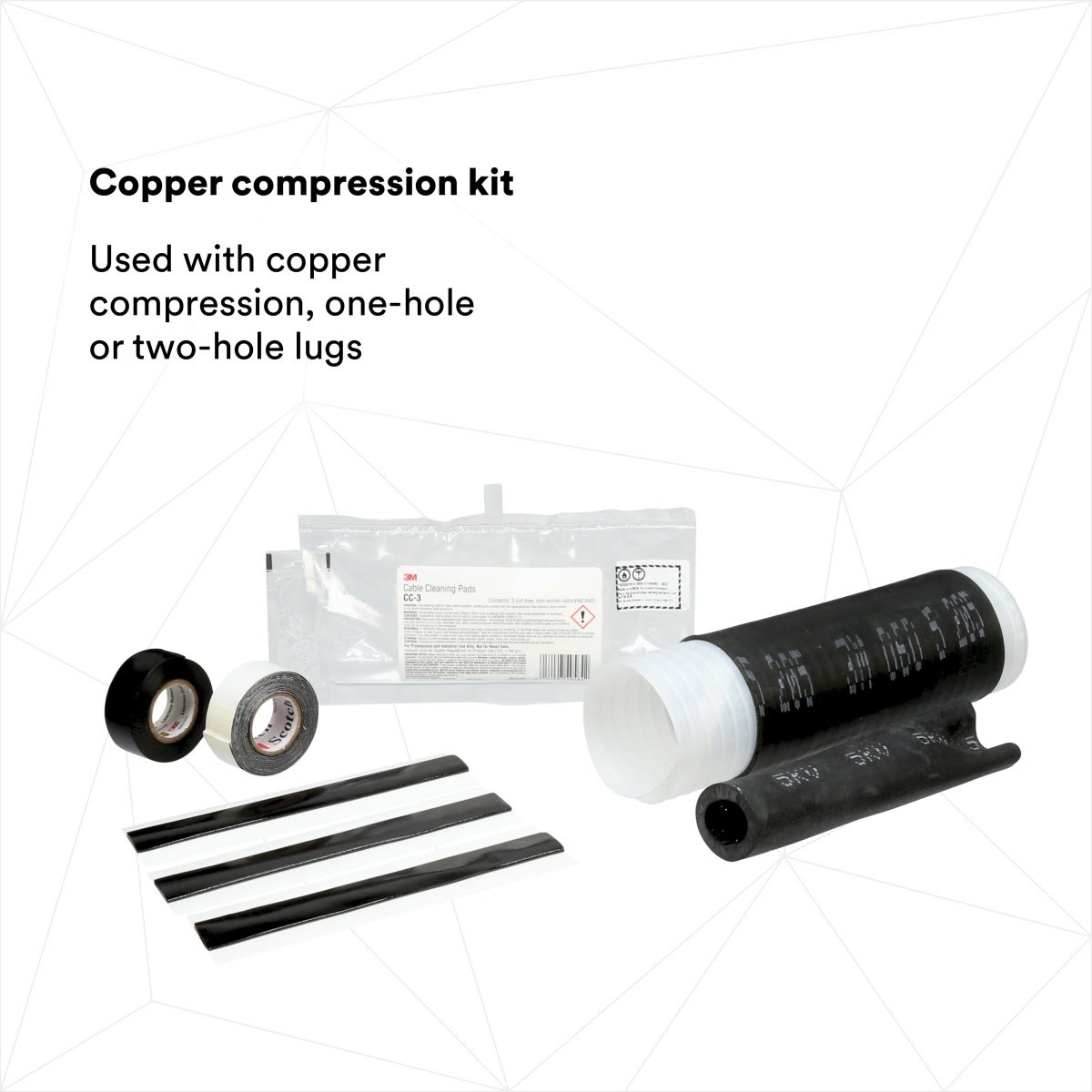

- Used with copper compression one-hole or two-hole lugs

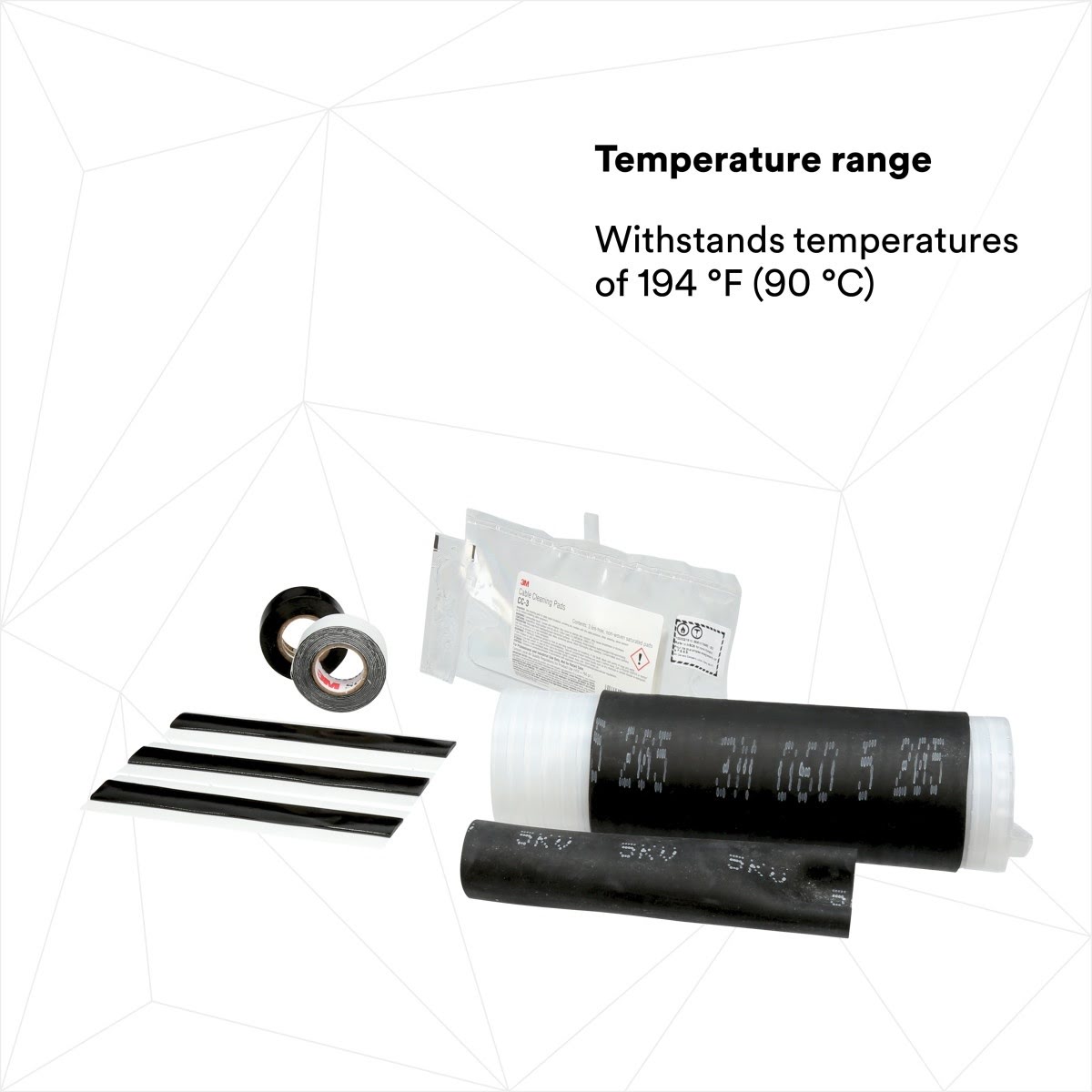

- Rated to withstand temperatures up to 194 Degree F (90 Degree C)

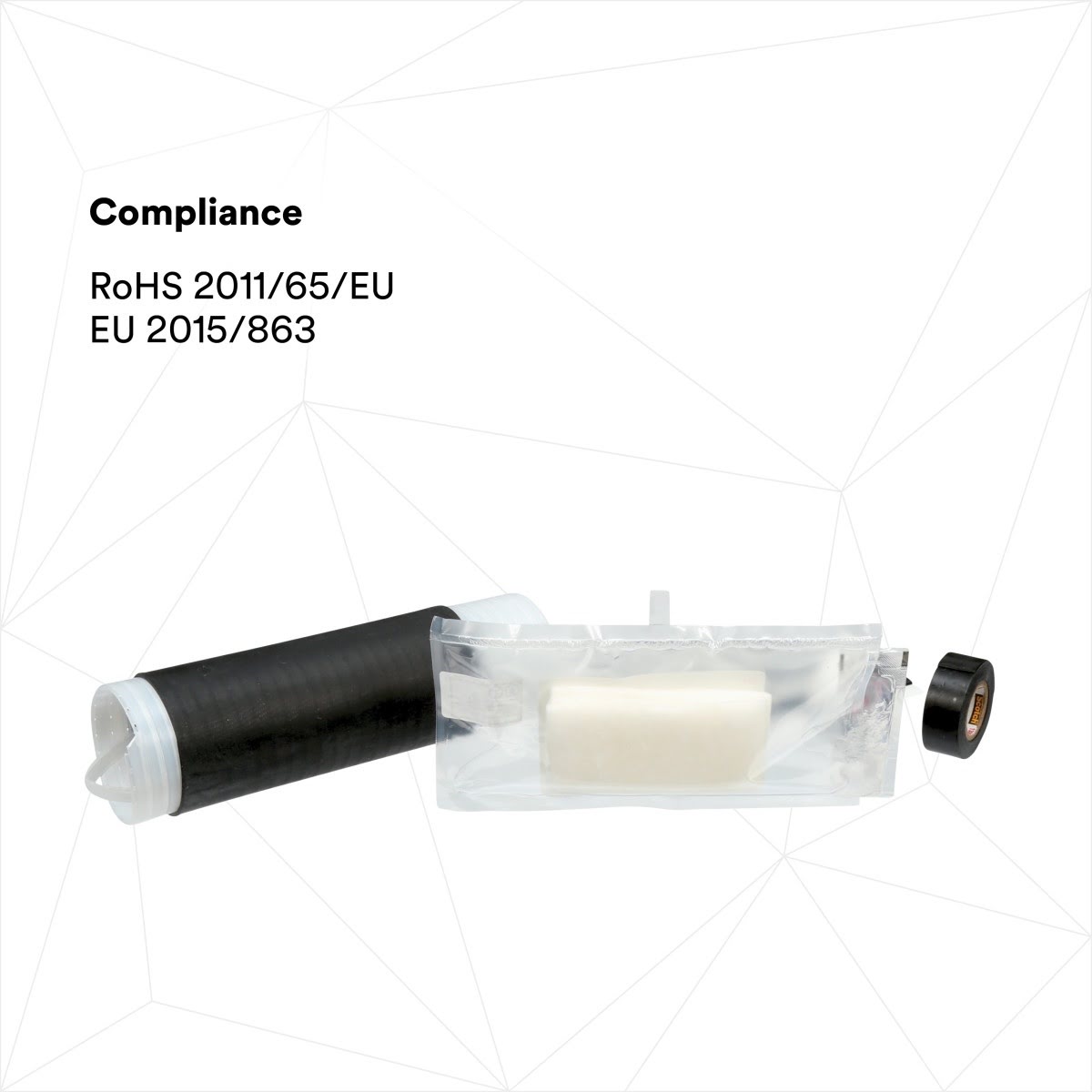

- RoHS 2011/65/EU compliant without exemption
3M 7000006042 Specifications
| Part Number | 5322 |
| Series | 5300 Series |
| Product Type | Motor Lead Pigtail Splice Kit |
| Cable Shielding | Non-shielded |
| Voltage Range | 5 kV to 8 kV |
| Maximum Operating Voltage | 8 kV |
| Splice Type | Pigtail Only |
| Insulation Outside Diameter Range | 0.43-0.65 in |
| Lug Cover Length | 8-9 in |
| Maximum Bolt Length | 3/4 in |
| Maximum Feeder Lead Size | 1/0 AWG |
| Maximum Motor Lead Size | 1/0 AWG |
| Material | EPDM rubber |
| Color | Black |
| Temperature Rating | 194 Degree F (90 Degree C) |
