3M 7000029146 Description
3M UHMW Film Tape 5423 is a transparent UHMW polyethylene film tape with a rubber adhesive designed to protect surfaces from abrasion and reduce friction in sliding and high wear applications. The tape includes a liner to help with die cutting and fabrication for custom shapes and lengths.
3M 7000029146 Includes

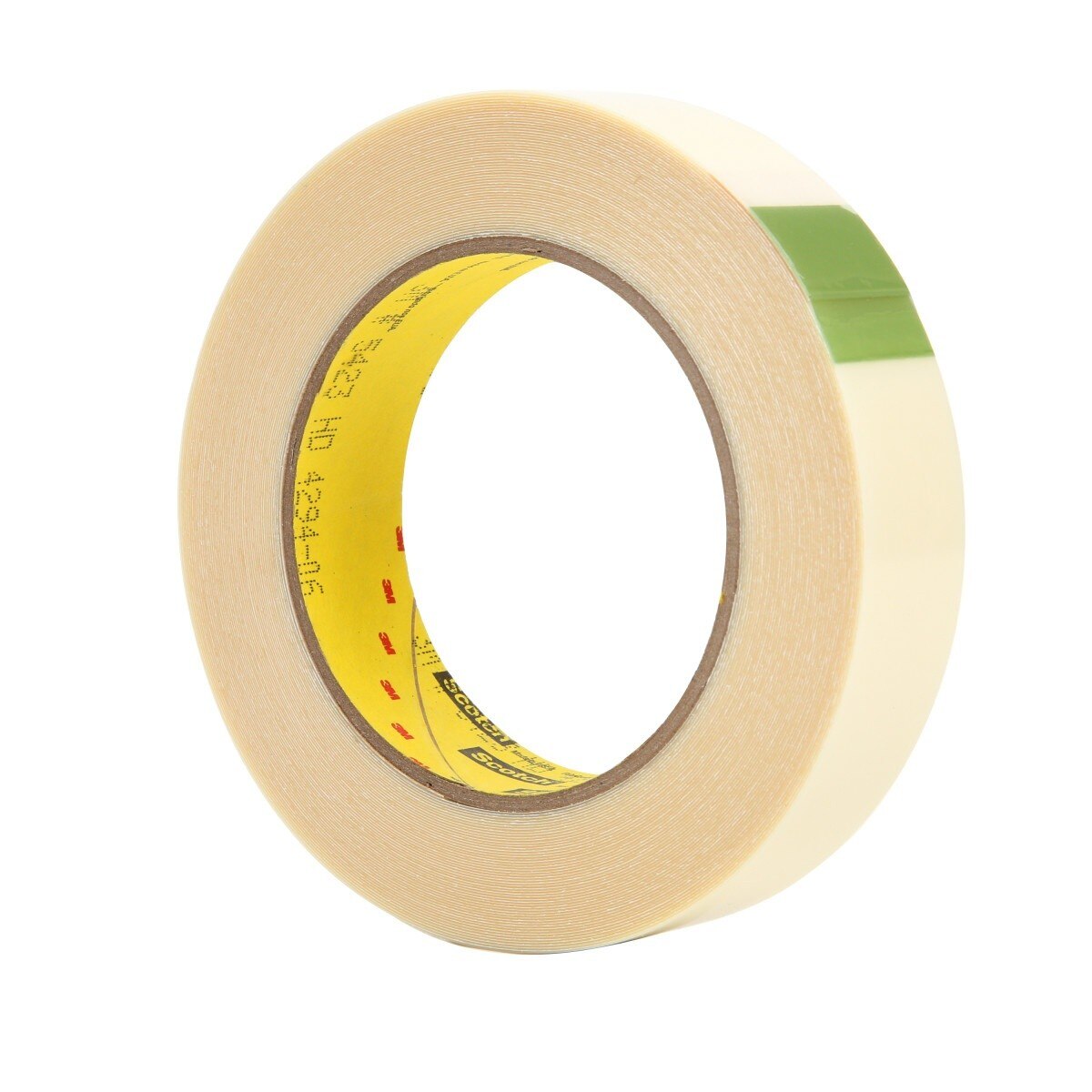

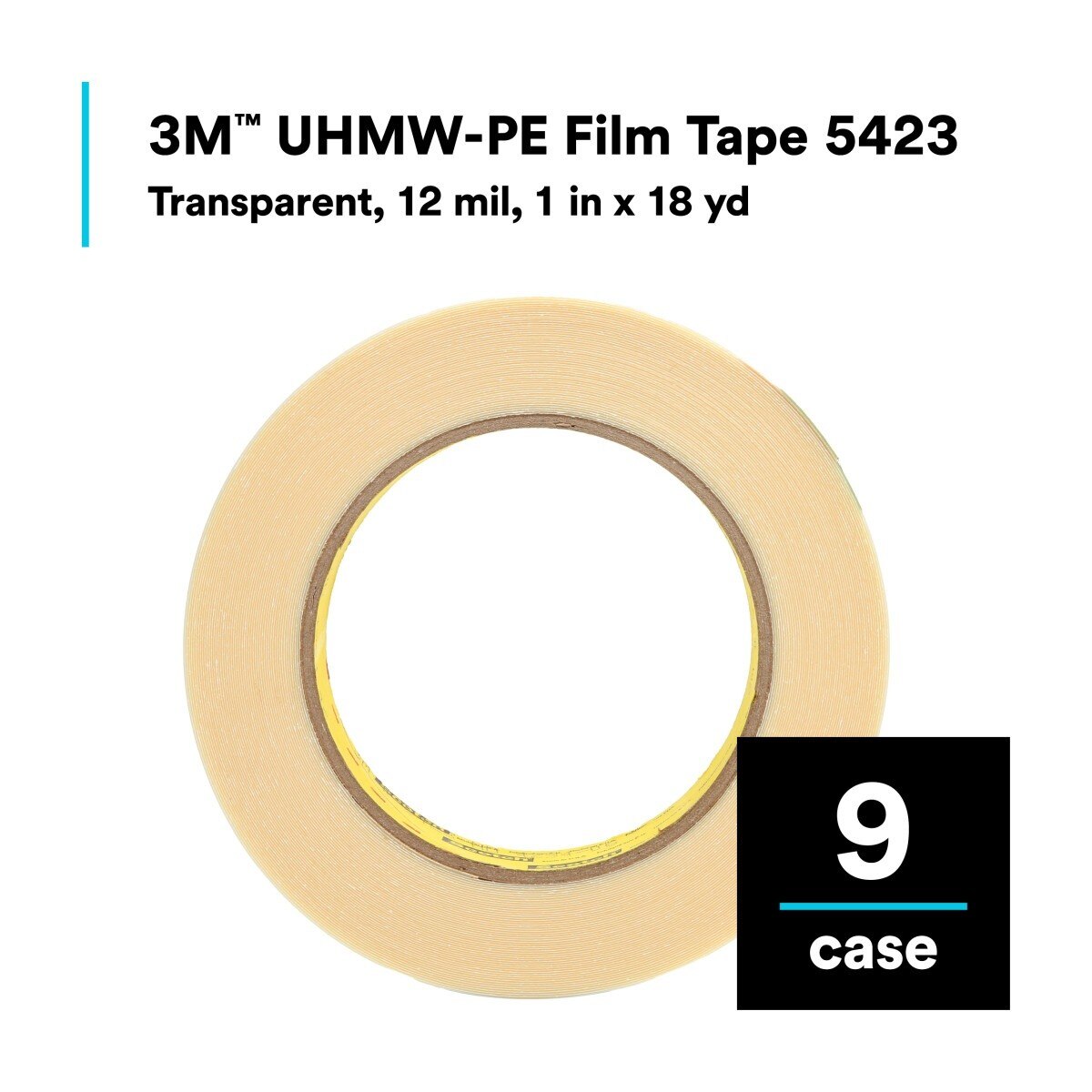

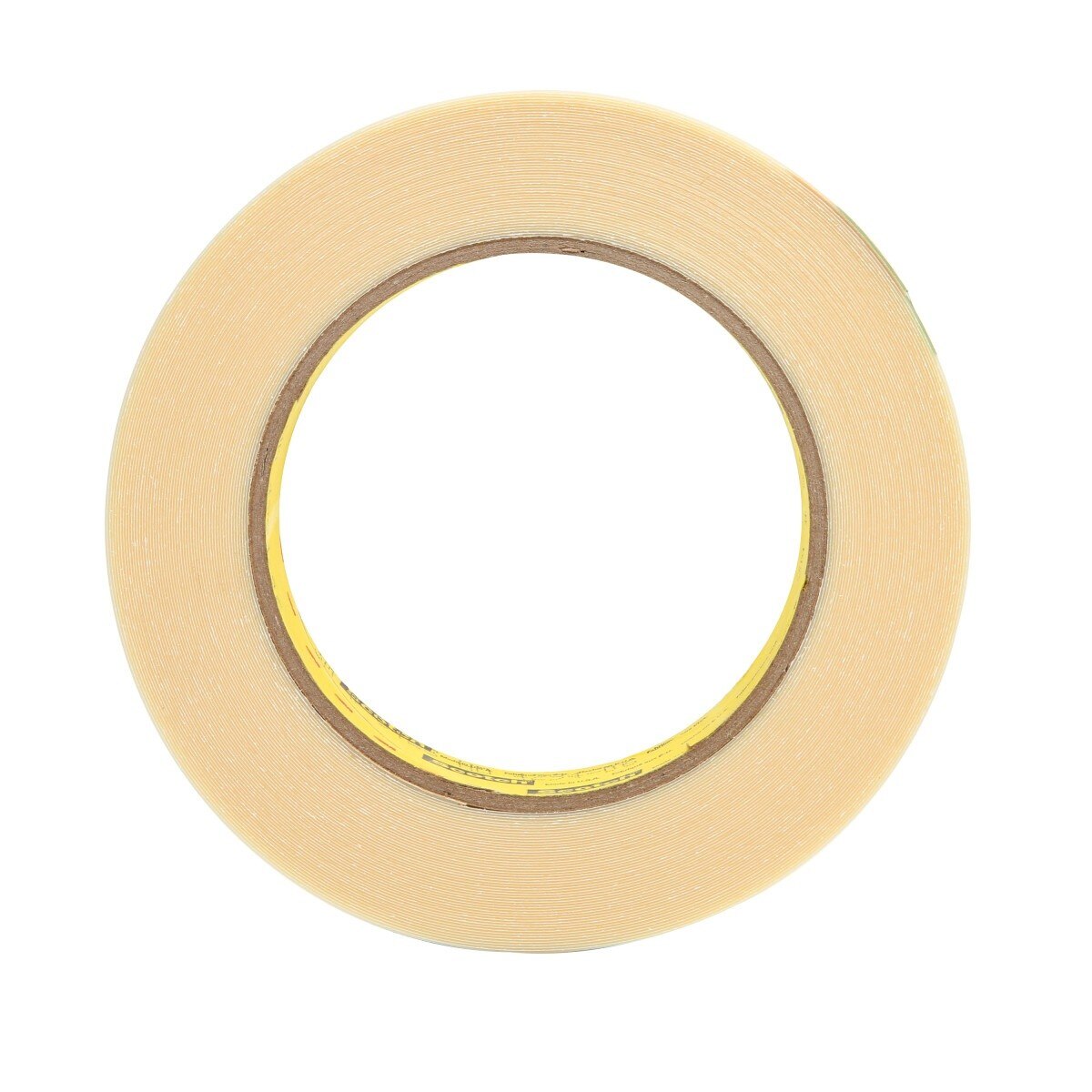

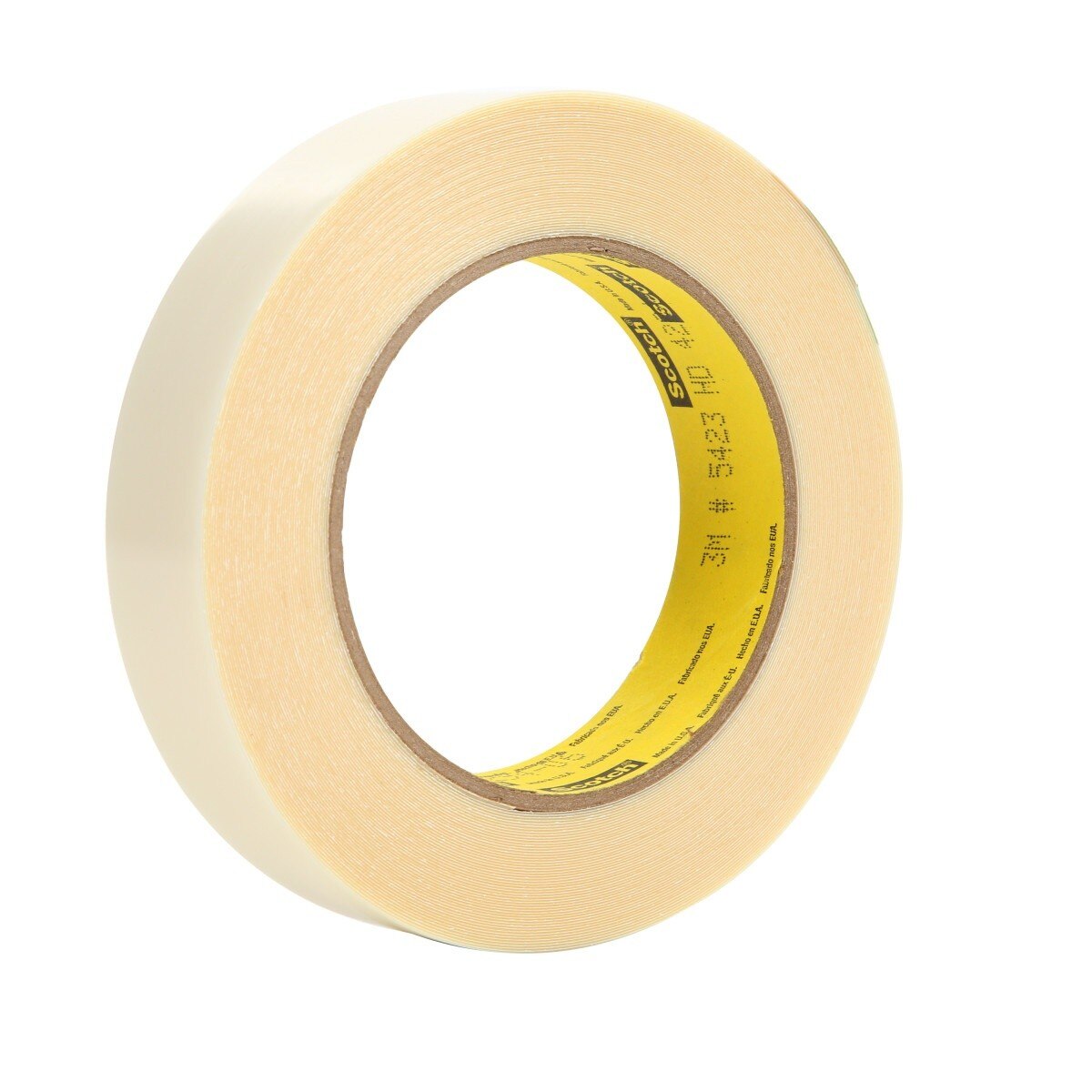

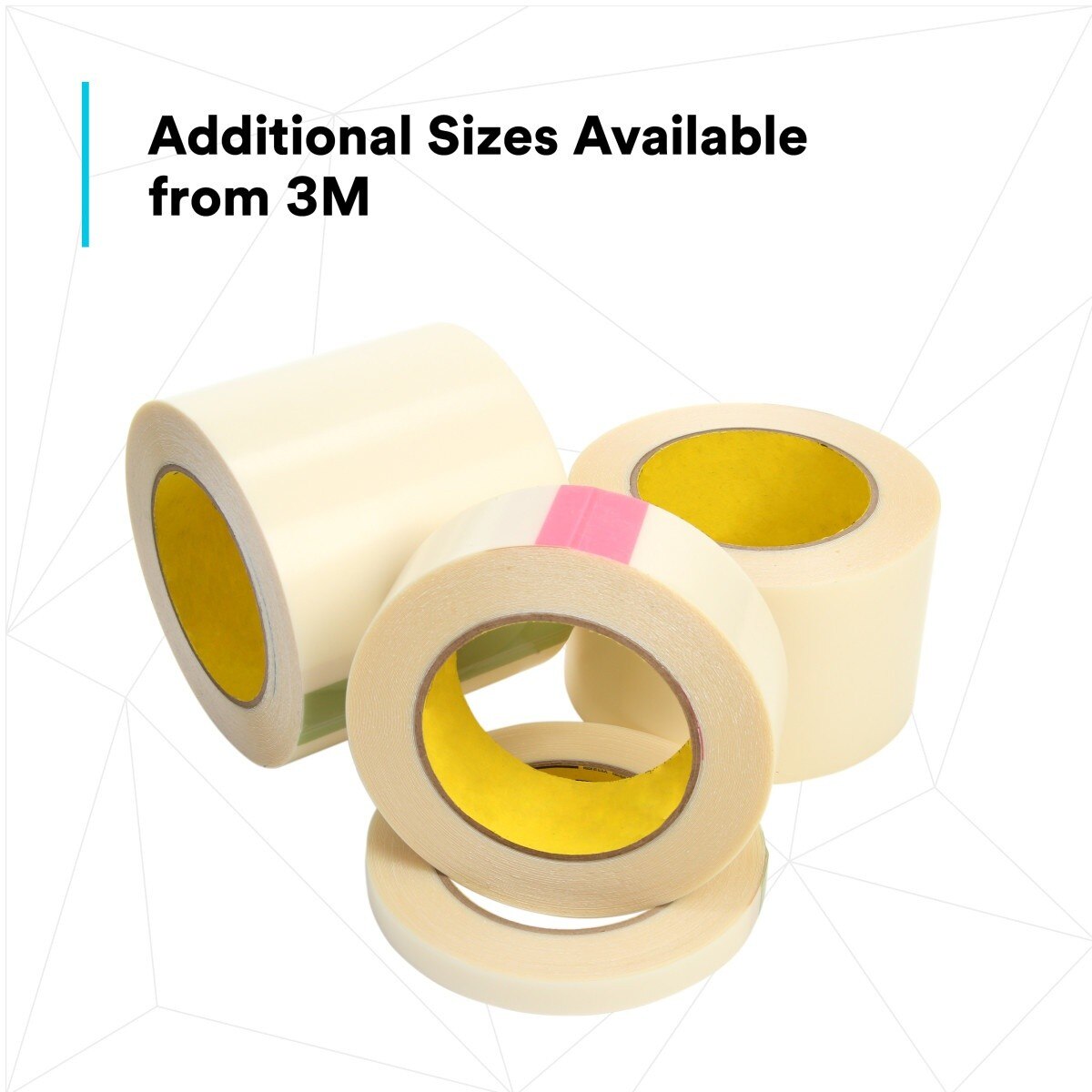

- (9) UHMW Film Tape 5423 Roll, Transparent, 1 in x 18 yd, 12 mil
3M 7000029146 Features

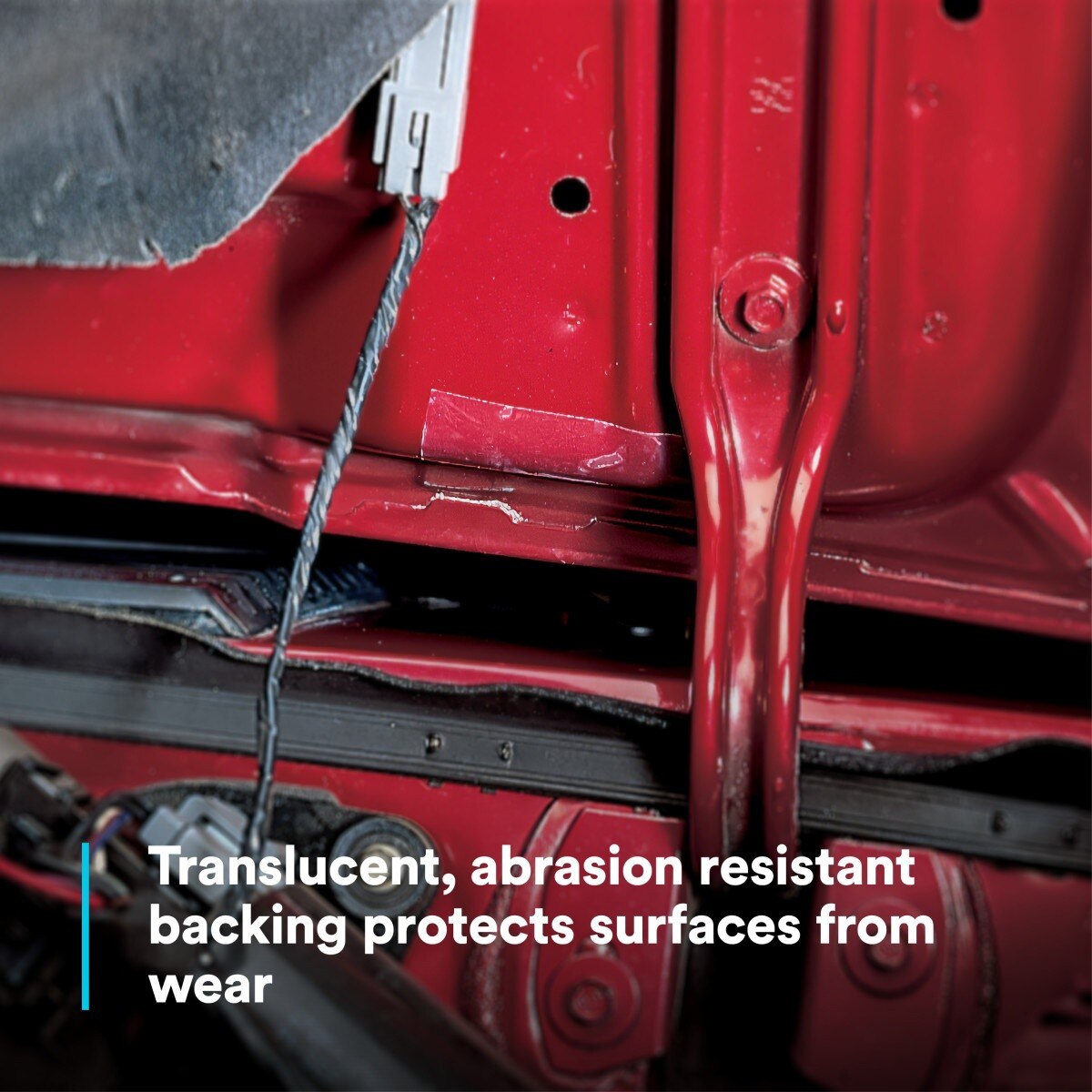

- Transparent UHMW polyethylene backing helps protect surfaces from abrasion and wear

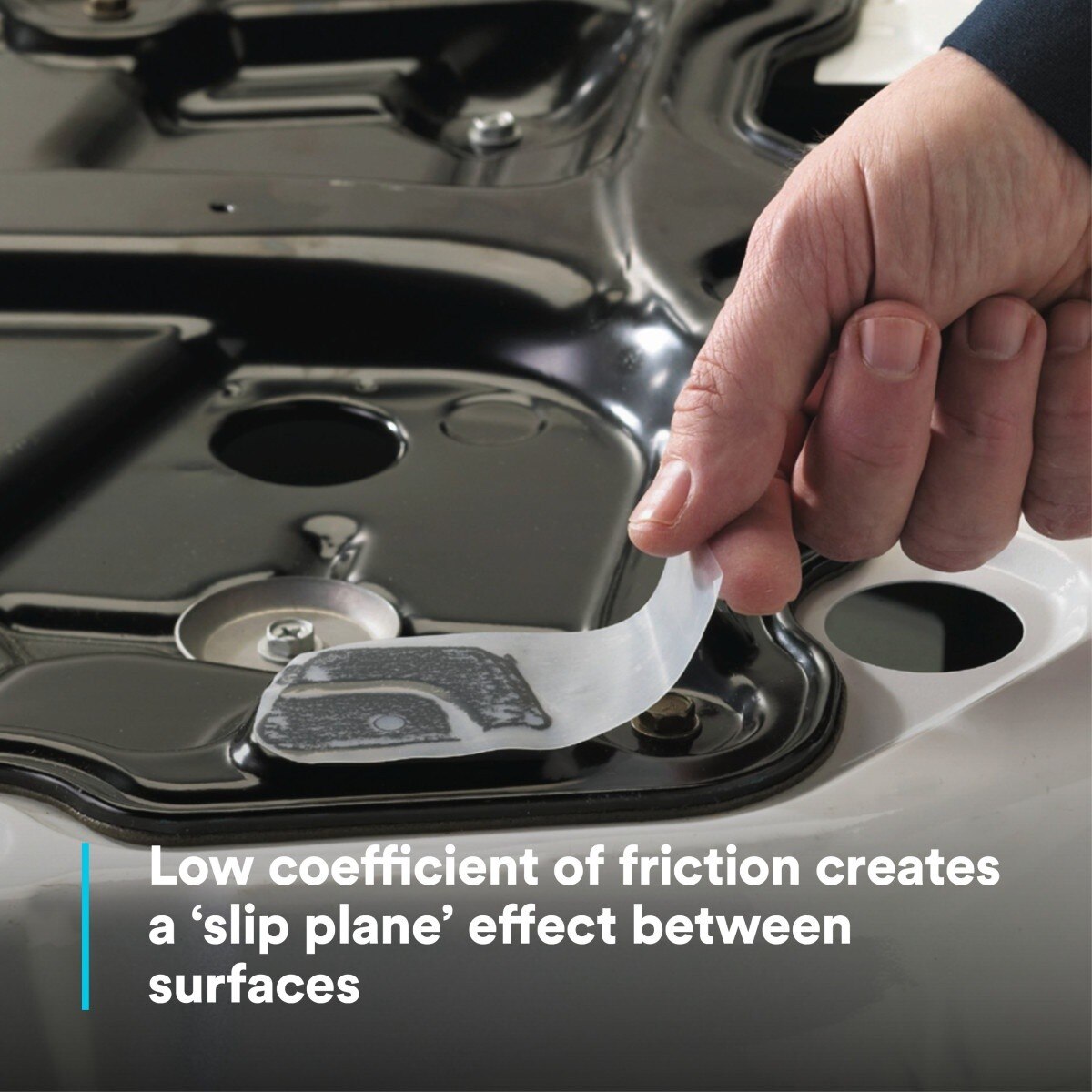

- Very low coefficient of friction helps create a slip plane effect between surfaces

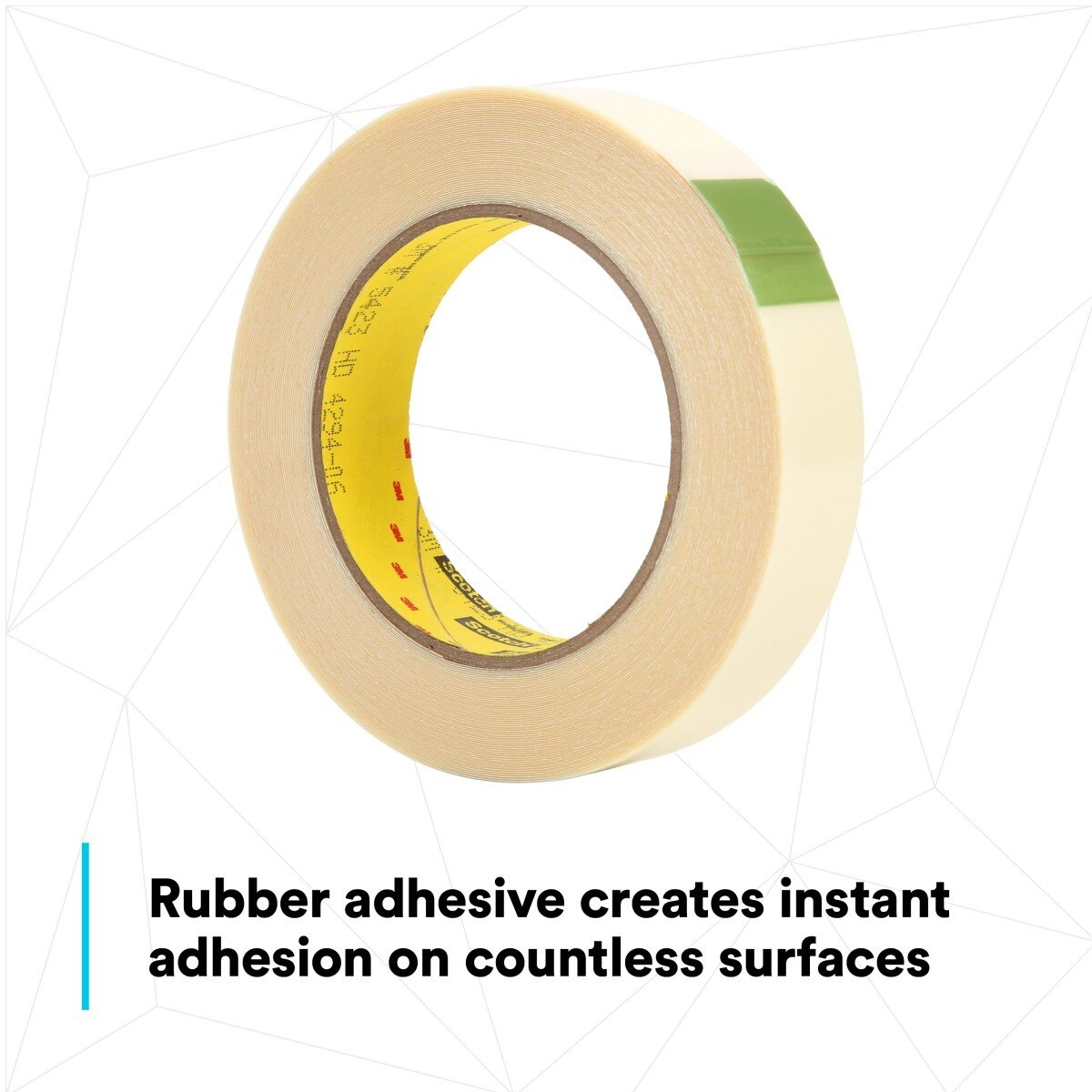

- Rubber adhesive provides fast, strong adhesion to many surfaces
- Can help reduce unwanted noise such as buzz, squeaks, and rattles caused by movement
- Built in liner supports easier fabrication and die cutting
- Good chemical resistance and long wear life for demanding applications

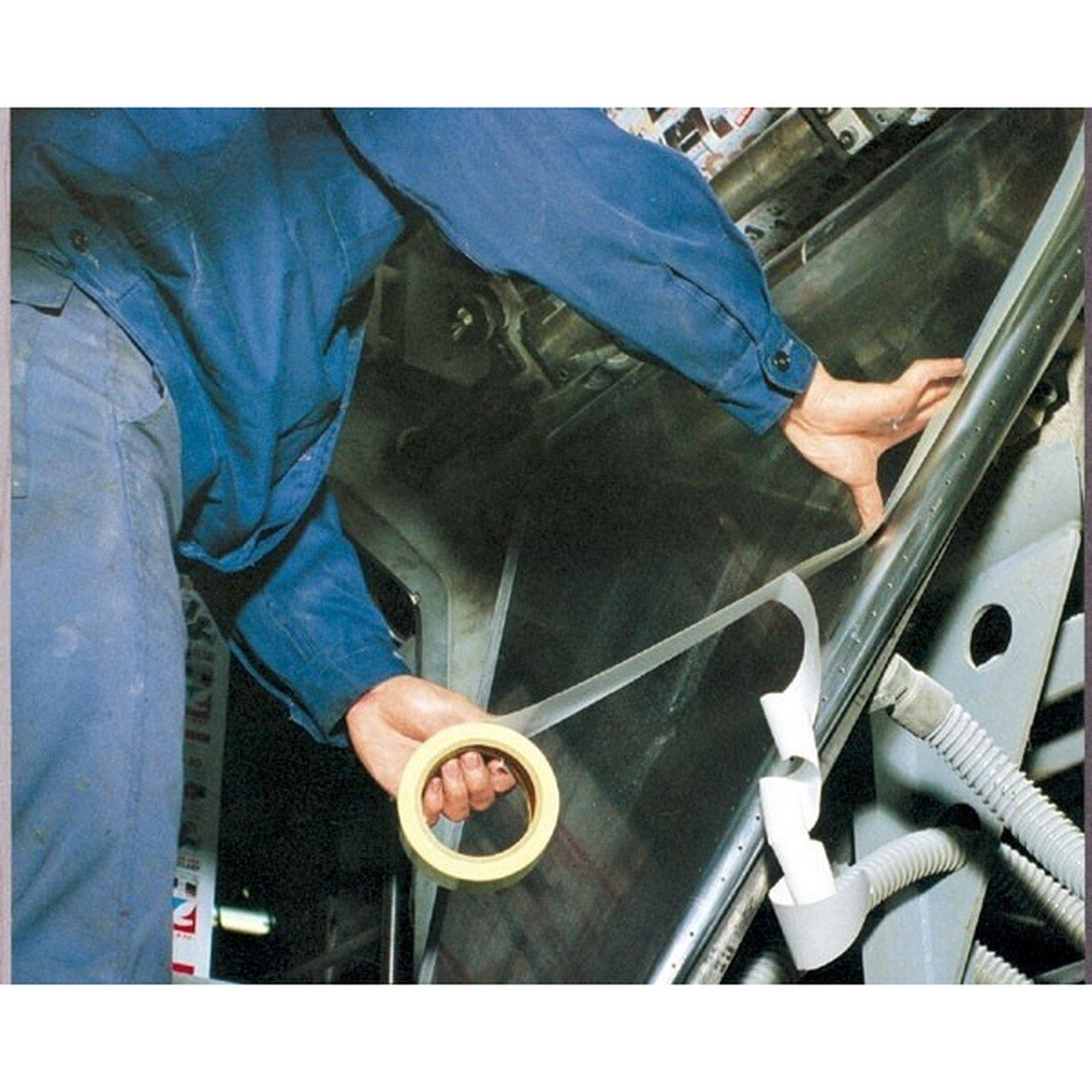

- Common uses include conveyor guide rails and chutes, spray booth liners, tank and bin liners, and drawer or cabinet slides
3M 7000029146 Specifications
| 3M Product Number | 5423 |
| Product Form | Roll |
| Color | Transparent |
| Overall Width | 1.0 in |
| Overall Length | 18.0 yd |
| Overall Thickness | 12.0 mil |
| Backing Material | Ultra-high Molecular Weight Polyethylene |
| Adhesive Type | Rubber |
| Adhesion Strength | 26.0 oz/in |
| Tensile Strength | 55.0 lb/in |
| Maximum Operating Temperature | 225 Degree Fahrenheit |
| Minimum Operating Temperature | -30 Degree Fahrenheit |
| Specifications Met | ASTM D3330, ASTM D3652, ASTM D3759 |
| Case Quantity | 9 rolls per case |
Toolup Part # :
849102
