3M 7000148820 Description

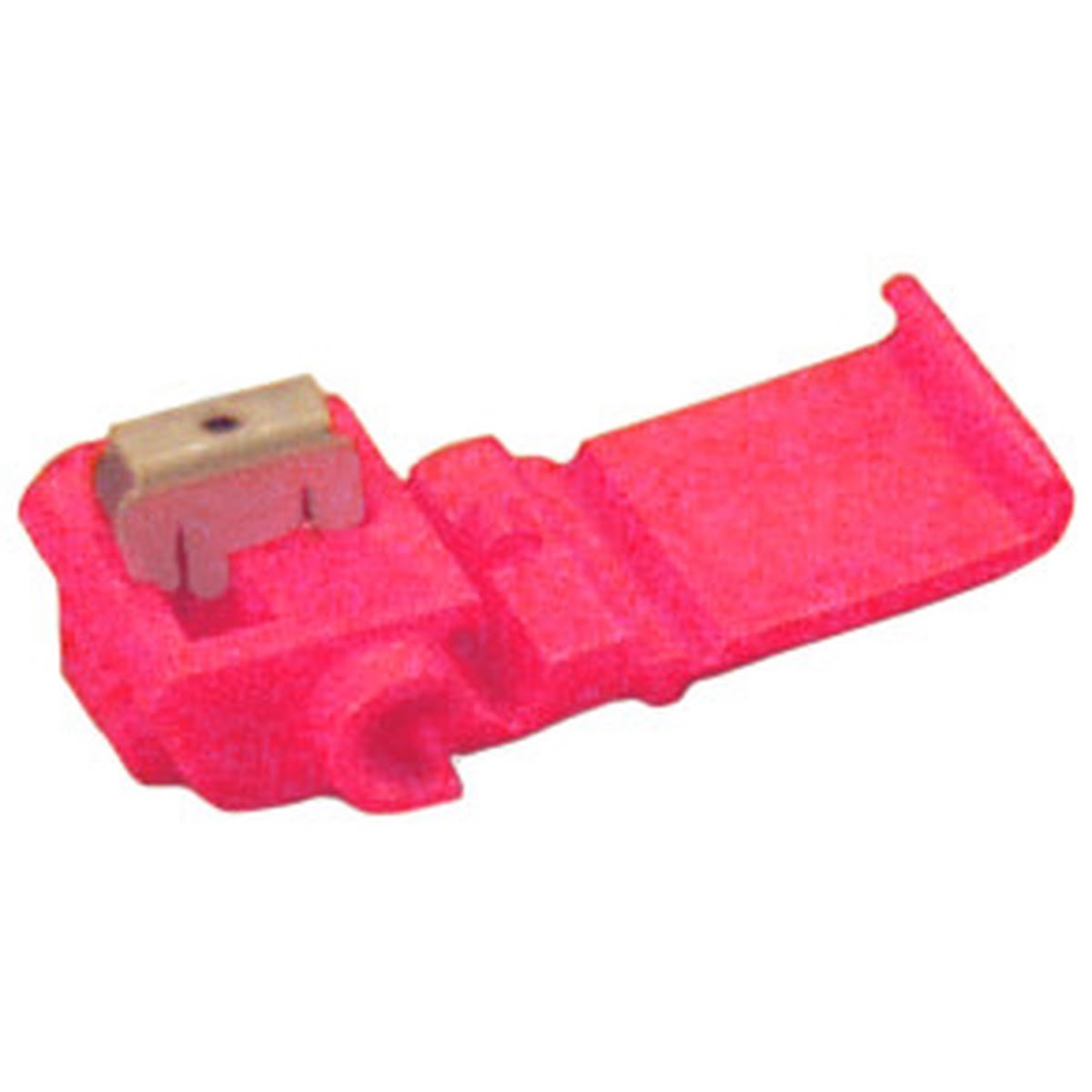

3M Scotchlok 557-BULK insulation displacement connectors provide a dual element pigtail connection for joining two wires while insulating the splice. Designed for 22 to 16 AWG solid or stranded wire, these self-stripping polypropylene connectors are flame retardant and rated up to 600V. The connector withstands temperatures up to 221 Degree F (105 Degree C) and is UL Listed, CSA Certified, and RoHS 2011/65/EU compliant.
3M 7000148820 Includes
- (5000) 3M Scotchlok 557-BULK Electrical IDC Connectors
3M 7000148820 Features
- Insulation displacement connector for fast splicing without stripping wire
- Pigtail connection style
- Accommodates 22 to 16 AWG solid or stranded conductors
- Polypropylene insulation with tinned brass fitted contact body
- Flame retardant construction
- Rated 600V for building wire and 1000V for signs fixtures and luminaires
- Maximum operating temperature 221 Degree F (105 Degree C)
- UL Listed and CSA Certified
- RoHS 2011/65/EU compliant without exemption
- Recommended crimping tool E-9BM
- Red insulation color for quick identification
3M 7000148820 Specifications
| Brand | 3M Scotchlok |
| Part Number | 557-BULK |
| Product Type | IDC Connector |
| Connection Type | Pigtail |
| Wire Range | 22-16 AWG |
| Connector Style | Insulation Displacement |
| Color | Red |
| Insulation Material | Polypropylene |
| Maximum Recommended Voltage Rating | 600 V |
| Maximum Operating Temperature | 105 Degree Celsius |
| Flame Retardant | Yes |
| Max Number of Cores | 2 |
| Recommended Crimping Tool | E-9BM |
| Moisture Resistant | No |
| Case Quantity | 5000 |
