3M 7100166937 Description

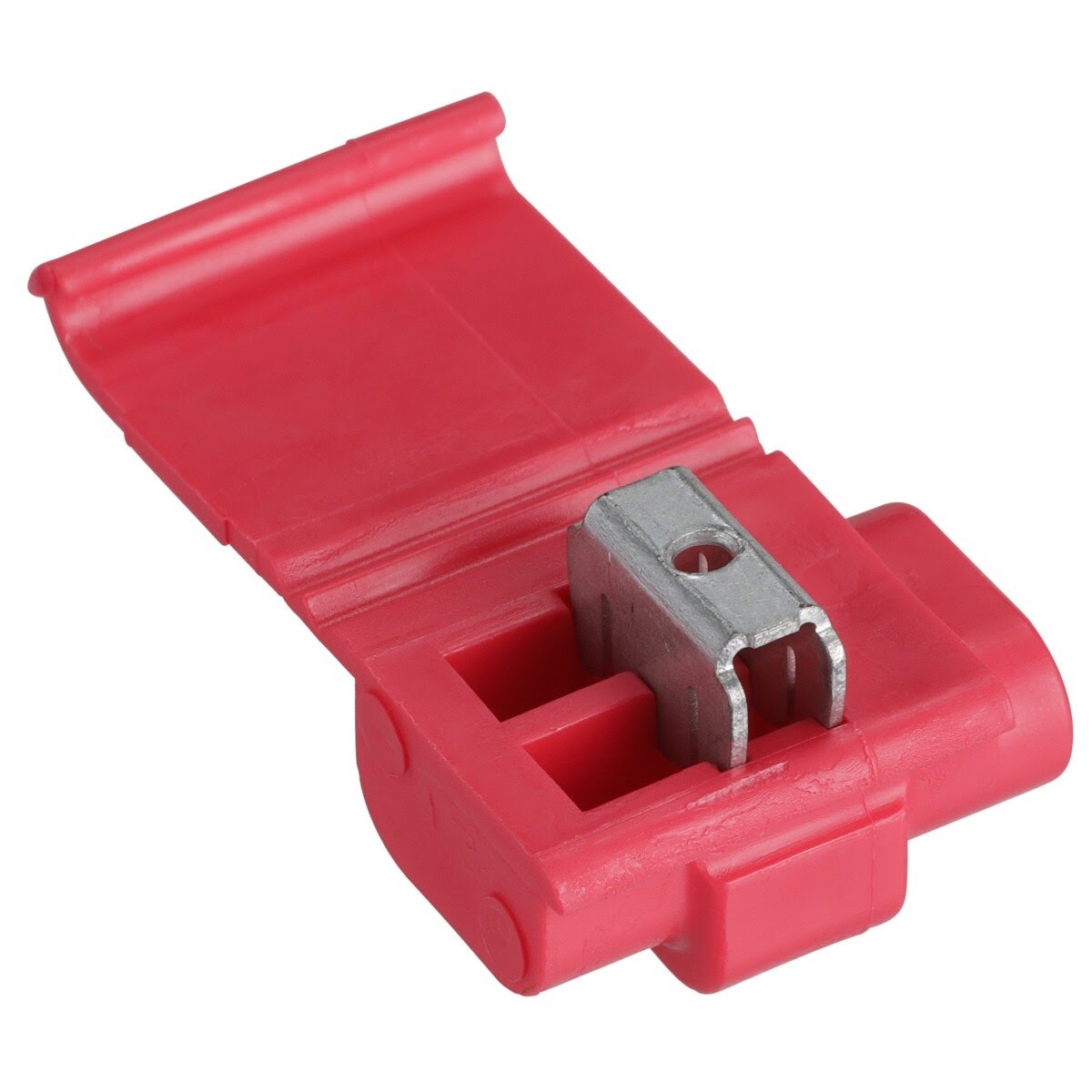

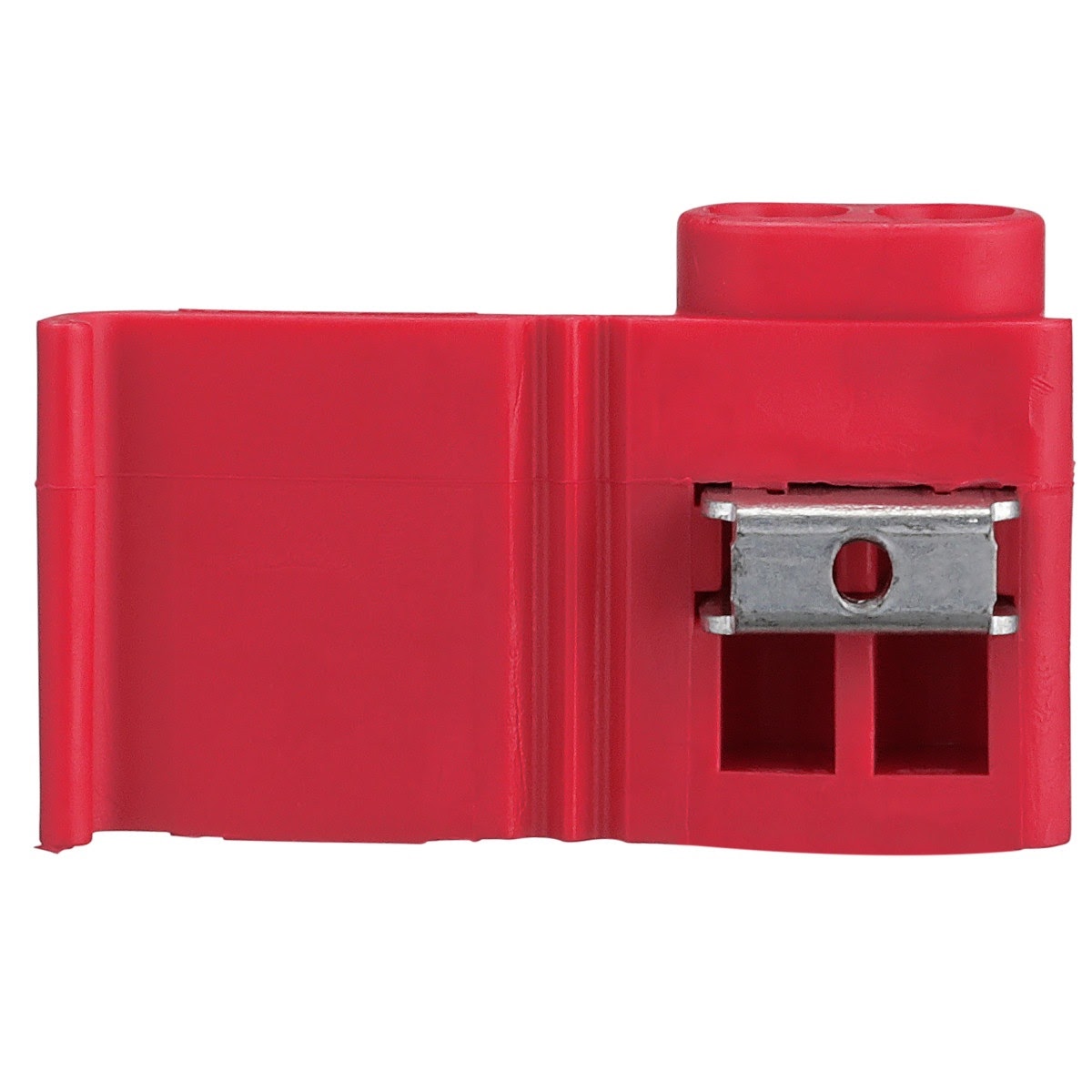

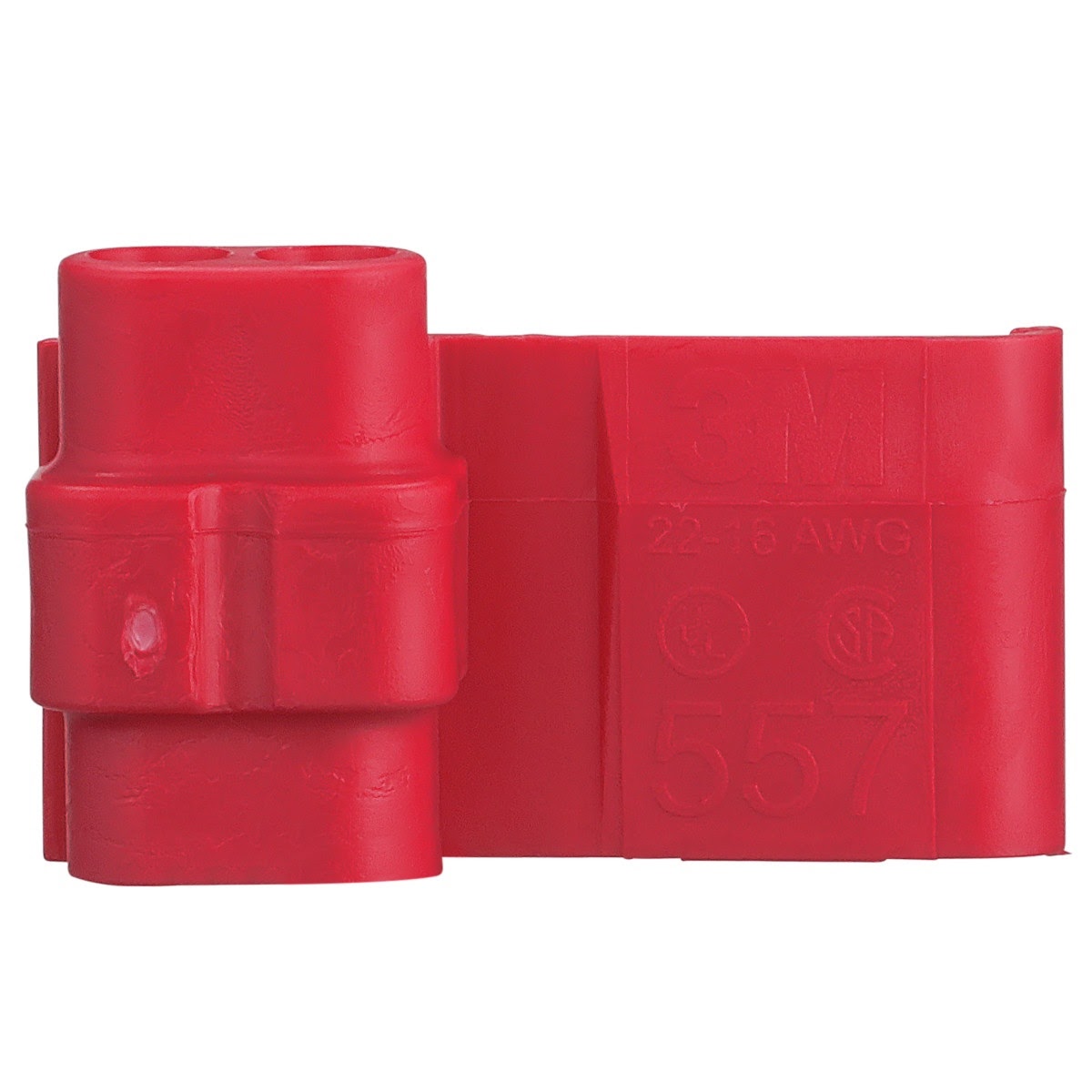

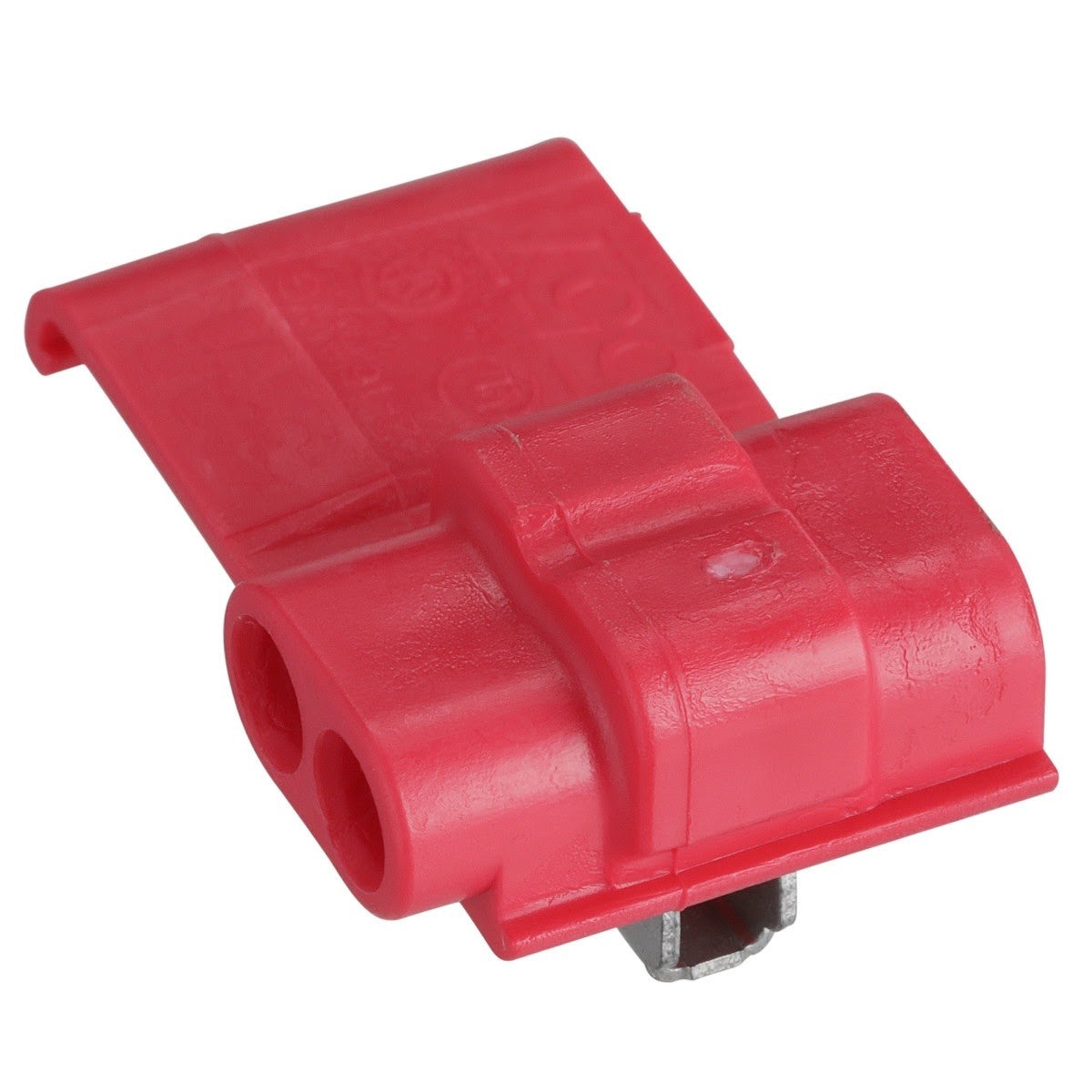

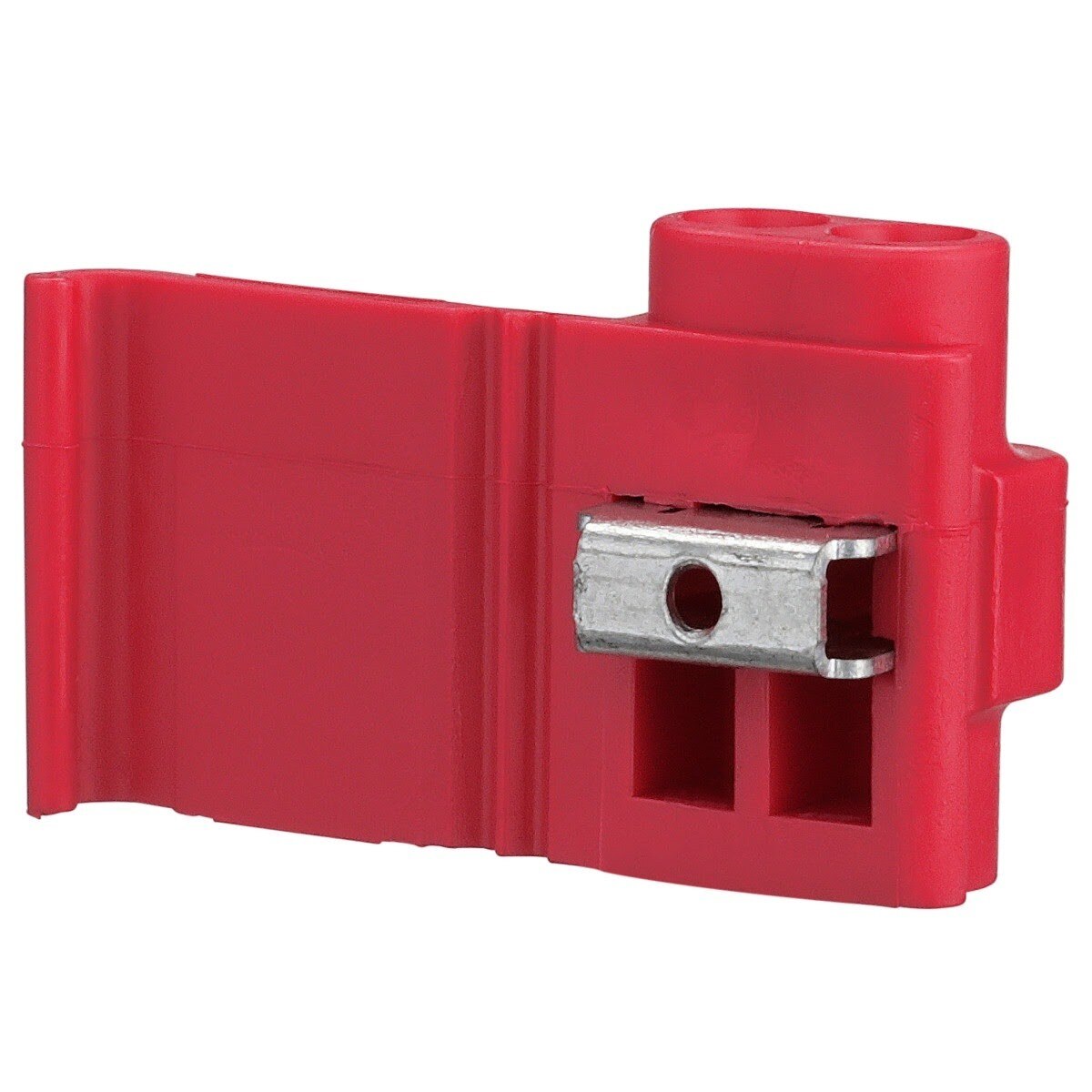

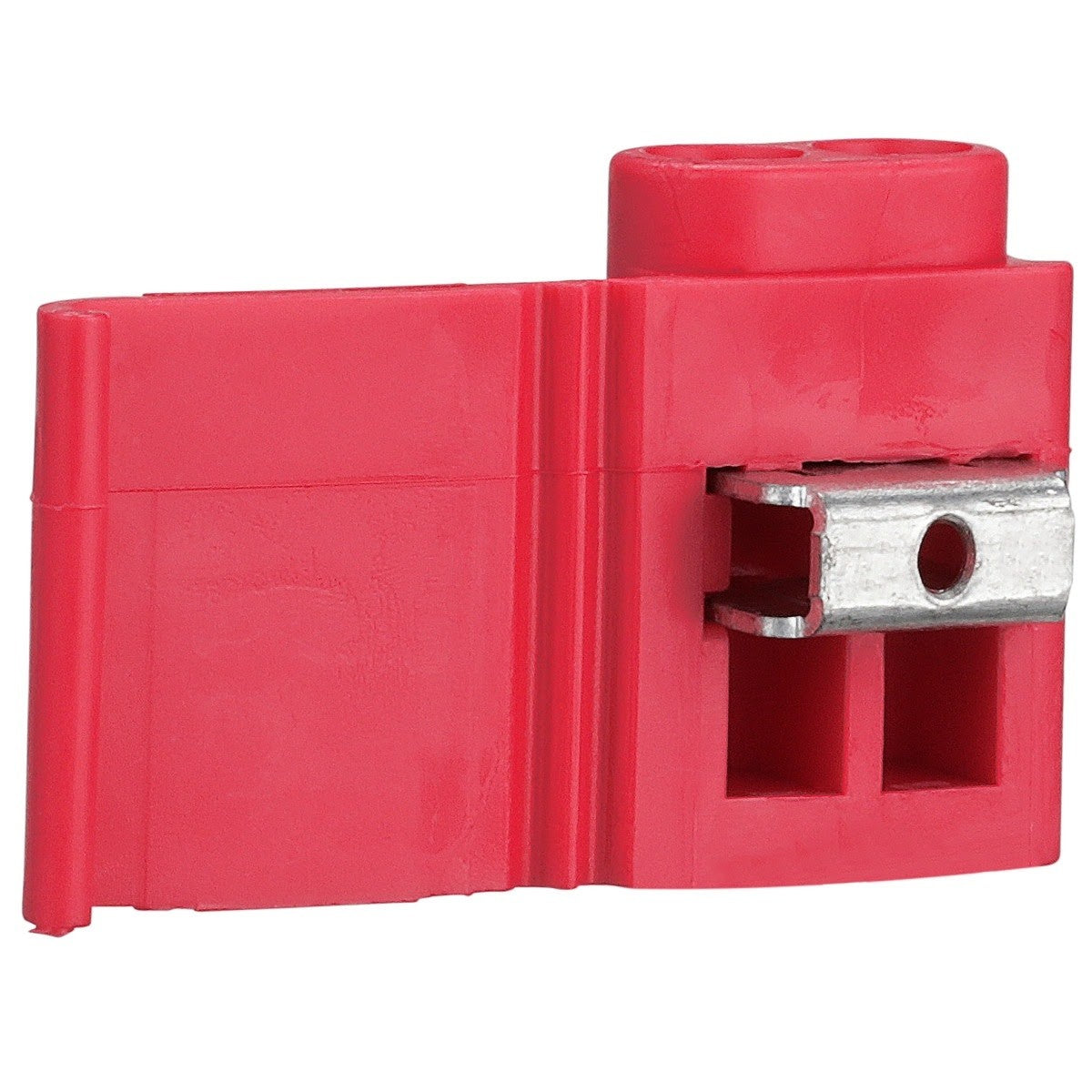

3M Electrical IDC 557 self stripping pigtail connector helps make fast insulated wire connections without pre stripping. This red insulation displacement connector is flame retardant and sized for 22 to 16 AWG solid or stranded wire. Supplied as 100 connectors per bag.
3M 7100166937 Includes
- (1000) - 3M 7100166937 Scotchlok Electrical Idc 557, Pigtail, Self-Stripping, Red, 22-16 Awg
3M 7100166937 Features
- Self stripping insulation displacement design for quick pigtail connections
- Accommodates 22 to 16 AWG solid or stranded wire
- Flame retardant polypropylene insulation
- Dual element connection design
- UL Listed and CSA Certified
- RoHS 2011/65/EU compliant
- Rated up to 600 V for building wire applications and up to 1000 V for signs fixtures and luminaires
- Maximum operating temperature 105 Degree Celsius 221 Degree Fahrenheit
- Recommended crimping tool E 9BM or 9 inch linemans pliers
3M 7100166937 Specifications
| Product Type | IDC Connector |
| Connection Type | Pigtail |
| Connector Style | Insulation Displacement |
| Wire Range | 22-16 AWG |
| Color | Red |
| Insulation Material | Polypropylene |
| Flame Retardant | Yes |
| Maximum Recommended Voltage Rating | 600 V |
| Maximum Operating Temperature | 105 Degree Celsius |
| Recommended Crimping Tool | E-9BM |

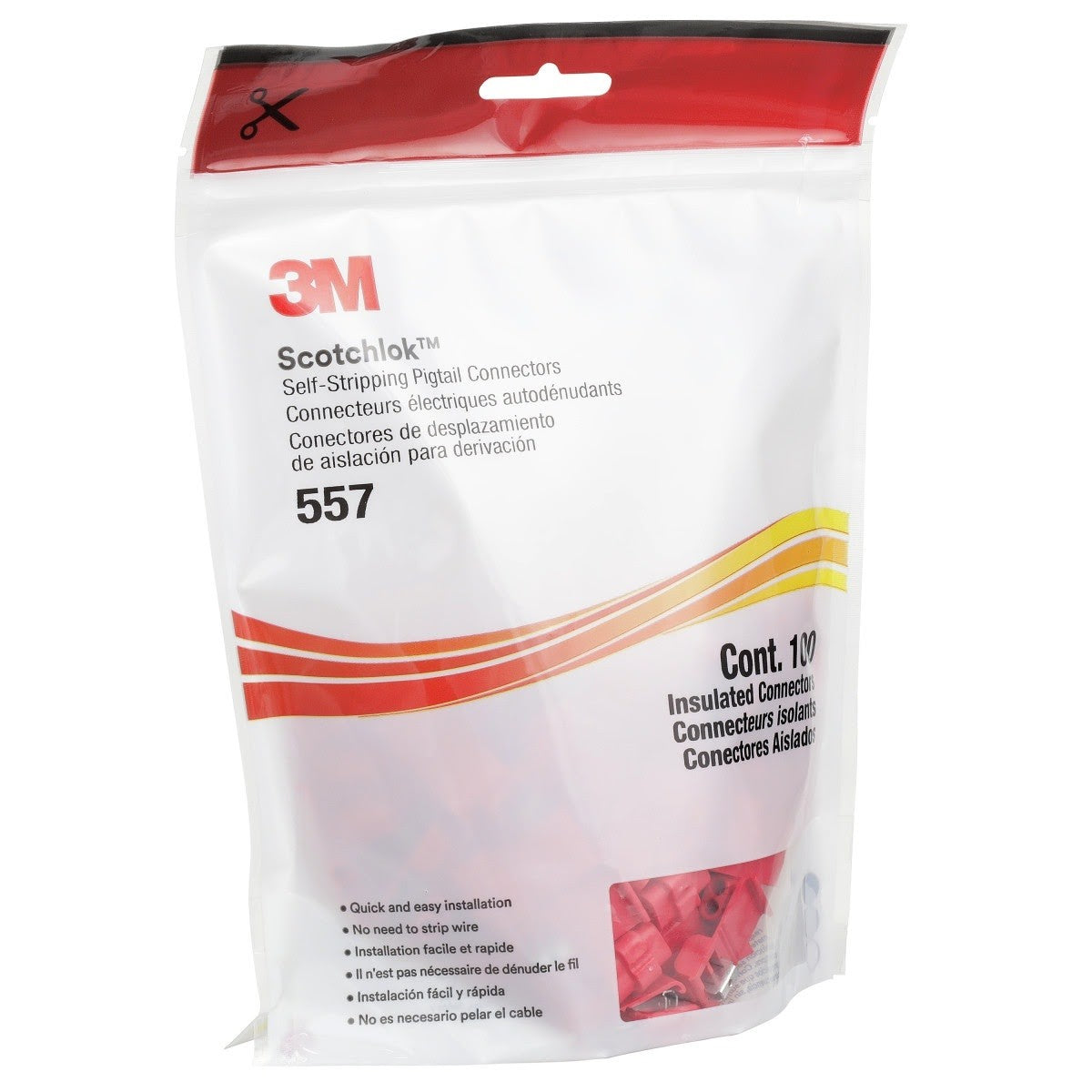

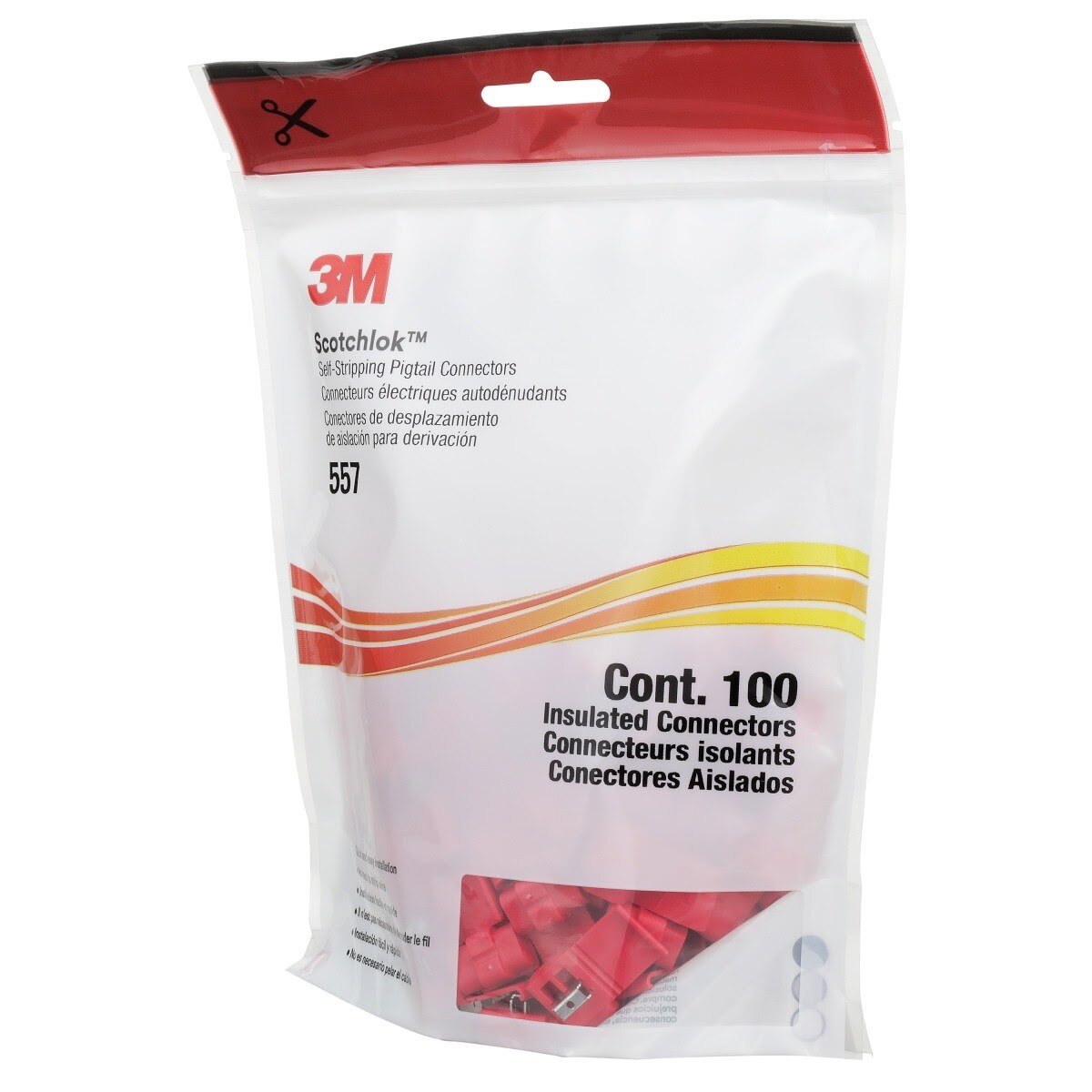

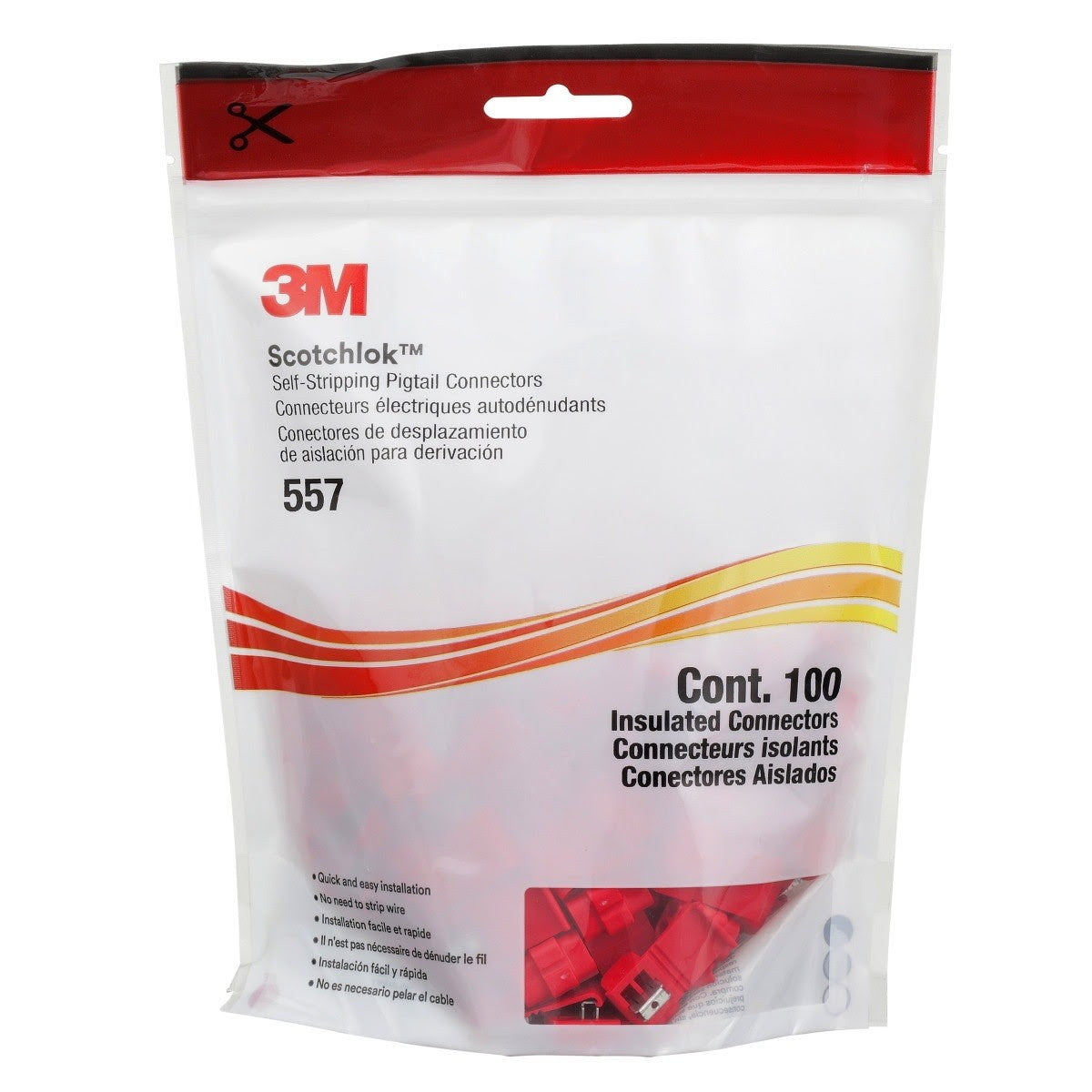

| Package Quantity | 100 per bag |
| Part Number | 557-POUCH |
