3M 7000005800 Description

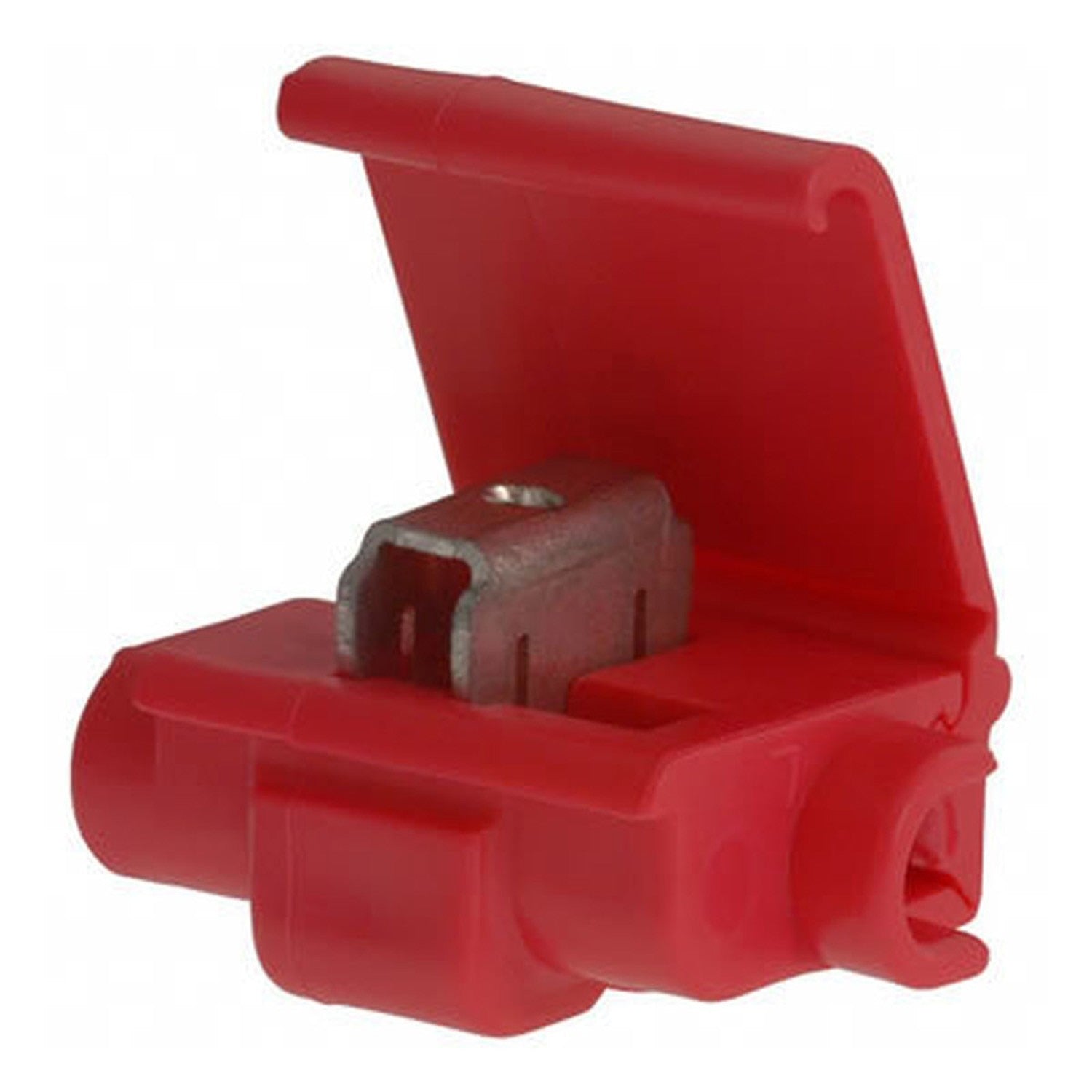

The 3M Scotchlok 558-BULK electrical insulation displacement connector makes quick run-and-tap connections while insulating the splice. This flame-retardant, red connector is designed for 22-16 AWG solid or stranded wire and features a polypropylene insulated, self-stripping design for reliable electrical connections.
3M 7000005800 Includes
- (5000) - 3M 7000005800 Electrical IDC 558-BULK, Run and Tap, Flame Retardant, Red, 22-16 AWG
3M 7000005800 Features
- Run-and-tap insulation displacement connector for quick splices without stripping insulation

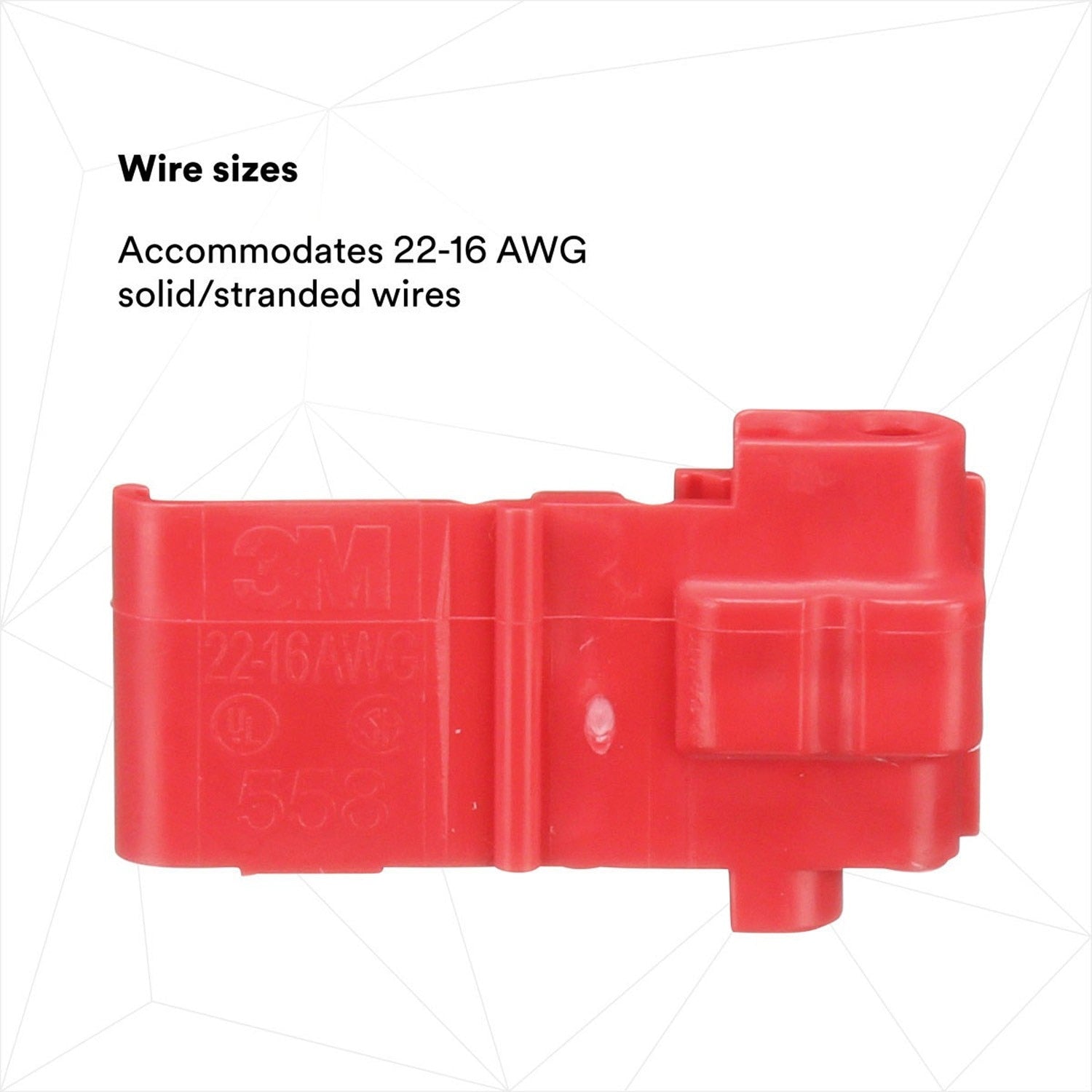

- Fits 22-16 AWG solid or stranded wire
- Flame-retardant polypropylene insulated, self-stripping design

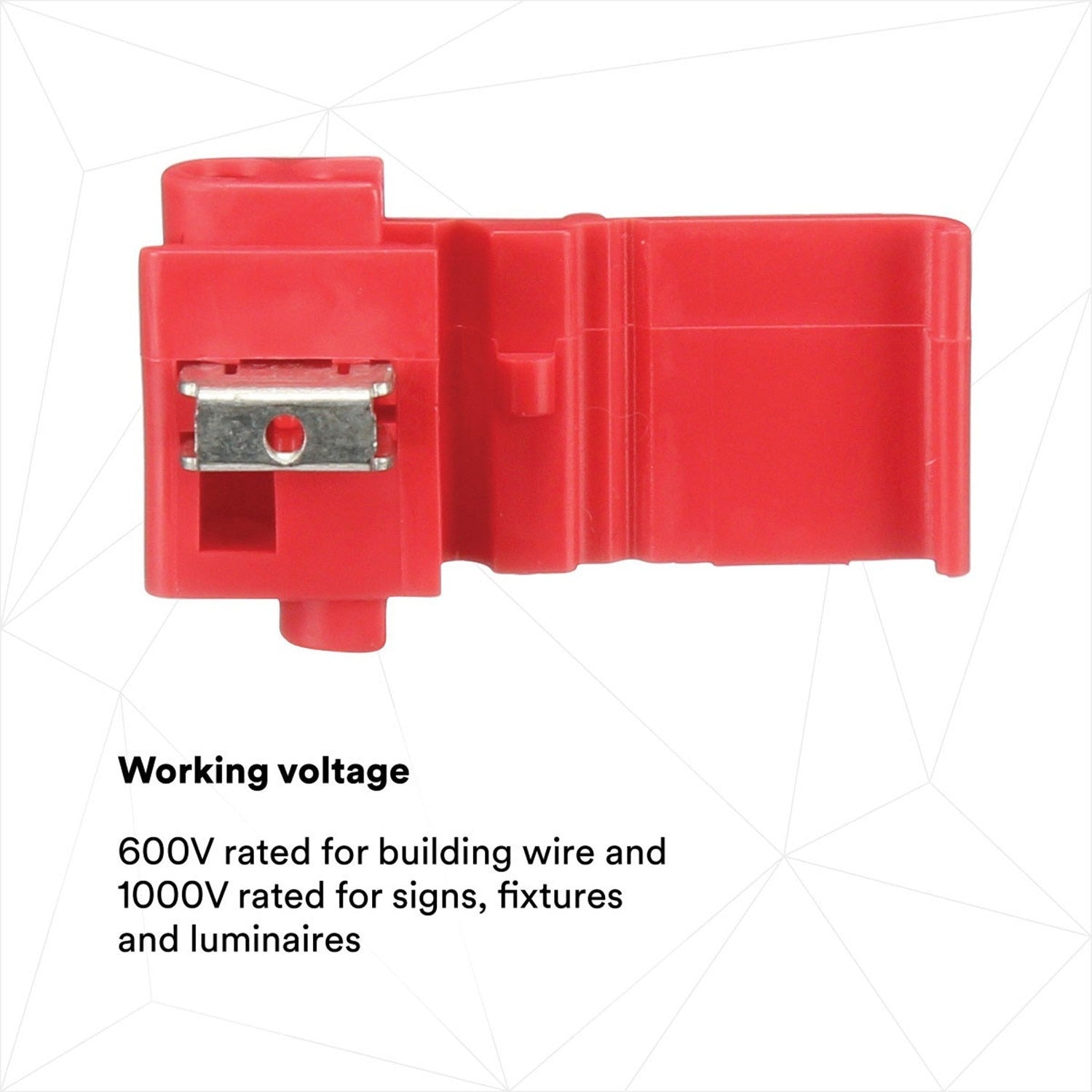

- 600V rated for building wire and 1000V rated for signs, fixtures and luminaires

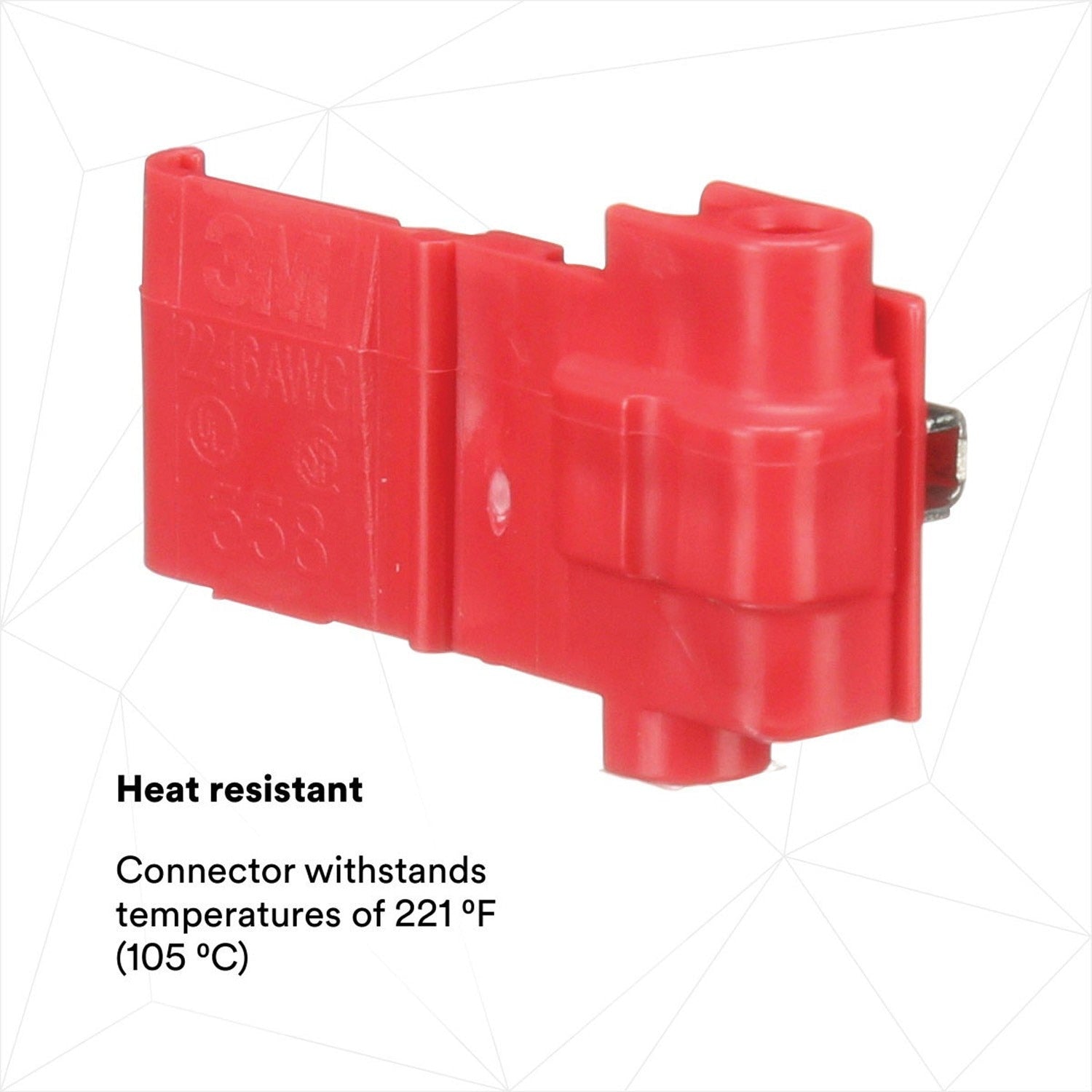

- Withstands temperatures up to 221 Degree Fahrenheit (105 Degree Celsius)
- Recommended crimping tool: 3M E-9BM or 9 in. linemans pliers

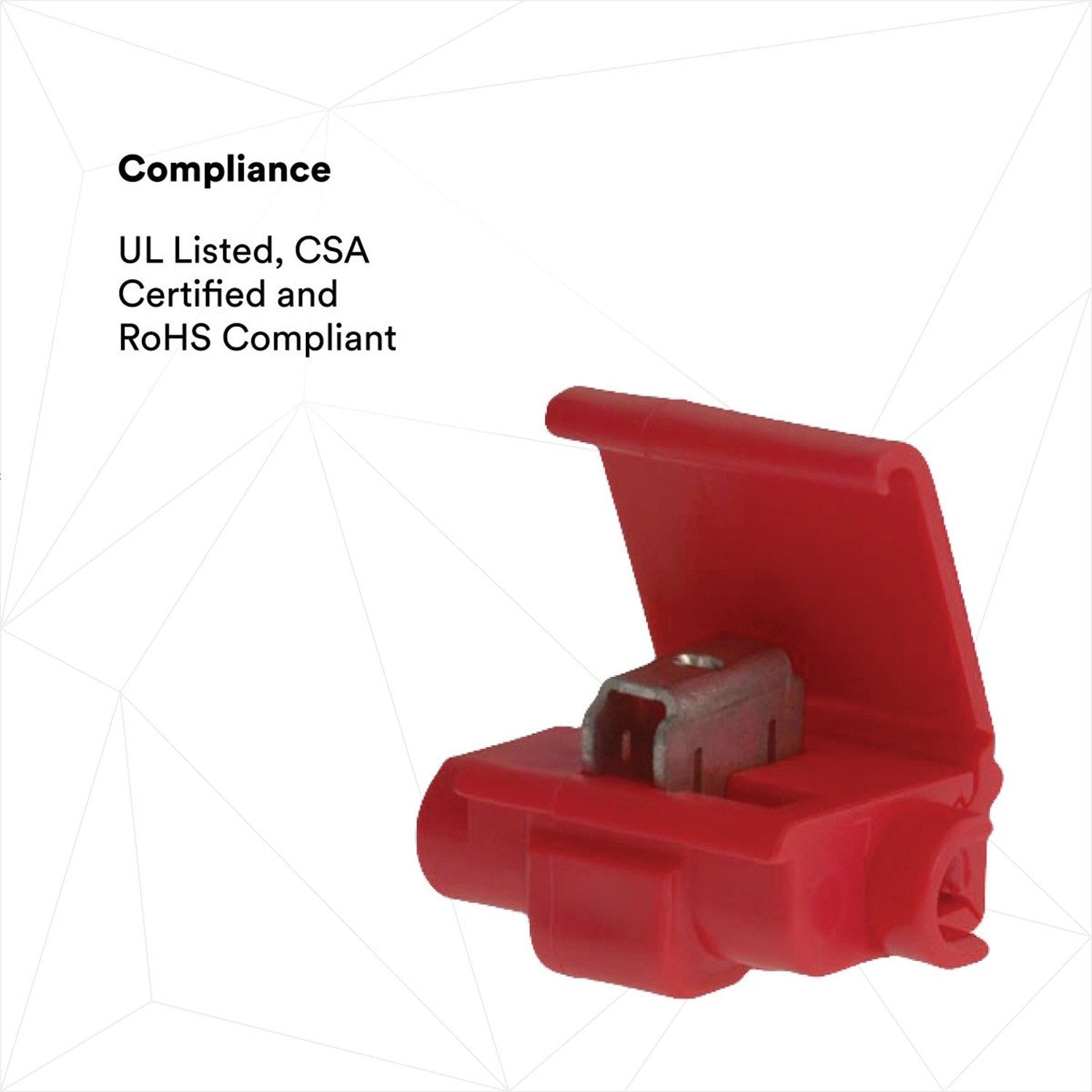

- UL Listed, CSA Certified and RoHS compliant

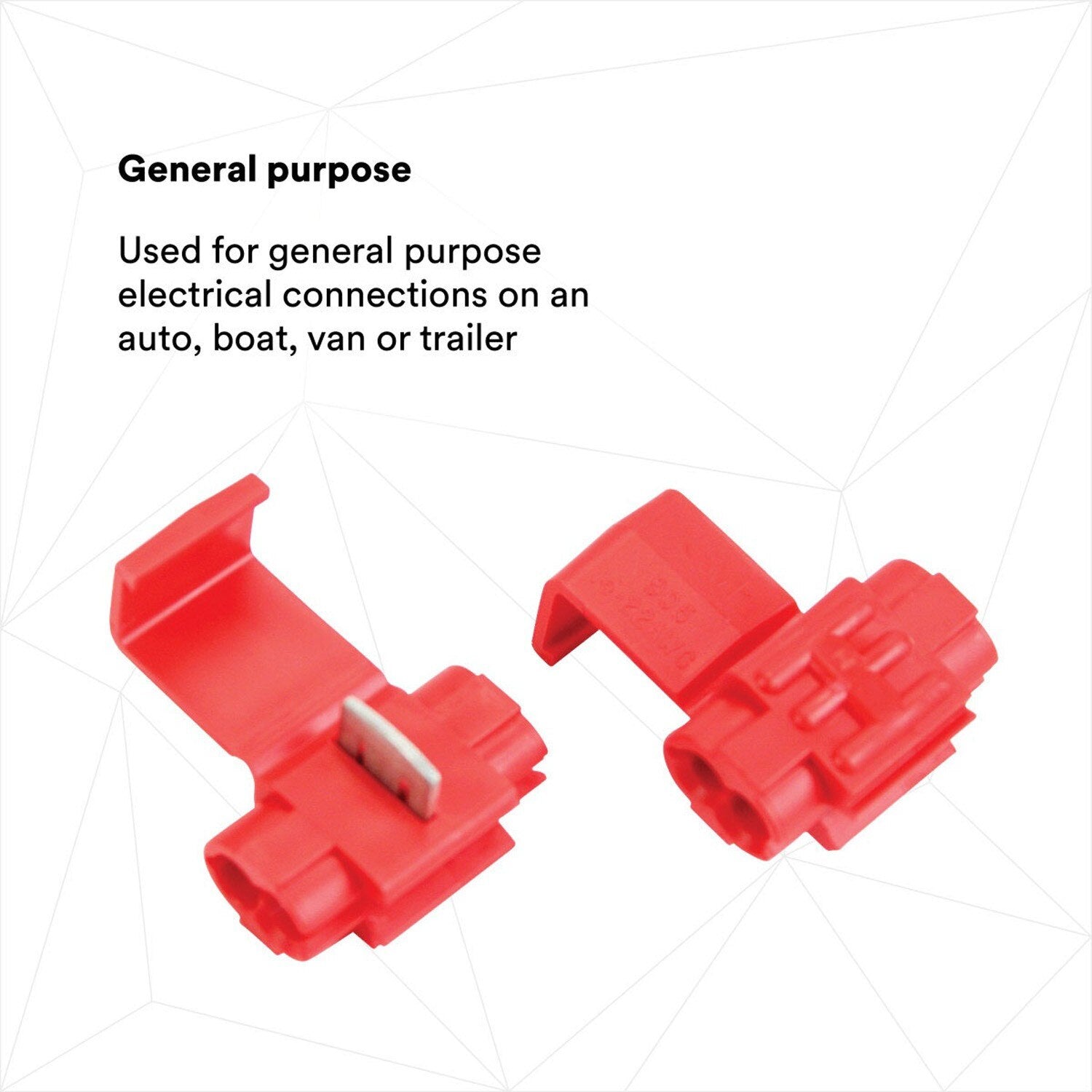

- General-purpose electrical connections for automotive, boat, RV, trailer and similar applications
3M 7000005800 Specifications
| Manufacturer | 3M |
| Sub-Brand | Scotchlok |
| Part Number | 558-BULK |
| Product Type | Run & Tap |
| Connector Style | Insulation Displacement |
| Wire Range | 22-16 AWG |
| Color | Red |
| Flame Retardant | Yes |
| Insulation Material | Polypropylene (FR) |
| Contact Material | Tin-plated Brass |
| Voltage Rating | 600 V (building wire); 1000 V (signs/fixtures/luminaires) |
| Maximum Operating Temperature | 105 Degree Celsius |
| Certifications | UL Listed; CSA Certified; RoHS 2011/65/EU compliant |
| Recommended Crimping Tool | E-9BM or 9 in. Linemans Pliers |
| Package Quantity | 500 |
Toolup Part # :
861207
