At a Glance
Sub-Brand
Scotchlok
Material
Polypropylene
Application
Electrical
Description
Description
3M 7100166940 Description

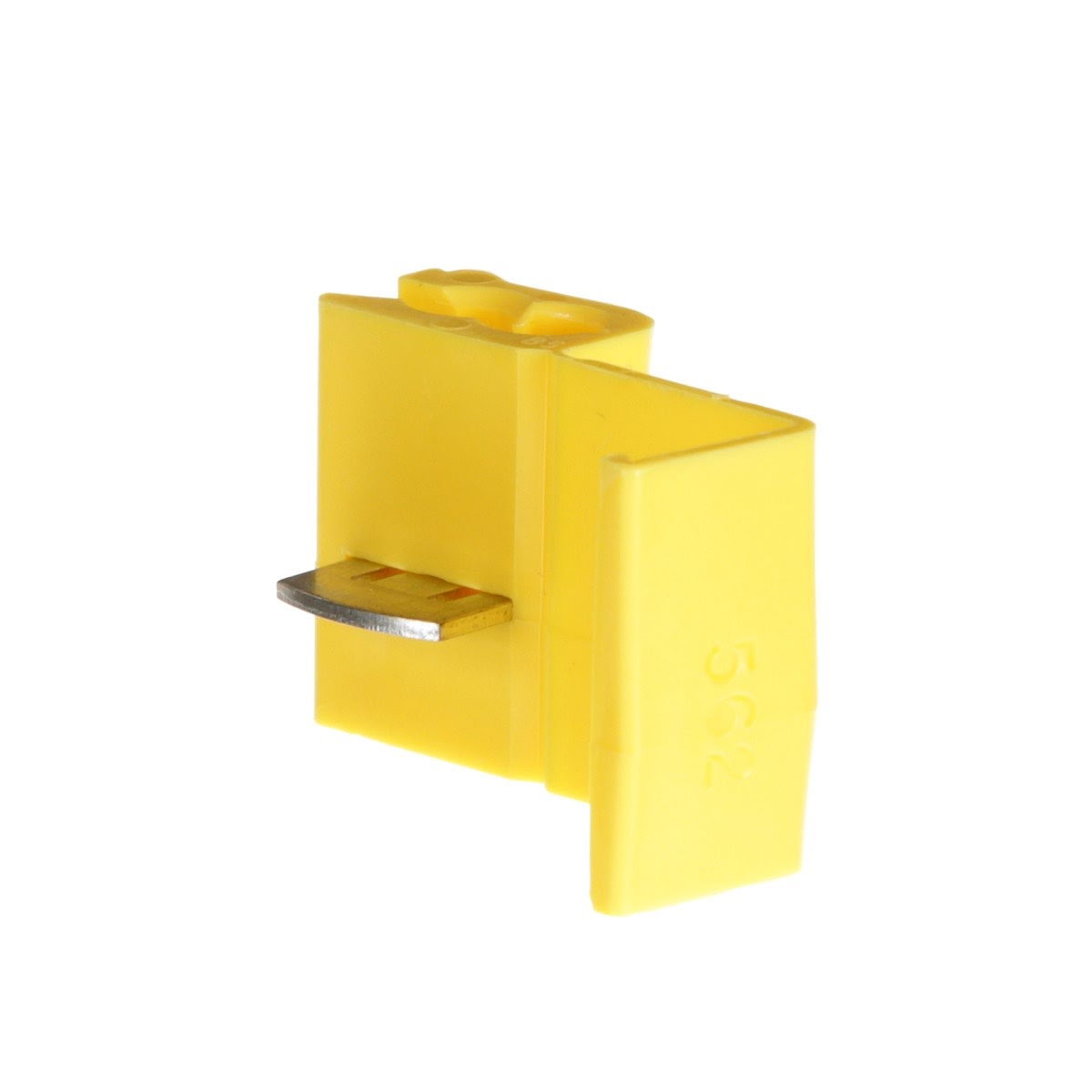

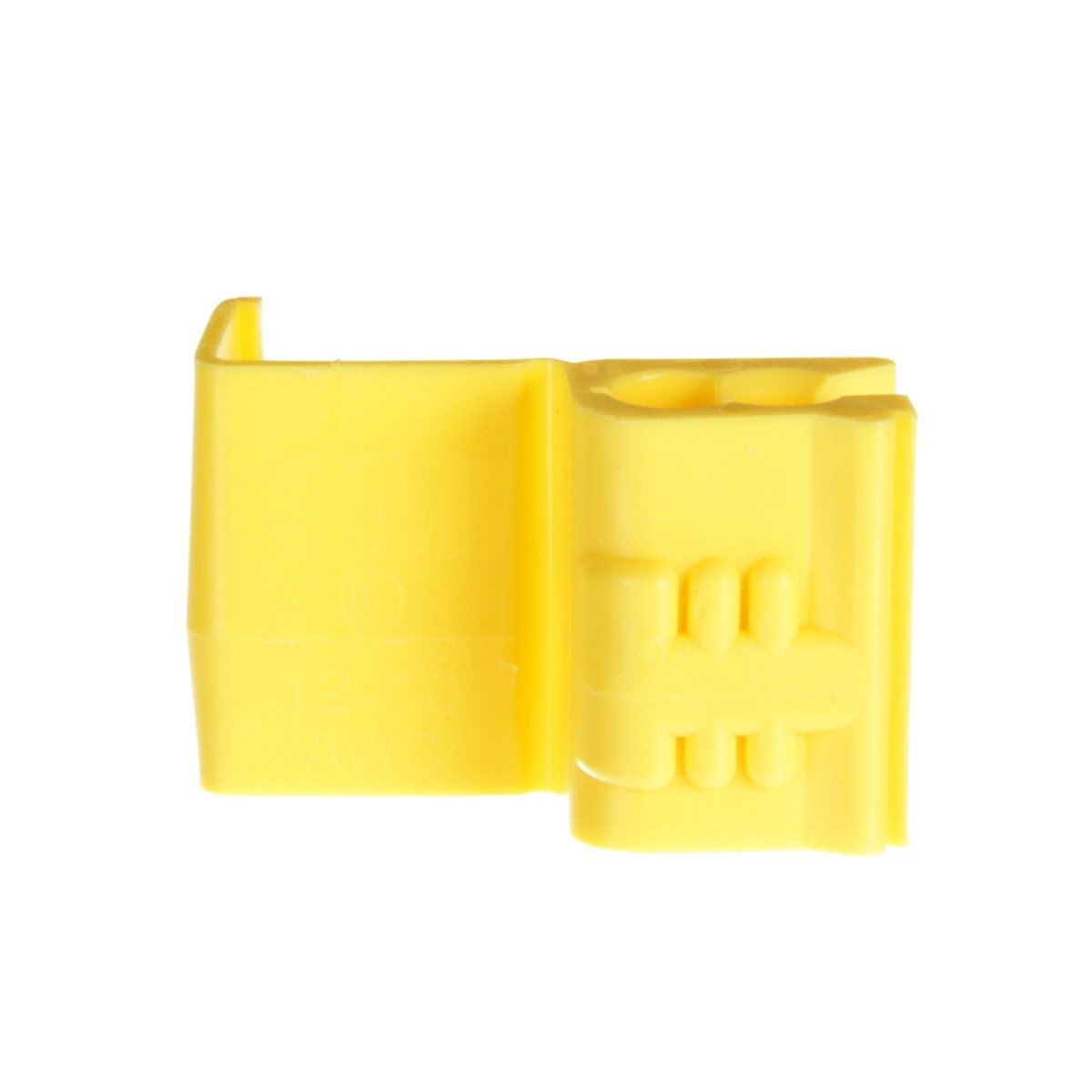

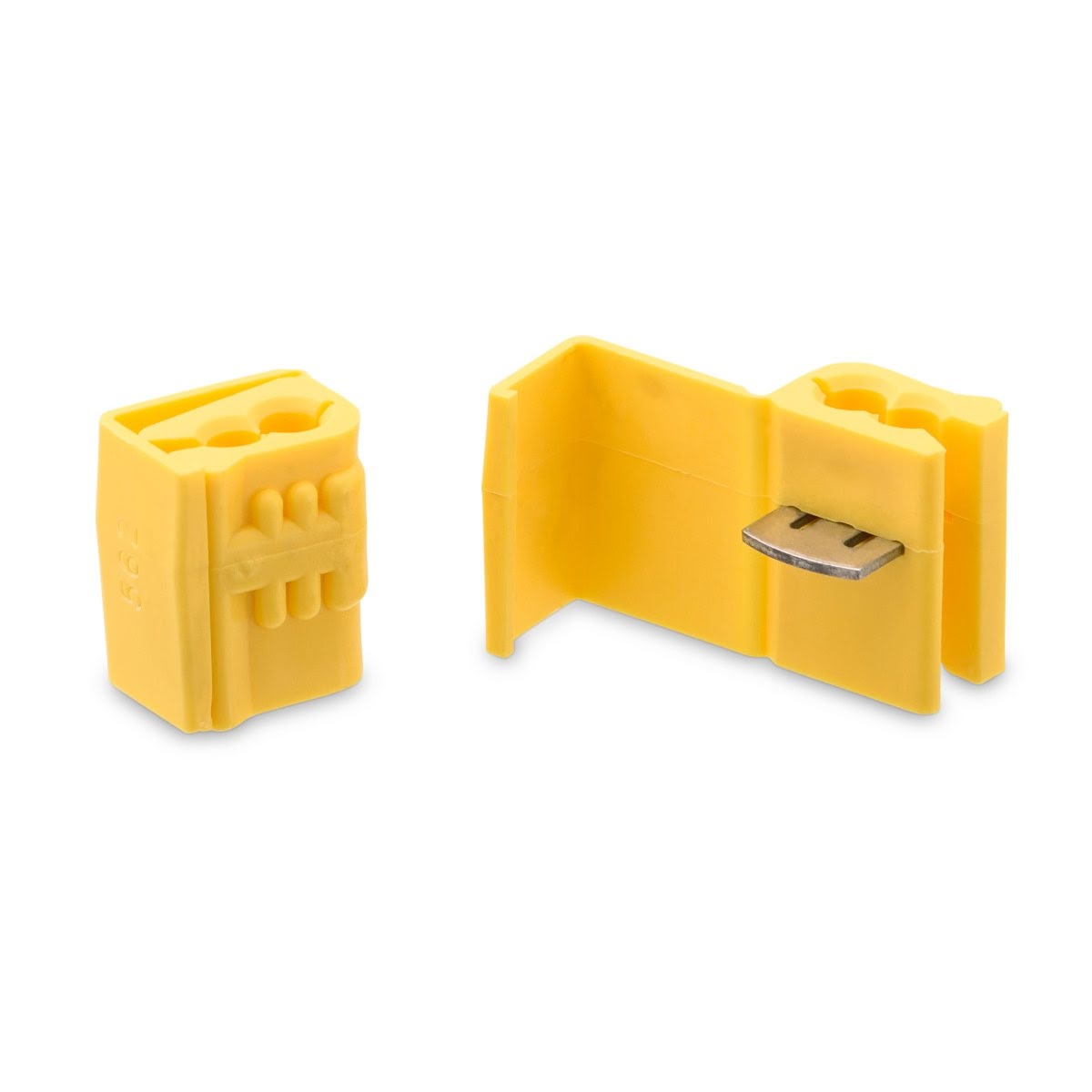

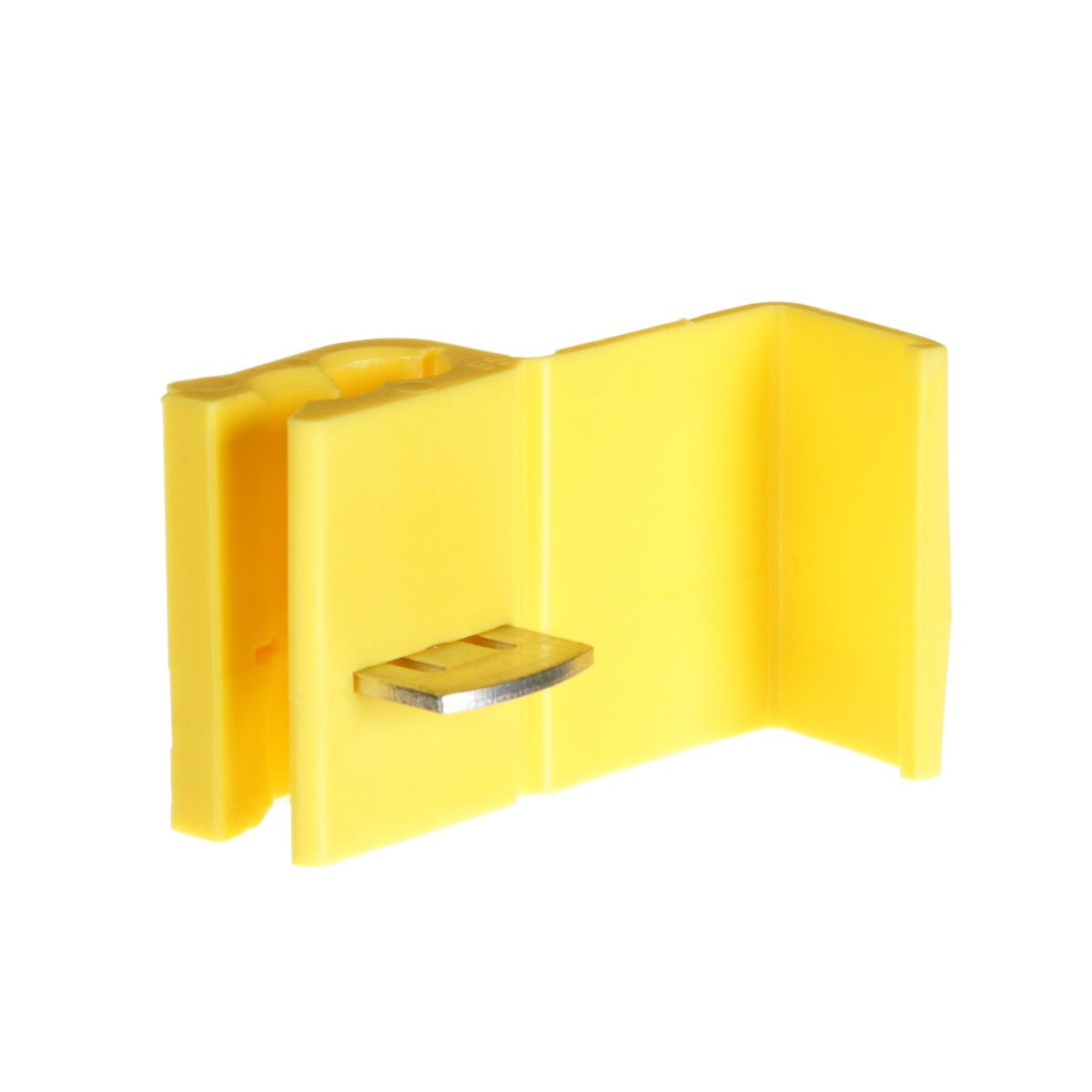

3M Scotchlok 562 insulation displacement connectors are self-stripping tap connectors designed for double run or tap splicing. These yellow, flame-retardant IDC connectors help make secure connections without pre-stripping conductors.
3M 7100166940 Includes
- (1000) - 3M 7100166940 Scotchlok Electrical IDC 562-BOX, Double Run or Tap, Flame Retardant, Yellow, 12 AWG (solid/stranded), 10 AWG (stranded) (562-POUCH)
3M 7100166940 Features
- Insulation displacement IDC connector style for self-stripping connections
- Connection type double run or tap for tap or parallel splicing
- Flame-retardant polypropylene insulation
- Designed for 12 AWG solid stranded and 10 AWG stranded conductors
- UL listed and RoHS 2011 65 EU compliant
- Yellow color for quick identification
3M 7100166940 Specifications
| Product Type | Connector |
| Wire Connector Type | IDC Connectors |
| Connection Type | Double Run or Tap |
| Connector Style | Insulation Displacement |
| Color | Yellow |
| Flame Retardant | Yes |
| Insulation Material | Polypropylene |
| Conductor Sizes | 12 AWG solid stranded and 10 AWG stranded |
| Maximum Recommended Voltage Rating | 600 V |
| Maximum Operating Temperature | 194 Degree Fahrenheit |
| Package Quantity | 100 per pouch |
| Package Length (in) | 7.0 |
| Package Width (in) | 4.0 |
| Package Height (in) | 11.5 |
| Package Weight (lbs) | 0.7753657761042144 |
Toolup Part # :
860970
