3M 7000140753 Description

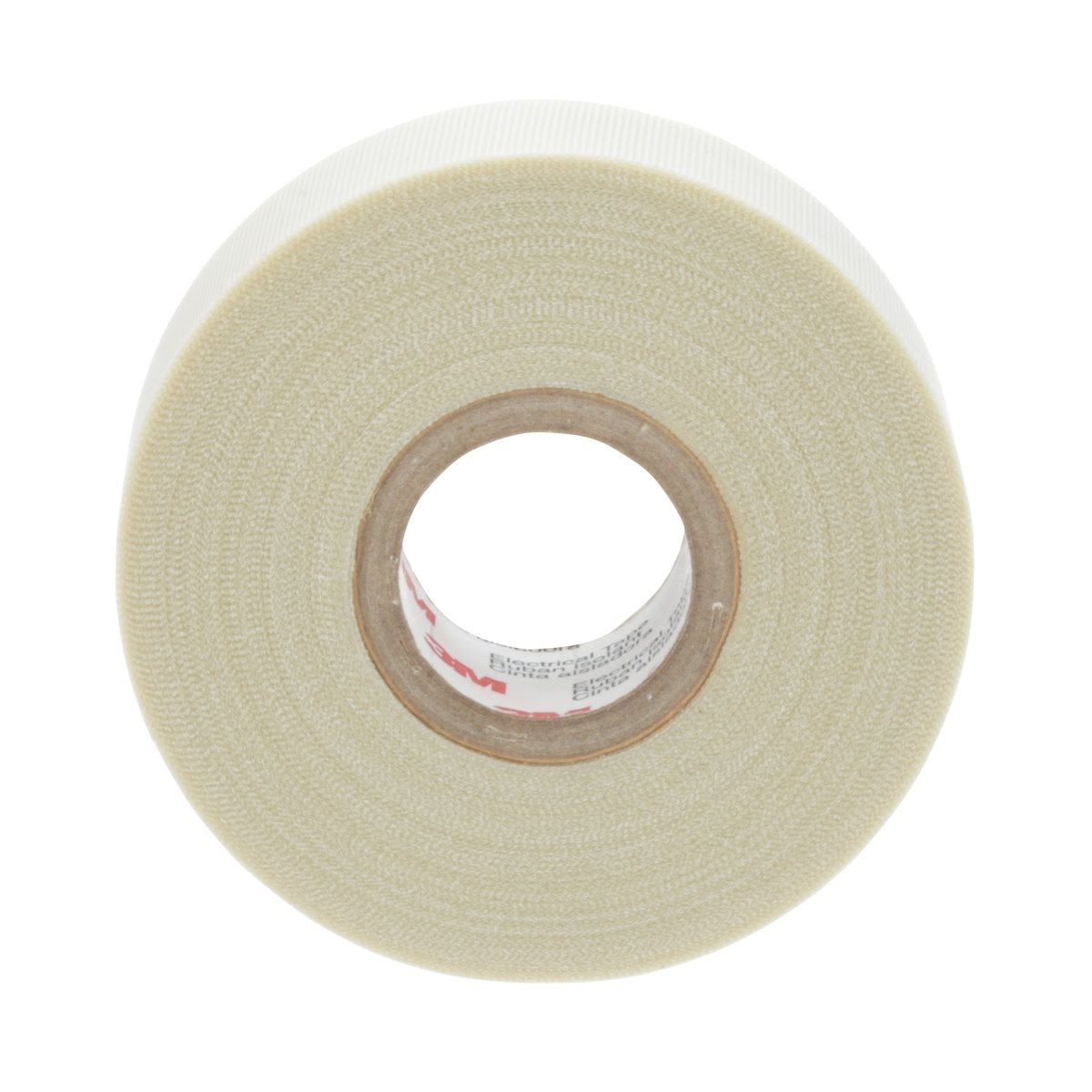

3M Glass Cloth Electrical Tape 69 is a premium grade white glass cloth electrical tape with a pressure sensitive silicone adhesive designed for high temperature performance. It is suitable for electrical insulation and protection in coil, transformer, and motor applications, and is recognized for flame retardancy and compliance to key industry specifications.
3M 7000140753 Includes
- (36) 3M Glass Cloth Electrical Tape 69 Roll, 1 in x 36 yd, White
3M 7000140753 Features
- Premium grade glass cloth electrical tape with pressure sensitive silicone adhesive
- High temperature rated for demanding electrical insulation applications
- Flame retardant and UL Recognized
- Printable surface
- Commonly used for coil, transformer, and motor applications including outer wrap and lead anchoring
- RoHS compliant and QPL listed
- 5 year shelf life when stored per recommended conditions
3M 7000140753 Specifications
| Product Type | Glass Cloth Electrical Tape |
| Series | 69 |
| Color | White |
| Backing Material | Glass cloth |
| Adhesive Type | Silicone |
| Tape Grade | Professional |
| Overall Width | 1.0 in |
| Overall Length | 36.0 yd |
| Nominal Thickness | 0.178 mm (7.0 mil) |
| Voltage Rating | Up to 600 V (dry locations) |
| Temperature Rating | UL 200 Degree C (392 Degree F), CSA 180 Degree C (356 Degree F) |
| Specifications Met | CSA, RoHS 2011/65/EU, UL Recognized |
| Shelf Life | 5 Year |
| Case Pack | 36 Rolls per case |
| Secondary Part Number | 69 1X36YD |
Toolup Part # :
853163
